COMBI 2072 H - 2019-2021 - 2T0210481/ST1 - Stiga Ride On Mower Grasscatcher Diagram

Name: COMBI 2072 H - 2019-2021 - 2T0210481/ST1 - Stiga Ride On Mower Grasscatcher Diagram
SKU: combi_2072_h_2t0210481_st1_grasscatcher-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 2072 H - 2019-2021 - 2T0210481/ST1 - Stiga Ride On Mower Grasscatcher Diagram

Description

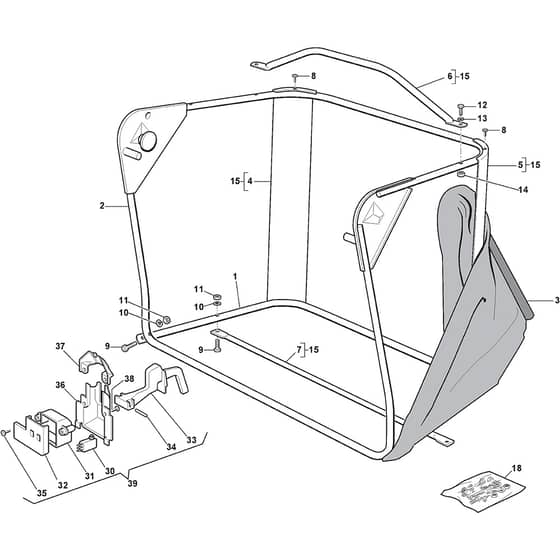

Stiga COMBI 2072 H Parts Diagram

Product Name - COMBI 2072 H

Model Year - 2019-2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210481/ST1

Engine Model - ST 400

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384801103/1 Available to backorder	Lower Frame From S.N 20BA3RON007130	£24.07 £20.06
1	MO384801103/0 Available to backorder	Lower Frame To S.N 20BA3RON007129	£21.26 £17.72
2	MO384801105/1 Available to backorder	Black Upper Grass.Frame	£84.47 £70.39
3	MO184106069/0 Available to backorder	Grasscatcher	£98.54 £82.12
4	MO327010205/0 Available to backorder	Right Angular Support	£14.08 £11.73
5	MO327010207/0 Available to backorder	Left Angular Support	£14.80 £12.33
6	MO384869051/0 Available to backorder	Rod To S.N 20BA3RON008837	£9.80 £8.17
6	MO384869051/1 Available to backorder	Rod From S.N 20BA3RON008838	£11.27 £9.39
7	MO384650100/1 Available to backorder	Stiffening From S.N 20CA3RON000649	£10.27 £8.56
8	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
9	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
10	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
11	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
12	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
13	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO384106051/0 Available to backorder	Angular Support Outfit	£50.68 £42.23
18	MO384180180/0 Available to backorder	Outfit. Screws	£11.96 £9.97
30	MO119410640/0 Available to backorder	Microswitch From S.N 24KA3RON002140	£6.48 £5.40
30	MO119410605/1 In stock	Microswitch To S.N 24KA3RON002139	£39.42 £32.85
31	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.91 £3.26
32	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
33	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
34	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
35	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
36	MO125600047/0 Available to backorder	Grassc.Full Micro Protection Tc 2000	£1.69 £1.41
37	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
38	MO112728450/0 In stock	Screw	£1.55 £1.29
39	MO182394703/0LC Available to backorder	Micrograsscatch Ass.Y To S.N 24KA3RON002349	£43.64 £36.37
