COMBI 2072 H - 2019-2021 - 2T0210481/ST1 - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

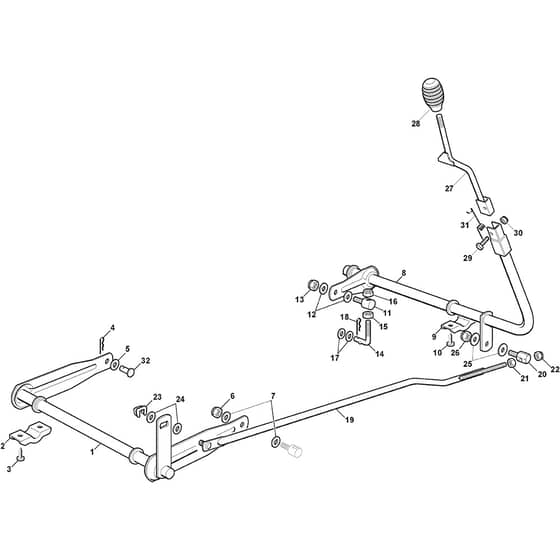

Stiga COMBI 2072 H Parts Diagram

Product Name - COMBI 2072 H

Model Year - 2019-2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210481/ST1

Engine Model - ST 400

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384001025/0 Available to backorder	Lifting Axle	£42.23 £35.19
3	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
8	MO384001005/2 Available to backorder	Lifting Axle	£33.79 £28.16
9	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
10	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
11	MO125510007/2 Available to backorder	Pin	£5.64 £4.70
12	MO325670008/1 In stock	Washer	£1.55 £1.29
14	MO125840003/2 Available to backorder	Tie Rod	£12.38 £10.32
15	MO112295200/0 In stock	Nut	£1.40 £1.17
16	MO112156602/0 In stock	Nut	£1.40 £1.17
17	MO322672150/0 Available to backorder	Antifriction Washer	£1.82 £1.52
18	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
19	MO184002089/1 Available to backorder	Rod	£38.00 £31.67
20	MO125510168/0 Available to backorder	Pin	£4.50 £3.75
21	MO112293200/0 In stock	Nut	£1.55 £1.29
23	MO112436050/0 In stock	Plate	£1.82 £1.52
25	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO384317065/1 Available to backorder	Lever	£15.48 £12.90
28	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
29	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
30	MO112154510/0 In stock	Nut	£1.55 £1.29
31	MO127430555/0 Available to backorder	Spring	£2.95 £2.46
32	MO127510114/0 Available to backorder	Front R.H Hook Deck Pin	£8.74 £7.28
