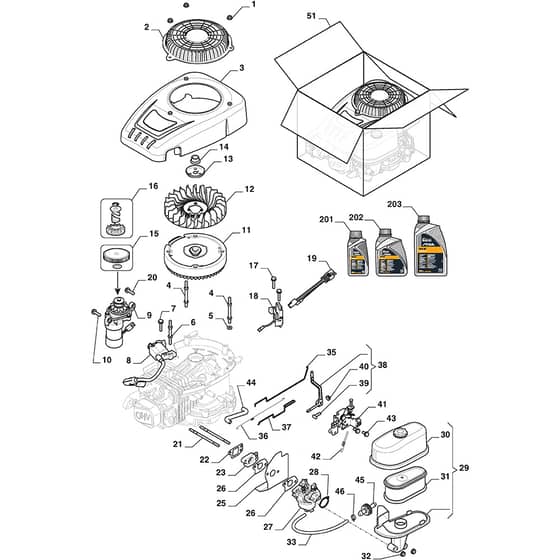

COMBI 166 - 2022-2025 - 2T0070481/ST2 - Stiga Ride On Mower Carburettor Diagram

Name: COMBI 166 - 2022-2025 - 2T0070481/ST2 - Stiga Ride On Mower Carburettor Diagram
SKU: combi_166_2t0070481_st2_carburettor-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 166 - 2022-2025 - 2T0070481/ST2 - Stiga Ride On Mower Carburettor Diagram

Description

Stiga COMBI 166 Parts Diagram

Product Name - COMBI 166

Model Year - 2022-2025

Model Type - MJ 66 4E Hydro

Art.N - 2T0070481/ST2

Engine Model - ST 250 ES

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118551136/1 Available to backorder	Starter Assy	£36.36 £30.30
3	MO118551120/0 Available to backorder	Cover	£53.50 £44.58
4	MO118551149/0 Available to backorder	Pin	£6.76 £5.63
6	MO118551148/0 Available to backorder	Pin	£6.76 £5.63
7	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
8	MO118551435/0 Available to backorder	Elettronic Coil	£32.32 £26.93
9	MO118552560/0 In stock	Start Motor Assy	£174.79 £145.66
11	MO118551137/0 Available to backorder	Flywheel Ass.Y	£78.11 £65.09
12	MO118550254/0 Available to backorder	Flywheel Fan	£19.99 £16.66
13	MO118551436/0 Available to backorder	Starter Cup	£4.37 £3.64
14	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
15	MO118551155/0 Available to backorder	Kit Repair	£22.67 £18.89
16	MO118551154/0 Available to backorder	Kit Repair	£54.90 £45.75
17	MO112674550/0 Available to backorder	Screw	£1.55 £1.29
18	MO118551138/0 Available to backorder	Coil Assy. Charge	£36.02 £30.02
19	MO118551140/0 Available to backorder	Switch Wires	£25.06 £20.88
20	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
21	MO118551142/0 Available to backorder	Stud	£6.00 £5.00
22	MO118551123/0 Available to backorder	Gasket	£2.12 £1.77
23	MO118551125/0 Available to backorder	Insulator	£2.81 £2.34
25	MO118551126/0 Available to backorder	Insulator	£8.02 £6.68
26	MO118551122/0 Available to backorder	Gasket	£2.26 £1.88
27	MO118551496/0 Available to backorder	Carburettor	£71.81 £59.84
28	MO118551124/0 Available to backorder	Gasket	£2.23 £1.86
29	MO118551133/0 Available to backorder	Air Cleaner Assy	£26.33 £21.94
30	MO118551156/0 Available to backorder	Air Cleaner Cover	£11.53 £9.61
31	MO118551157/0 In stock	Air Filter	£12.95 £10.79
33	MO118551430/1 Available to backorder	Fuel Pipe	£5.35 £4.46
35	MO118551127/1 Available to backorder	Governor Link	£3.24 £2.70
36	MO118551437/0 Available to backorder	Spring	£1.55 £1.29
38	MO118550266/0 Available to backorder	Arm Governor Assy	£15.07 £12.56
41	MO118551131/1 Available to backorder	Remote Control Assy	£33.79 £28.16
42	MO118551128/0 Available to backorder	Spring	£1.69 £1.41
43	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
44	MO118551146/0 Available to backorder	Breather Pipe	£6.34 £5.28
45	MO118550427/0 In stock	Fuel Filter	£5.48 £4.57
46	MO118551429/0 Available to backorder	Pipe Clip	£1.55 £1.29
51	MO118551159/2 Available to backorder	Engine Assembled	£534.94 £445.78
201	MO1111-9237-01 Available to backorder	Engine Oil. 10W-30 - 0.6 L	£6.92 £5.77
201	MO1111-9234-01 In stock	Engine Oil. Sae 30 - 0.6 L	£6.64 £5.53
202	MO1111-9235-01 In stock	Engine Oil. Sae 30 - 1 L	£9.23 £7.69
203	MO1111-9238-01 In stock	Engine Oil. 10W-30 - 1.4 L	£13.56 £11.30
203	MO1111-9236-01 In stock	Engine Oil. Sae 30 - 1.4 L	£11.50 £9.58
