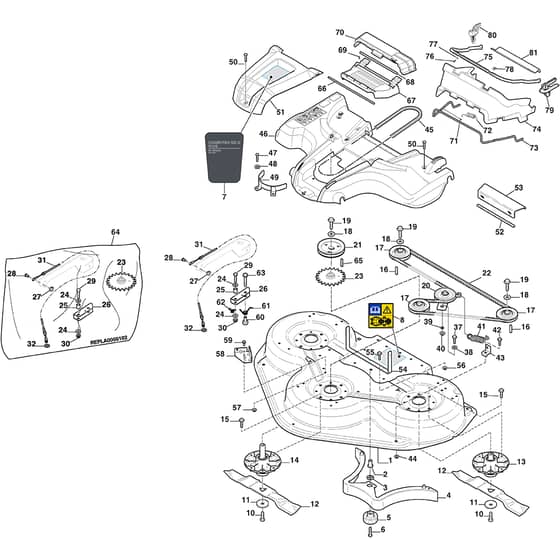

COMBI 125 PRO Q PLUS - 2022-2025 - 2D6312521/ST2 - Stiga Front Mower Cutting Deck Diagram

Name: COMBI 125 PRO Q PLUS - 2022-2025 - 2D6312521/ST2 - Stiga Front Mower Cutting Deck Diagram
SKU: combi_125_pro_q_plus_2d6312521_st2_cutting_deck-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 125 PRO Q PLUS - 2022-2025 - 2D6312521/ST2 - Stiga Front Mower Cutting Deck Diagram

Description

Stiga COMBI 125 PRO Q PLUS Parts Diagram

Product Name - Combi Pro 125 Q Plus

Model Year - 2022-2025

Model Type - 125C E QF

Art.N - 2D6312521/ST2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
4	MO1134-5409-02 Available to backorder	Mulch Plug-Black	£140.77 £117.31
5	MO122399900/0 In stock	Black Knob	£1.55 £1.29
7	MO114373130/0 Available to backorder	Label - "Combi Pro125 Qplus" M-Blade	£7.67 £6.39
8	MO9402-3701-01 Available to backorder	Label	£13.51 £11.26
11	MO1134-6211-01 Available to backorder	Washer	£2.98 £2.48
12	MO1134-9125-01 In stock	Blade Bar Assy (125 Combi) Sats 3 st.kit of 3	£92.93 £77.44
13	MO387203000/0 In stock	Shaft Flange Assy	£114.02 £95.02
14	MO387203001/0 Available to backorder	Shaft Flange Assy	£122.46 £102.05
15	MO9945-0825-16 In stock	Screw	£2.40 £2.00
16	MO9600-0171-01 Available to backorder	Key	£3.10 £2.58
17	MO1137-0015-01 Available to backorder	Pulley	£27.02 £22.52
18	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
19	MO112692395/2 In stock	Screw	£3.24 £2.70
20	MO387605019/0 Available to backorder	Tension Roller Assy	£112.62 £93.85
21	MO1137-0017-01 Available to backorder	Pulley	£36.59 £30.49
22	MO1134-9087-01 Available to backorder	V-Belt Replacing Service code 1134-9087-01	£53.87 £44.89
23	MO387178801/0 Available to backorder	Brake Disc	£81.66 £68.05
24	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
25	MO1134-1565-04 Available to backorder	Spacer	£12.46 £10.38
26	MO337315009/0 Available to backorder	Brake Lever	£8.29 £6.91
27	MO112436050/0 In stock	Plate	£1.82 £1.52
28	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
29	MO112691120/0 Available to backorder	Screw	£2.40 £2.00

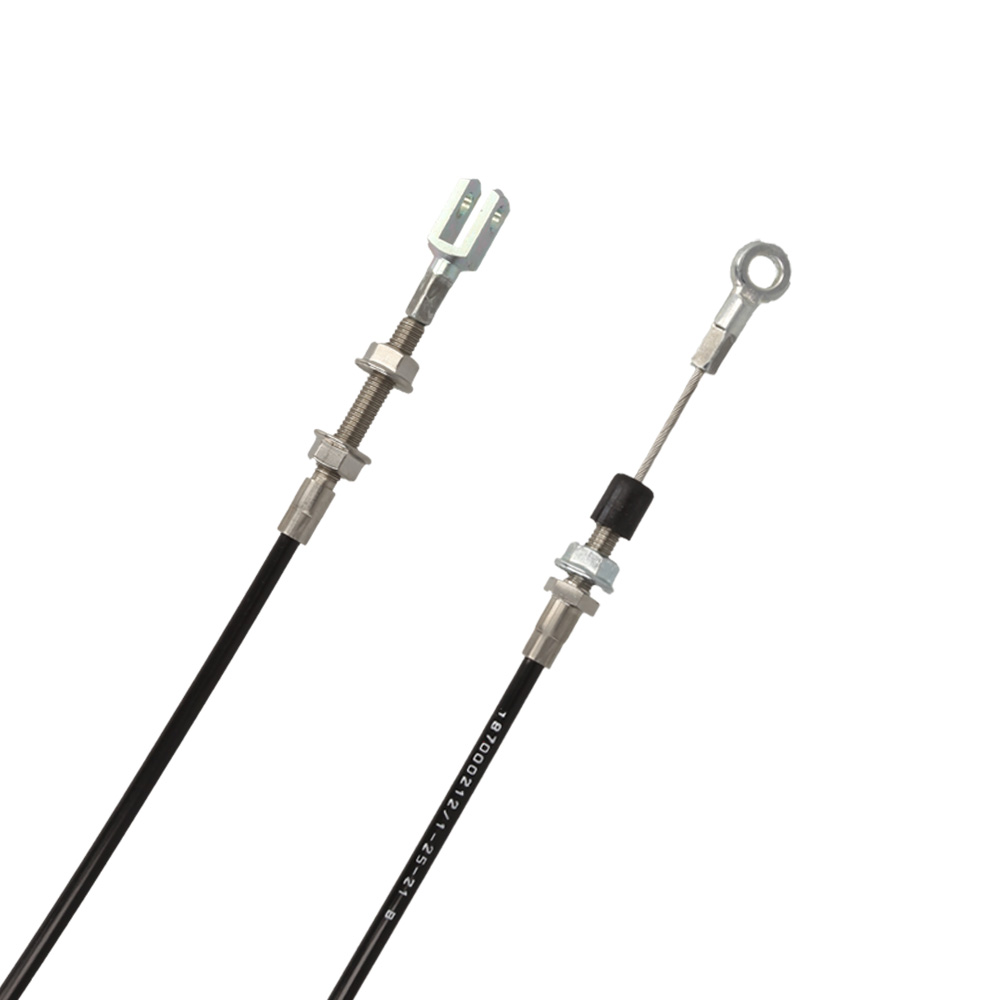

31	MO187000212/1 Available to backorder	Cable	£42.23 £35.19
32	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
38	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
39	MO1134-7618-01 Available to backorder	Spacer	£10.14 £8.45
41	MO1134-0327-00 Available to backorder	Spring	£12.53 £10.44
43	MO1134-5415-01 Available to backorder	Spring	£14.08 £11.73
45	MO1134-9103-01 In stock	Drive Belt Replaced by Service Code. 1134-9103-01	£49.73 £41.44

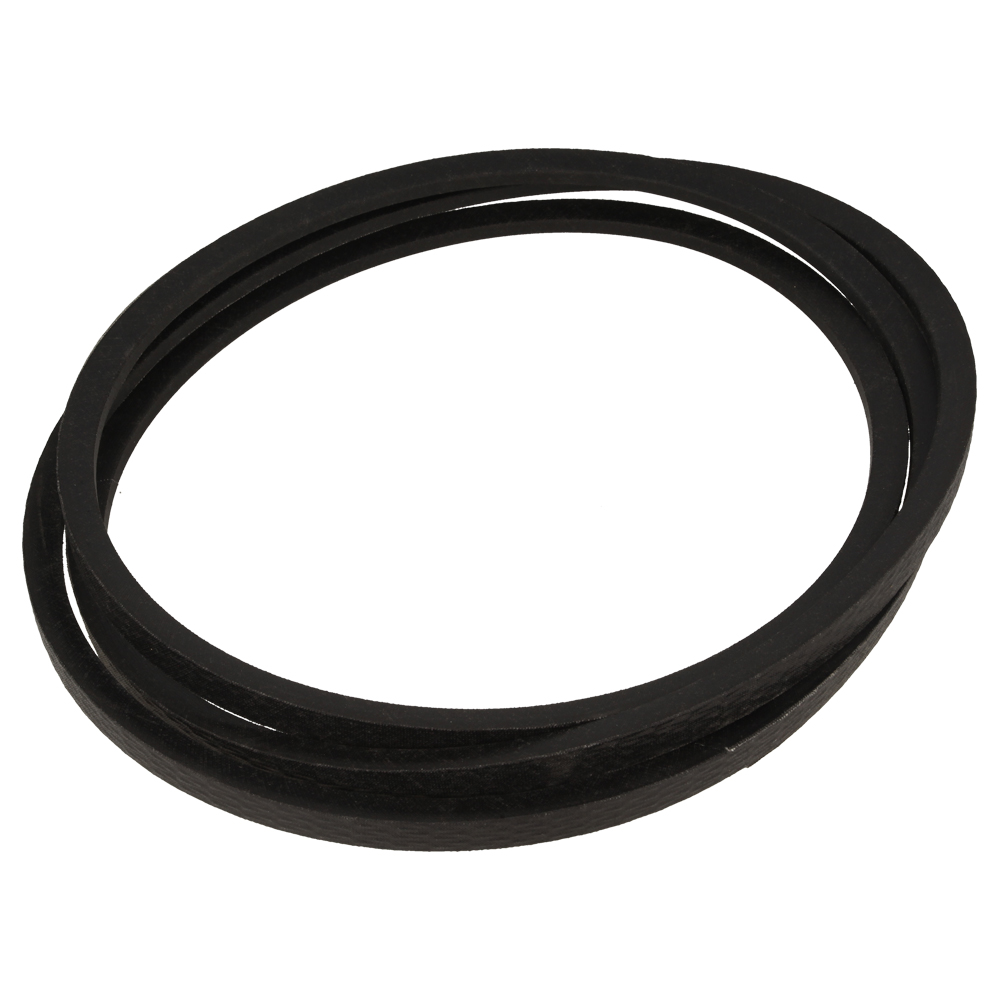

45	MO9585-0202-01 Available to backorder	V-Belt Replaced by Service Code. 1134-9152-01	£63.29 £52.74
46	MO337060034/0 Available to backorder	Belt Cover	£126.70 £105.58
48	MO112523040/0 In stock	Washer	£1.49 £1.24
49	MO1134-6017-01 Available to backorder	Belt Guide	£27.80 £23.17
50	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
51	MO337060035/0 Available to backorder	Cover-Yellow	£30.97 £25.81
53	MO1134-6103-01 Available to backorder	Wear Protection	£35.20 £29.33
54	MO1137-1080-01 Available to backorder	Bracket	£58.69 £48.91
55	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
56	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
57	MO112155015/0 Available to backorder	Nut	£1.69 £1.41
58	MO337785043/1 Available to backorder	Support	£17.39 £14.49
59	MO9959-0820-16 In stock	Screw	£1.55 £1.29
60	MO137510326/0 Available to backorder	Pin	£14.29 £11.91
61	MO137430111/0 Available to backorder	Spring	£8.02 £6.68
62	MO137430112/1 Available to backorder	Spring	£8.80 £7.33
63	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
65	MO112139489/0 Available to backorder	Key	£3.67 £3.06
66	MO137294106/0 Available to backorder	Belt Guide	£14.50 £12.08
67	MO337060033/0 Available to backorder	Protection Cover	£21.83 £18.19
68	MO1137-1090-01 Available to backorder	Pin	£15.48 £12.90
69	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
70	MO337060032/0 Available to backorder	Protection Cover	£7.88 £6.57

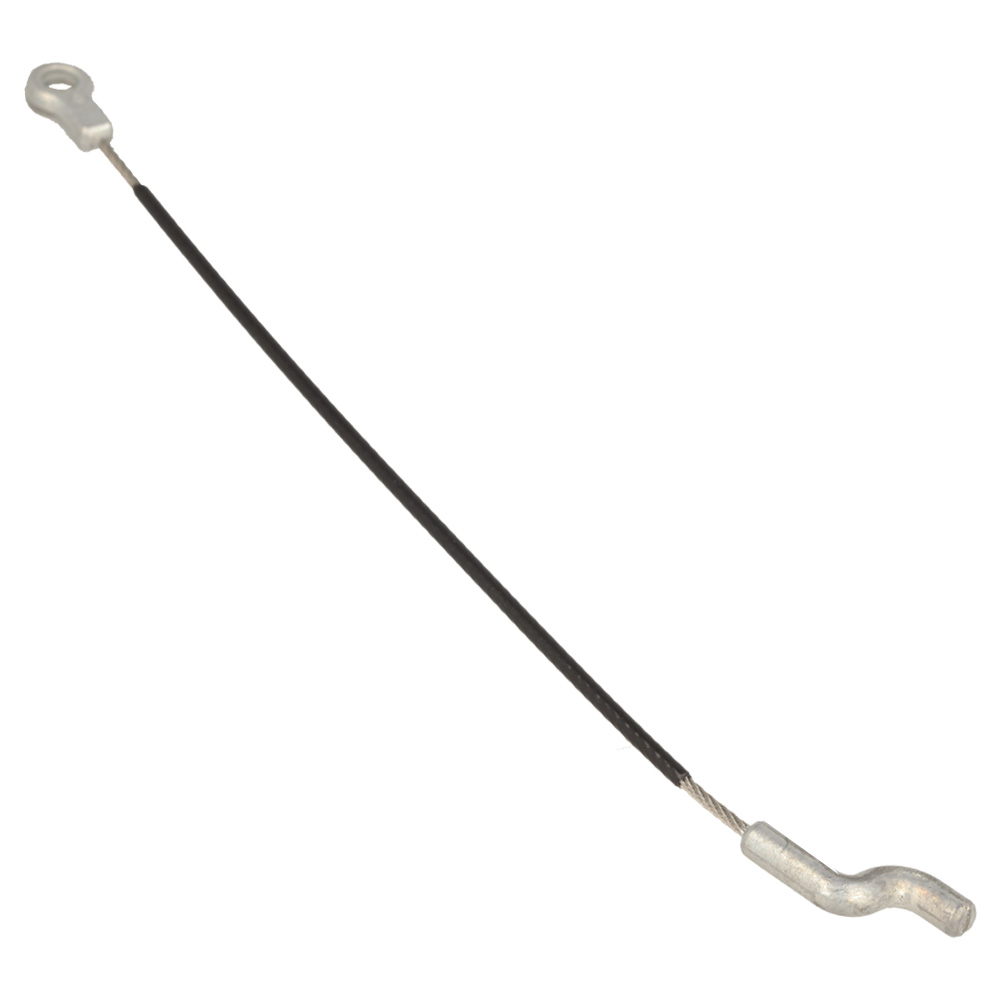

71	MO187000214/0 Available to backorder	Cable	£16.61 £13.84
72	MO122450500/0 Available to backorder	Spring	£3.10 £2.58
73	MO137785059/0 Available to backorder	Support	£53.50 £44.58
74	MO137798001/0 Available to backorder	Fabric Guard	£52.08 £43.40
75	MO337785062/0 Available to backorder	Support	£8.52 £7.10
76	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
77	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
78	MO112437509/0 Available to backorder	Plate	£1.55 £1.29
79	MO337033021/0 Available to backorder	Hook	£3.10 £2.58
80	MO337033020/0 Available to backorder	Hook	£3.10 £2.58
81	MO337785057/0 Available to backorder	Support Plate	£35.20 £29.33
