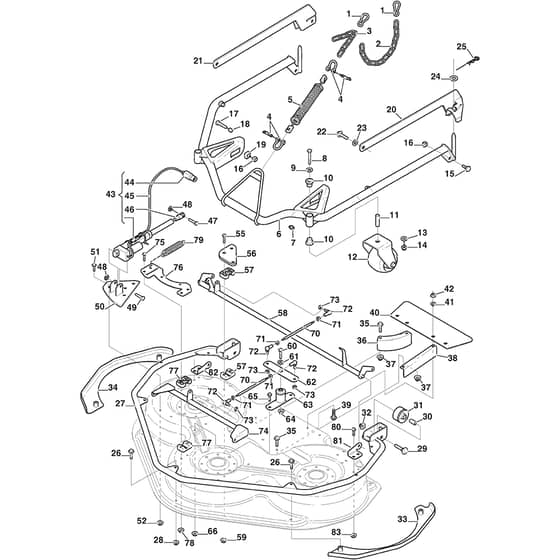

COMBI 125 PRO EL - 2015 - 13-2941-44 - Stiga Front Mower Deck Controls Diagram

Name: COMBI 125 PRO EL - 2015 - 13-2941-44 - Stiga Front Mower Deck Controls Diagram
SKU: combi_125_pro_el_13_2941_44_deck_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. combi_125_pro_el_13_2941_44_deck_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 125 PRO EL - 2015 - 13-2941-44 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 125 PRO EL Parts Diagram

Product Name - Deck Park 125 Combi PRO EL

Model Year - 2015

Model Type -

Art.N - 13-2941-44

Engine Model -

	Part No.	Details
1	MO1134-5528-01 Available to backorder	Snap Hook	£4.24 £3.53
2	MO1134-6368-03 Available to backorder	Chain 12 links	£20.62 £17.18
3	MO1134-6368-02 Available to backorder	Chain 7 links	£20.62 £17.18
4	MO1134-2629-01 Available to backorder	Lift Link	£15.34 £12.78
5	MO387432003/0 In stock	Spring	£56.32 £46.93
6	MO1134-5843-01 Available to backorder	Frame-Grey	£640.51 £533.76
7	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
8	MO112794970/0 In stock	Screw	£3.38 £2.82
10	MO137038009/0 In stock	Bushing	£5.76 £4.80
11	MO1134-5677-01 In stock	Spacer	£18.43 £15.36
12	MO1134-5884-01 In stock	Pivot Wheel Assy	£68.30 £56.92
13	MO9699-0030-02 In stock	Washer	£1.97 £1.64
14	MO112156602/0 In stock	Nut	£1.39 £1.16
15	MO1134-0240-01 Available to backorder	Shoulder Screw	£9.50 £7.92
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
18	MO1134-5626-01 Available to backorder	Spacer	£8.86 £7.38
19	MO1134-7595-01 Available to backorder	Spacer	£5.92 £4.93
20	MO1134-6141-01 Available to backorder	Grey Mower Deck Arm. Left	£132.42 £110.35
21	MO1134-6141-02 Available to backorder	Grey Mower Deck Arm. Right	£132.42 £110.35
22	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
23	MO112523060/0 In stock	Washer	£1.55 £1.29
24	MO9699-0123-02 Available to backorder	Washer 17x40x6	£4.66 £3.88
25	MO9598-2001-02 In stock	Spring Pin	£4.78 £3.98
27	MO387869277/0 Available to backorder	Protection Frame Assy-Grey	£450.46 £375.38
29	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
30	MO1134-0041-04 In stock	Bushing	£11.06 £9.22
31	MO1134-3434-01 In stock	Roller	£13.18 £10.98
32	MO9739-1031-22 In stock	Nut	£1.97 £1.64
33	MO1134-7520-01 Available to backorder	Wear Protection Assy-Lh	£131.60 £109.67
34	MO1134-7520-02 Available to backorder	Wear Protection Assy-Rh	£131.60 £109.67
36	MO1134-5554-02 Available to backorder	Guide Plate-Curved (Black)	£36.59 £30.49
38	MO1134-5553-02 Available to backorder	Guide Plate-Straight (Black)	£35.20 £29.33
39	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
40	MO1134-5885-01 Available to backorder	Rubber Flap	£11.95 £9.96
41	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
42	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
43	MO118001003/2 Available to backorder	Electric Lifter	£351.95 £293.29
45	MO387149300/0 Available to backorder	Cable L . 835 mm	£30.98 £25.82
47	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
