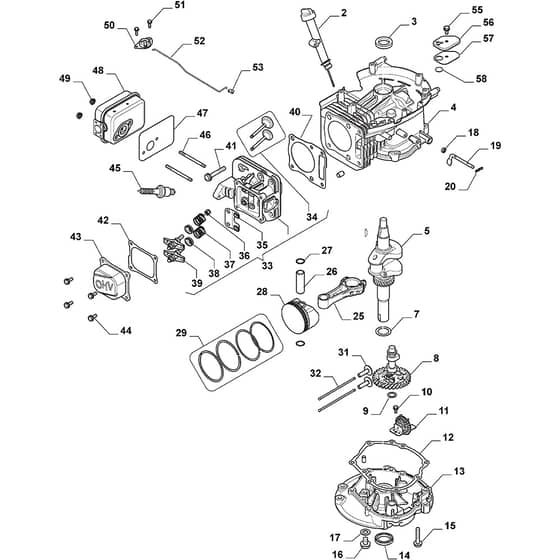

COMBI 1066 H - 2016-2020 - 2T0070481/16 - Stiga Ride On Mower Piston Diagram

Name: COMBI 1066 H - 2016-2020 - 2T0070481/16 - Stiga Ride On Mower Piston Diagram
SKU: combi_1066_h_2t0070481_16_piston-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 1066 H - 2016-2020 - 2T0070481/16 - Stiga Ride On Mower Piston Diagram

Description

Stiga COMBI 1066 H Parts Diagram

Product Name - COMBI 1066 H

Model Year - 2016-2020

Model Type - MJ 66 E Hydro

Art.N - 2T0070481/16

Engine Model - 5750

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
5	MO118551115/0 Available to backorder	Crankshaft	£137.95 £114.96
7	MO118550283/0 Available to backorder	Washer	£3.38 £2.82
8	MO118551433/0 Available to backorder	Camshaft Assy	£35.20 £29.33
9	MO118551144/0 Available to backorder	Washer . Drain Plug	£1.33 £1.11
11	MO118551132/0 Available to backorder	Speed Governor Assy	£16.97 £14.14
12	MO118551107/0 Available to backorder	Crankcase Gasket	£16.12 £13.43
13	MO118551153/1 Available to backorder	Crankcase Cover	£116.15 £96.79
14	MO118550379/0 In stock	Oil Seal	£6.76 £5.63
15	MO9959-0840-16 Available to backorder	Screw	£3.79 £3.16
16	MO118550780/1 Available to backorder	Drain Plug Bolt	£3.52 £2.93
17	MO118550793/0 Available to backorder	Washer . Drain Plug	£1.40 £1.17
19	MO118551130/0 Available to backorder	Shaft. Governor Arm	£7.46 £6.22
25	MO118550285/0 Available to backorder	Connecting Rod Assy	£40.54 £33.78
27	MO118551201/0 Available to backorder	Washer. Piston Pin	£1.20 £1.00
28	MO118551113/0 Available to backorder	Piston	£39.64 £33.03
29	MO118551114/0 Available to backorder	Piston. Ring Set	£35.20 £29.33
31	MO118550291/0 Available to backorder	Valve Lifter Assy	£9.72 £8.10
32	MO118551118/0 Available to backorder	Push Rod	£6.90 £5.75
34	MO118551150/0 Available to backorder	Valve Assy. Intake + Exhaust	£18.86 £15.72
35	MO118551119/0 Available to backorder	Plate	£7.88 £6.57
36	MO118551117/0 Available to backorder	Seal	£7.88 £6.57
39	MO118550273/0 Available to backorder	Valve Arm Set	£13.81 £11.51
40	MO118552559/0 Available to backorder	Gasket	£14.65 £12.21
41	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
42	MO118551112/0 Available to backorder	Gasket	£11.75 £9.79
44	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
45	7023 In stock	Spark Plug	£3.64 £3.03
47	MO118551135/0 Available to backorder	Gasket. Muffler	£11.96 £9.97
48	MO118551134/0 Available to backorder	Muffler	£73.20 £61.00
50	MO118551350/0 Available to backorder	Choke Control	£27.74 £23.12
51	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
52	MO118551351/0 Available to backorder	Control Rod	£4.78 £3.98
53	MO118551352/0 In stock	Retainer	£3.67 £3.06
55	MO112790781/0 In stock	Screw	£1.55 £1.29
57	MO118551109/0 Available to backorder	Gasket	£9.85 £8.21
58	MO118550902/0 Available to backorder	Valve	£1.97 £1.64
