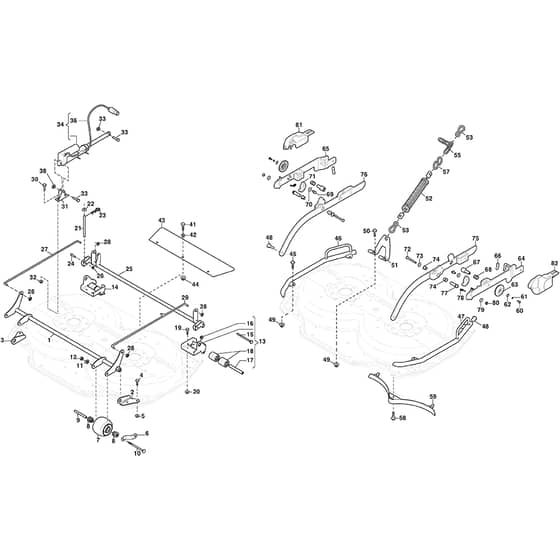

COMBI 105 EL QF - 2020-2021 - 2D6210521/ST1 - Stiga Front Mower Deck Controls Diagram

Name: COMBI 105 EL QF - 2020-2021 - 2D6210521/ST1 - Stiga Front Mower Deck Controls Diagram
SKU: combi_105_el_qf_2d6210521_st1_deck_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 105 EL QF - 2020-2021 - 2D6210521/ST1 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 105 EL QF Parts Diagram

Product Name - Deck Park 105 Combi EL QF

Model Year - 2020-2021

Model Type - 100C E QF

Art.N - 2D6210521/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387000160/0 Available to backorder	Front Axle-Yellow	£98.54 £82.12
2	MO1134-6215-01 Available to backorder	Bracket Front-Lh (Yellow)	£14.50 £12.08
3	MO1134-6215-02 Available to backorder	Bracket Front-Rh (Yellow)	£14.35 £11.96
6	MO387318275/0 Available to backorder	Guide-Grey	£5.21 £4.34
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
11	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
16	MO112293201/0 In stock	Nut	£1.69 £1.41
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
22	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
23	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98
25	MO387000161/0 Available to backorder	Rear Axle-Yellow	£82.36 £68.63
27	MO1134-6246-01 Available to backorder	Push Rod. Right	£15.48 £12.90
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO387000319/0 Available to backorder	Push Rod. Left	£17.45 £14.54
31	MO1134-6192-01 Available to backorder	Bracket	£10.63 £8.86
33	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
34	MO118001004/2 Available to backorder	Electric Lifter	£351.95 £293.29
36	MO387149301/0 Available to backorder	Cable	£23.36 £19.47
38	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
42	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
43	MO1134-6281-03 Available to backorder	Rubber Guard	£23.09 £19.24
44	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
45	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
46	MO387869541/0 Available to backorder	Side Guard Tube-Grey 105C	£64.75 £53.96
47	MO387869543/0 Available to backorder	Side Guard Tube-Grey 105C	£64.75 £53.96
48	MO9403-0025-80 Available to backorder	End Plug. Grey	£2.40 £2.00
82	MO337600050/1 Available to backorder	L.H Hook Deck Cover	£10.79 £8.99
