COMBI 100 EL QF - 2020-2021 - 2D6210021/ST1 - Stiga Front Mower Deck Controls Diagram

Name: COMBI 100 EL QF - 2020-2021 - 2D6210021/ST1 - Stiga Front Mower Deck Controls Diagram
SKU: combi_100_el_qf_2d6210021_st1_deck_controls-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 100 EL QF - 2020-2021 - 2D6210021/ST1 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 100 EL QF Parts Diagram

Product Name - Deck 100 Park Combi 3 EL QF

Model Year - 2020-2021

Model Type - 100C E QF

Art.N - 2D6210021/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387561533/0 Available to backorder	Casing-Yellow 100C	£668.66 £557.22
2	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
3	MO387869545/0 Available to backorder	Wear Protection Assy-Rh	£73.20 £61.00
4	MO387869547/0 Available to backorder	Wear Protection Assy-Lh	£73.20 £61.00
5	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
6	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
7	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
8	MO387001013/0 Available to backorder	Linkage Assy R	£126.70 £105.58
9	MO387001015/0 Available to backorder	Linkage Assy L	£126.70 £105.58
10	MO1137-0151-01 Available to backorder	Shaft	£2.68 £2.23
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO387869281/0 Available to backorder	Front Tube Assy	£331.84 £276.53
13	MO137038009/0 In stock	Bushing	£5.76 £4.80
14	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
15	MO112794970/0 Available to backorder	Screw	£3.38 £2.82
16	MO9699-0030-02 In stock	Washer	£1.97 £1.64
17	MO1134-5677-01 In stock	Spacer	£18.43 £15.36
18	MO1134-5884-01 In stock	Pivot Wheel Assy	£68.30 £56.92
19	MO112156602/0 In stock	Nut	£1.40 £1.17

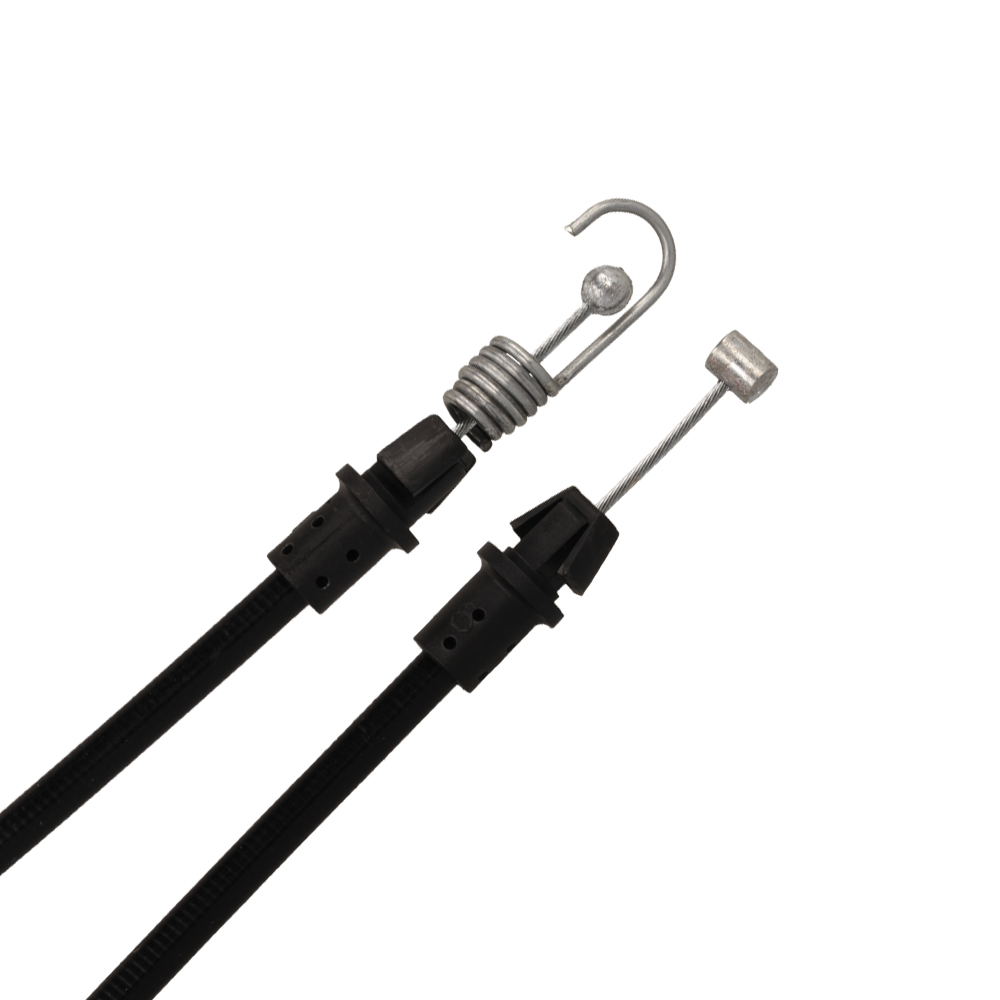

20	MO187000218/0 Available to backorder	Cable	£17.45 £14.54
21	MO112400031/0 Available to backorder	Pin	£1.55 £1.29
22	MO337315011/0 Available to backorder	Lever	£5.48 £4.57
85	MO337546712/0 Available to backorder	Cable Clamp Plate	£3.67 £3.06
