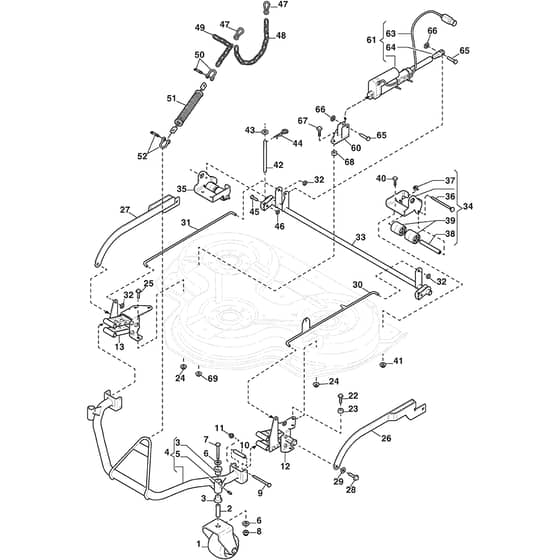

COMBI 100 EL - 2016-2019 - 2D6210021/S16 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 100 EL Parts Diagram

Product Name - Deck 100 Park Combi 3 EL

Model Year - 2016-2019

Model Type - 100C E

Art.N - 2D6210021/S16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5884-01 In stock	Pivot Wheel Assy	£68.30 £56.92
2	MO1134-5677-01 In stock	Spacer	£18.43 £15.36
3	MO137038009/0 In stock	Bushing	£5.76 £4.80
5	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
6	MO9699-0030-02 In stock	Washer	£1.97 £1.64
7	MO112794970/0 Available to backorder	Screw	£3.38 £2.82
8	MO112156602/0 In stock	Nut	£1.40 £1.17
9	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
10	MO1137-0151-01 Available to backorder	Shaft	£2.68 £2.23
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO387001015/0 Available to backorder	Linkage Assy L	£126.70 £105.58
13	MO387001013/0 Available to backorder	Linkage Assy R	£126.70 £105.58
22	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
23	MO1137-0155-01 Available to backorder	Spacer	£4.22 £3.52
24	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
25	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
26	MO387106265/0 Available to backorder	Cutting Deck Arm Assy Lh	£269.27 £224.39
