COMBI 100 EL - 2015 - 13-2978-32 - Stiga Front Mower Cutting Deck Diagram

Name: COMBI 100 EL - 2015 - 13-2978-32 - Stiga Front Mower Cutting Deck Diagram
SKU: combi_100_el_13_2978_32_cutting_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 100 EL - 2015 - 13-2978-32 - Stiga Front Mower Cutting Deck Diagram

Description

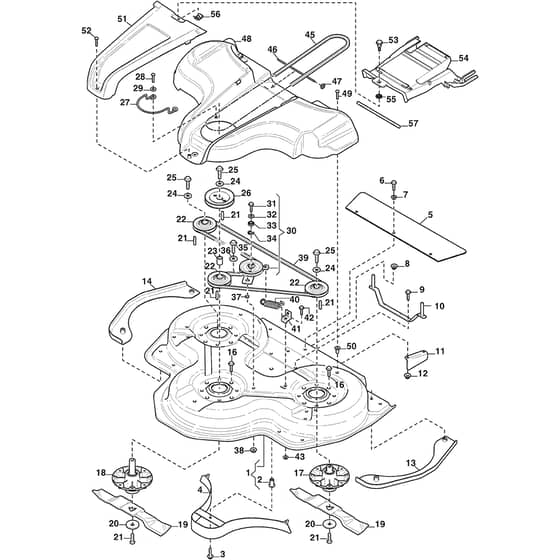

Stiga COMBI 100 EL Parts Diagram

Product Name - Deck 100 Park Combi 3 EL

Model Year - 2015

Model Type -

Art.N - 13-2978-32

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387561533/0 Available to backorder	Cutting Deck	£668.66 £557.22
3	MO9959-0820-16 In stock	Screw	£1.55 £1.29
4	MO1137-0163-01 Available to backorder	Combi Plug Assy	£102.76 £85.63
5	MO1134-6281-03 Available to backorder	Rubber Guard	£23.09 £19.24
7	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
11	MO1137-0244-01 Available to backorder	Guide Plate	£15.70 £13.08
13	MO1137-0245-01 Available to backorder	Wear Protection Assy	£85.87 £71.56
14	MO1137-0245-02 Available to backorder	Wear Protection Assy	£85.87 £71.56
17	MO387203000/0 In stock	Bearing Box Assy	£114.02 £95.02
18	MO387203001/0 In stock	Bearing Box Assy	£122.46 £102.05
19	MO1134-9158-01 In stock	Blade Kit (100 Combi3) Sats 3 st.kit of 3	£91.62 £76.35
20	MO1134-6211-01 Available to backorder	Washer	£2.98 £2.48
21	MO9600-0171-01 Available to backorder	Key	£3.10 £2.58
22	MO1137-0015-01 Available to backorder	Pulley	£27.02 £22.52
23	MO1134-5400-03 Available to backorder	Spacer	£10.91 £9.09
24	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
25	MO112692395/2 In stock	Screw	£3.24 £2.70
26	MO1137-0016-01 Available to backorder	Pulley D . 140 mm	£36.59 £30.49
27	MO1137-0158-01 Available to backorder	Belt Guide	£14.35 £11.96
29	MO9699-0087-02 In stock	Washer	£2.12 £1.77
30	MO387605019/0 Available to backorder	Tension Roller Assy Inkl. pos 31 - 34	£112.62 £93.85
31	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
32	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
33	MO119216054/0 Available to backorder	Bearing	£25.00 £20.83
34	MO112610800/0 Available to backorder	Circlip	£1.69 £1.41
36	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
37	MO1134-7618-01 Available to backorder	Spacer	£10.14 £8.45
39	MO1134-9066-01 Available to backorder	Drive Belt Replaced by Service Code. 1134-9066-01	£39.36 £32.80
40	MO1134-0327-00 Available to backorder	Spring	£12.53 £10.44
41	MO1134-5415-01 Available to backorder	Spring	£14.08 £11.73
42	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
43	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
45	MO1134-9244-01 In stock	V-Belt (Mod. 2Wd) Replaced by Service Code. 1134-9156-01	£67.34 £56.12
45	MO1134-9245-01 Available to backorder	V-Belt (Mod. 4Wd) Replaced by Service Code. 1134-9157-01	£52.52 £43.77
46	MO1137-0171-01 Available to backorder	Rod	£8.87 £7.39
47	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
48	MO337060023/0 Available to backorder	Transmission Cover	£124.90 £104.08
49	MO9945-0825-16 In stock	Screw	£2.40 £2.00
50	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
51	MO1137-0157-02 In stock	Cover	£129.20 £107.67
52	MO112728697/0 In stock	Screw	£1.55 £1.29
53	MO1134-0240-00 In stock	Screw	£8.80 £7.33
54	MO337600002/0 Available to backorder	Belt Cover	£23.23 £19.36

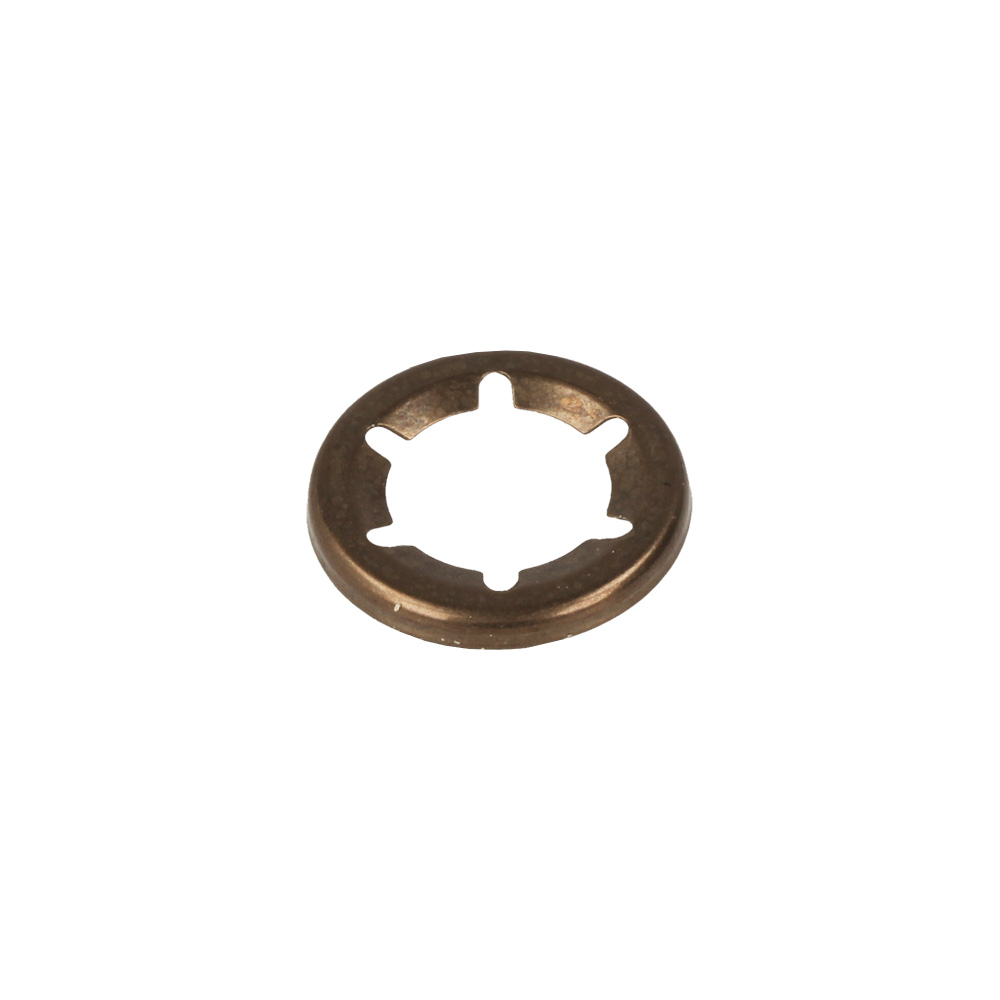

55	MO9675-0016-02 Available to backorder	Starlock	£1.40 £1.17
56	MO1134-4620-02 Available to backorder	Nut	£7.96 £6.63
57	MO1137-1090-01 Available to backorder	Belt Guide Rod	£15.48 £12.90
