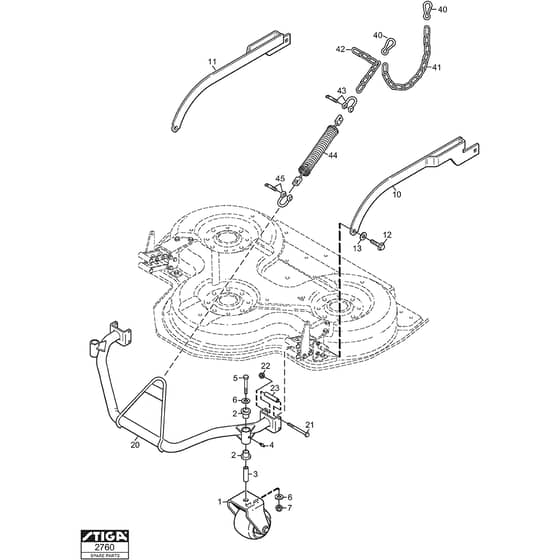

COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Frame Diagram

Name: COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Frame Diagram
SKU: combi_100_13_2977_31_deck_frame-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Frame Diagram

Description

Stiga COMBI 100 Parts Diagram

Product Name - Deck Park 100 Combi 3

Model Year - 2012-2014

Model Type -

Art.N - 13-2977-31

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

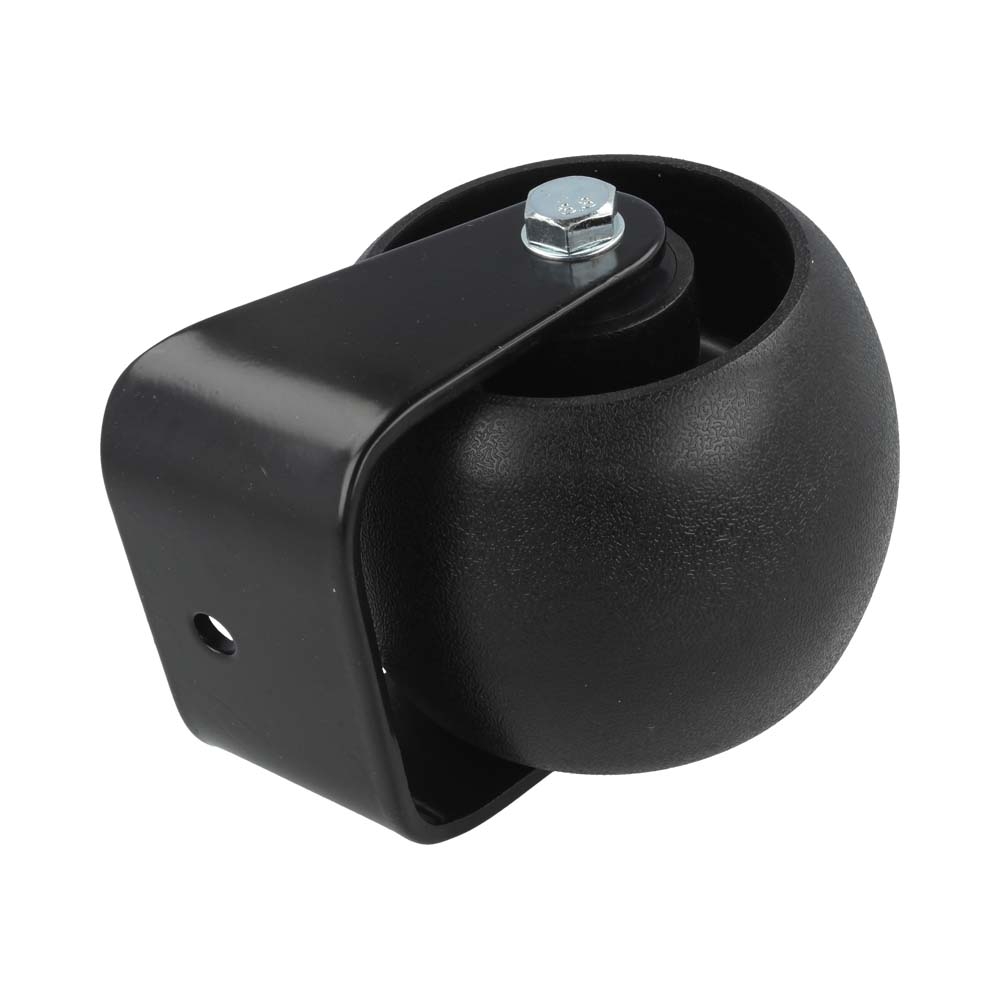

1	MO1134-5884-01 In stock	Pivot Wheel Assy	£68.30 £56.92

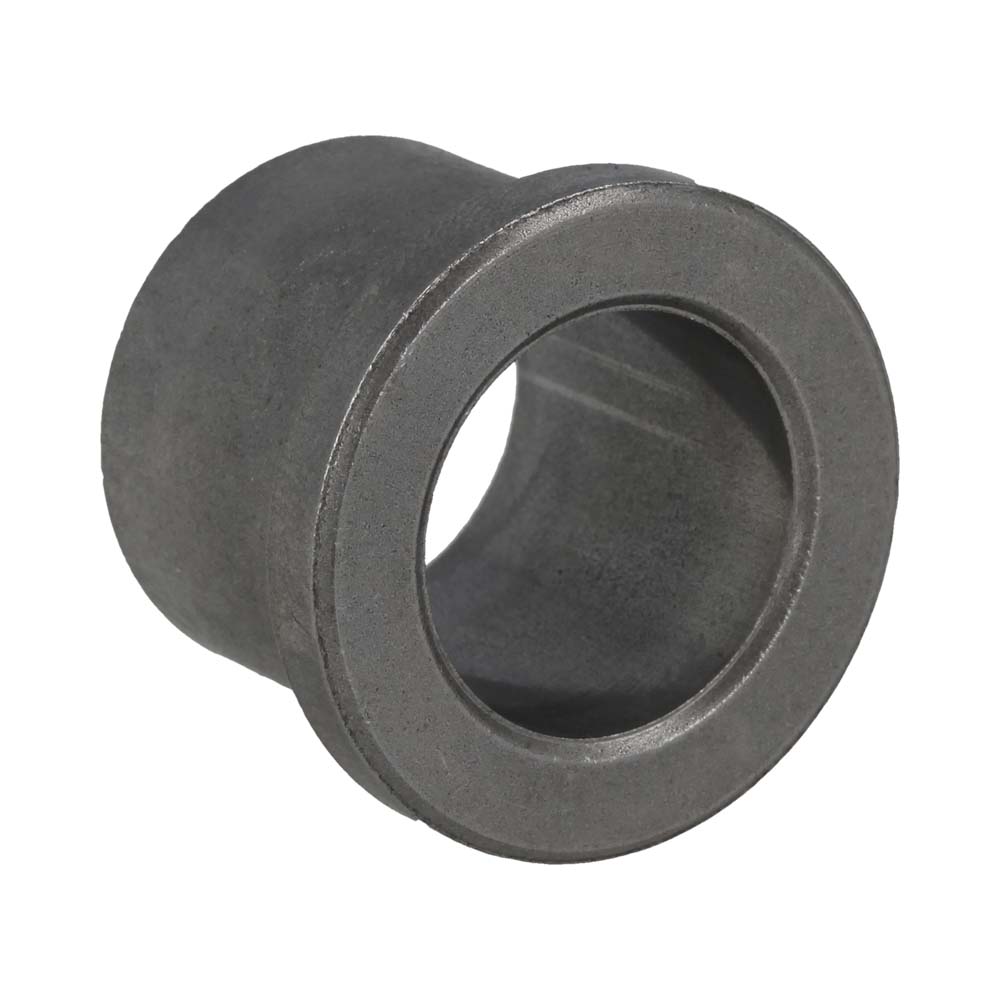

2	MO137038009/0 In stock	Bushing	£5.76 £4.80

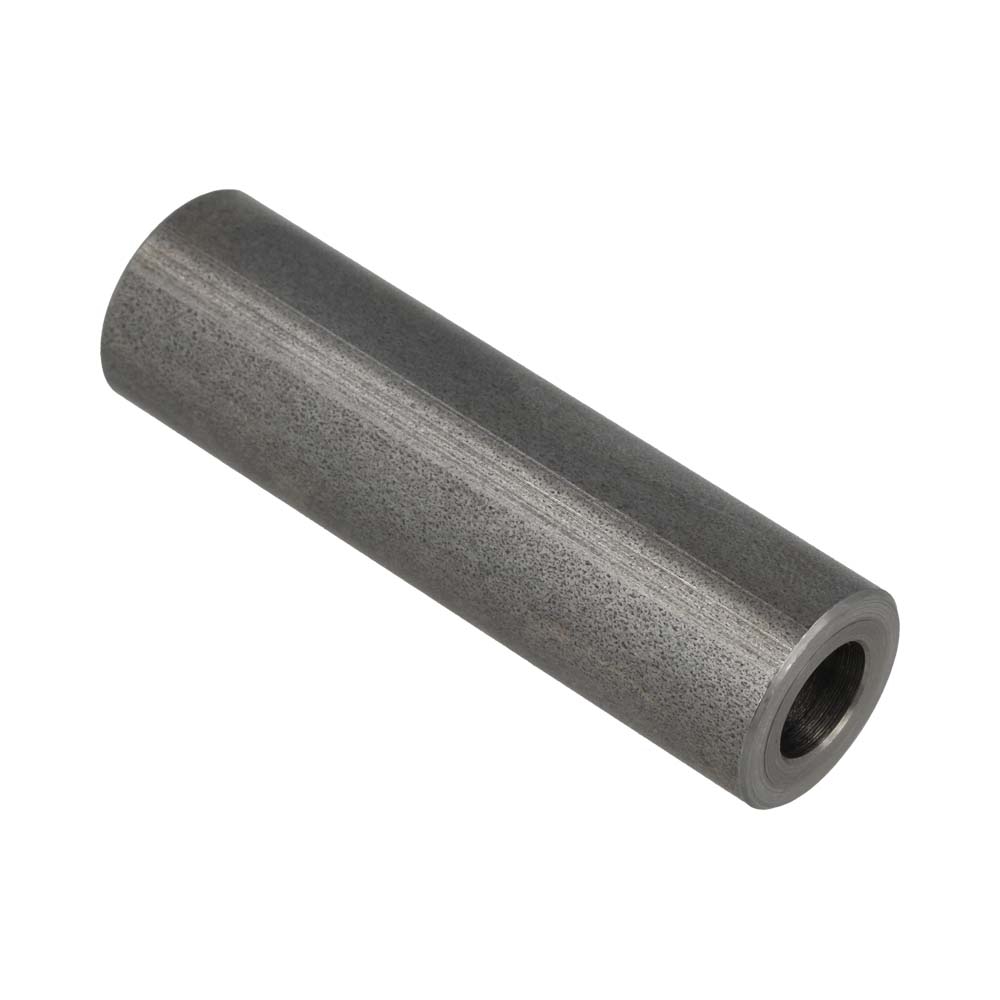

3	MO1134-5677-01 In stock	Spacer	£18.43 £15.36
4	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29

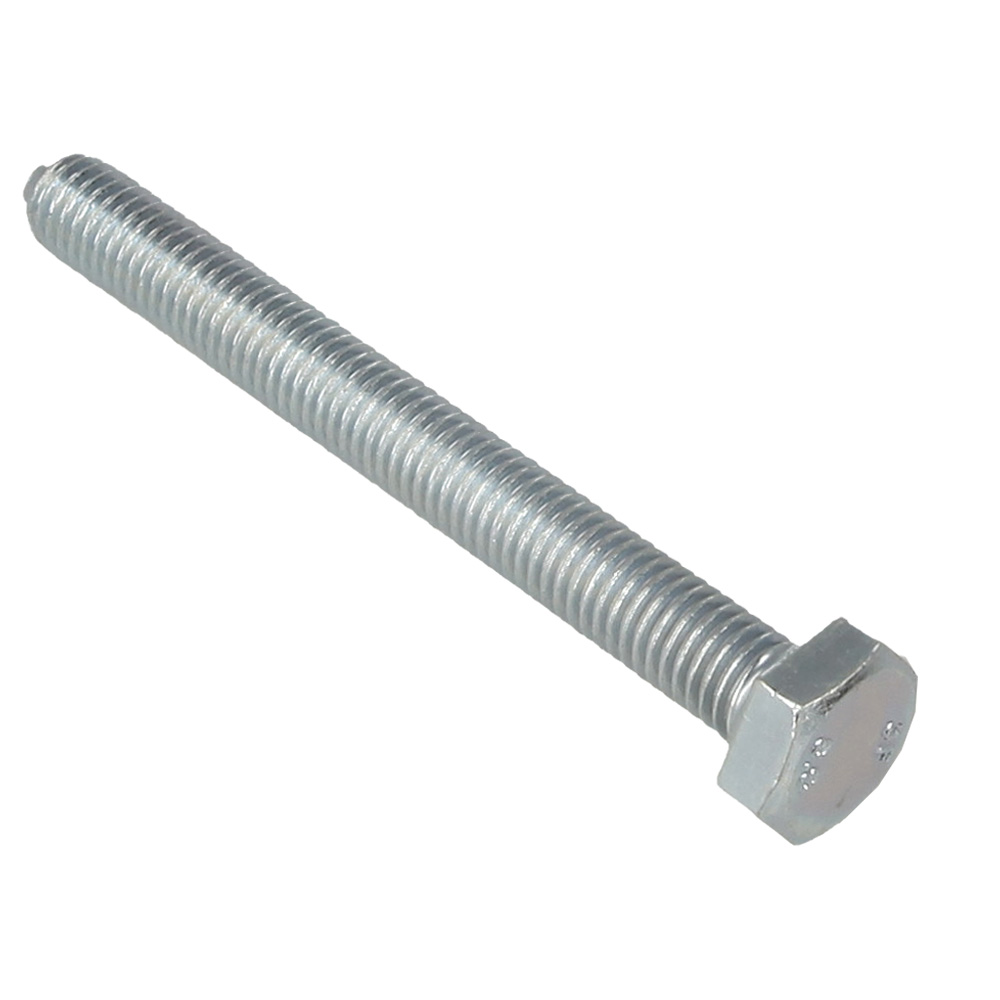

5	MO112794970/0 Available to backorder	Screw	£3.38 £2.82

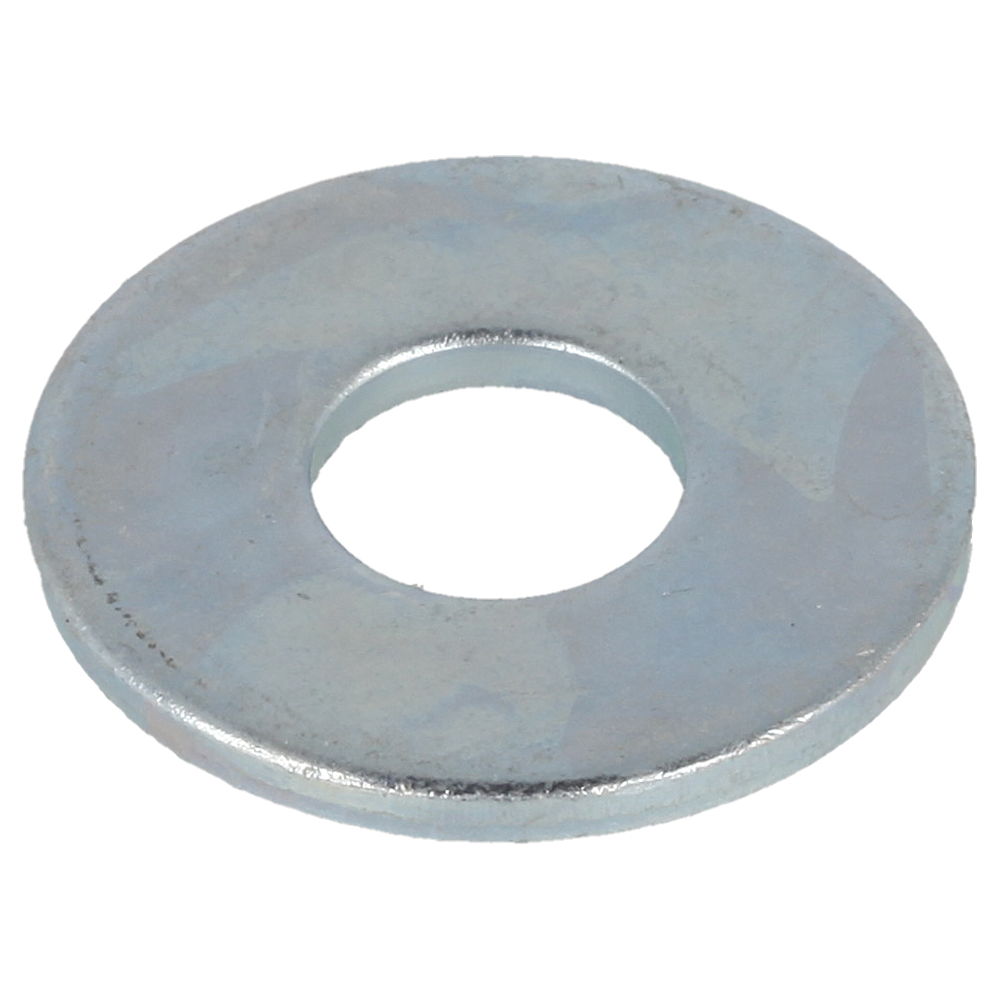

6	MO9699-0030-02 In stock	Washer	£1.97 £1.64
7	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
10	MO1137-0166-01 Available to backorder	Cutting Deck Arm Assy Lh	£91.51 £76.26
11	MO387106263/0 Available to backorder	Cutting Deck Arm Assy Rh	£269.27 £224.39
12	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
13	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
20	MO1137-0141-01 Available to backorder	Front Tube Assy	£351.95 £293.29
21	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
22	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
23	MO1137-0151-01 Available to backorder	Shaft	£2.68 £2.23

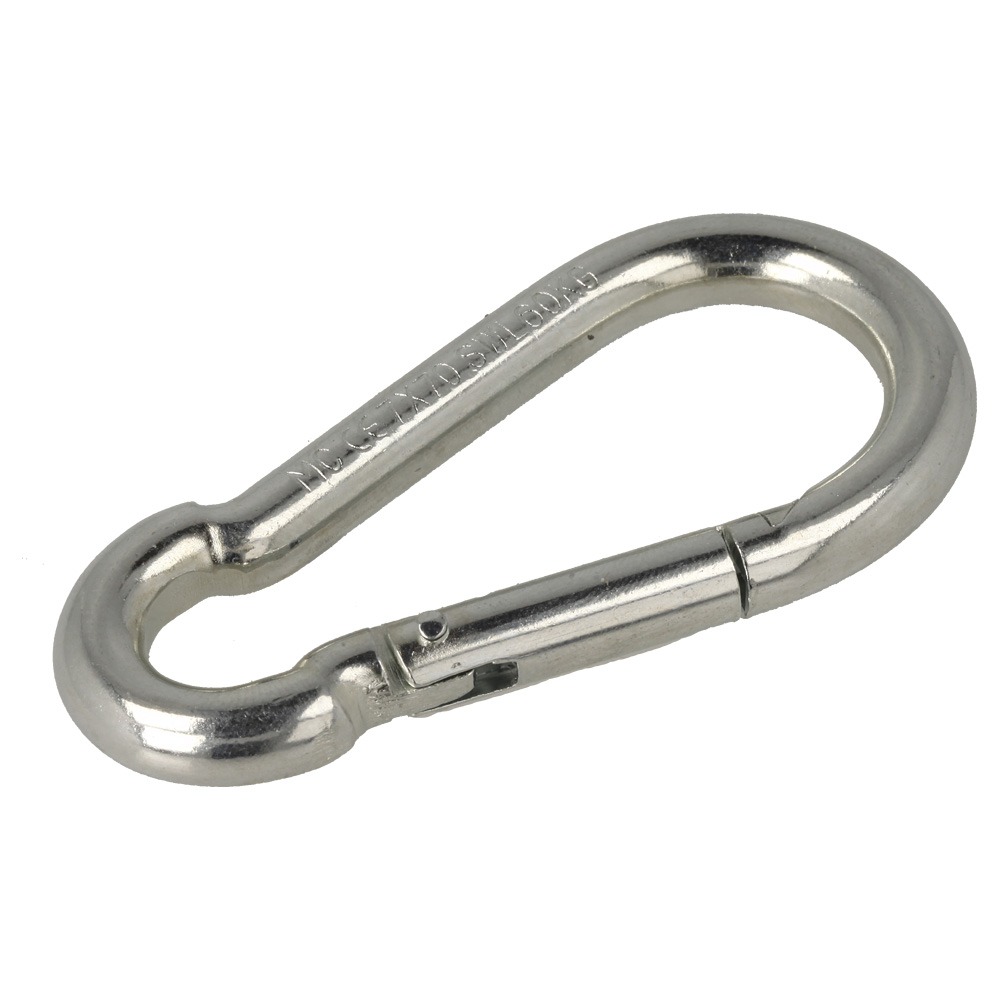

40	MO1134-5528-01 Available to backorder	Snap Hook	£4.22 £3.52
41	MO1134-6368-03 Available to backorder	Chain 12 links	£20.62 £17.18
42	MO1134-6368-02 Available to backorder	Chain 7 links	£22.56 £18.80

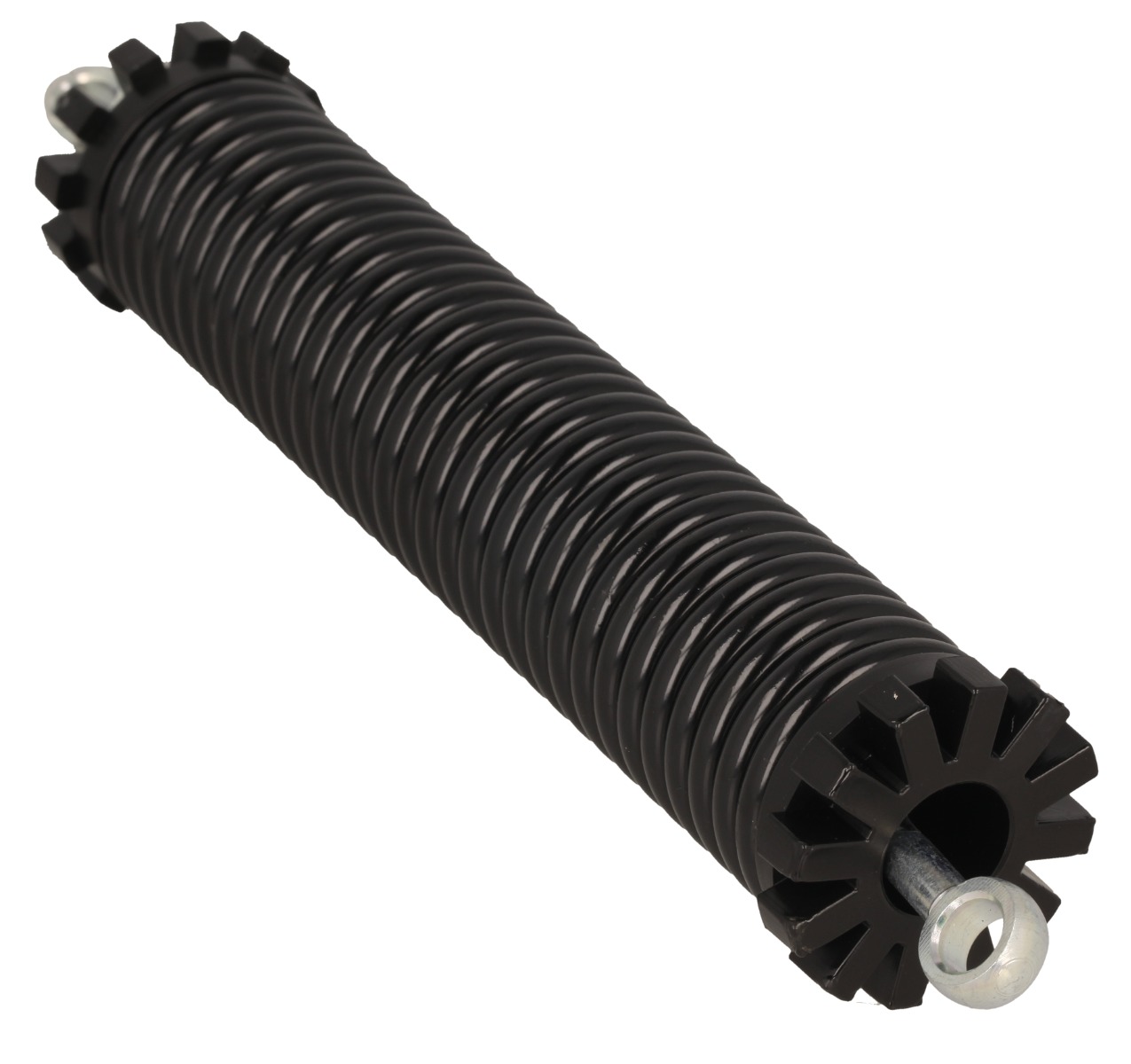

44	MO387432003/0 Available to backorder	Spring	£54.18 £45.15
45	MO1134-2629-01 Available to backorder	Lift Link	£15.34 £12.78
