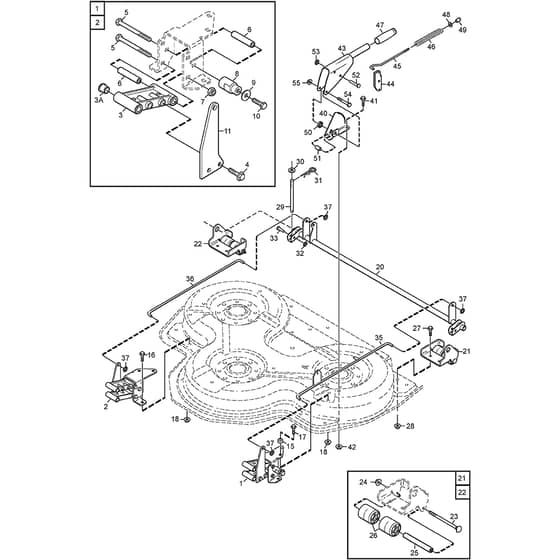

COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Controls Diagram

Name: COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Controls Diagram
SKU: combi_100_13_2977_31_deck_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COMBI 100 - 2012-2014 - 13-2977-31 - Stiga Front Mower Deck Controls Diagram

Description

Stiga COMBI 100 Parts Diagram

Product Name - Deck Park 100 Combi 3

Model Year - 2012-2014

Model Type -

Art.N - 13-2977-31

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

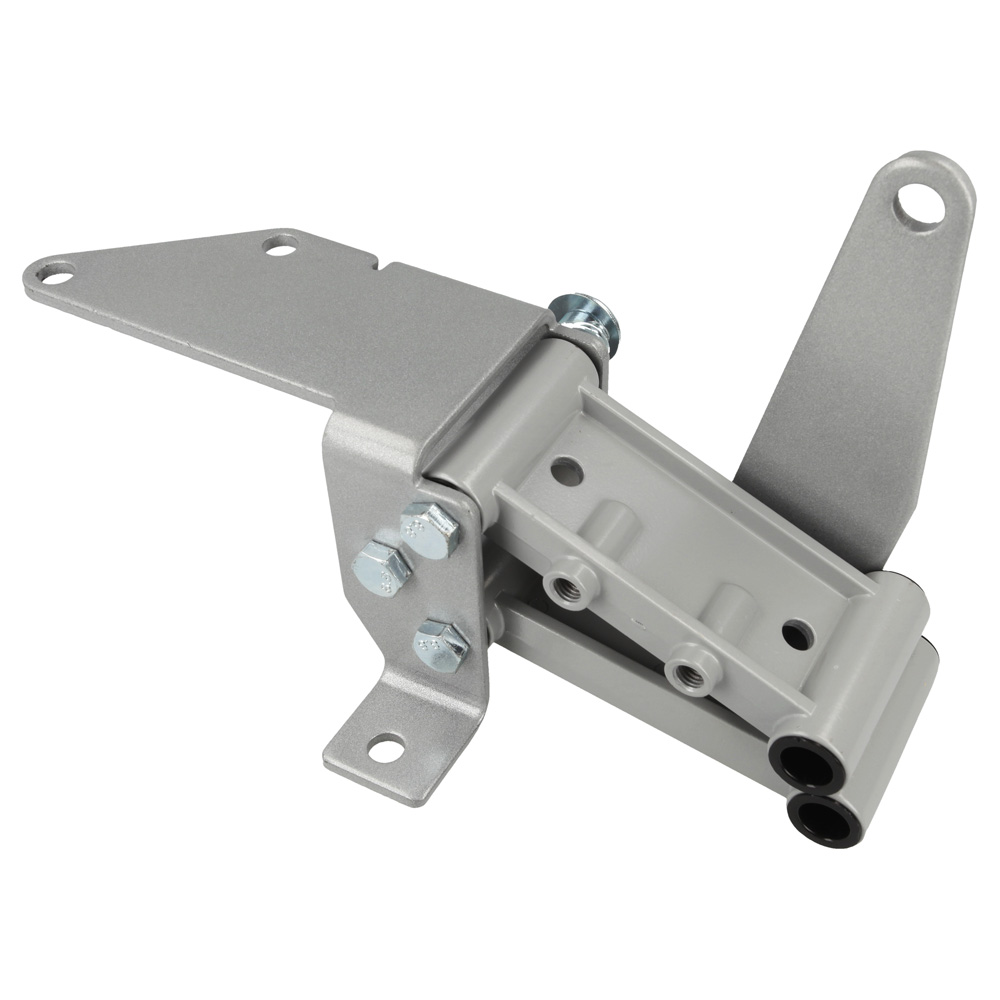

1	MO387001015/0 Available to backorder	Linkage Assy L	£126.70 £105.58

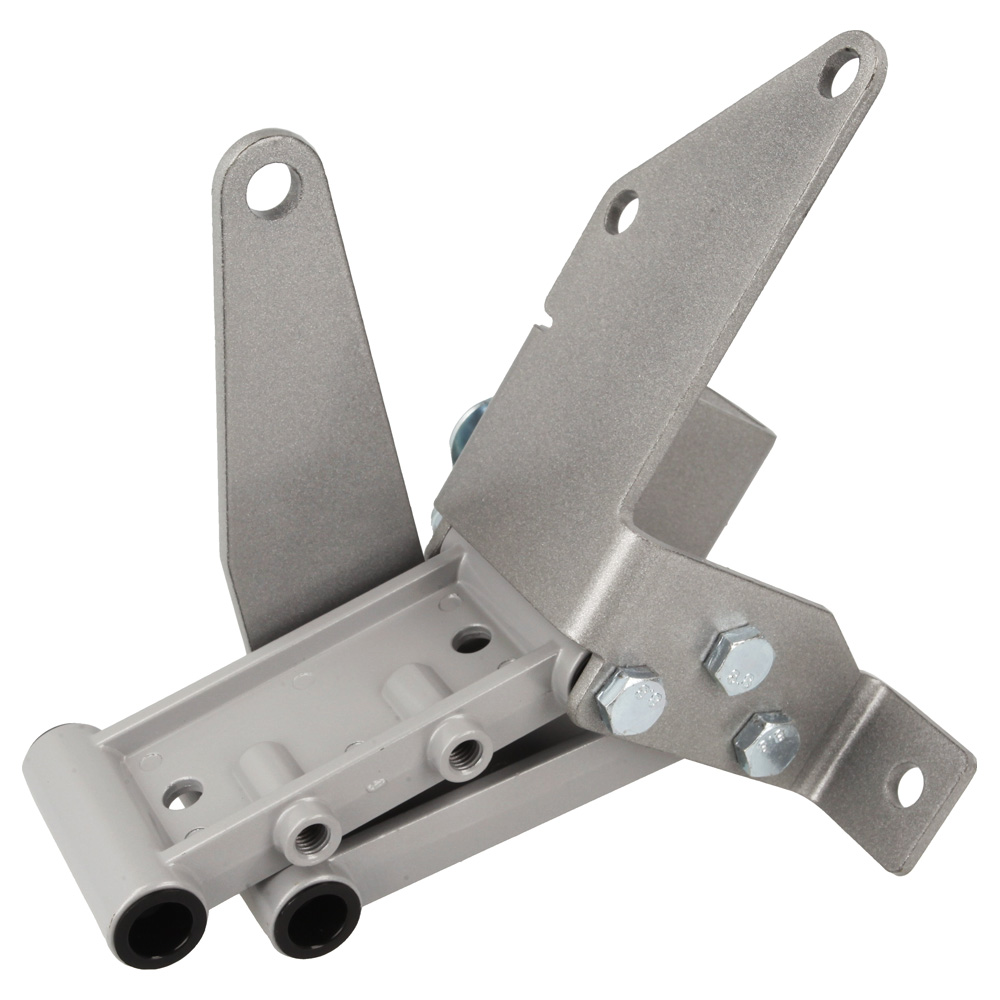

2	MO387001013/0 Available to backorder	Linkage Assy R Inkl. pos 3 - 11	£126.70 £105.58

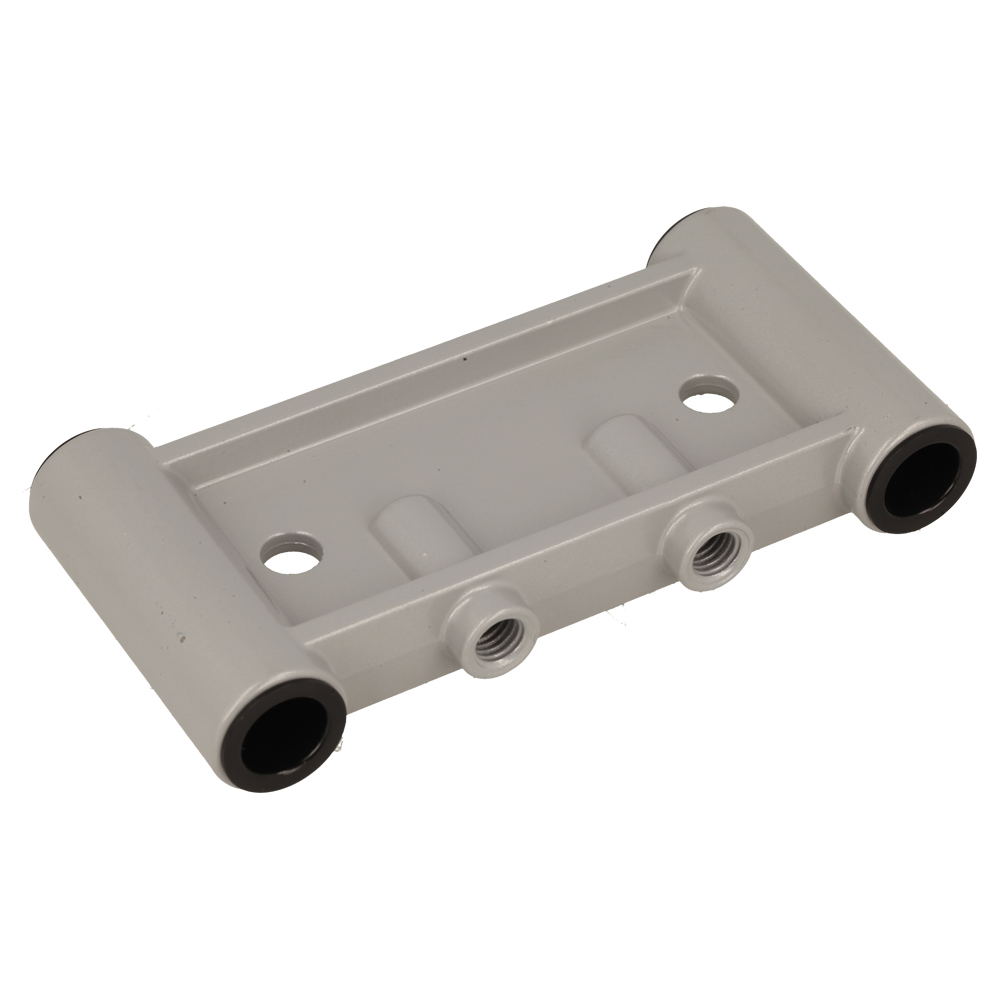

3	MO387773539/0 Available to backorder	Slewing Bracket Assy Inkl. pos 3A	£47.87 £39.89
5	MO112692050/0 Available to backorder	Screw	£1.82 £1.52

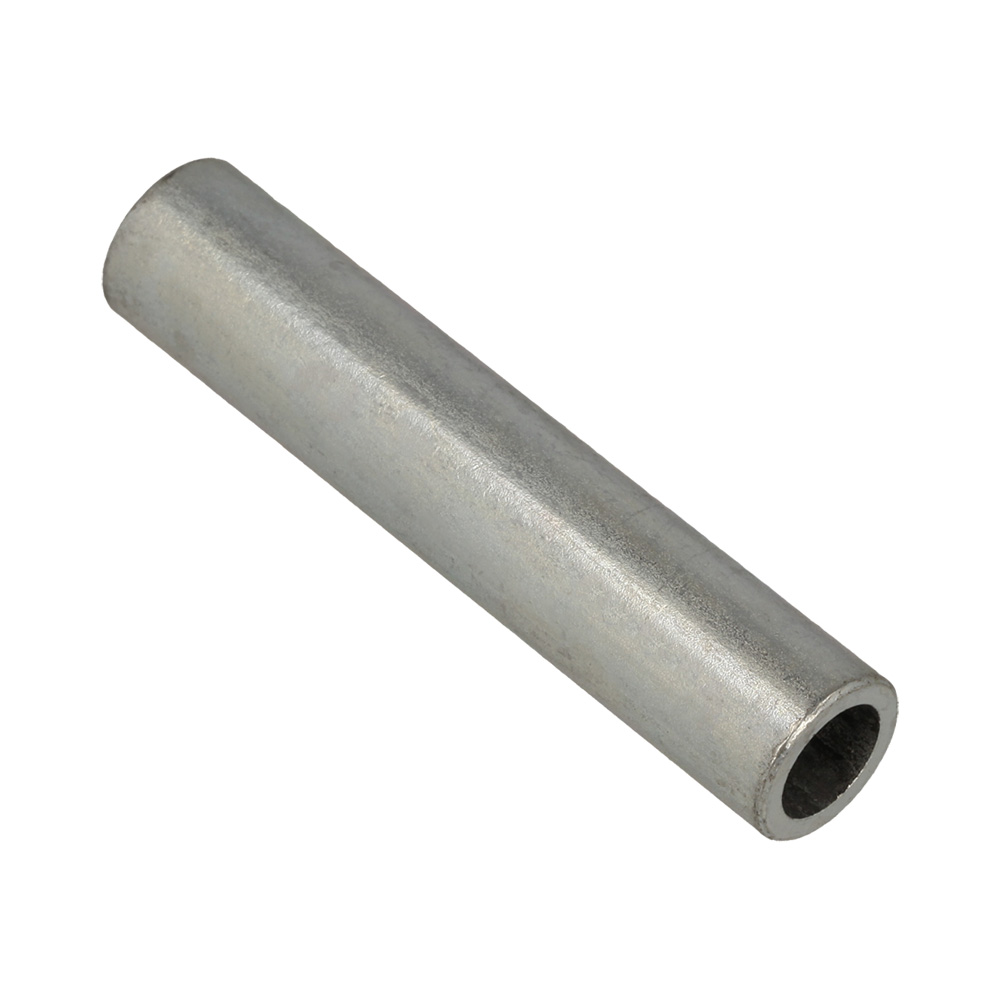

6	MO1137-0151-01 Available to backorder	Shaft	£2.68 £2.23
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
8	MO1137-0154-01 Available to backorder	Spacer	£33.79 £28.16
9	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
10	MO9997-0820-16 In stock	Screw	£1.55 £1.29
15	MO1137-0155-01 Available to backorder	Spacer	£4.22 £3.52
17	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29

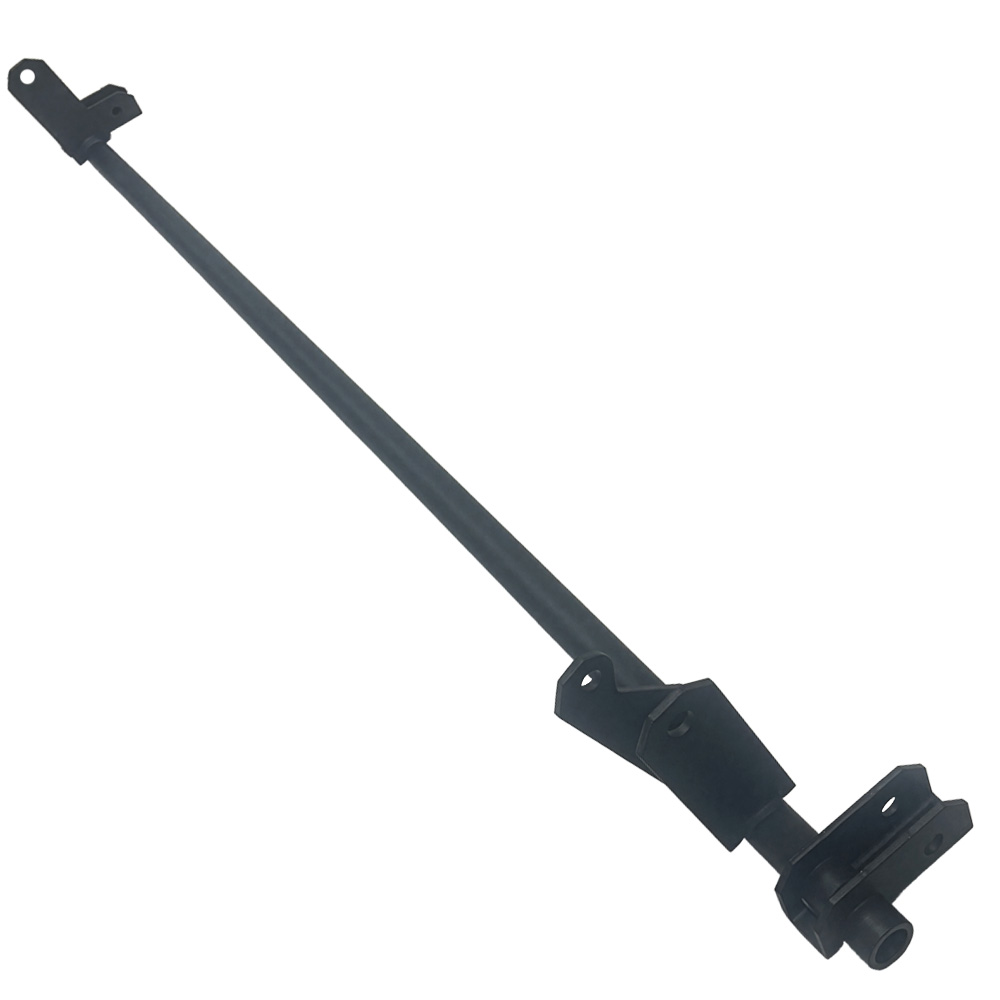

20	MO387000161/0 Available to backorder	Rear Axle-Yellow	£82.36 £68.63

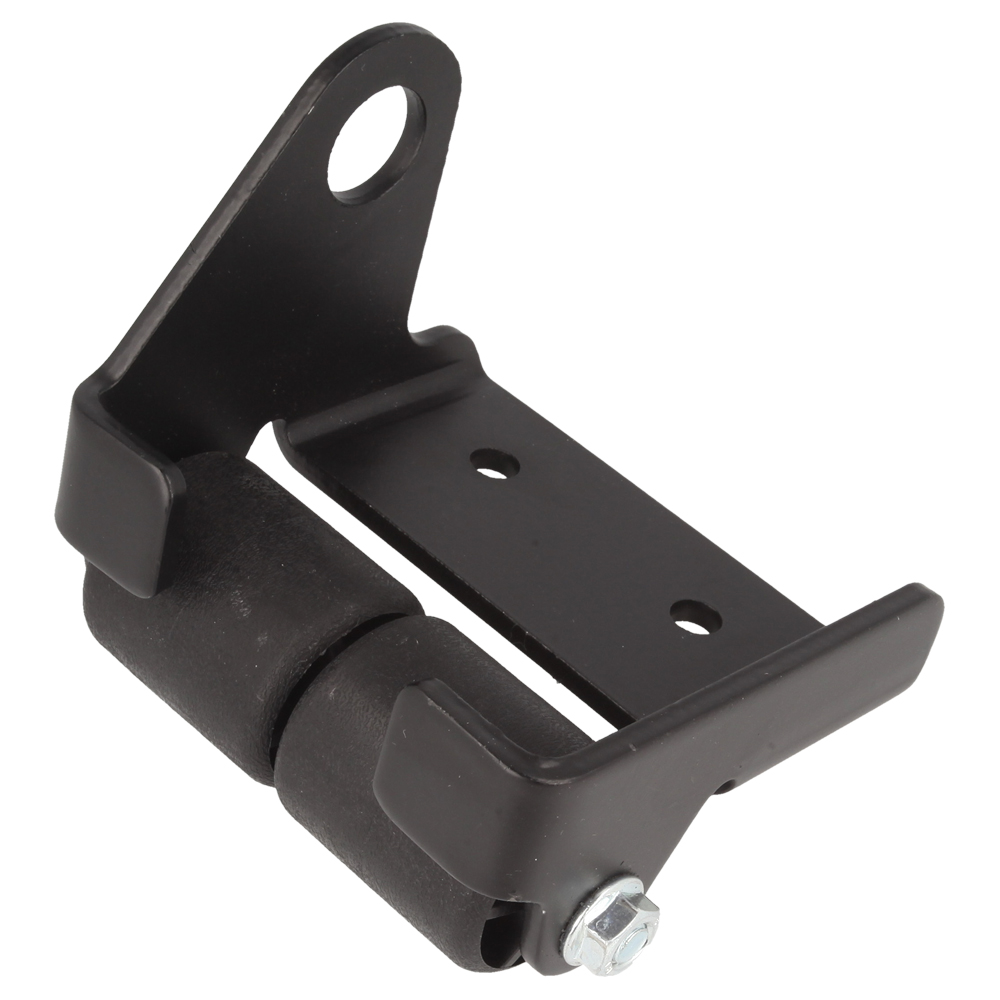

21	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket Inkl. pos 22 - 26	£56.32 £46.93

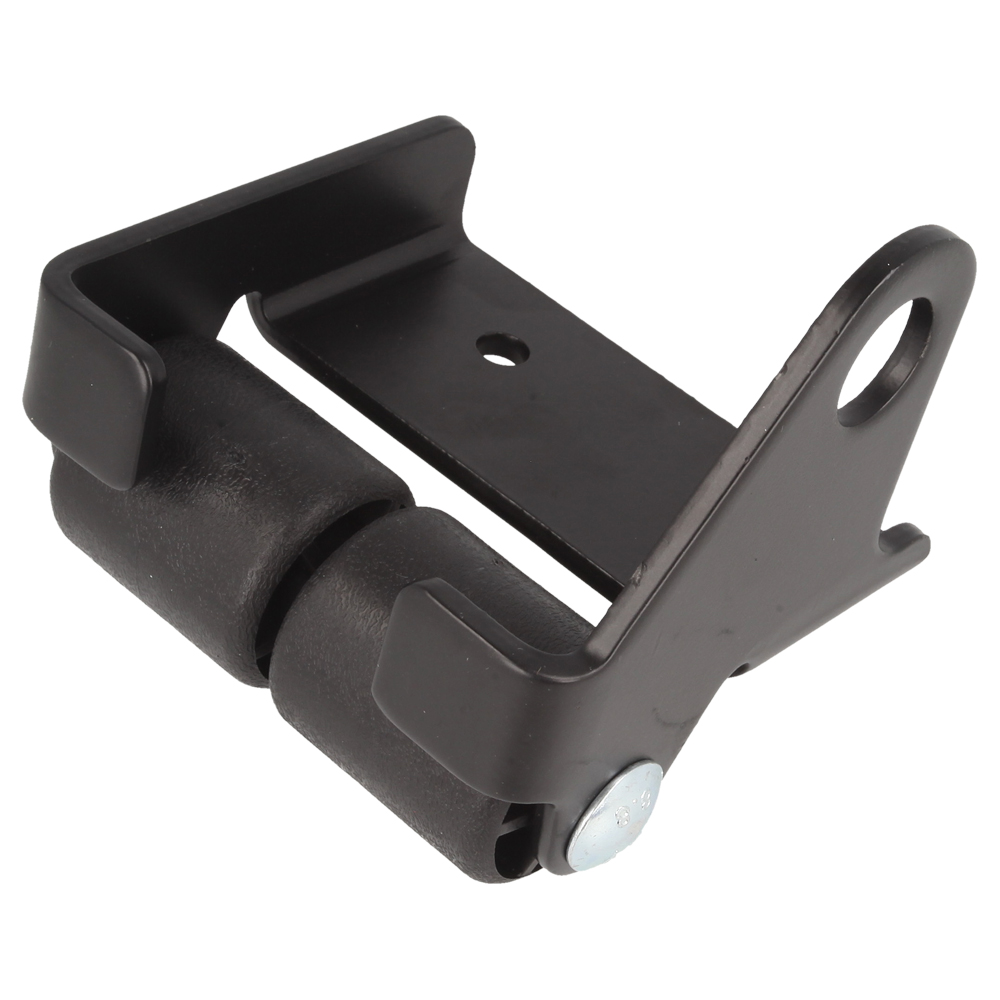

22	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket Inkl. pos 22 - 26	£56.32 £46.93

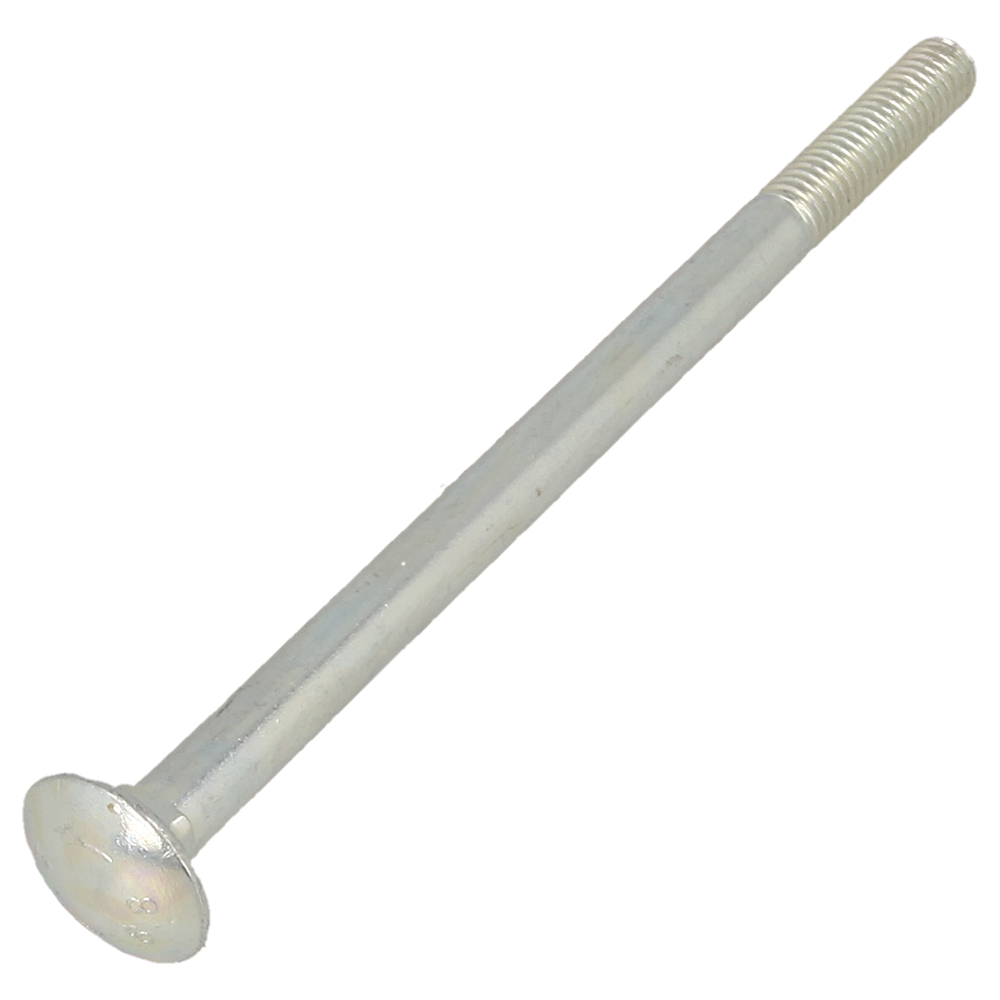

23	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
25	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50

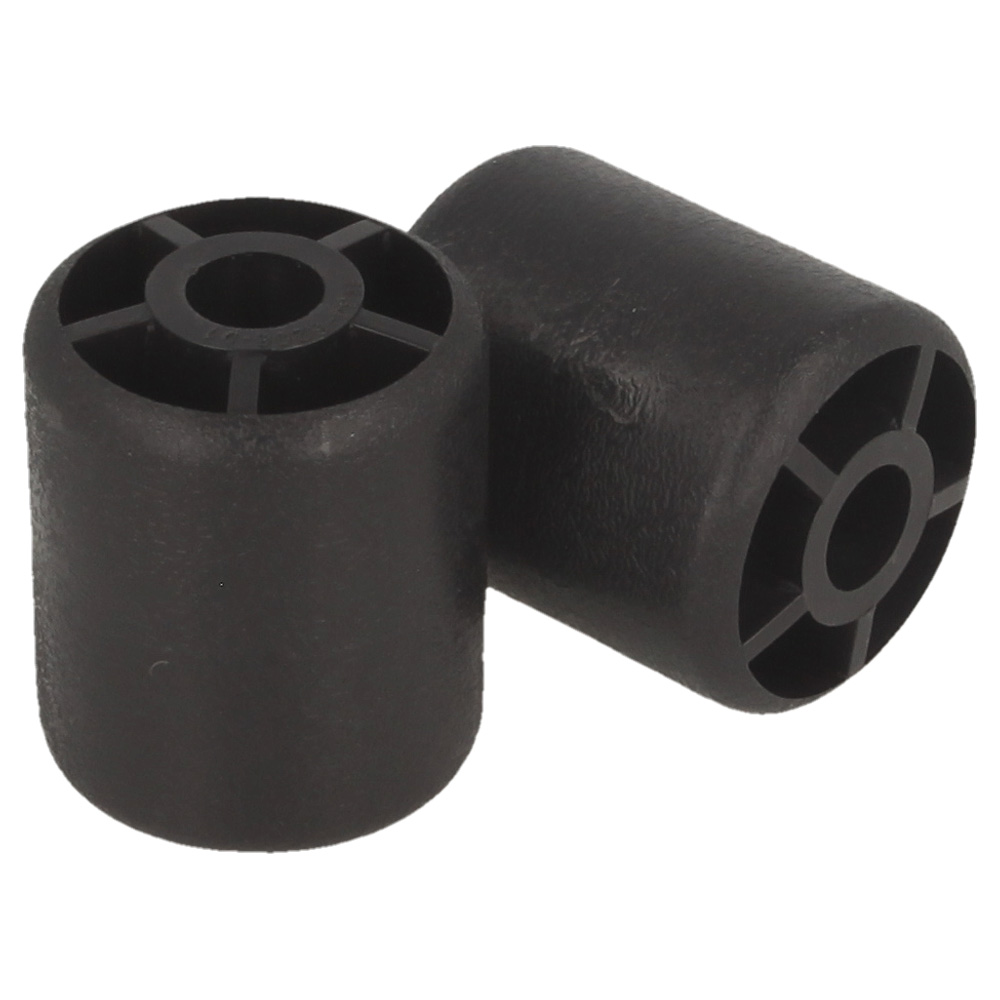

26	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
27	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
28	MO112293201/0 In stock	Nut	£1.69 £1.41

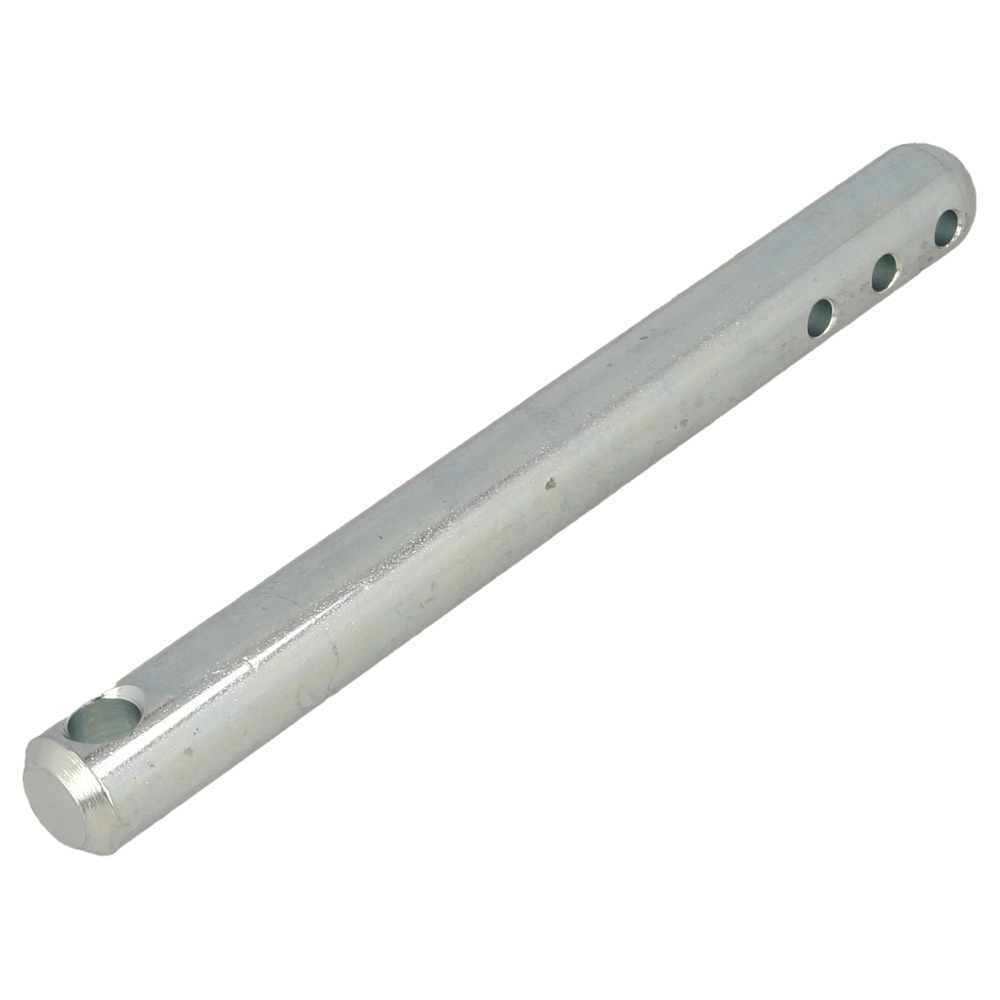

29	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
30	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
