COLLECTOR 543e S Kit - 2023-2024 - 2L0432008/UKS - Stiga Rotary Mower Height Adjusting Diagram

Description

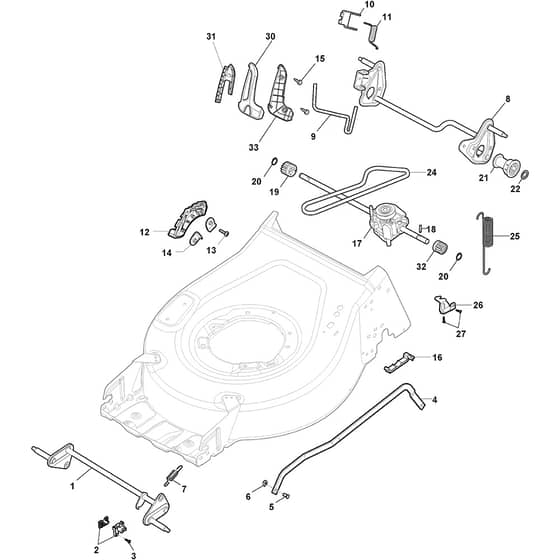

Stiga COLLECTOR 543e S Kit Parts Diagram

Product Name - COLLECTOR 543e S Kit

Model Year - 2023-2024

Model Type - CP1 430 S Li D48

Art.N - 2L0432008/UKS

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302937/1 Available to backorder	Axle. Front Wheels	£64.75 £53.96
2	MO322785305/1 In stock	Support	£2.68 £2.23
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869731/1 Available to backorder	Rod. Height Adjustment	£18.16 £15.13
5	MO122519823/0 In stock	Pin	£2.26 £1.88
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302851/1 Available to backorder	Rear Wheel Axle	£45.04 £37.53
9	MO322321553/0 Available to backorder	Lever. Height Adjustment	£3.10 £2.58
10	MO322557179/0 Available to backorder	Plate	£2.40 £2.00
11	MO122446198/1 Available to backorder	Spring	£1.69 £1.41
12	MO322735608/0 Available to backorder	Sector. Height Adjustment	£2.12 £1.77
13	MO112727807/0 In stock	Screw	£1.55 £1.29
14	MO322545232/2 Available to backorder	Plate	£1.55 £1.29
15	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
16	MO322785500/0 In stock	Support	£1.82 £1.52
17	MO181003114/0 Available to backorder	Gear Box	£124.58 £103.82
18	MO122753000/0 In stock	Pin	£1.55 £1.29
19	MO122570110/1 In stock	Right Pinion Metal	£7.39 £6.16
33	MO322394559/0 Available to backorder	Lower Height Adjust Knob [Black]	£2.12 £1.77
