COLLECTOR 53 S H - 2019 - 295536038/STX - Stiga Rotary Mower Handle Upper Part Diagram

Name: COLLECTOR 53 S H - 2019 - 295536038/STX - Stiga Rotary Mower Handle Upper Part Diagram
SKU: collector_53_s_h_295536038_stx_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Part No. collector_53_s_h_295536038_stx_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

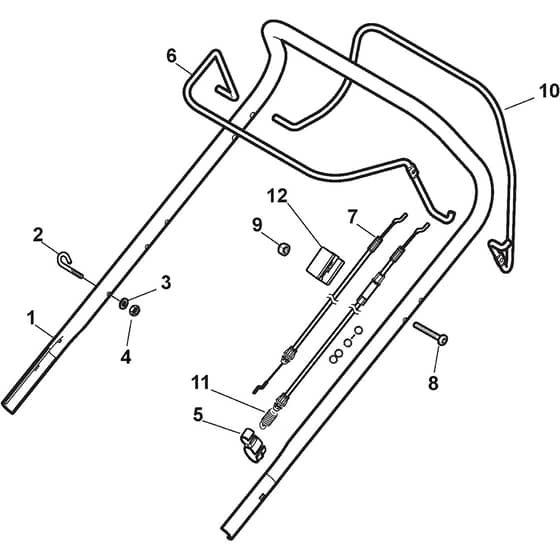

COLLECTOR 53 S H - 2019 - 295536038/STX - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga COLLECTOR 53 S H Parts Diagram

Product Name - COLLECTOR 53 S H

Model Year - 2019

Model Type - CRC 534 WS

Art.N - 295536038/STX

Engine Model -

	Part No.	Details
1	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer Not used on Electric Start Models	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever. Engine Brake Black Black From 01-9-2010	£14.93 £12.44
7	MO181030088/0 In stock	Cable. Thread Engine Brake	£13.50 £11.25
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030051/1 In stock	Cable Rear Drive	£17.17 £14.31
12	MO322551685/0 In stock	Cable Holder Block D.22	£7.52 £6.27
