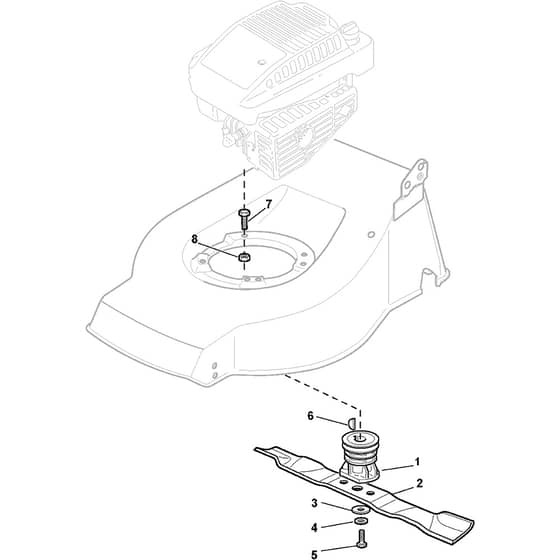

COLLECTOR 53 S - 2011 - 290532034/KRO - Stiga Rotary Mower Blade Diagram

Name: COLLECTOR 53 S - 2011 - 290532034/KRO - Stiga Rotary Mower Blade Diagram
SKU: collector_53_s_290532034_kro_blade-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 53 S - 2011 - 290532034/KRO - Stiga Rotary Mower Blade Diagram

Description

Stiga COLLECTOR 53 S Parts Diagram

Product Name - COLLECTOR 53 S

Model Year - 2011

Model Type - ML 534 TR

Art.N - 290532034/KRO

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-9-2009	£9.23 £7.69
2	MO181004381/1 In stock	Blade Standard From 01-9-2001	£17.10 £14.25
2	MO181004398/0 Available to backorder	Blade Winged	£25.45 £21.21
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139150/0 In stock	Feather. Crankshaft Ø 25 From 01-9-2007	£2.12 £1.77
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.69 £1.41
