COLLECTOR 48 S B - 2014-2019 - 295486128/S14 - Stiga Rotary Mower Deck Diagram

Description

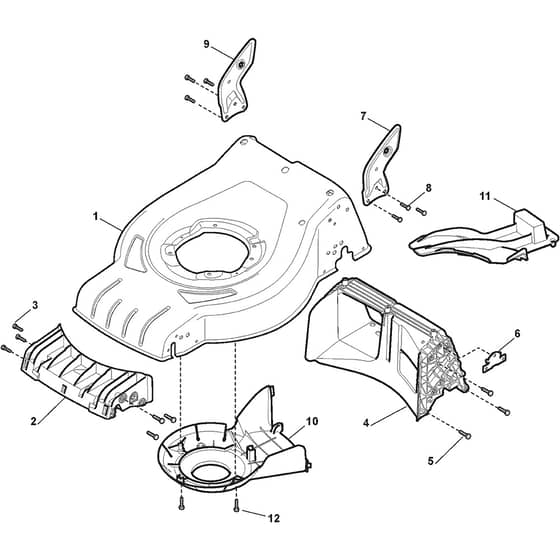

Stiga COLLECTOR 48 S B Parts Diagram

Product Name - COLLECTOR 48 S B

Model Year - 2014-2019

Model Type - CR 484 WS

Art.N - 295486128/S14

Engine Model - Briggs & Stratton 450 E series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004933/0 Available to backorder	Grey Deck	£131.62 £109.68
2	MO322108301/2 Available to backorder	Front Conveyor Assy From 01-9-2011	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.62 £5.52
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO381005137/0 Available to backorder	Right Bracket	£6.34 £5.28
10	MO322060242/2 In stock	Belt Protection	£11.53 £9.61
11	MO322140239/1 In stock	Mulching Deflector	£11.40 £9.50
12	MO112728903/0 In stock	Self-Tap Screw 4.8 X 25 Use 112728531.0	£1.40 £1.17
