COLLECTOR 48 S AE Kit - 2024-2025 - 2L0482008/UKS - Stiga Rotary Mower Blade and Hub Diagram

Name: COLLECTOR 48 S AE Kit - 2024-2025 - 2L0482008/UKS - Stiga Rotary Mower Blade and Hub Diagram
SKU: collector_48_s_ae_kit_2l0482008_uks_blade_and_hub-group
Price: 1.29 GBP
Availability: InStock

Part No. collector_48_s_ae_kit_2l0482008_uks_blade_and_hub-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 48 S AE Kit - 2024-2025 - 2L0482008/UKS - Stiga Rotary Mower Blade and Hub Diagram

Description

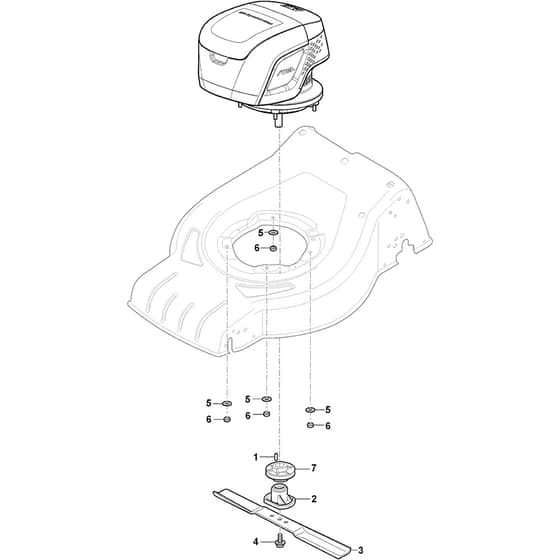

Stiga COLLECTOR 48 S AE Kit Parts Diagram

Product Name - COLLECTOR 48 S AE Kit

Model Year - 2024-2025

Model Type - CP1 480 S Li 48

Art.N - 2L0482008/UKS

Engine Model -

	Part No.	Details
1	MO112139440/0 Available to backorder	Key	£1.97 £1.64
2	MO322463189/0 Available to backorder	Hub Ø 17	£7.14 £5.95
3	MO181004460/0 In stock	Mulching Blade	£14.14 £11.78
4	MO381004352/1 In stock	Screw	£4.08 £3.40
5	MO112583500/0 In stock	Grower	£1.55 £1.29
6	MO112293200/0 In stock	Nut	£1.55 £1.29
7	MO322601911/2 Available to backorder	Plastic Drive Pulley	£6.20 £5.17
