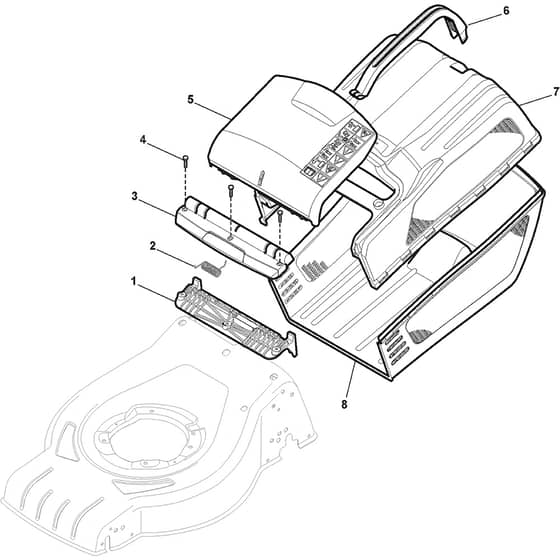

COLLECTOR 48 B - 2013 - 295485024/S13 - Stiga Rotary Mower Grass Catcher Diagram

Name: COLLECTOR 48 B - 2013 - 295485024/S13 - Stiga Rotary Mower Grass Catcher Diagram
SKU: collector_48_b_295485024_s13_grass_catcher-group
Price: 1.29 GBP
Availability: InStock

Part No. collector_48_b_295485024_s13_grass_catcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 48 B - 2013 - 295485024/S13 - Stiga Rotary Mower Grass Catcher Diagram

Description

Stiga COLLECTOR 48 B Parts Diagram

Product Name - COLLECTOR 48 B

Model Year - 2013

Model Type - CR 484 W

Art.N - 295485024/S13

Engine Model - Briggs & Stratton 450 series

	Part No.	Details
1	MO322785331/0 Available to backorder	Black Stone Guard Support	£6.64 £5.53
2	MO122450464/0 Available to backorder	Spring	£2.24 £1.87
3	MO381008164/0 Available to backorder	Stone Guard Supp. Cover Yellow Yellow	£26.59 £22.16
3	MO322109557/0 Available to backorder	Stone Guard Supp. Cover Black Black	£24.78 £20.65
4	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
5	MO381008163/0 Available to backorder	Stone Guard. Black Black	£24.78 £20.65
5	MO322600214/1 Available to backorder	Stone Guard. Yellow Yellow From 01-9-2011	£26.59 £22.16
6	MO322393643/0 Available to backorder	Grasscatcher Handle. Black Black	£5.06 £4.22
7	MO322486260/0 Available to backorder	Grasscatcher Upper Part. Black Black	£38.00 £31.67
8	MO322486261/0 Available to backorder	Grasscatcher Lower Part. Black Black	£29.57 £24.64
