COLLECTOR 48 B - 2013 - 295485024/S13 - Stiga Rotary Mower Blade Diagram

Description

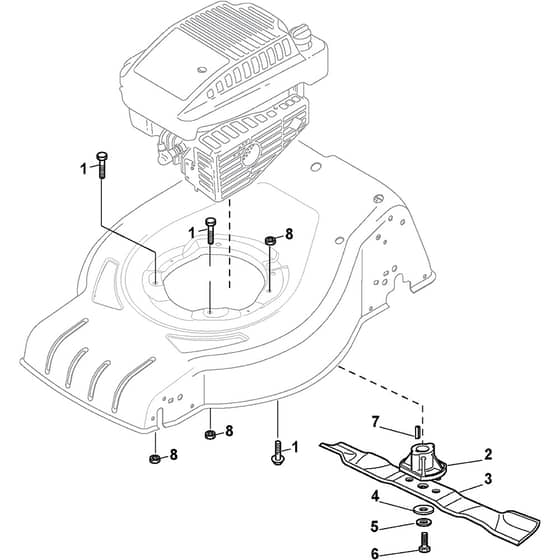

Stiga COLLECTOR 48 B Parts Diagram

Product Name - COLLECTOR 48 B

Model Year - 2013

Model Type - CR 484 W

Art.N - 295485024/S13

Engine Model - Briggs & Stratton 450 series

	Part No.	Details
1	MO112735108/1 In stock	Screw	£2.11 £1.76
2	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2	£8.00 £6.67
3	MO181004346/3 In stock	Left Mulching. Blade	£12.72 £10.60
4	MO112523080/0 In stock	Washer To 31-8-2015	£1.55 £1.29
4	MO322680021/0 Available to backorder	Washer From 01-9-2015	£1.26 £1.05
5	MO112508128/0 In stock	Elastic Washer	£1.33 £1.11
6	MO112735698/0 In stock	Screw	£1.84 £1.53
7	MO112139100/0 In stock	Key	£1.55 £1.29
8	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
