COLLECTOR 48 - 2018 - 295481048/STX - Stiga Rotary Mower Deck Diagram

Name: COLLECTOR 48 - 2018 - 295481048/STX - Stiga Rotary Mower Deck Diagram
SKU: collector_48_295481048_stx_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 48 - 2018 - 295481048/STX - Stiga Rotary Mower Deck Diagram

Description

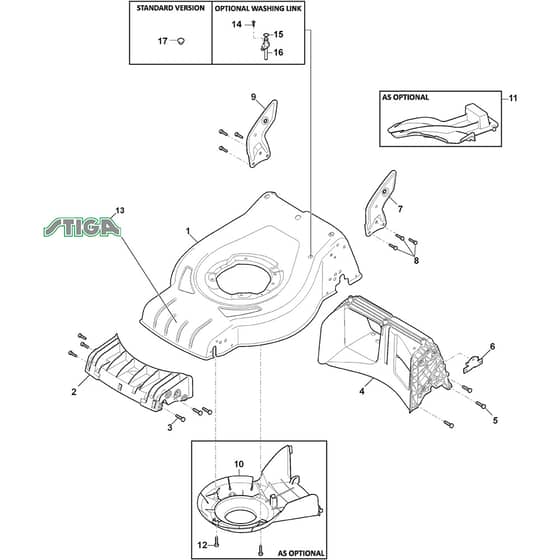

Stiga COLLECTOR 48 Parts Diagram

Product Name - COLLECTOR 48

Model Year - 2018

Model Type - CR 484

Art.N - 295481048/STX

Engine Model - RS 100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004933/0 Available to backorder	Grey Deck	£131.62 £109.68
2	MO322108301/2 Available to backorder	Front Conveyor Assy	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005179/0 Available to backorder	Bracket	£10.27 £8.56
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO381005177/0 Available to backorder	Bracket	£10.27 £8.56
10	MO322060242/2 In stock	Belt Protection As Optional From 01-9-2018	£11.53 £9.61
11	MO322140239/1 In stock	Mulching Deflector As Optional	£11.40 £9.50
12	MO112728903/0 In stock	Screw As Optional	£1.40 £1.17
13	MO114367494/2 Available to backorder	Stiga Logo Label	£9.16 £7.63
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
