COLLECTOR 46 S - 2019-2020 - 299274648/ST1 - Stiga Rotary Mower Blade Diagram

Name: COLLECTOR 46 S - 2019-2020 - 299274648/ST1 - Stiga Rotary Mower Blade Diagram
SKU: collector_46_s_299274648_st1_blade-group
Price: 1.05 GBP
Availability: InStock

Part No. collector_46_s_299274648_st1_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 46 S - 2019-2020 - 299274648/ST1 - Stiga Rotary Mower Blade Diagram

Description

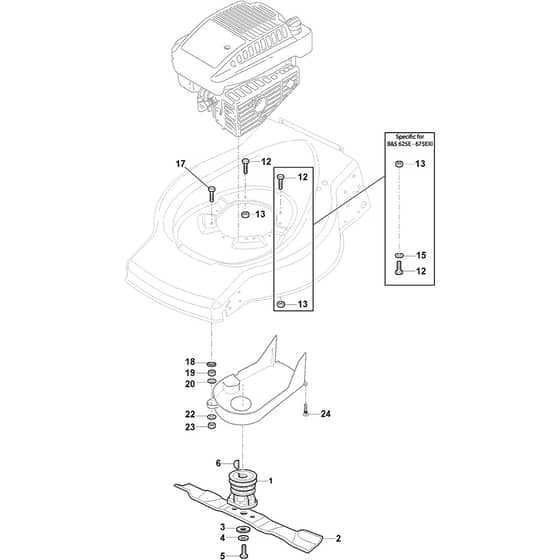

Stiga COLLECTOR 46 S Parts Diagram

Product Name - COLLECTOR 46 S

Model Year - 2019-2020

Model Type - ESL 464 TR

Art.N - 299274648/ST1

Engine Model - ST 120 OHV Autochoke

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
2	MO181004365/3 In stock	Mulching Blade	£12.06 £10.05
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
13	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
15	MO112521350/0 In stock	Washer	£1.55 £1.29
17	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
18	MO112543002/0 In stock	Washer	£1.26 £1.05
19	MO112293200/0 In stock	Nut	£1.55 £1.29
20	MO122671651/0 In stock	Washer	£1.97 £1.64
22	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO112728686/0 In stock	Self-Tapping Screw Ka50 X 16	£1.55 £1.29
