COLLECTOR 46 S - 2011 - 299274641/S11 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

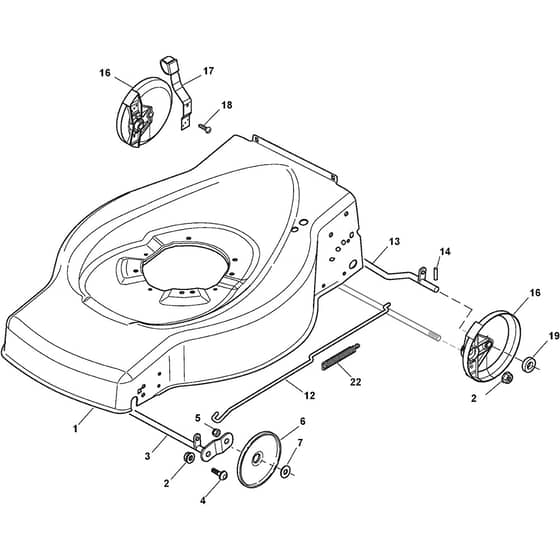

Stiga COLLECTOR 46 S Parts Diagram

Product Name - COLLECTOR 46 S

Model Year - 2011

Model Type - ESL 464 TR

Art.N - 299274641/S11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002538/0 Available to backorder	Red Deck	£109.79 £91.49
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO381000153/0 Available to backorder	Front Wheel Axle	£53.50 £44.58
4	MO112760600/1 Available to backorder	Screw From 01-9-2018	£2.26 £1.88
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
7	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
7	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.55 £1.29
12	MO122033317/0 Available to backorder	Adjustment Rod	£18.72 £15.60
13	MO381000159/0 Available to backorder	Rear Wheel Axle From 01-9-2006	£24.07 £20.06
13	MO122033393/0 Available to backorder	Rear Wheel Axle To 31-8-2006	£25.06 £20.88
14	MO122753001/0 Available to backorder	Pin	£1.55 £1.29
16	MO322600106/1 Available to backorder	Protection. Wheel From 01-9-2004	£6.76 £5.63
17	MO381003303/0 Available to backorder	Lever. Height Adjustment	£17.45 £14.54
18	MO112728689/0 In stock	Screw	£1.40 £1.17
19	MO122122202/0 In stock	Bearing	£1.82 £1.52
22	MO122446186/0 Available to backorder	Spring	£5.35 £4.46
