COLLECTOR 46 COMBI - 2010 - 299174641/ST8 - Stiga Rotary Mower Blade Diagram

Name: COLLECTOR 46 COMBI - 2010 - 299174641/ST8 - Stiga Rotary Mower Blade Diagram
SKU: collector_46_combi_299174641_st8_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. collector_46_combi_299174641_st8_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 46 COMBI - 2010 - 299174641/ST8 - Stiga Rotary Mower Blade Diagram

Description

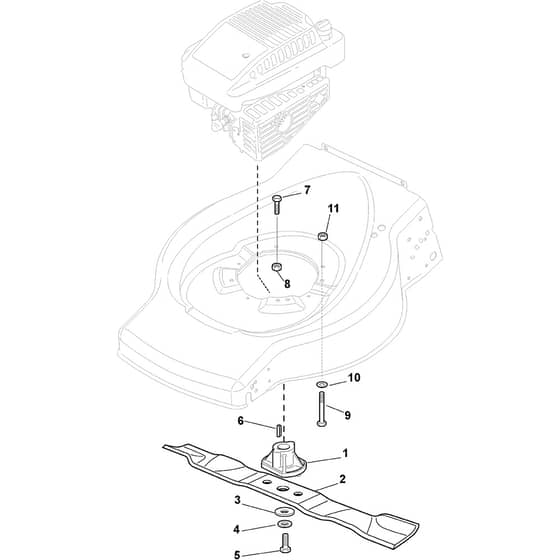

Stiga COLLECTOR 46 COMBI Parts Diagram

Product Name - COLLECTOR 46 COMBI

Model Year - 2010

Model Type - ESL 464

Art.N - 299174641/ST8

Engine Model -

	Part No.	Details
1	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-9-2007	£8.00 £6.67
2	MO181004121/0 In stock	Mulching Blade To 31-8-2007	£12.78 £10.65
2	MO181004365/3 In stock	Mulching Blade From 01-9-2007	£12.06 £10.05
3	MO122160400/0 In stock	Elastic Disc From 01-9-2007	£1.84 £1.53
3	MO112369600/0 Available to backorder	Elastic Disc To 31-8-2007	£17.36 £14.47
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112793701/0 In stock	Screw	£1.55 £1.29
8	MO112293201/0 In stock	Nut	£1.70 £1.42
9	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
10	MO112521350/0 In stock	Washer	£1.55 £1.29
11	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
