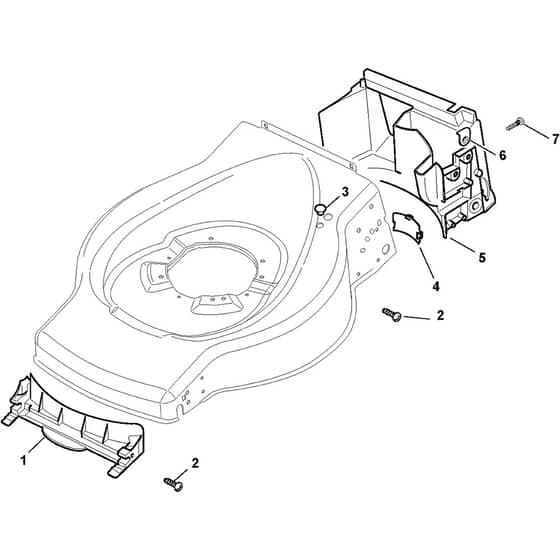

COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Front Conveyor Assy Diagram

Name: COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Front Conveyor Assy Diagram
SKU: collector_46_b_299174621_s11_front_conveyor_assy-group
Price: 1.16 GBP
Availability: InStock

Part No. collector_46_b_299174621_s11_front_conveyor_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Front Conveyor Assy Diagram

Description

Stiga COLLECTOR 46 B Parts Diagram

Product Name - COLLECTOR 46 B

Model Year - 2011-2013

Model Type - ESL 464

Art.N - 299174621/S11

Engine Model - Briggs & Stratton 450 series

	Part No.	Details
1	MO322108271/0 In stock	Front Conveyor Assy	£13.51 £11.26
3	MO322820077/1 Available to backorder	Cap From 01-9-2016	£1.55 £1.29
4	MO322109532/0 Available to backorder	Gear Box Cover	£1.39 £1.16
5	MO322108272/2 In stock	Rear Conveyor Assy	£18.88 £15.73
6	MO322545189/0 In stock	Plate From 01-9-2007	£1.55 £1.29
7	MO112728686/0 In stock	Self-Tapping Screw Ka50 X 16	£1.55 £1.29
