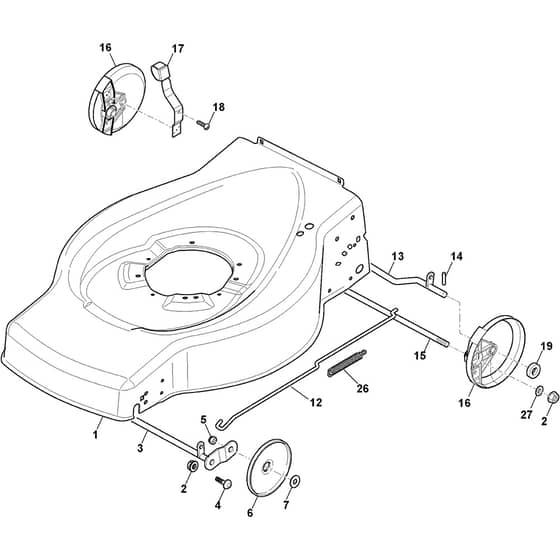

COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: collector_46_b_299174621_s11_deck_and_height_adjusting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 46 B - 2011-2013 - 299174621/S11 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

Stiga COLLECTOR 46 B Parts Diagram

Product Name - COLLECTOR 46 B

Model Year - 2011-2013

Model Type - ESL 464

Art.N - 299174621/S11

Engine Model - Briggs & Stratton 450 series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002538/0 Available to backorder	Red Deck	£109.79 £91.49
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO381000153/0 Available to backorder	Front Wheel Axle	£53.50 £44.58
4	MO112760600/1 Available to backorder	Screw From 01-9-2018	£2.26 £1.88
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
7	MO122671651/0 Available to backorder	Washer To 31-8-2006	£1.97 £1.64
7	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
12	MO122033317/0 Available to backorder	Adjustment Rod	£18.72 £15.60
13	MO381000159/0 Available to backorder	Rear Wheel Axle From 01-9-2006	£24.07 £20.06
14	MO122753001/0 Available to backorder	Pin	£1.55 £1.29
15	MO122033369/0 Available to backorder	Rear Stiffening Axle	£19.79 £16.49
16	MO322600106/1 Available to backorder	Protection. Wheel From 01-9-2004	£6.76 £5.63
17	MO381003303/0 Available to backorder	Lever. Height Adjustment	£17.45 £14.54
18	MO112728689/0 In stock	Screw	£1.40 £1.17
19	MO112521370/0 Available to backorder	Washer To 31-8-2006	£1.55 £1.29
19	MO322170622/0 Available to backorder	Spacer From 01-9-2006	£1.40 £1.17
26	MO122446186/0 Available to backorder	Spring Only for 534 Models	£5.35 £4.46
27	MO122675100/0 Available to backorder	Washer D.12.6 X 24 X 0.6	£1.82 £1.52
