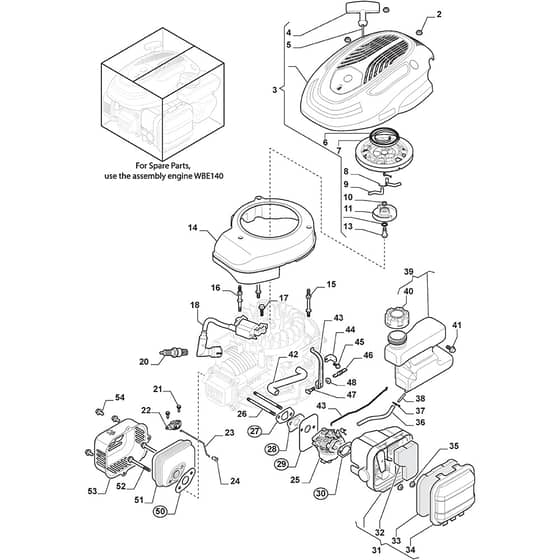

COLLECTOR 43 S - 2019-2020 - 2L0432048/ST1 - Stiga Rotary Mower Carburettor Tank Diagram

Description

Stiga COLLECTOR 43 S Parts Diagram

Product Name - COLLECTOR 43 S

Model Year - 2019-2020

Model Type - CP1 434 S

Art.N - 2L0432048/ST1

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118552628/0 Available to backorder	Starter Assy	£72.50 £60.42
4	MO118551619/0 Available to backorder	Starter Handle	£9.00 £7.50
5	MO118550779/0 Available to backorder	Starting Rope	£7.19 £5.99
6	MO118551621/0 In stock	Starter Spring	£10.14 £8.45
7	MO118551620/0 Available to backorder	Starter Pulley	£15.48 £12.90
8	MO118551626/0 Available to backorder	Spring	£2.40 £2.00
9	MO118551622/0 Available to backorder	Ratchet. Starter	£2.95 £2.46
10	MO118551625/0 Available to backorder	Spring	£2.96 £2.47
11	MO118551623/0 Available to backorder	Cover	£7.88 £6.57
13	MO118551624/0 Available to backorder	Stud	£4.22 £3.52
14	MO118550908/0 Available to backorder	Air Guide	£38.00 £31.67
17	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
18	MO118551475/0 In stock	Elettronic Coil	£49.56 £41.30
20	3381 In stock	Spark Plug	£4.44 £3.70
22	MO118551456/0 Available to backorder	Choke Control	£23.65 £19.71
23	MO118551459/0 Available to backorder	Control Rod	£8.38 £6.98
24	MO118551352/0 In stock	Retainer	£3.67 £3.06
25	MO118551489/1 In stock	Carburettor	£66.84 £55.70
26	MO118550930/0 Available to backorder	Stud Bolt	£5.76 £4.80
27	MO118550929/0 In stock	Gasket	£1.55 £1.29
28	MO118550928/0 In stock	Insulator. Carburettor	£3.94 £3.28
29	MO118550927/0 In stock	Gasket	£4.61 £3.84
30	MO118550924/0 In stock	Gasket	£1.69 £1.41
31	MO118551461/0 Available to backorder	Air Cleaner Assy	£30.97 £25.81
32	MO118550946/0 In stock	Air Filter	£3.24 £2.70
33	MO118550945/0 In stock	Air Filter	£3.10 £2.58
34	MO118550944/0 In stock	Air Cleaner Cover	£8.94 £7.45
35	MO112292102/0 In stock	Nut	£1.69 £1.41
36	MO118551481/0 In stock	Fuel Pipe	£6.90 £5.75
37	MO118550918/0 Available to backorder	Pipe Clip	£1.55 £1.29
38	MO118550314/0 In stock	Fuel Filter	£4.37 £3.64
39	MO118551454/0 Available to backorder	Tank	£40.82 £34.02
40	MO118552820/0 In stock	Fuel Cap	£6.34 £5.28
41	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
42	MO118550920/0 Available to backorder	Breather Fuel Pipe	£3.60 £3.00
43	MO118550933/0 Available to backorder	Arm Governor	£6.20 £5.17
45	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
46	MO118550932/0 In stock	Spring	£1.55 £1.29
53	MO118550900/0 Available to backorder	Muffler Guard	£21.12 £17.60
