COLLECTOR 43 - 2019 - 2L0431148/ST1 - Stiga Rotary Mower Grass Catcher Diagram

Name: COLLECTOR 43 - 2019 - 2L0431148/ST1 - Stiga Rotary Mower Grass Catcher Diagram
SKU: collector_43_2l0431148_st1_grass_catcher-group
Price: 1.29 GBP
Availability: InStock

Part No. collector_43_2l0431148_st1_grass_catcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

COLLECTOR 43 - 2019 - 2L0431148/ST1 - Stiga Rotary Mower Grass Catcher Diagram

Description

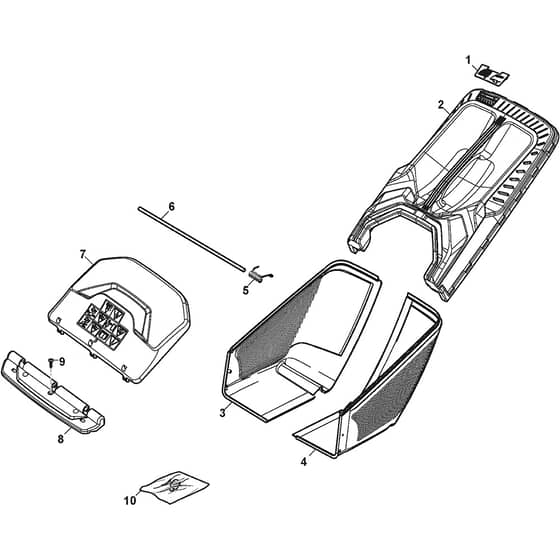

Stiga COLLECTOR 43 Parts Diagram

Product Name - COLLECTOR 43

Model Year - 2019

Model Type - CP1 434

Art.N - 2L0431148/ST1

Engine Model -

	Part No.	Details
1	MO322486497/0 Available to backorder	Rear Door	£1.55 £1.29
2	MO322486496/0 In stock	Grass-Box. Upper Part Grey	£30.98 £25.82
3	MO322486434/0 Available to backorder	Grass-Box. Right Lower Part Grey	£23.23 £19.36
4	MO322486435/0 Available to backorder	Grass-Box. Left Lower Part Grey	£23.23 £19.36
5	MO122450479/0 Available to backorder	Spring	£3.38 £2.82
6	MO122517884/0 Available to backorder	Pin	£5.06 £4.22
7	MO322600357/1 Available to backorder	Stone Guard. Yellow Yellow	£13.18 £10.98
8	MO322109595/0 Available to backorder	Stone Guard Support. Yellow Yellow	£3.52 £2.93
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO381008735/0 In stock	Plastic Pin	£2.24 £1.87
