COLLECTOR 43 - 2019-2025 - 2L0431048/ST1 - Stiga Rotary Mower Deck Diagram

Description

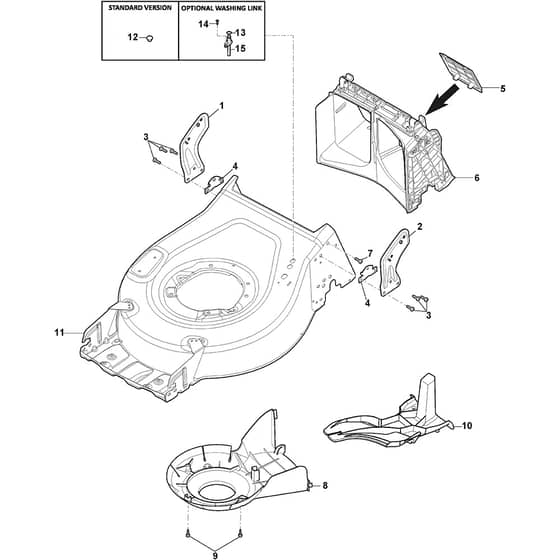

Stiga COLLECTOR 43 Parts Diagram

Product Name - COLLECTOR 43

Model Year - 2019-2025

Model Type - CP1 434

Art.N - 2L0431048/ST1

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005235/2 Available to backorder	Bracket-Rh	£8.45 £7.04
2	MO381005237/2 Available to backorder	Bracket-Lh Grey Pearl	£8.45 £7.04
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 Available to backorder	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 Available to backorder	Rear Conveyor	£19.38 £16.15
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060241/1 Available to backorder	Belt Protection As Optional	£8.74 £7.28
9	MO112728903/0 In stock	Screw As Optional	£1.40 £1.17
10	MO322140249/1 Available to backorder	Mulching Deflector As Optional	£12.38 £10.32
11	MO381005026/0 Available to backorder	Grey Deck	£129.52 £107.93
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
