COLLECTOR 43 - 2013 - 295431044/S13 - Stiga Rotary Mower Engine ST WBE0701 Diagram

Description

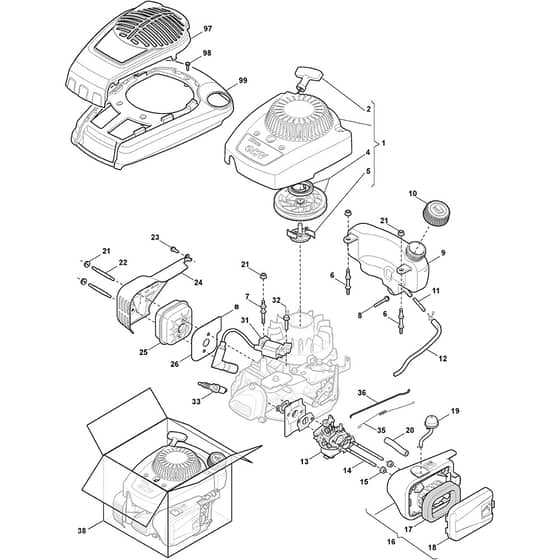

Stiga COLLECTOR 43 Parts Diagram

Product Name - COLLECTOR 43

Model Year - 2013

Model Type - CR 434

Art.N - 295431044/S13

Engine Model - RS 100 OHV

	Part No.	Details
1	MO118550693/0 Available to backorder	Starter Assy Cover	£43.63 £36.36
2	MO118550694/0 Available to backorder	Starter Handle	£3.52 £2.93
4	MO118550695/0 Available to backorder	Starter Pulley	£13.66 £11.38
5	MO118550696/0 Available to backorder	Starter Pawl Set	£6.46 £5.38
6	MO118550713/0 Available to backorder	Screw	£6.64 £5.53
7	MO118550714/0 Available to backorder	Screw	£2.94 £2.45
8	MO112689515/0 Available to backorder	Screw	£1.63 £1.36
9	MO118550712/0 In stock	Fuel Tank	£16.06 £13.38
10	MO118550711/0 In stock	Fuel Cap	£4.64 £3.87
11	MO118550715/0 In stock	Fuel Filter	£2.11 £1.76
12	MO118550716/0 In stock	Fuel Pipe	£2.69 £2.24
13	MO118550697/0 In stock	Carburetor	£47.87 £39.89
14	MO118550706/0 Available to backorder	Screw	£3.52 £2.93
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO118550702/0 In stock	Air Cleaner Assy	£12.80 £10.67
17	MO118550704/0 In stock	Air Filter	£3.52 £2.93
99	MO322055518/0 Available to backorder	Engine Ring Cover Rs100 [Yellow]	£6.05 £5.04
