Collector 40 E - 2014-2017 - 293380068/S14 - Stiga Rotary Mower Electric Walkbehind Diagram

Description

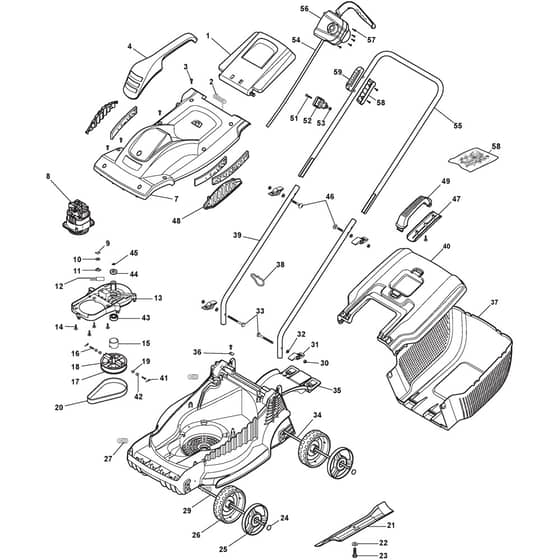

Stiga Collector 40 E Parts Diagram

Product Name - Collector 40 E

Model Year - 2014-2017

Model Type - E 380

Art.N - 293380068/S14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118810150/0 Available to backorder	Stone Guard. Yellow	£12.95 £10.79
2	MO118810096/0 Available to backorder	Spring	£2.40 £2.00
4	MO118810156/0 Available to backorder	Cover. Grey	£6.05 £5.04
9	MO112543001/0 Available to backorder	Washer	£4.93 £4.11
11	MO118801615/0 Available to backorder	Wire Connector	£1.33 £1.11
12	MO118810063/0 Available to backorder	Temperature	£3.92 £3.27
13	MO118810084/0 Available to backorder	Engine Plate	£32.38 £26.98
14	MO118810099/0 Available to backorder	Screw	£2.53 £2.11
15	MO118810106/0 Available to backorder	Brake	£3.79 £3.16
16	MO118810108/0 Available to backorder	Brake Spring	£1.97 £1.64
17	MO118810059/0 Available to backorder	Pulley	£24.78 £20.65
18	MO118810104/0 Available to backorder	Pulley Insert	£12.25 £10.21
20	MO118810092/0 Available to backorder	Belt	£14.95 £12.46
21	MO118810003/0 Available to backorder	Blade	£17.64 £14.70
22	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
23	MO112793312/0 Available to backorder	Screw	£1.78 £1.48
24	MO112604898/0 Available to backorder	Crown Fastener	£1.55 £1.29
25	MO118810153/0 Available to backorder	Hub Cap	£10.27 £8.56
26	MO118810081/0 Available to backorder	Wheel	£5.35 £4.46
27	MO118810109/0 Available to backorder	Spring	£2.95 £2.46
29	MO118810100/0 Available to backorder	Front Wheel Axle	£5.21 £4.34
31	MO118810137/0 Available to backorder	Knob	£4.78 £3.98
32	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
33	MO118810160/0 Available to backorder	Screw	£3.79 £3.16
34	MO118810101/0 Available to backorder	Rear Wheel Axle	£5.64 £4.70
35	MO118810155/0 Available to backorder	Deflector	£5.48 £4.57
37	MO118810152/0 Available to backorder	Grass-Box. Lower Part	£40.82 £34.02
38	MO122192000/1 Available to backorder	Cable Holder	£1.82 £1.52
39	MO118810105/0 Available to backorder	Handle. Lower Part	£35.96 £29.97
40	MO118810154/0 Available to backorder	Grass-Box. Upper Part	£27.17 £22.64
41	MO118810102/0 Available to backorder	Insert	£1.55 £1.29
42	MO118810107/0 Available to backorder	Iron Brake	£2.53 £2.11
43	MO118810070/0 Available to backorder	Bearing	£16.88 £14.07
44	MO118810069/0 Available to backorder	Bearing	£5.64 £4.70
45	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
46	MO112727784/0 Available to backorder	Screw	£1.40 £1.17
47	MO118810146/0 Available to backorder	Handle. Lower Part	£2.12 £1.77
48	MO118810151/0 Available to backorder	Left Window. Grey	£3.38 £2.82
49	MO118810144/0 Available to backorder	Handle	£4.08 £3.40
51	MO9943-0516-16 In stock	Screw	£1.22 £1.02
52	MO118810083/0 Available to backorder	Hook	£4.08 £3.40
54	MO118810159/0 Available to backorder	Wire	£10.42 £8.68
55	MO118810075/0 Available to backorder	Handle. Upper Part	£27.24 £22.70
56	MO118810098/0 Available to backorder	Dead Hand Switch	£35.20 £29.33
57	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
58	MO118810171/0 Available to backorder	Outfit. Screws	£15.28 £12.73
60	MO118810087/0 Available to backorder	Upper Fixation Plate	£2.12 £1.77
