COLLECTOR 140e Kit - 2022-2025 - 291382068/ST2 - Stiga Rotary Mower Wheels Blade Motor Grasscatcher Diagram

Description

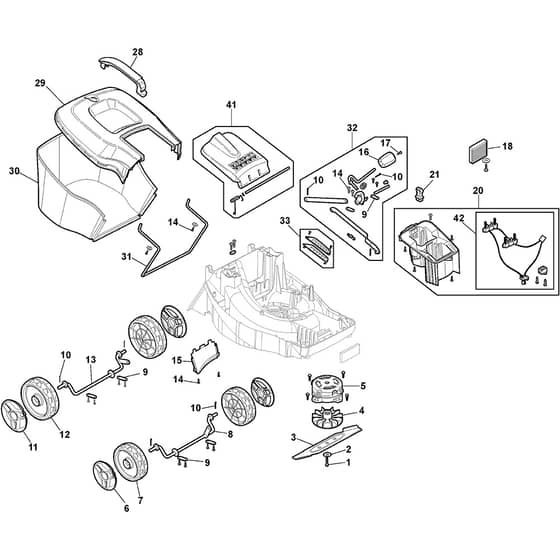

Stiga COLLECTOR 140e Kit Parts Diagram

Product Name - COLLECTOR 140e Kit

Model Year - 2022-2025

Model Type - E 380 LI 20 S

Art.N - 291382068/ST2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118811089/0 Available to backorder	Blade Bolt	£1.69 £1.41
2	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
3	MO118811210/0 Available to backorder	Blade	£15.62 £13.02
4	MO118811091/0 Available to backorder	Blade Hub	£5.12 £4.27
5	MO118811178/0 Available to backorder	Electric Motor	£94.32 £78.60
6	MO118811093/0 Available to backorder	Hub Cap	£2.95 £2.46
7	MO118811087/0 Available to backorder	Wheel	£13.93 £11.61
8	MO118811211/0 Available to backorder	Front Axle	£27.31 £22.76
9	MO118811180/0 Available to backorder	Plate	£2.95 £2.46
10	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
11	MO118811181/0 Available to backorder	Hub Cap	£2.95 £2.46
12	MO118811182/0 Available to backorder	Wheel	£14.64 £12.20
13	MO118811212/0 Available to backorder	Rear Axle	£24.36 £20.30
14	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
15	MO118811213/0 Available to backorder	Conveyor	£8.45 £7.04
16	MO118811185/0 Available to backorder	Height Adjustment Lever	£1.82 £1.52
17	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
18	MO118811186/0 Available to backorder	Pcb Board	£82.36 £68.63
20	MO118811188/1 Available to backorder	Battery Housing	£16.75 £13.96
21	MO118811099/0 Available to backorder	Safety Key	£5.35 £4.46
28	MO118811215/0 Available to backorder	Grasscatcher Handle Kit	£4.50 £3.75
29	MO118811235/0 Available to backorder	Grasscatcher Upper Part	£18.52 £15.43
30	MO118811236/0 Available to backorder	Fabric Box	£32.38 £26.98
31	MO118811237/0 Available to backorder	Grasscatcher Frame	£12.11 £10.09
32	MO118811217/0 Available to backorder	Height Adj Levers Kit	£43.64 £36.37
33	MO118811218/0 Available to backorder	Height Adj Plate Kit	£13.66 £11.38
41	MO118811221/0 Available to backorder	Stoneguard Assy	£18.72 £15.60
42	MO118811232/0 Available to backorder	Battery Connection Assembly	£9.00 £7.50
