COLLECTOR 132e Kit - 2022-2025 - 291302068/ST2 - Stiga Rotary Mower Walk Behind Diagram

Description

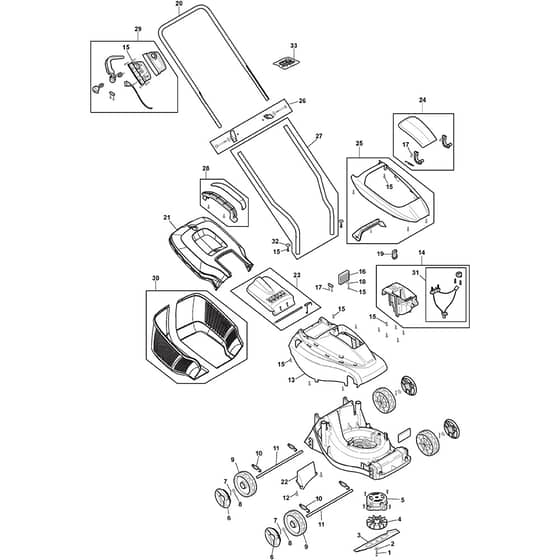

Stiga COLLECTOR 132e Kit Parts Diagram

Product Name - COLLECTOR 132e Kit

Model Year - 2022-2025

Model Type - E 300 LI 20 S

Art.N - 291302068/ST2

Engine Model -

	Part No.	Details
1	MO118811089/0 Available to backorder	Blade Bolt	£1.70 £1.42
2	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
3	MO118811090/0 In stock	Blade	£12.13 £10.11
4	MO118811091/0 Available to backorder	Blade Hub	£5.12 £4.27
5	MO118811092/0 Available to backorder	Electric Motor	£109.79 £91.49
6	MO118811093/0 Available to backorder	Hub Cap	£2.94 £2.45
7	MO124487995/0 In stock	Cotter Pin	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
9	MO118811087/0 Available to backorder	Wheel	£13.94 £11.62
10	MO118811094/0 Available to backorder	Spring	£3.79 £3.16
11	MO118811095/0 Available to backorder	Wheel Axle	£19.57 £16.31
13	MO118811096/0 Available to backorder	Engine Cover	£25.12 £20.93
14	MO118811097/0 Available to backorder	Battery Housing	£11.20 £9.33
15	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
16	MO118811098/0 Available to backorder	Pcb Board	£76.02 £63.35
17	MO123878121/0 Available to backorder	Screw	£1.79 £1.49
19	MO118811099/0 In stock	Safety Key	£5.34 £4.45
20	MO118811100/0 Available to backorder	Upper Handle	£27.44 £22.87
21	MO118811163/0 Available to backorder	Grasscatcher Upper Part	£14.35 £11.96
22	MO118811101/0 Available to backorder	Conveyor	£6.19 £5.16
23	MO118811164/0 Available to backorder	Stoneguard Assy	£11.54 £9.62
24	MO118811165/0 Available to backorder	Battery Cover Kit	£8.18 £6.82
25	MO118811166/0 Available to backorder	Aesthetic Covers Kit	£12.61 £10.51
26	MO118811167/0 Available to backorder	Handle Knobs Kit	£2.69 £2.24
27	MO118811168/0 Available to backorder	Lower Handle Kit	£12.61 £10.51
28	MO118811169/0 Available to backorder	Grasscatcher Handle Kit	£4.24 £3.53
29	MO118811170/0 Available to backorder	Dead Hand Switch Assy	£26.18 £21.82
30	MO118811171/0 Available to backorder	Grasscatcher Lower Part Kit	£30.98 £25.82
31	MO118811176/0 Available to backorder	Battery Connection Assy	£11.12 £9.27
32	MO2312150 Available to backorder	Washer	£1.33 £1.11
33	MO118811167/1 Available to backorder	Knobs Kit	£2.69 £2.24
