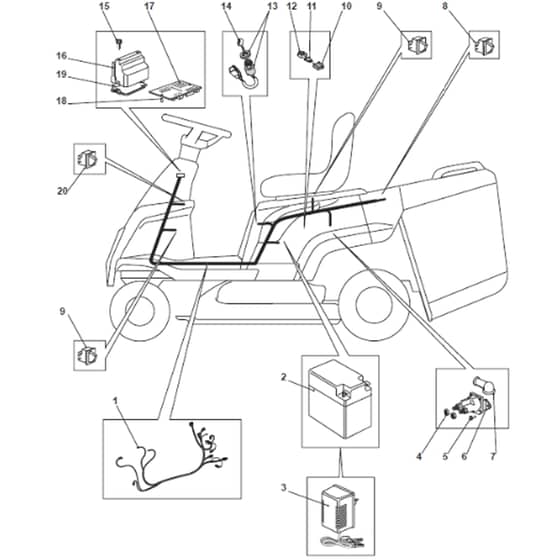

Cobra XE966HDB - Tractor Electric Start Diagram

Description

Cobra XE966HDB Ride On Mower Parts Diagram

	Part No.	Details
2	MO118120069/0 Available to backorder	Battery	£89.18 £74.32
3	MO1134-9250-01 In stock	Battery Charger Kit Ce Plug	£60.08 £50.07
5	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
6	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
7	MO118564861/2 In stock	Protection	£6.77 £5.64
8	MO119410618/0 Available to backorder	Micro Switch	£4.78 £3.98
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO133340040/0 Available to backorder	Lamellar Fusible 10A	£2.24 £1.87
12	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
13	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
14	MO118210023/0 In stock	Starting Key	£7.02 £5.85
15	MO112728711/0 Available to backorder	Screw	£1.39 £1.16
16	MO127600119/0 Available to backorder	Electronis Card Upper Protecti	£124.86 £104.05
17	MO127722354/2 In stock	Electronic Card El63	£100.45 £83.71
18	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
20	MO119410623/0 In stock	Micro Switch	£7.62 £6.35
