Cobra WT60SP - Wheeled Trimmer Jan 2022 Trimmer Head Assy Diagram

Name: Cobra WT60SP - Wheeled Trimmer Jan 2022 Trimmer Head Assy Diagram
SKU: wt60sp_wheeled_trimmer_jan_2022_trimmer_head_assy-group
Price: 1.03 GBP
Availability: InStock

Part No. wt60sp_wheeled_trimmer_jan_2022_trimmer_head_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra WT60SP - Wheeled Trimmer Jan 2022 Trimmer Head Assy Diagram

Description

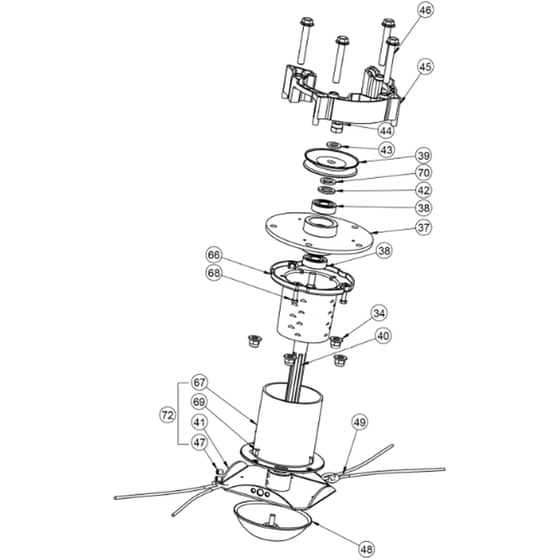

Cobra WT60SP Wheeled Trimmer Parts Diagram

	Part No.	Details
34	COGB/T 6183.1 M10 Available to backorder	Nut Gb/T 61831 M10	£1.24 £1.03
37	CO108.025 Available to backorder	Bearing Housing	£45.83 £38.19
38	COGB/T 276 6203 2RZ Available to backorder	Bearing Gb/T 276 6203 2Rz	£4.57 £3.81
39	CO108.022 Available to backorder	Driven Pulley	£10.32 £8.60
40	CO108.063 Available to backorder	Trim Shaft	£45.97 £38.31
41	CO108.026 Available to backorder	Cord Plate Welding	£33.95 £28.29
42	COGB/T 848 16 Available to backorder	Washer Gb/T 848 16	£1.24 £1.03
43	COGB/T 97.1 10 Available to backorder	Washer Gb/T 971 10	£1.24 £1.03
44	COGB/T 889.1 M10 Available to backorder	Nut Gb/T 8891 M10	£1.24 £1.03
45	CO108.031 Available to backorder	Bracket Base	£17.86 £14.88
46	COGB/T 5789 M10X70 Available to backorder	Bolt Gb/T 5789 M10X70	£1.72 £1.43
47	COGB/T 80 M8X10 In stock	Screw Gb/T 80 M8X10	£1.28 £1.07
48	CO354.012 In stock	Support Bowl Welding	£19.60 £16.33

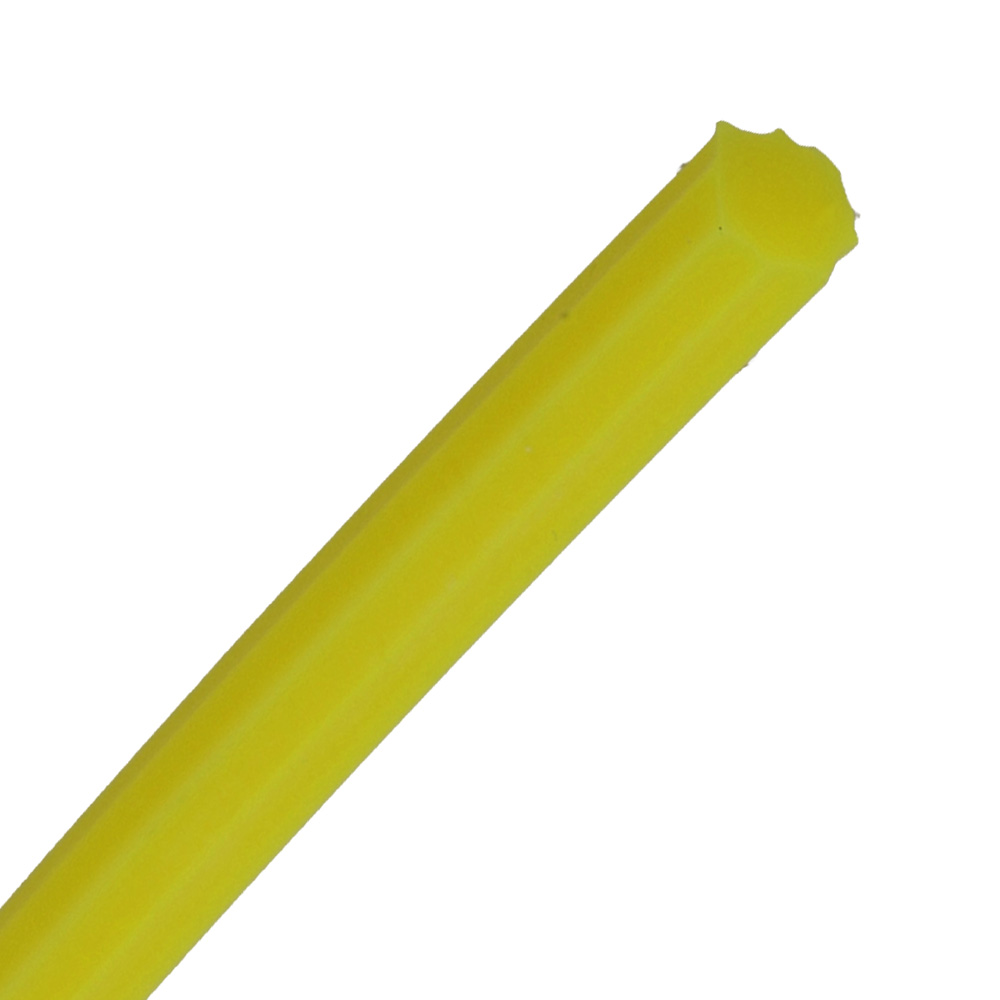

49	CO108.006A Available to backorder	Cutter Line	£1.49 £1.24
66	CO108.064 In stock	Cover For Cutting Head Upper	£4.74 £3.95
67	CO108.065 In stock	Cover For Cutting Head Lower	£6.54 £5.45
68	COFB/T 6563 M5X20 Available to backorder	Tapping Lock Screw Fb/T 6563 M5X20	£1.24 £1.03
69	COGB/T 12618 4X13 In stock	Rivet Gb/T 12618 4X13	£1.28 £1.07
70	COFB/T 955 16 Available to backorder	Washer Fb/T 955 16	£1.24 £1.03
