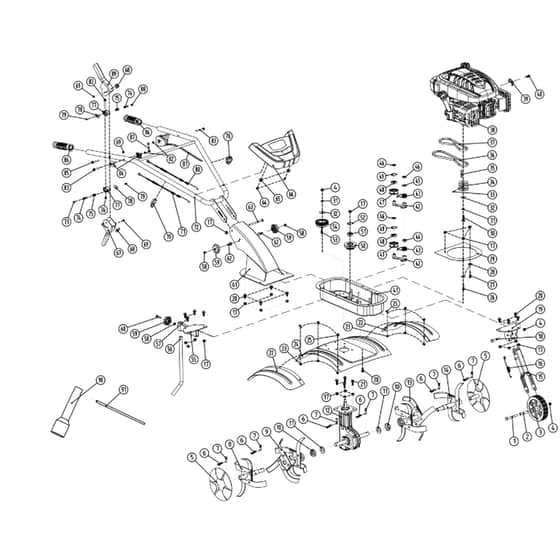

Cobra T60RL - Cultivator Main Diagram

Ref. Img. Part No. Details
  1 Bolt CO26800614601
Bolt
Out of stock
£2.52 £2.10

  2 Wheel Axis Sleeve CO26300198101
Wheel Axis Sleeve
Out of stock
£2.52 £2.10

  3 Wheel Ass'Y CO25400203501
Wheel Ass'Y
Out of stock
£7.02 £5.85

  4 Nut CO26800501201
Nut
Out of stock
£1.26 £1.05

  5 Outer Protective Plate Assy CO23600164901
Outer Protective Plate Assy
Out of stock
£24.08 £20.07

  6 Pin CO26300230101
Pin
Out of stock
£2.52 £2.10

  7 Bearing Pin CO26200105901
Bearing Pin
Out of stock
£2.52 £2.10

  8 Right Outer Rotary Blade Assy CO23600165001
Right Outer Rotary Blade Assy
Out of stock
£60.24 £50.20

  9 Right Inner Rotary Blade Assy CO23600165101
Right Inner Rotary Blade Assy
Out of stock
£59.04 £49.20

  10 Inner Dust Cover CO23600183201
Inner Dust Cover
Out of stock
£4.43 £3.69

  11 Washer CO25600300201
Washer
Out of stock
£2.52 £2.10

  12 Gearbox Ass'Y CO23050202101
Gearbox Ass'Y
Out of stock
£134.64 £112.20

  13 Left Inner Rotary Blade Assy CO23600165301
Left Inner Rotary Blade Assy
Out of stock
£59.04 £49.20

  14 Left Outer Rotary Blade Assy CO23600165201
Left Outer Rotary Blade Assy
Out of stock
£60.24 £50.20

  15 Front Wheel Support Assy CO23600165401
Front Wheel Support Assy
Out of stock
£12.43 £10.36

  16 Spring CO26801118501
Spring
Out of stock
£2.52 £2.10

  17 Nut CO26800502801
Nut
Out of stock
£1.26 £1.05

  18 Bolt CO26800614701
Bolt
Out of stock
£2.52 £2.10

  19 Front Cross Feet Assy CO23600165501
Front Cross Feet Assy
Out of stock
£8.71 £7.26

  20 Bolt CO26800606401
Bolt
Out of stock
£2.52 £2.10

  21 Bolt CO26800614901
Bolt
Out of stock
£2.52 £2.10

  22 Board CO23600165601
Board
Out of stock
£12.65 £10.54

  23 Bolt CO26800502401
Bolt
Out of stock
£1.26 £1.05

  24 Washer CO23600165701
Washer
Out of stock
£16.60 £13.83

  25 Bolt CO26800618301
Bolt
Out of stock
£2.52 £2.10

  26 Bolt CO26800605001
Bolt
Out of stock
£2.52 £2.10

  27 Bolt CO26800609401
Bolt
Out of stock
£2.52 £2.10

  28 Washer CO26800700201
Washer
Out of stock
£2.52 £2.10

  29 Board CO23600165901
Board
Out of stock
£5.57 £4.64

  30 Blade Fixing Bolt CO26800606501
Blade Fixing Bolt
Out of stock
£2.52 £2.10

  31 Spring Washer CO26800800101
Spring Washer
Out of stock
£2.52 £2.10

  32 Washer CO26800700101
Washer
Out of stock
£2.52 £2.10

  33 Screw CO26800300502
Screw
Out of stock
£1.26 £1.05

  34 Driving Wheel CO26300402001
Driving Wheel
Out of stock
£11.64 £9.70

  35 Flat Key CO26809008001
Flat Key
Out of stock
£2.52 £2.10

  36 Triangle Belt CO25100204701
Triangle Belt
In stock
£23.48 £19.57

  37 Belt CO25100204602
Belt
Out of stock
£20.71 £17.26

  38 Engine Ass'Y CO2030100301A
Engine Ass'Y
Out of stock
£165.00 £137.50

  39 Press Plate CO26300108301
Press Plate
Out of stock
£2.52 £2.10

  40 Bolt CO26800301201
Bolt
Out of stock
£2.52 £2.10

  41 Deck Ass'Y CO22633000090108A
Deck Ass'Y
Out of stock
£44.32 £36.93

  42 Power Lock CO26300192601
Power Lock
Out of stock
£4.98 £4.15

  43 Spring CO26801118601
Spring
Out of stock
£2.52 £2.10

  44 Sleeve CO26300194101
Sleeve
Out of stock
£2.52 £2.10

  45 Flat Washer CO26800703901
Flat Washer
Out of stock
£2.52 £2.10

  46 Washer CO26800903201
Washer
Out of stock
£2.52 £2.10

  47 Change Speed Wheel CO26400105601
Change Speed Wheel
Out of stock
£6.91 £5.76

  48 Bearing CO26800401501
Bearing
Out of stock
£2.66 £2.22

  49 Washer CO26800902101
Washer
Out of stock
£2.52 £2.10

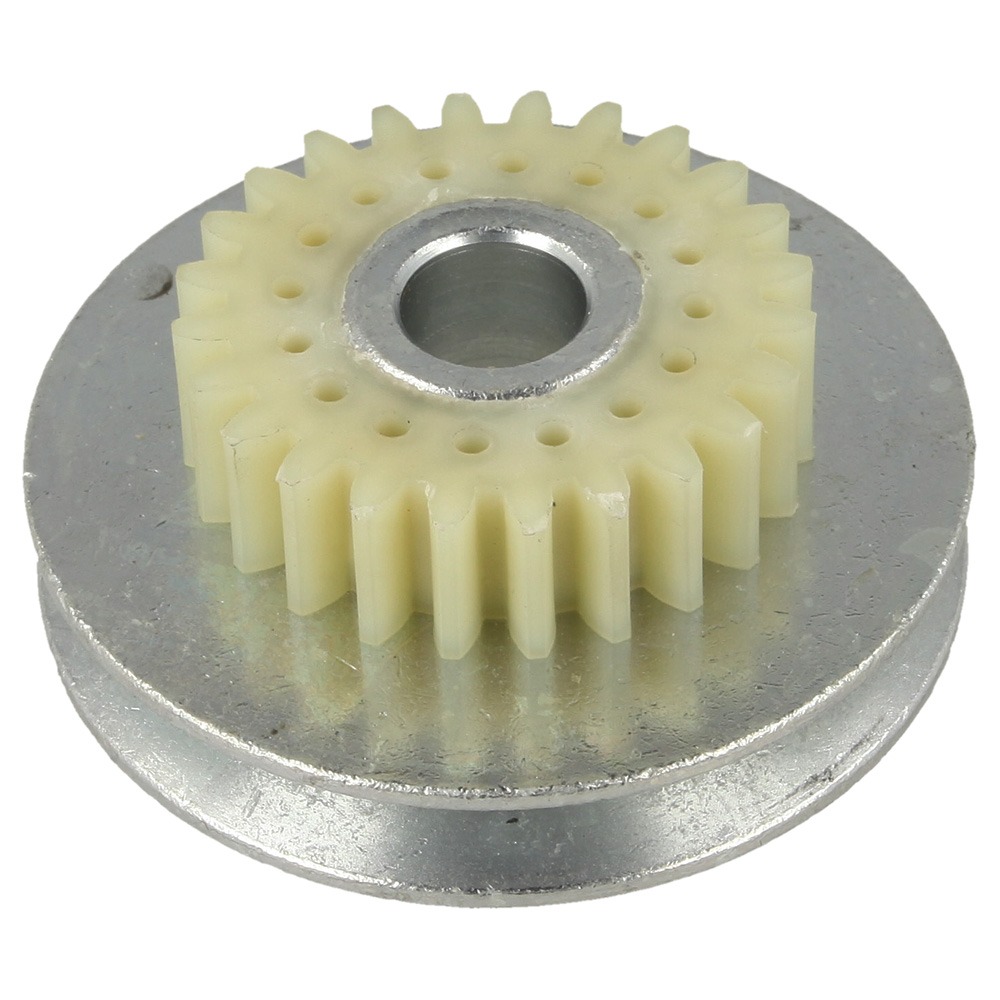

  50 Small Gear Assy CO2263100016N
Small Gear Assy
Out of stock
£7.64 £6.37

  52 Washer CO26800902801
Washer
Out of stock
£2.52 £2.10

  53 Flat Key CO26809005601
Flat Key
Out of stock
£2.52 £2.10

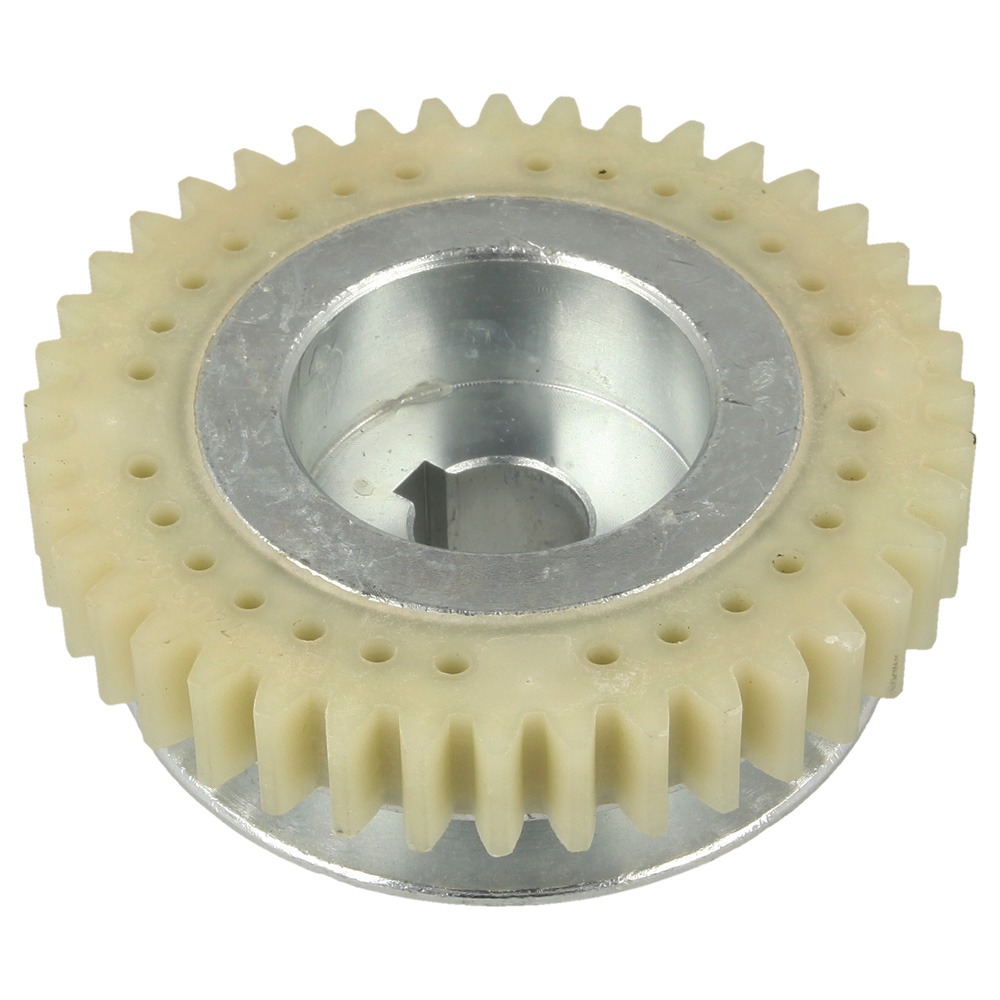

  54 Big Gear Assy CO2263100014N
Big Gear Assy
Out of stock
£9.72 £8.10

  55 Support Assy Of Soil Stopped Pole CO23600166001
Support Assy Of Soil Stopped Pole
Out of stock
£13.15 £10.96

  56 Support Assy Of Soil Stopped Pole CO26300192901
Support Assy Of Soil Stopped Pole
Out of stock
£10.81 £9.01

  57 Bolt CO26800615001
Bolt
Out of stock
£2.52 £2.10

  58 Nut CO26800502301
Nut
Out of stock
£1.44 £1.20

  59 Lower Handle Knob CO25236500101
Lower Handle Knob
Out of stock
£2.52 £2.10

  60 Bolt CO26800601701
Bolt
Out of stock
£2.52 £2.10

  61 Handle Plank Ass'Y CO23600166101
Handle Plank Ass'Y
Out of stock
£55.97 £46.64

  62 Bolt CO26800615101
Bolt
Out of stock
£2.52 £2.10

  63 Bolt CO26800614801
Bolt
Out of stock
£2.52 £2.10

  64 Screw CO26800104601
Screw
Out of stock
£1.26 £1.05

  65 Washer CO25239100101
Washer
Out of stock
£2.52 £2.10

  66 Panel CO25280200101
Panel
Out of stock
£6.77 £5.64

  67 Grip CO23600166401
Grip
Out of stock
£4.43 £3.69

  68 Mat CO25280700101
Mat
Out of stock
£2.52 £2.10

  69 Nut CO26800506001
Nut
Out of stock
£1.26 £1.05

  70 Wire Clamp CO25281000101
Wire Clamp
Out of stock
£2.52 £2.10

  71 Driving Cable Assy-(Forward Gear) CO2266800011C
Driving Cable Assy-(Forward Gear)
Out of stock
£11.78 £9.82

  72 Handle Pole Assy CO23600166201
Handle Pole Assy
Out of stock
£46.39 £38.66

  73 Button CO25280600201
Button
Out of stock
£2.52 £2.10

  74 Pole CO26300199001
Pole
Out of stock
£2.52 £2.10

  75 Spring CO26801118901
Spring
Out of stock
£2.52 £2.10

  76 Nut CO26800500501
Nut
Out of stock
£2.52 £2.10

  77 Stopper CO25280500101
Stopper
Out of stock
£2.52 £2.10

  78 Stop Board CO26300199101
Stop Board
Out of stock
£2.52 £2.10

  79 Screw CO26800310001
Screw
Out of stock
£1.26 £1.05

  80 Driving Cable Assy-(Reverse Gear) CO2266800018C
Driving Cable Assy-(Reverse Gear)
Out of stock
£12.31 £10.26

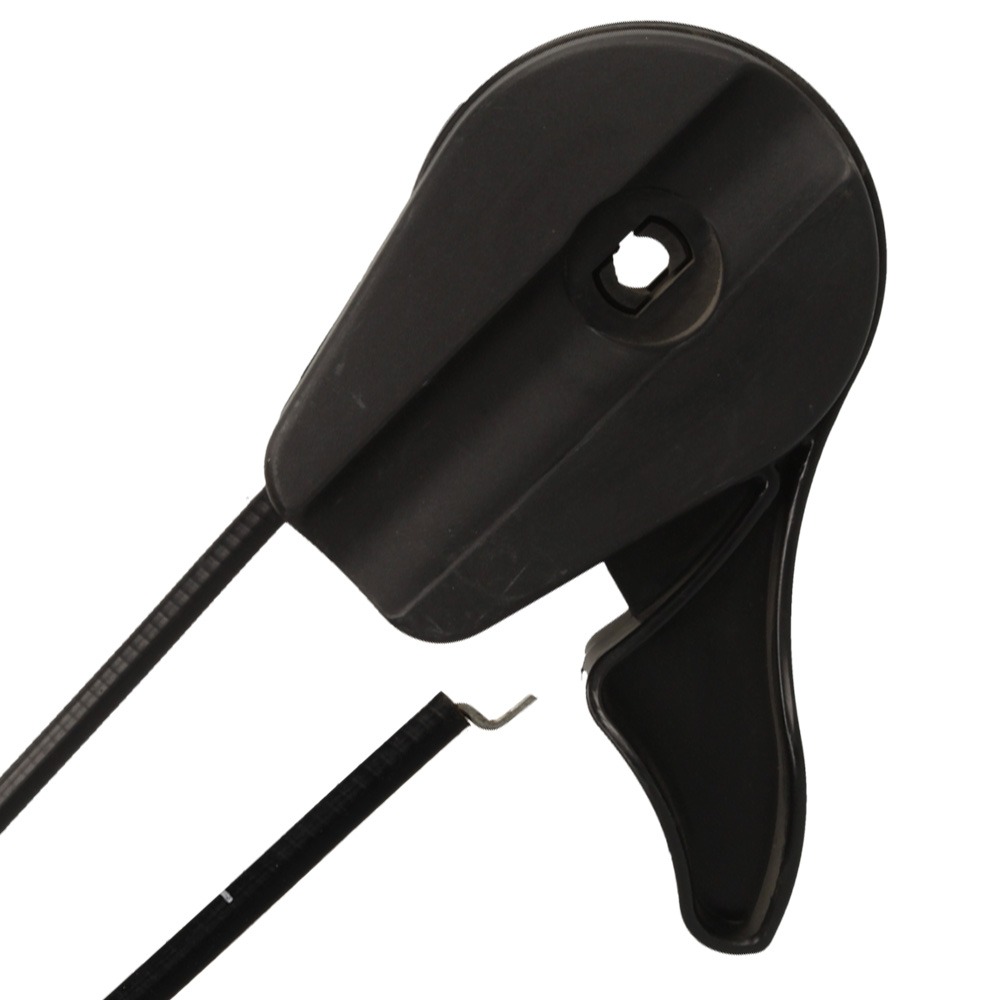

  81 Choke Handle Ass'Y CO2106800265B
Choke Handle Ass'Y
Out of stock
£9.74 £8.12

  82 Flat Washer CO26800700801
Flat Washer
Out of stock
£2.52 £2.10

  83 Bolt CO26800608201
Bolt
Out of stock
£2.52 £2.10

  84 Cable Fixed Block CO25233600101
Cable Fixed Block
Out of stock
£2.52 £2.10

  85 Bolt CO26800616201
Bolt
Out of stock
£2.52 £2.10

  86 Handle Cover CO25281300101
Handle Cover
Out of stock
£5.65 £4.71

  87 Nut CO26800501602
Nut
Out of stock
£2.52 £2.10

  88 Button CO25280600101
Button
Out of stock
£2.52 £2.10

  89 Grip CO23600166301
Grip
Out of stock
£4.43 £3.69

  90 Wrench CO26300161201
Wrench
Out of stock
£2.52 £2.10

  91 Wrench Rod CO26300107901
Wrench Rod
Out of stock
£2.52 £2.10


Description

Cobra T60RL Tiller Parts Diagram
