Cobra T60RB - Tiller Main Diagram

Name: Cobra T60RB - Tiller Main Diagram
SKU: t60rb_tiller_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Cobra T60RB Tiller Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800614601 Available to backorder	Bolt	£2.52 £2.10
2	CO26300198101 Available to backorder	Wheel Axis Sleeve	£2.52 £2.10
3	CO25400203501 Available to backorder	Wheel Ass'Y	£7.02 £5.85
4	CO26800501201 Available to backorder	Nut	£1.26 £1.05
5	CO23600164901 Available to backorder	Outer Protective Plate Assy	£24.08 £20.07
6	CO26300230101 In stock	Pin	£2.40 £2.00
7	CO26200105901 Available to backorder	Bearing Pin	£7.80 £6.50
8	CO23600165001 Available to backorder	Right Outer Rotary Blade Assy	£60.24 £50.20
9	CO23600165101 Available to backorder	Right Inner Rotary Blade Assy	£59.04 £49.20
10	CO23600183201 Available to backorder	Inner Dust Cover	£4.43 £3.69
11	CO25600300201 Available to backorder	Washer	£2.52 £2.10
12	CO23050202101 Available to backorder	Gearbox Ass'Y	£128.28 £106.90
13	CO23600165301 Available to backorder	Left Inner Rotary Blade Assy	£59.04 £49.20
14	CO23600165201 Available to backorder	Left Outer Rotary Blade Assy	£60.24 £50.20
15	CO23600165401 Available to backorder	Front Wheel Support Assy	£12.43 £10.36
16	CO26801118501 Available to backorder	Spring	£2.52 £2.10
17	CO26800502801 Available to backorder	Nut	£1.44 £1.20
18	CO26800614701 Available to backorder	Bolt	£2.52 £2.10
19	CO23600165501 Available to backorder	Front Cross Feet Assy	£8.71 £7.26
20	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
21	CO26800614901 Available to backorder	Bolt	£2.52 £2.10
22	CO23600165601 Available to backorder	Board	£12.65 £10.54
23	CO26800502401 Available to backorder	Bolt	£1.26 £1.05
24	CO23600165701 Available to backorder	Washer	£16.60 £13.83
25	CO26800618301 Available to backorder	Bolt	£2.52 £2.10
26	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
27	CO26800609401 Available to backorder	Bolt	£2.52 £2.10
28	CO26800700201 Available to backorder	Washer	£2.52 £2.10
29	CO23600165901 Available to backorder	Board	£5.57 £4.64
30	CO26800606501 In stock	Blade Fixing Bolt	£2.40 £2.00
31	CO26800800101 Available to backorder	Spring Washer	£2.52 £2.10
32	CO26800700101 Available to backorder	Washer	£2.52 £2.10
33	CO26800300502 Available to backorder	Screw	£1.26 £1.05

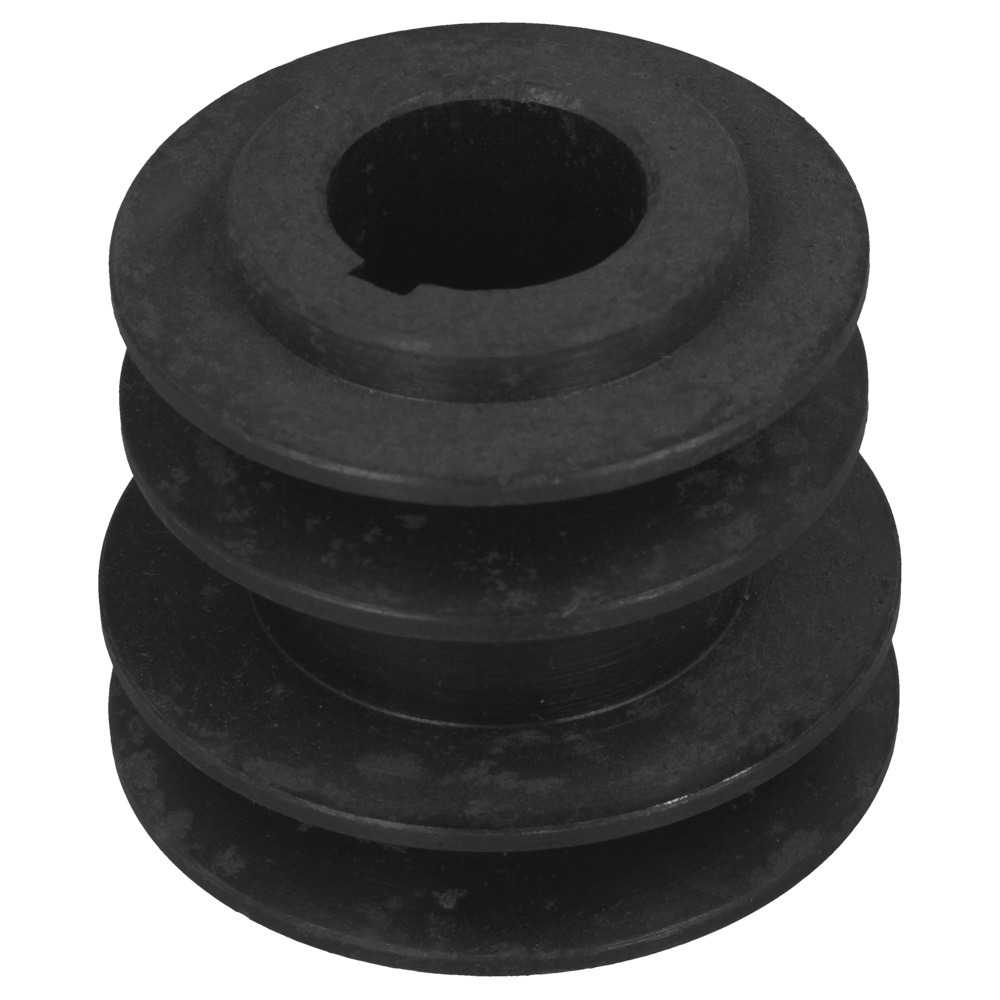

34	CO26300402002 Available to backorder	Driving Wheel	£11.08 £9.23
35	CO26809008001 Available to backorder	Flat Key	£2.52 £2.10
36	CO25100204701 In stock	Triangle Belt	£22.70 £18.92
37	CO25100204602 Available to backorder	Belt	£20.04 £16.70
39	CO26300108301 Available to backorder	Press Plate	£2.52 £2.10
40	CO26800301201 Available to backorder	Bolt	£2.52 £2.10
41	CO23600165801 Available to backorder	Deck Ass'Y	£48.10 £40.08
42	CO26300192601 Available to backorder	Power Lock	£4.98 £4.15
43	CO26801118601 Available to backorder	Spring	£2.52 £2.10
44	CO26300194101 Available to backorder	Sleeve	£2.52 £2.10
45	CO26800703901 Available to backorder	Flat Washer	£2.52 £2.10
46	CO26800903201 Available to backorder	Washer	£2.40 £2.00
47	CO26400105601 Available to backorder	Change Speed Wheel	£6.60 £5.50
48	CO26800401501 Available to backorder	Bearing	£2.54 £2.12
49	CO26800902101 Available to backorder	Washer	£2.52 £2.10

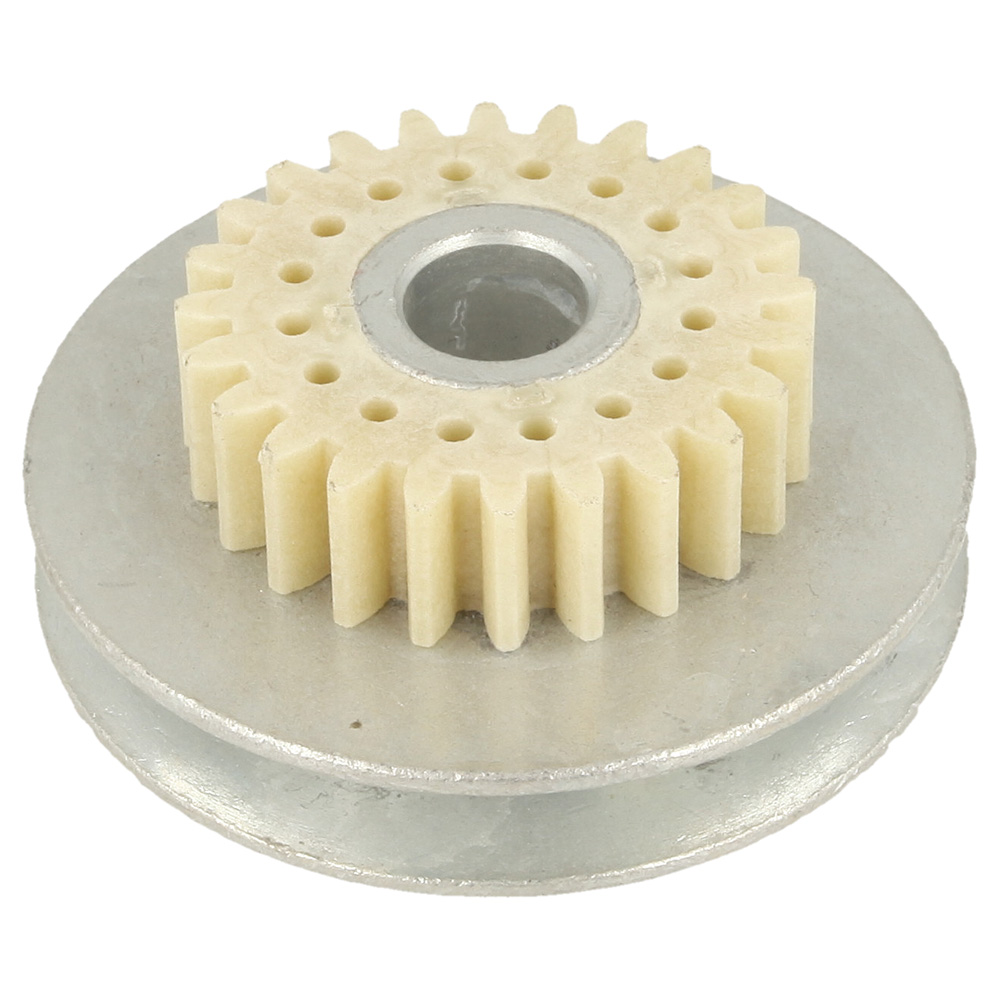

50	CO25500107401 Available to backorder	Small Gear Assy	£6.58 £5.48
52	CO26800902801 Available to backorder	Washer	£2.52 £2.10
53	CO26809005601 Available to backorder	Flat Key	£2.52 £2.10

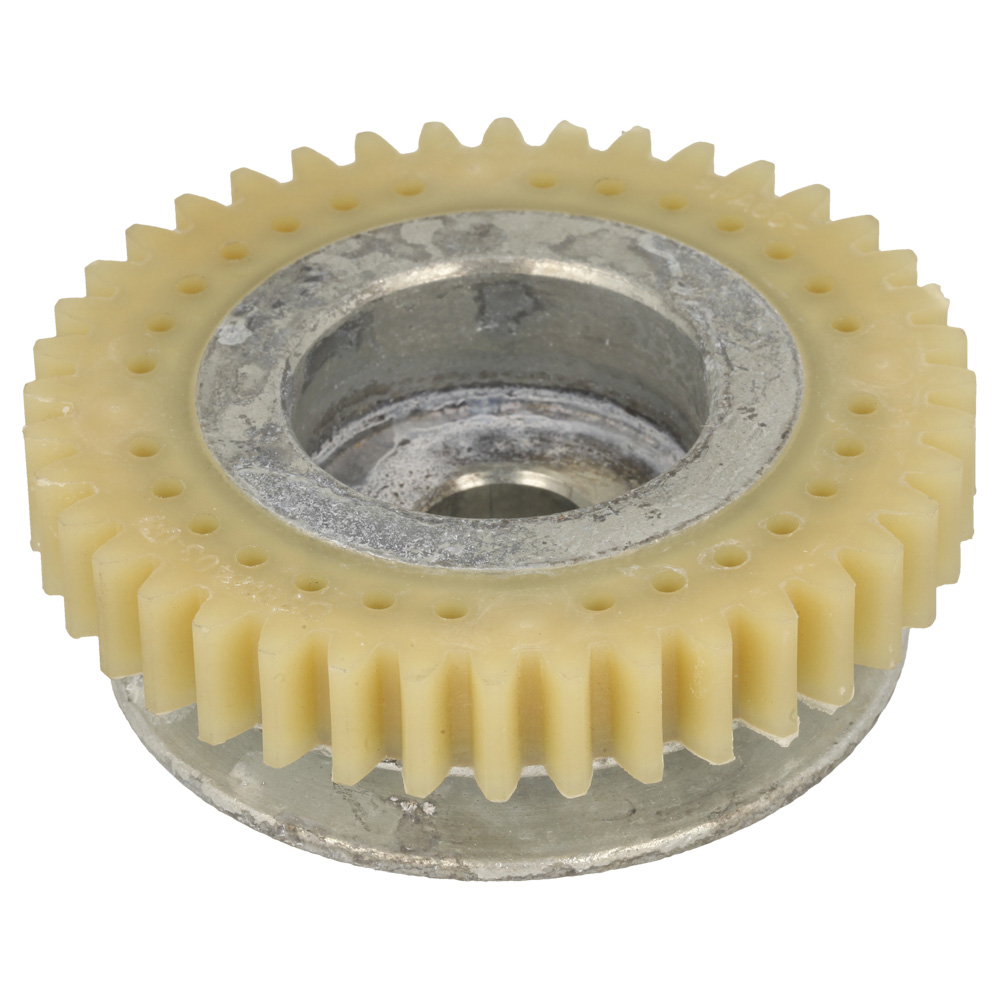

54	CO25500107301 Available to backorder	Big Gear Assy	£8.17 £6.81

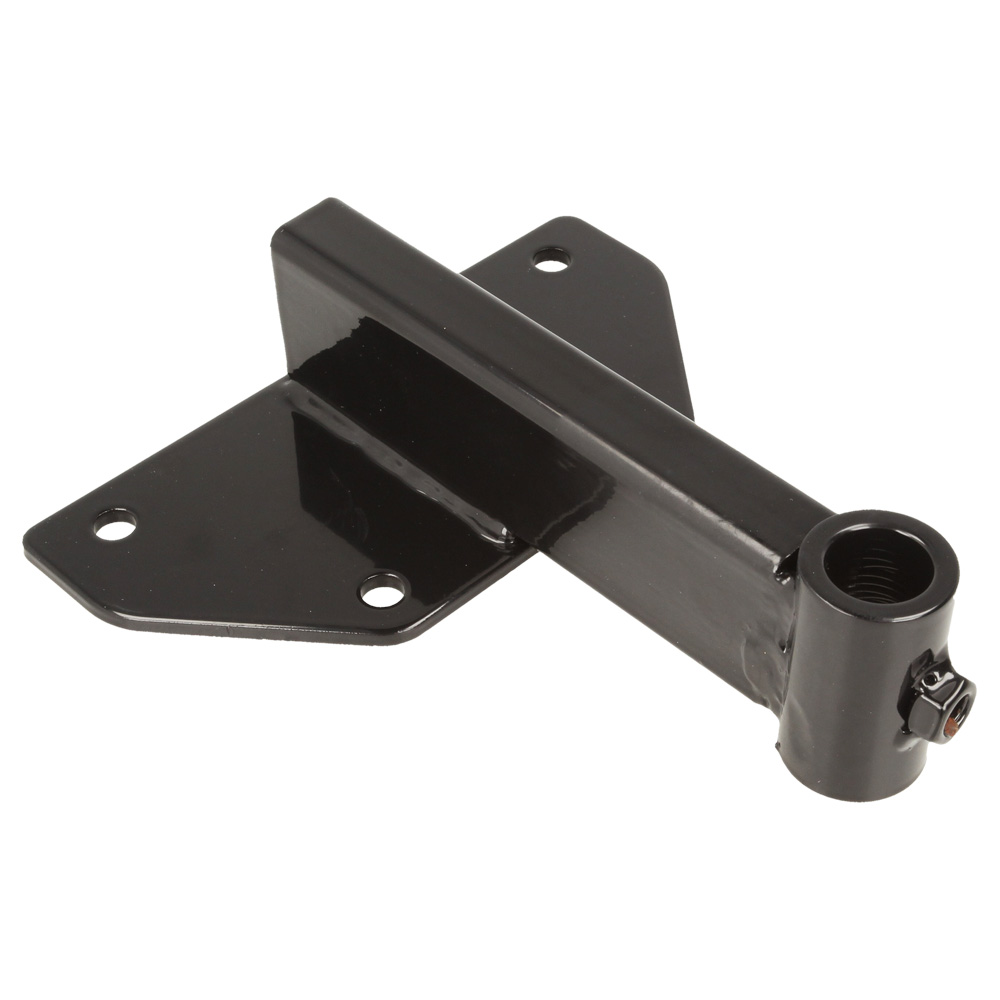

55	CO23600166001 Available to backorder	Support Assy Of Soil Stopped Pole	£13.15 £10.96

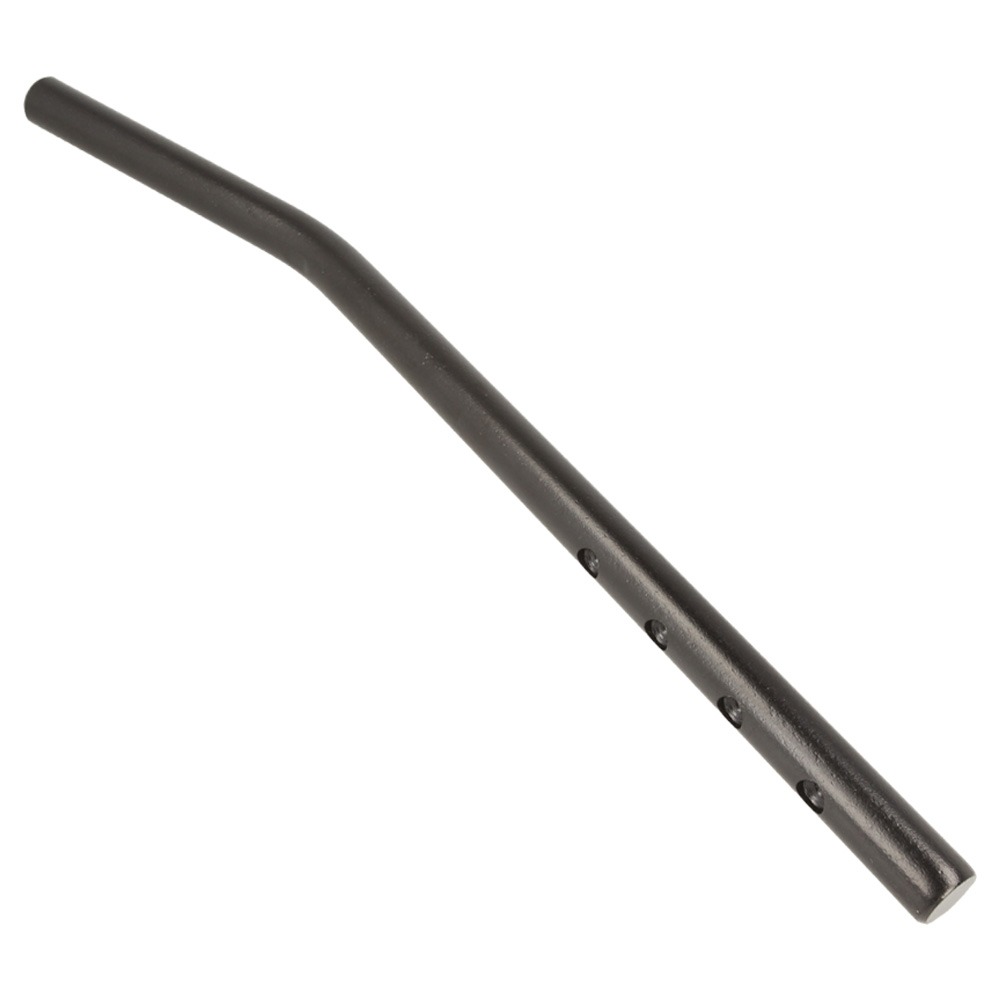

56	CO26300192901 Available to backorder	Support Assy Of Soil Stopped Pole	£10.32 £8.60
57	CO26800615001 Available to backorder	Bolt	£2.52 £2.10
58	CO26800502301 In stock	Nut	£1.20 £1.00
59	CO25236500101 Available to backorder	Lower Handle Knob	£2.52 £2.10
60	CO26800601701 Available to backorder	Bolt	£2.40 £2.00
61	CO23600166101 Available to backorder	Handle Plank Ass'Y	£55.97 £46.64
62	CO26800615101 Available to backorder	Bolt	£2.52 £2.10
63	CO26800614801 Available to backorder	Bolt	£2.52 £2.10
64	CO26800104601 In stock	Screw	£1.20 £1.00
65	CO25239100101 Available to backorder	Washer	£2.52 £2.10
66	CO25280200101 Available to backorder	Panel	£6.77 £5.64
67	CO23600166401 Available to backorder	Grip	£4.43 £3.69
68	CO25280700101 Available to backorder	Mat	£2.52 £2.10
69	CO26800506001 Available to backorder	Nut	£1.26 £1.05
70	CO25281000101 Available to backorder	Wire Clamp	£2.52 £2.10
71	CO29100123301 Available to backorder	Driving Cable Assy-(Forward Gear)	£11.32 £9.43
72	CO23600166201 Available to backorder	Handle Pole Assy	£46.39 £38.66
73	CO25280600201 Available to backorder	Button	£2.52 £2.10
74	CO26300199001 Available to backorder	Pole	£2.52 £2.10
75	CO26801118901 Available to backorder	Spring	£2.52 £2.10
76	CO26800500501 Available to backorder	Nut	£2.40 £2.00
77	CO25280500101 Available to backorder	Stopper	£2.52 £2.10
78	CO26300199101 Available to backorder	Stop Board	£2.52 £2.10
79	CO26800310001 Available to backorder	Screw	£1.26 £1.05
80	CO29100127701 Available to backorder	Driving Cable Assy-(Reverse Gear)	£11.32 £9.43
81	CO29100130501 Available to backorder	Choke Handle Ass'Y	£7.54 £6.28
82	CO26800700801 In stock	Flat Washer	£1.20 £1.00
83	CO26800608201 Available to backorder	Bolt	£2.52 £2.10
84	CO25233600101 In stock	Cable Fixed Block	£2.40 £2.00
85	CO26800616201 Available to backorder	Bolt	£2.52 £2.10
86	CO25281300101 Available to backorder	Handle Cover	£5.65 £4.71
87	COA26800501603 Available to backorder	Nut	£1.20 £1.00
88	CO25280600101 Available to backorder	Button	£2.52 £2.10
89	CO23600166301 Available to backorder	Grip	£4.43 £3.69
90	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
91	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
