Cobra T24C EU-V Tiller Parts Diagram

	Part No.	Details
114	COGB/T9074.1 M5X30 Available to backorder	1-14 Screw M5×30	£1.24 £1.03

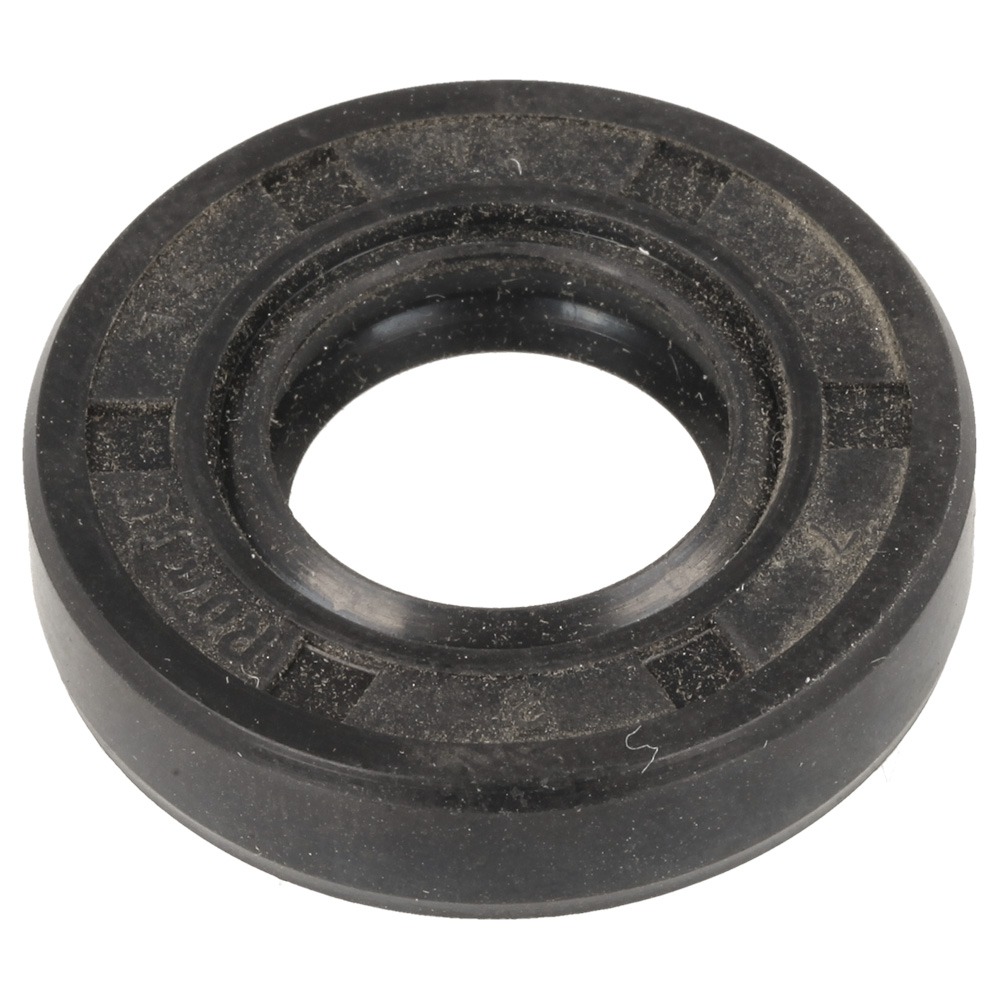

116	CO1E40F-5.9 Available to backorder	1-16 Oil-Seal 15×30×7	£2.48 £2.07
119	CO1E40FE-4 Available to backorder	1-19 Fan Cover	£7.45 £6.21
127	2131 In stock	1-27 Spark Plug	£2.45 £2.04
128	CO1E40F-5-2 Available to backorder	1-28 Admitting Pipe Gasket	£1.24 £1.03
129	CO1E40F-5A.2 Available to backorder	1-29 Admitting Pipe	£1.24 £1.03
130	COGB/T9074.1 M5X25 Available to backorder	1-30 Screw M5×25	£1.24 £1.03
131	CO1E40F-5A-1 In stock	1-31 Carburetor Gasket	£1.24 £1.03
132	CO1E40FE.6 In stock	1-32 Carburetor	£34.06 £28.38
134	CO1E44FE.2-2 Available to backorder	1-34 Cleaner Inside Cover	£1.72 £1.43
135	CO1E36FE.2-3 Available to backorder	1-35 Choke	£1.24 £1.03
136	CO1E36FE.2-4 Available to backorder	1-36 Choke Handle	£1.24 £1.03
137	COGB845 ST2.9X12 Available to backorder	1-37 Tapping Screws St29×12	£1.26 £1.05
138	COM5X20 Available to backorder	1-38 Screw M5×20	£2.48 £2.07
139	COGB/T9074.1 M5X55 Available to backorder	1-39 Screw M5×55	£1.24 £1.03

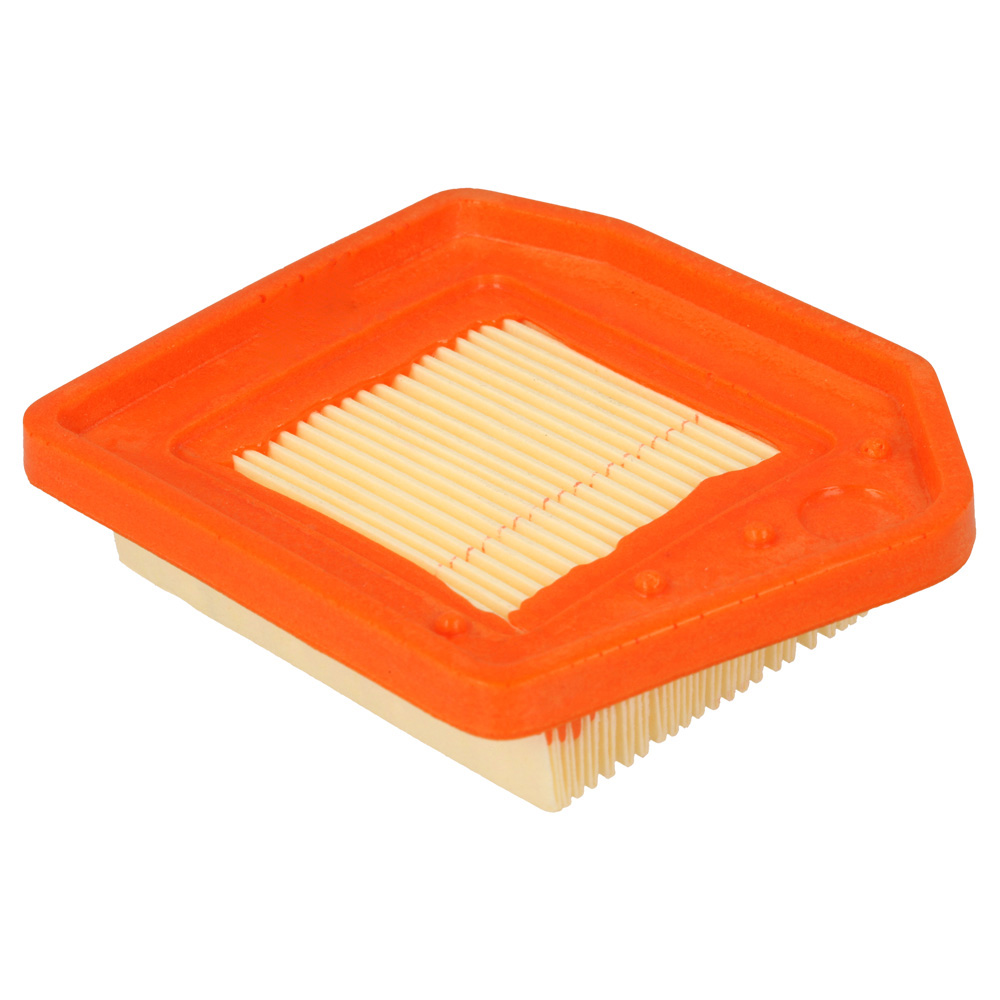

140	CO1E44FE.2-3 Available to backorder	1-40 Filter Net	£7.01 £5.84
141	CO1E44FE.2-1 Available to backorder	1-41 Cleaner Outside Cover	£1.43 £1.19
142	CO1E36FE.7 Available to backorder	1-42 Primer Pump Assy	£3.11 £2.59
143	CO1E36FE.8-3 Available to backorder	1-43 Pump Oil Pipe	£1.24 £1.03
144	CO1E40F-5-5 Available to backorder	1-44 Muffler Gasket	£2.48 £2.07
145	CO1E40F-5AG-2E Available to backorder	1-45 Muffler	£17.98 £14.98
146	CO1E40FE-9 Available to backorder	1-46 Heat Shield	£6.86 £5.72
147	COGB/T9074.1 M6X60 Available to backorder	1-47 Screw M6×60	£1.24 £1.03
148	COGB/T9074.1 M5X12 Available to backorder	1-48 Screw M5×12	£1.24 £1.03
149	CO1E44FE.1-C Available to backorder	1-49 Cylinder Cover Ass'Y	£8.59 £7.16
150	COGB 845 ST4X15 Available to backorder	1-50 Tapping Screws St4×15	£1.24 £1.03
151	CO1E44FE-5 Available to backorder	1-51 Spark Plug Cover	£1.26 £1.05
152	COGB/T9074.1 M5X16 Available to backorder	1-52 Screw M5×16	£1.24 £1.03
153	CO1E40F-5A-2 Available to backorder	1-53 Rubber Sleeve	£1.24 £1.03

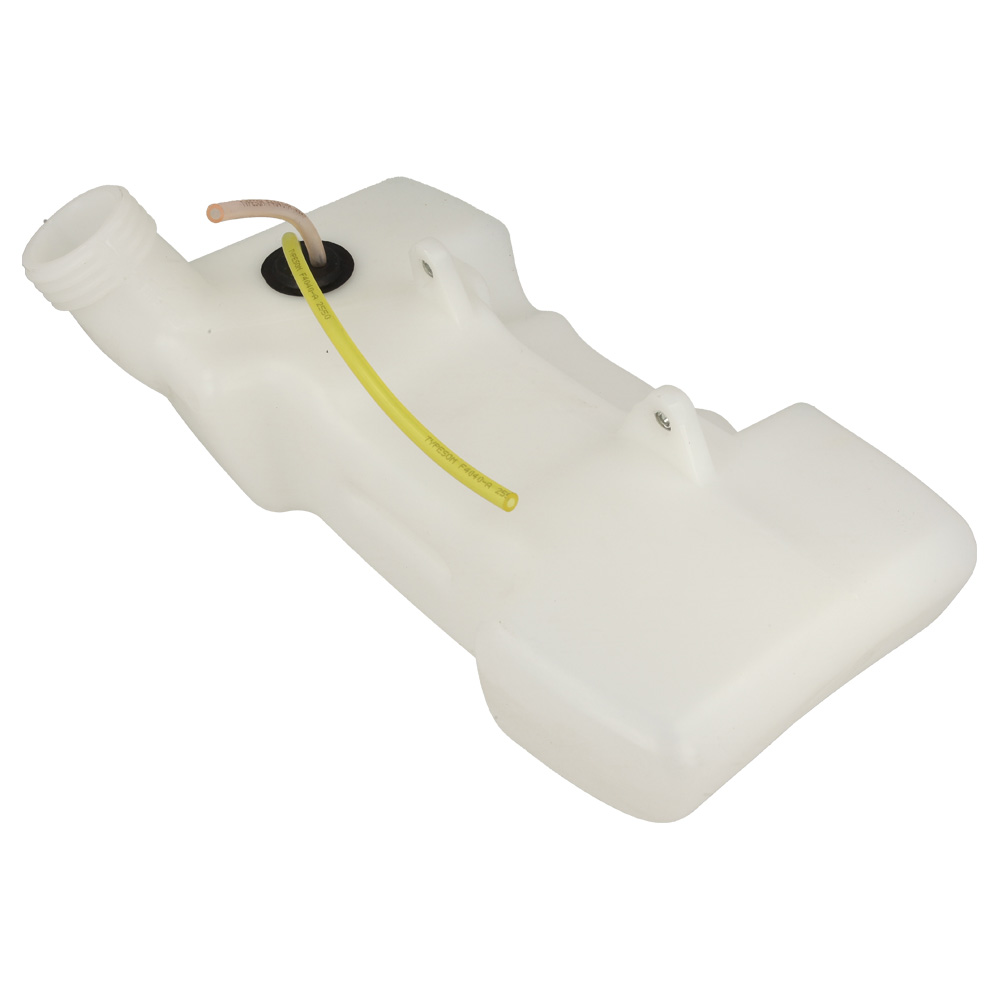

154	CO1E44FE.4-1 Available to backorder	1-54 Fuel Tank	£11.80 £9.83
155	CO1E44FE.4-2 Available to backorder	1-55 Tank Protective Frame	£1.26 £1.05
157	CO1E36F.4.1 Available to backorder	1-57 Tank Cover Ass'Y	£6.08 £5.07
158	CO1E36F-3 Available to backorder	1-58 Washerb	£1.24 £1.03
159	CO1E40F-5.6 Available to backorder	1-59 Expander Combination	£2.48 £2.07
160	CO1E40F-5-11 In stock	1-60 Washer Φ10×14	£1.24 £1.03
161	CO1E40F-5-12 Available to backorder	1-61 Screw Pin	£2.48 £2.07
1151	CO1E40F-5C Available to backorder	1-15-1 Magneto Rotor Comp	£10.32 £8.60
1152	CO1E40FE.5.1 Available to backorder	1-15-2 Ignition Coil Comp	£17.98 £14.98
1561	CO1E36FE.8-1 Available to backorder	1-56-1 Return Oil Pipe	£1.24 £1.03
1562	CO1E36FE.8-2 Available to backorder	1-56-2 Inlet Pipe	£1.24 £1.03
1563	CO1E34F In stock	1-56-3 Tubing Plug	£4.62 £3.85
1564	CO1E34F.9.2-3 Available to backorder	1-56-4 Fuel Filter	£2.48 £2.07
36892	CO1E40FE.3-2 Available to backorder	Starter Handle	£2.29 £1.91
44927	CO1E40FE.3 Available to backorder	Starter	£18.56 £15.47
44958	COGB 39 M5 Available to backorder	Nut M5	£1.24 £1.03
44986	COGB/T9074.1 M5X20 Available to backorder	Screw M5×20	£1.24 £1.03
45017	CO1E44FE-7 Available to backorder	Tank Rack	£1.72 £1.43
45047	CO1E40F-5.7 Available to backorder	Starting Dial	£5.17 £4.31
45078	CO1E36F.2 Available to backorder	Oil-Seal	£2.48 £2.07
45139	CO1E40F-5.8-4 Available to backorder	Crankcase Gasket	£2.48 £2.07
45170	COGB/T276 6202/P5 Available to backorder	Bearing 6202/P5	£2.48 £2.07
