Cobra S3840V - Scarifier Mar 2020 Main Diagram

Name: Cobra S3840V - Scarifier Mar 2020 Main Diagram
SKU: s3840v_scarifier_mar_2020_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra S3840V - Scarifier Mar 2020 Main Diagram

Description

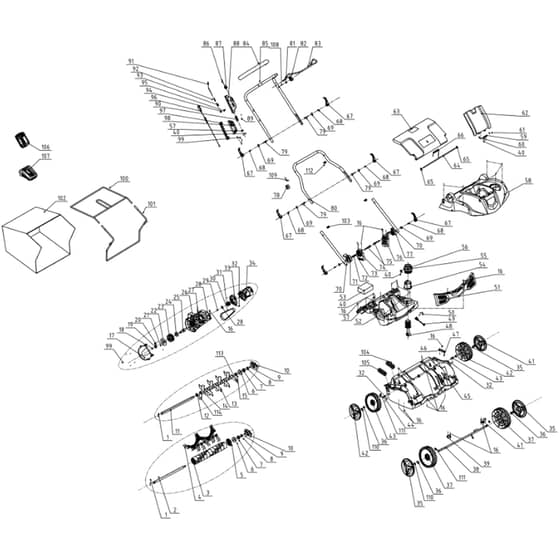

Cobra S3840V Scarifier Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COA26809006901 Available to backorder	Round Pin	£1.26 £1.05
2	CO2421300002A Available to backorder	Round Axle	£6.85 £5.71
3	CO24251000010001A Available to backorder	Blade Support	£1.31 £1.09
4	CO2425200002A Available to backorder	Spring	£1.26 £1.05
5	CO24251000020001A Available to backorder	Blade Support Cover	£1.26 £1.05
6	CO2429300004A Available to backorder	Washer Sheath	£1.81 £1.51
7	CO3032302001 Available to backorder	Nut	£1.26 £1.05
8	CO3061301002 Available to backorder	Bearing	£3.42 £2.85
9	COA26800902601 Available to backorder	Stopper Washer	£1.26 £1.05
10	CO24221000040001A Available to backorder	Bearing Support	£1.68 £1.40
11	CO2422300001N Available to backorder	Square Axle	£6.66 £5.55
12	CO2429300002A Available to backorder	Square Washer	£1.26 £1.05
13	CO2425200001A Available to backorder	Blade	£1.73 £1.44
14	CO2425300001B Available to backorder	Blade Sheath	£1.74 £1.45
15	CO2429300003A Available to backorder	Washer	£1.26 £1.05
16	COA26800105502 Available to backorder	Screw	£2.52 £2.10
17	CO2422100003B Available to backorder	Cover Of Speed-Reduce Box	£4.25 £3.54
18	COA26800901401 Available to backorder	Stopper Washer	£1.26 £1.05
19	CO26800400801 Available to backorder	Bearing	£4.26 £3.55
20	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
21	CO26800303301 Available to backorder	Screw	£1.26 £1.05
22	CO2422200001A Available to backorder	Side Plate Of Pulley	£1.62 £1.35
23	CO2422400004A Available to backorder	Big Pulley Wheel	£6.44 £5.37
24	COA26800404801 Available to backorder	Bearing	£4.64 £3.87
25	CO2422300002A Available to backorder	Connecting Axle	£6.35 £5.29
26	CO2422100002A Available to backorder	Support Of Speed-Reduce Box	£12.40 £10.33
27	COA26800801101 Available to backorder	Locking Washer	£1.26 £1.05
28	CO26800706301 Available to backorder	Flat Washer	£1.20 £1.00
29	COA26800203101 Available to backorder	Screw	£1.26 £1.05
30	CO2422600002A Available to backorder	Synchronous Belt	£12.56 £10.47
31	CO2422400003A Available to backorder	Small Pulley Wheel	£2.74 £2.28
32	CO26800104601 In stock	Self Tapping Screw	£1.20 £1.00
33	CO2422100007A Available to backorder	Plate Of Motor	£1.57 £1.31
34	CO2050100160A Available to backorder	Dc Motor	£82.80 £69.00
35	CO24211000010006A Available to backorder	7" Wheel Cover	£3.32 £2.77
36	CO26800903201 Available to backorder	Stopper Washer	£2.52 £2.10
37	CO24211000020001A Available to backorder	7" Wheel	£9.60 £8.00
38	CO2421500001A Available to backorder	Front Wheel Axle Assy	£11.00 £9.17
39	CO24211000050001A Available to backorder	Right- Pressing Plate Of Wheel Axle	£1.26 £1.05
40	CO26800100302 Available to backorder	Self Tapping Screw	£1.44 £1.20
41	CO24211000040001A Available to backorder	Left-Pressing Plate Of Wheel Axle	£1.26 £1.05
42	CO21011003040006A Available to backorder	6"Wheel Cover	£2.52 £2.10
43	CO21011001960001A Available to backorder	6" Wheel	£10.64 £8.87
44	CO2421300001A Available to backorder	Rear Wheel Axle	£5.94 £4.95
46	CO2423200001A Available to backorder	Pressing Plate	£1.34 £1.12
47	CO3022301001 Available to backorder	Screw	£1.26 £1.05
48	CO2426100002B Available to backorder	Height Adjust Screw	£2.63 £2.19
49	CO2100X05100 Available to backorder	Battery Sealing Wire Assy	£2.52 £2.10
50	CO2422800001A Available to backorder	Spring Of Battery House	£1.26 £1.05
51	CO24241000040006A Available to backorder	Decoration Panel	£10.22 £8.52
53	CO2428900001N Available to backorder	Controller	£49.92 £41.60
54	CO2426100003A Available to backorder	Height Adjust Support	£2.96 £2.47
55	CO24261000010001A Available to backorder	Height Adjust Knob	£2.92 £2.43
56	CO2426300003A Available to backorder	Shrapnel	£1.26 £1.05
57	CO2281100002B Available to backorder	Pressing Plate Board	£1.26 £1.05
58	CO24241000020108A Available to backorder	Upper Cover	£17.83 £14.86
59	CO21041004040015A Available to backorder	Hingle	£1.26 £1.05
60	CO2109800146A Available to backorder	Spring Of Right Lid	£1.26 £1.05
61	CO2109800147A Available to backorder	Spring Of Left Lid	£1.26 £1.05
62	CO2424100001A Available to backorder	Upper Cover	£8.48 £7.07
63	CO24241000060108A Available to backorder	Rear Flap	£12.20 £10.17
64	CO2422300004A Available to backorder	Long Rod	£2.63 £2.19
65	COA26800901701 Available to backorder	Open Ring	£1.26 £1.05
66	CO2427800001A Available to backorder	Spring Of Rear Flap	£1.26 £1.05
67	CO24261000210108A Available to backorder	Locking Handle	£1.68 £1.40

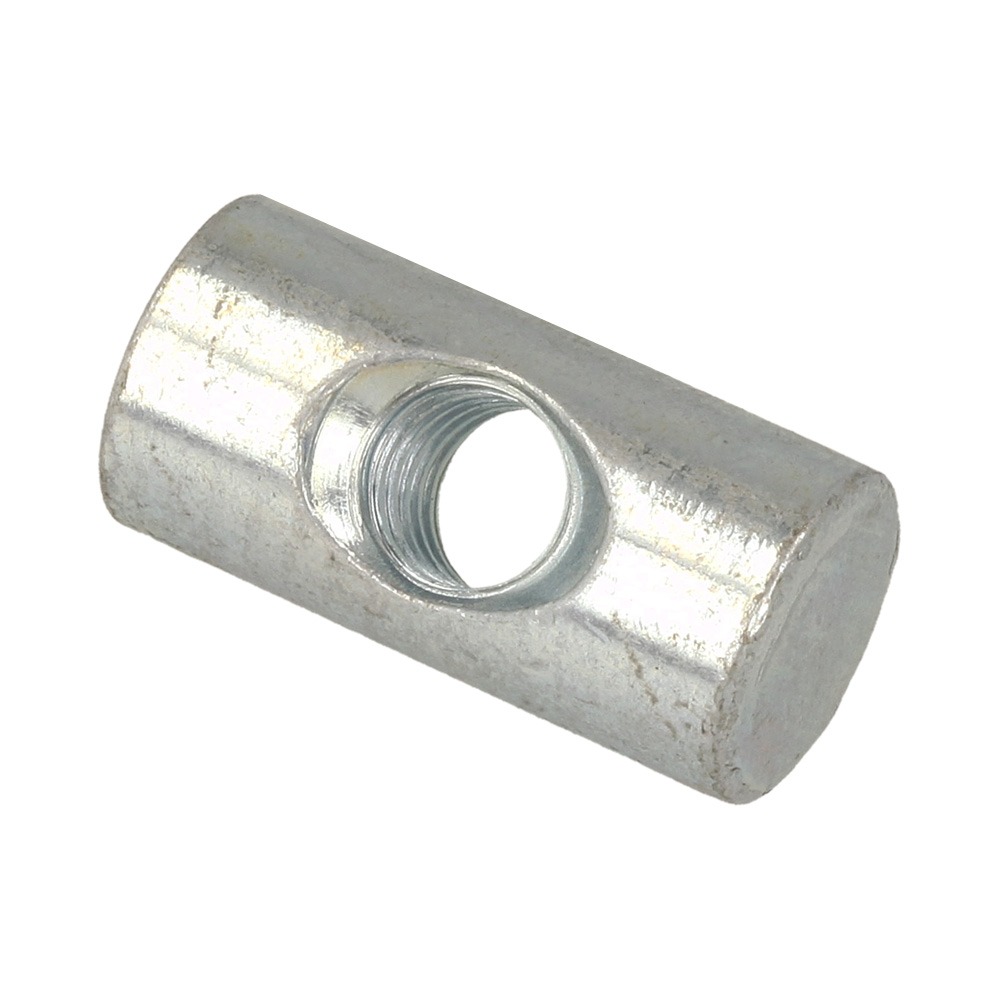

68	CO2109300018C Available to backorder	Wrench Axle	£3.04 £2.53
69	CO26800700201 Available to backorder	Big Washer	£2.52 £2.10
70	CO24262000050001A Available to backorder	Lower Handle Rod	£7.61 £6.34
71	CO21061003760001B Available to backorder	Right- Ajdut Gear	£2.86 £2.38
72	CO2426800001A Available to backorder	Spring	£2.74 £2.28
73	COA26800900101 Available to backorder	Open Ring	£1.26 £1.05
74	CO24231000040001A Available to backorder	Right Fixing Plate	£4.93 £4.11
75	CO2426300001A Available to backorder	Bolt	£2.63 £2.19
76	CO24231000030001A Available to backorder	Left-Fixing Plate	£4.90 £4.08
77	CO21061003750001B Available to backorder	Left-Ajdut Gear	£2.86 £2.38
78	CO24261000040001A Available to backorder	Hook	£1.26 £1.05
79	CO2109200014C Available to backorder	Screw	£1.20 £1.00
80	CO24262000040001A Available to backorder	Middle Handle	£10.75 £8.96
81	CO21061001113201N Available to backorder	Washer	£1.26 £1.05
82	CO21061003780001A Available to backorder	Handle Bracket	£1.20 £1.00
83	CO24261000050108A Available to backorder	Bail Arm	£9.89 £8.24
84	CO2426600001A Available to backorder	Handle Sheath	£3.38 £2.82
85	CO24262000030001A Available to backorder	Upper Handle	£12.46 £10.38
86	CO2309100017A Available to backorder	Key-Wire	£2.52 £2.10
87	CO21061003770108A Available to backorder	Switch Knob	£3.16 £2.63
88	CO21041000280001A Available to backorder	Upper Cover Of Switch	£3.25 £2.71
89	COA26800109201 Available to backorder	Self Tapping Screw	£1.26 £1.05
90	CO2428900002B Available to backorder	Indicator	£12.32 £10.27

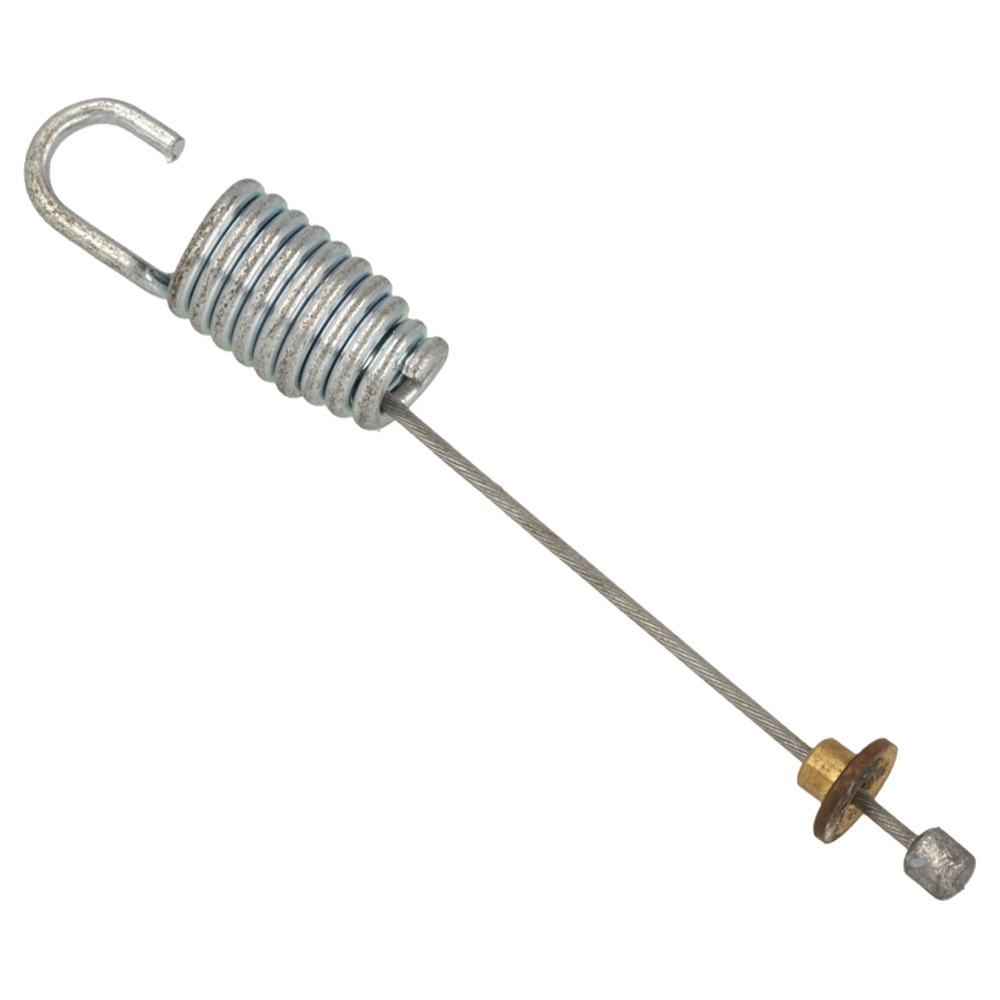

91	CO2106200040A Available to backorder	Bail Arm Cable	£2.40 £2.00
92	CO2109800013A Available to backorder	Spring	£2.52 £2.10
93	CO2104100031A Available to backorder	Switch Plate	£2.52 £2.10
94	CO2109800012A Available to backorder	Spring	£2.52 £2.10
95	CO2104100032A Available to backorder	Switch Rotary Block	£2.52 £2.10
96	CO2428900003A Available to backorder	Connecting Wire	£12.49 £10.41
97	CO21041000300001A Available to backorder	Pressing Plate Of Switch	£2.52 £2.10
98	CO21041000290001A Available to backorder	Lower Cover Of Switch	£2.63 £2.19
99	COA26800107301 Available to backorder	Self Tapping Screw	£1.26 £1.05
100	CO2427200001A Available to backorder	Front Bracket Of Grass Bag	£8.87 £7.39
101	CO2427200002A Available to backorder	Rear Bracket Of Grass Bag	£10.27 £8.56
102	CO24277000022006A Available to backorder	Grass Bag	£21.98 £18.32
103	CO2106600001A Available to backorder	Plug Stopper	£1.26 £1.05
104	CO2424600001A Available to backorder	Dust Screen	£1.26 £1.05
105	CO2424600002A Available to backorder	Dust Screen 2	£1.26 £1.05
108	CO26800103701 Available to backorder	Self Tapping Screw	£1.44 £1.20
109	CO2012100024B Available to backorder	Allen Wrench	£1.34 £1.12
110	CO26800703601 Available to backorder	Washer	£2.52 £2.10
111	CO26800705102 In stock	Flat Washer	£2.40 £2.00
112	CO21061000123201A Available to backorder	Cable Hook	£2.52 £2.10
113	CO2425200005A Available to backorder	Left Machete	£4.81 £4.01
114	CO2425200006A Available to backorder	Right Machete	£4.81 £4.01
