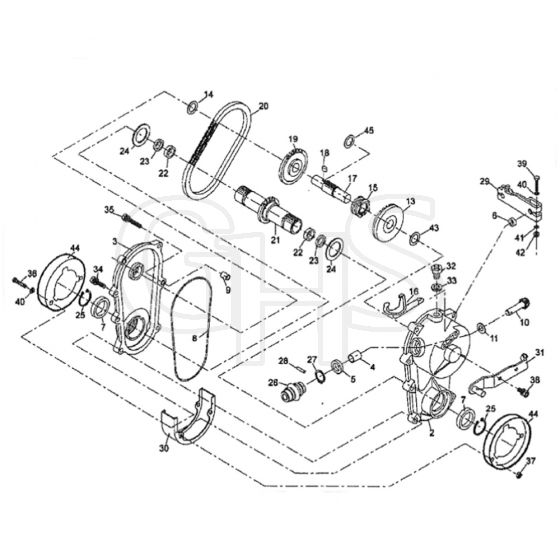

Cobra RM53SPHPRO - TN2160SXARHPROHS High Speed Rear Roller Gearbox Diagram

Name: Cobra RM53SPHPRO - TN2160SXARHPROHS High Speed Rear Roller Gearbox Diagram
SKU: rm53sphpro_tn2160sxarhprohs_high_speed_rear_roller_gearbox-group
Price: 0.36 GBP
Availability: InStock

Part No. rm53sphpro_tn2160sxarhprohs_high_speed_rear_roller_gearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM53SPHPRO - TN2160SXARHPROHS High Speed Rear Roller Gearbox Diagram

Description

Cobra RM53SPHPRO Rotary Mower Parts Diagram

	Part No.	Details
1	DA71008-470 Available to backorder	Gear Case Assy	£532.80 £444.00
2	DA51001-279 Available to backorder	Gear Case	£82.08 £68.40
3	DA51001-280 Available to backorder	Gear Case	£60.49 £50.41
4	DA76007-167 Available to backorder	Bush	£11.23 £9.36
5	DA61002-161 Available to backorder	Oil Seal	£1.78 £1.48
6	DA61002-162 Available to backorder	Oil Seal	£1.20 £1.00
7	DA61002-188 In stock	Oil Seal	£3.70 £3.08
8	DA214B1350 In stock	O-Ring	£5.53 £4.61
9	DA11083-201 Available to backorder	Collar	£2.15 £1.79
10	DA78003-136 In stock	Pinion	£22.79 £18.99
11	DA61003-109 Available to backorder	Thrust Plate	£1.12 £0.93
13	DA78001-189 In stock	Bevel Gear	£68.16 £56.80
14	DA61024-118 In stock	Spacer	£1.37 £1.14
15	DA11129-118 In stock	Clutch	£26.47 £22.06
16	DA11097-119 In stock	Shifter Fork	£26.93 £22.44
17	CO64014-408 Available to backorder	Shaft	£33.91 £28.26
18	DA91020-165 Available to backorder	Key	£6.62 £5.52
19	DA36112-153 Available to backorder	Sprocket	£45.14 £37.62
20	DA91074-107 Available to backorder	Chain	£20.88 £17.40
21	CO64014-405 In stock	Shaft	£76.10 £63.42
22	CO927B1512 In stock	Bearing	£16.58 £13.82
23	CO61002-208 In stock	Oil Seal	£4.46 £3.72
24	DA61024-171 Available to backorder	Spacer	£2.26 £1.88
23	DA61002-208 In stock	Oil Seal	£4.46 £3.72
25	DA812V2800 In stock	C-Snap Ring	£1.16 £0.97
26	DA91097-101 Available to backorder	Universal Joint	£35.11 £29.26
27	DA812V2000 Available to backorder	C-Snap Ring	£0.54 £0.45
28	DA717B0418 Available to backorder	Parallel Pin	£1.12 £0.93
29	DA11104-169 In stock	Arm	£14.42 £12.02
31	DA11006-148 Available to backorder	Stay Cp	£17.14 £14.28
32	DA31057-262 Available to backorder	Hexagon Bolt	£1.00 £0.83
33	DA68001-110 Available to backorder	Fibre Washer	£0.86 £0.72

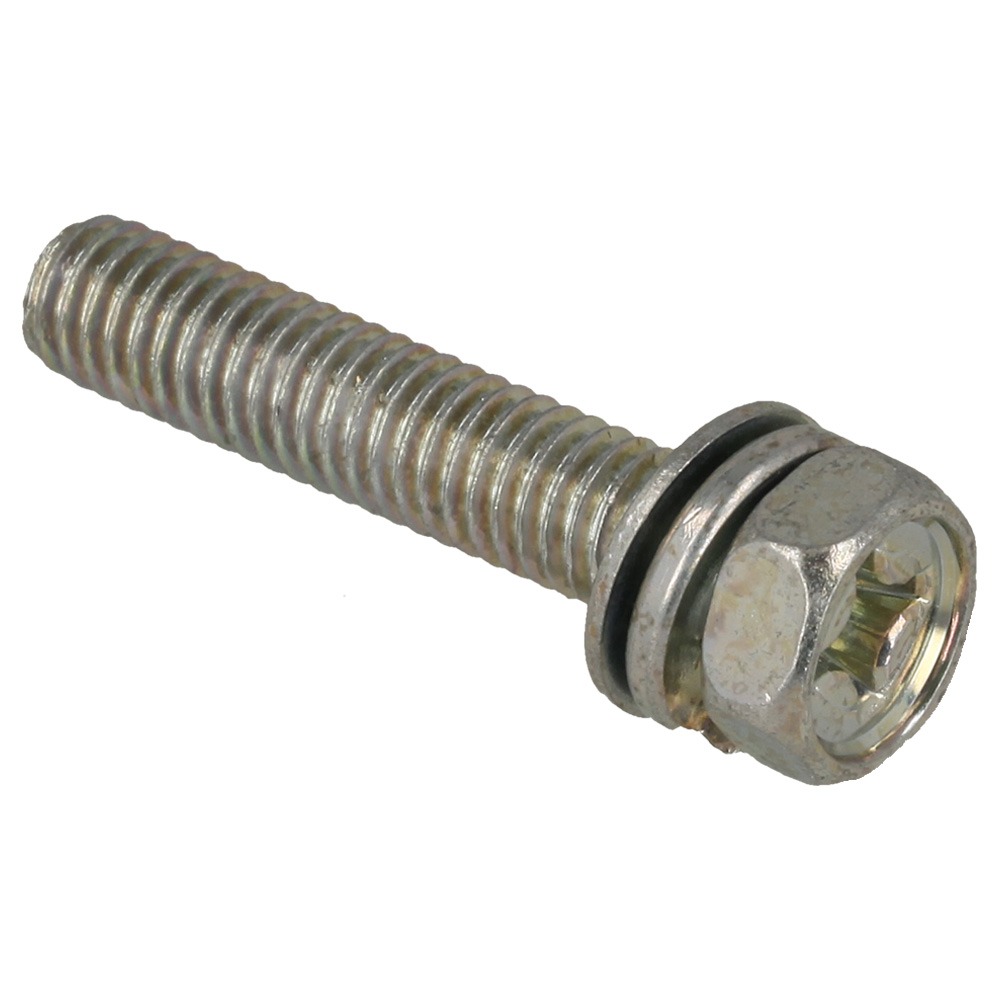

35	CO315L0630 Available to backorder	Hex Bolt	£0.91 £0.76
36	DA322L0640 Available to backorder	Hexagon Bolt	£0.91 £0.76
37	DA572L0600 Available to backorder	Nylon Nut	£0.97 £0.81
39	CO311M0630 Available to backorder	Hexagon Bolt	£2.94 £2.45
40	DA611L0600 Available to backorder	Plain Washer	£0.43 £0.36
41	DA613L0600 In stock	Plain Washer	£0.52 £0.43
42	DA571L0600 Available to backorder	Flange Nut	£0.58 £0.48
43	DA61003-123 Available to backorder	Thrust Plate	£1.86 £1.55
44	DA11004-145 Available to backorder	Grass Cover	£5.44 £4.53
45	DA68036-328 Available to backorder	Washer	£1.86 £1.55
