Cobra RM53SPH - TN2160SXARH Wheels Diagram

Name: Cobra RM53SPH - TN2160SXARH Wheels Diagram
SKU: rm53sph_tn2160sxarh_wheels-group
Price: 0.4 GBP
Availability: InStock

Part No. rm53sph_tn2160sxarh_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

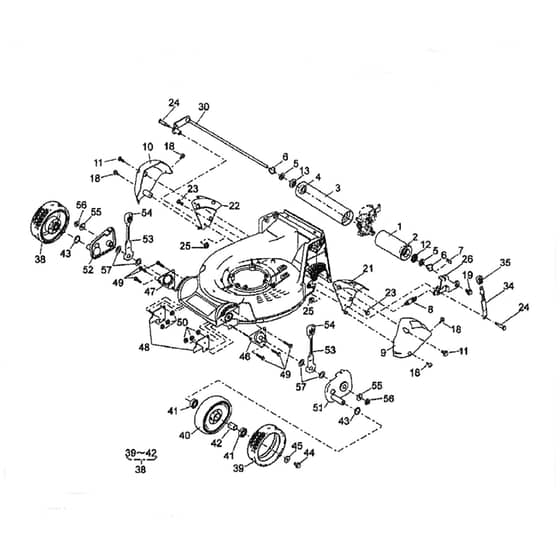

Cobra RM53SPH - TN2160SXARH Wheels Diagram

Description

Cobra RM53SPH Rotary Mower Parts Diagram

	Part No.	Details
1	DA36099-136 In stock	Roller	£123.28 £102.73
3	DA36099-137 In stock	Roller	£132.47 £110.39
4	DA915B6202 In stock	Bearing	£10.09 £8.41
5	DA61024-118 In stock	Spacer	£1.37 £1.14
6	DA664V0016 In stock	Wave Spring Washer	£0.50 £0.42
7	DA91020-131 Available to backorder	Key	£1.67 £1.39
8	DA68013-265 Available to backorder	Spring	£10.39 £8.66
9	DA36065-444 Available to backorder	Cover	£24.54 £20.45
10	DA36065-445 Available to backorder	Cover	£24.54 £20.45
11	DA342L0616 Available to backorder	Flange Tapping Bolt	£1.37 £1.14
18	DA475L0516 Available to backorder	Tapping Screw	£0.48 £0.40
19	DA31057-282 Available to backorder	Hexagon Bolt	£1.32 £1.10
21	DA11113-411 Available to backorder	Stay	£28.39 £23.66
22	DA11113-412 Available to backorder	Stay	£25.18 £20.98
23	DA342L0612 Available to backorder	Flange Tapping Bolt	£1.43 £1.19
24	DA31057-261 In stock	Hexagon Bolt	£15.42 £12.85
25	DA569L0800 Available to backorder	Flange Nylon Nut	£1.14 £0.95

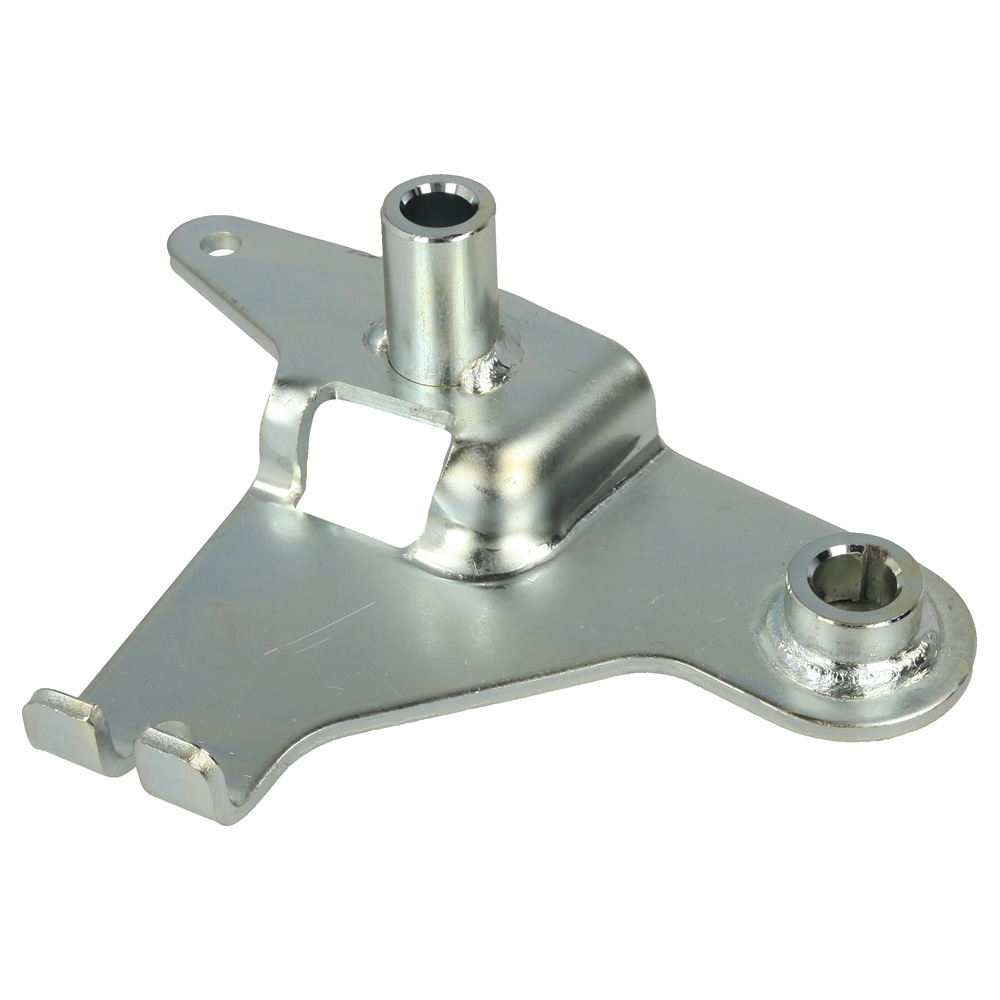

26	DA11142-136 In stock	Adjuster	£42.97 £35.81
30	DA11142-137 In stock	Adjuster	£66.92 £55.77
38	DA71041-135 Available to backorder	Wheel Assy	£113.28 £94.40
39	DA91086-113 Available to backorder	Tyre	£32.52 £27.10
41	DA916B6002 Available to backorder	Bearing	£10.57 £8.81

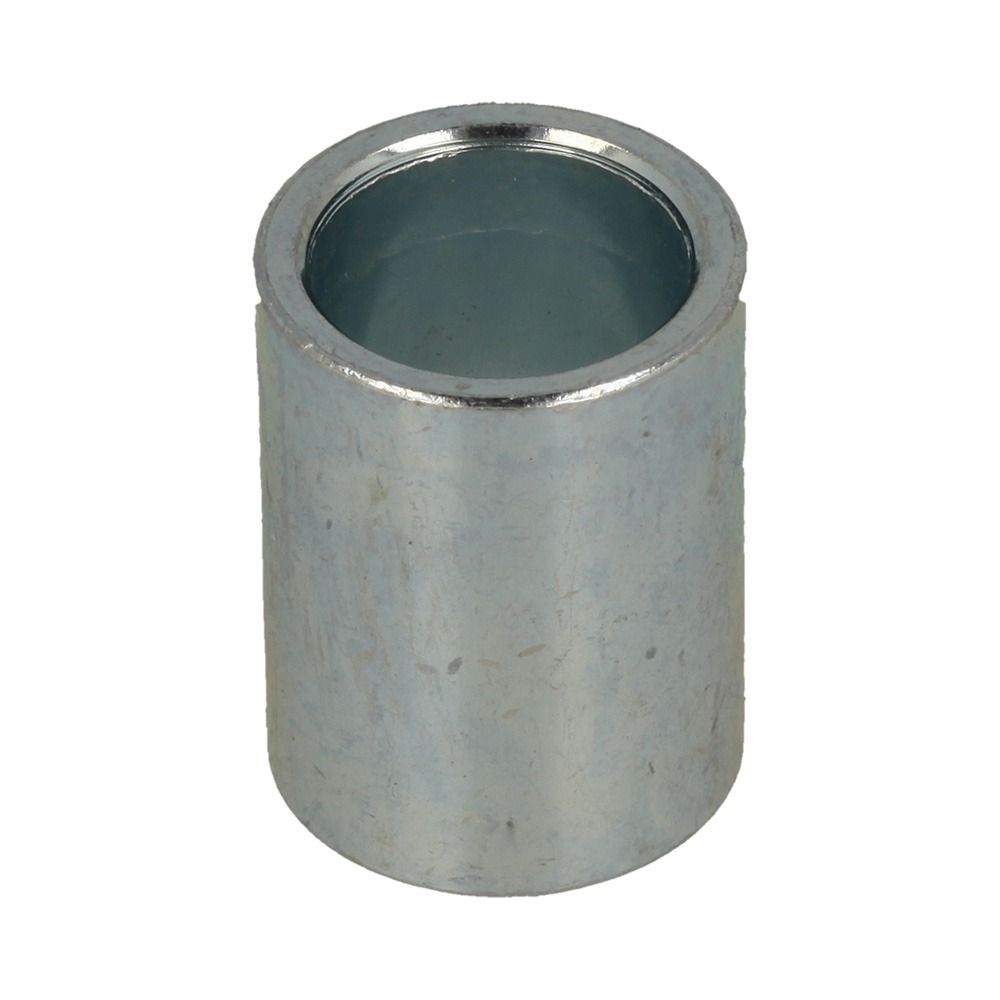

42	DA11083-332 Available to backorder	Collar	£5.32 £4.43

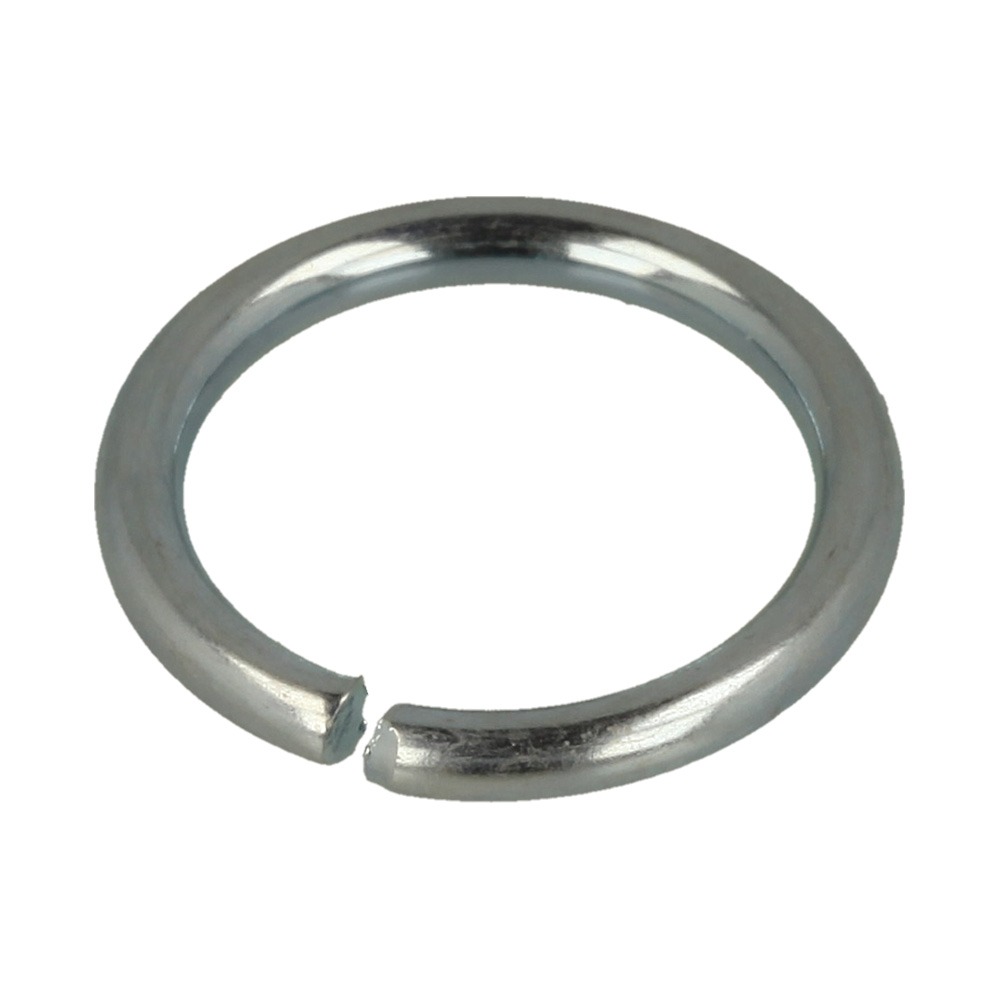

43	DA51113-119 Available to backorder	Ring	£0.60 £0.50
44	DA31057-181 In stock	Heaxgon Bolt	£1.32 £1.10
46	DA71950-273 In stock	Stay Cp	£21.52 £17.93

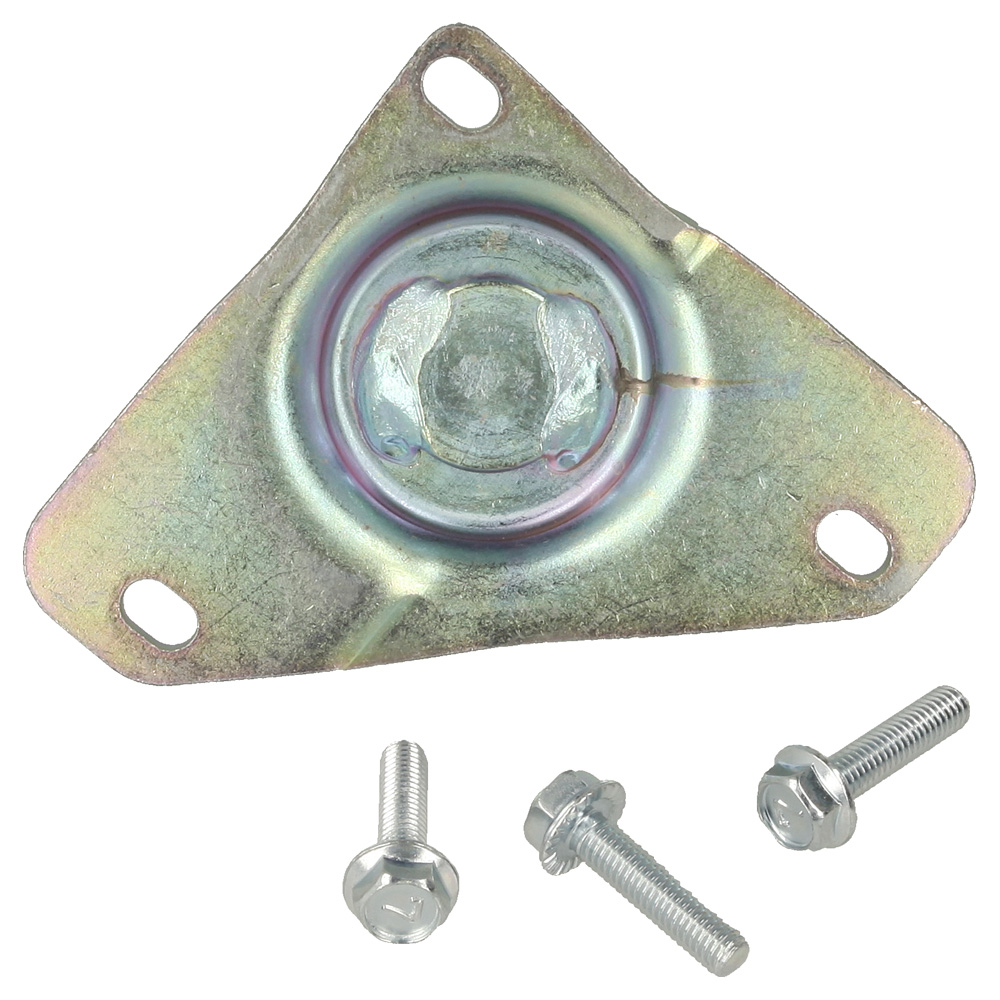

47	DA71950-274 Available to backorder	Stay Cp	£20.77 £17.31
48	DA11113-409 Available to backorder	Stay	£12.46 £10.38
49	CO335L0625 Available to backorder	Flange Bolt	£3.34 £2.78
50	DA569L0600 Available to backorder	Flange Nylon Nut	£0.91 £0.76
51	CO11142-129 Available to backorder	Adjuster	£26.51 £22.09
52	DA11142-130 Available to backorder	Adjuster	£26.51 £22.09
53	MD11150-109-09 In stock	Adjust Lever	£12.02 £10.02
54	DA36061-121 Available to backorder	Knob	£3.56 £2.97
55	DA68036-101 Available to backorder	Washer	£1.31 £1.09
57	DA68013-393 Available to backorder	Spring	£0.94 £0.78
