Cobra RM51SP80V - Lawn Mower March 2021 Main Diagram

Name: Cobra RM51SP80V - Lawn Mower March 2021 Main Diagram
SKU: rm51sp80v_lawn_mower_march_2021_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM51SP80V - Lawn Mower March 2021 Main Diagram

Description

Cobra RM51SP80V Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

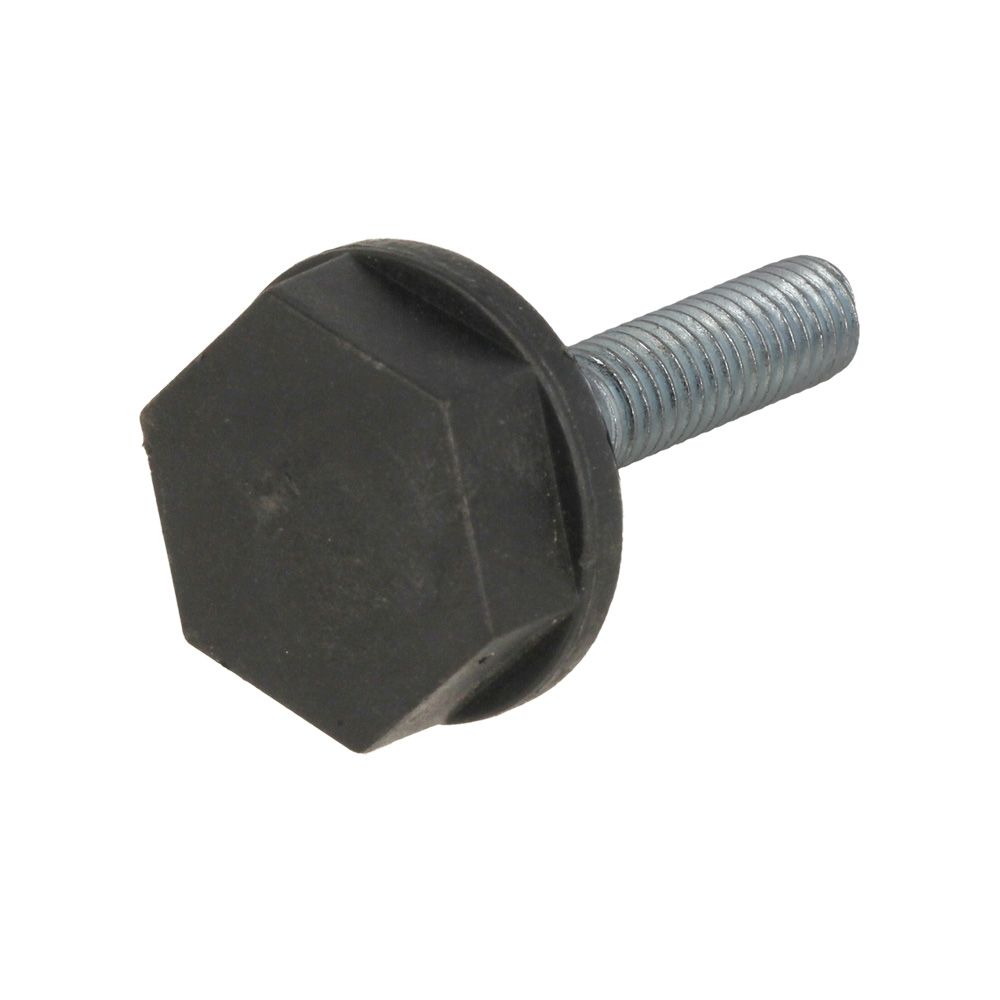

1	CO21051000450001A Available to backorder	Bolt	£1.82 £1.52
2	CO2105900003A Available to backorder	Blade	£17.78 £14.82
3	CO2105100048A Available to backorder	Fan	£6.28 £5.23
4	CO2263300003A Available to backorder	Flat Key	£1.26 £1.05
5	CO2102100008A Available to backorder	Belt Wheel	£6.91 £5.76
6	CO2102600036N Available to backorder	Belt Wheel	£5.82 £4.85
7	CO26800500801 Available to backorder	Nut	£1.26 £1.05
8	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
9	CO26800103701 Available to backorder	Self Tapping Screw	£1.44 £1.20
10	CO21041001920001C Available to backorder	Belt Protection Cover	£9.43 £7.86
11	CO21011001480006A Available to backorder	Wheel Cover	£2.96 £2.47
12	CO26800502801 Available to backorder	Nut	£1.44 £1.20
13	CO2101300065A Available to backorder	Bearing	£2.40 £2.00
14	CO21011002593208B Available to backorder	Wheel	£16.44 £13.70
15	CO21011001450001B Available to backorder	Wheel Cover	£7.50 £6.25
16	CO26800706202 Available to backorder	Washer	£2.52 £2.10
17	COA26800202701 Available to backorder	Screw	£2.40 £2.00
18	CO21011002030001N Available to backorder	Lower Support Of Wheel Axle	£2.40 £2.00
19	CO2101500079C Available to backorder	Front Wheel Axle	£20.12 £16.77
20	CO21011002020001A Available to backorder	Upper Support Of Wheel Axle	£2.40 £2.00
21	CO26800500501 Available to backorder	Nut	£2.40 £2.00
22	CO2109800053B Available to backorder	Spring Of Front Wheel Axle	£2.40 £2.00
23	CO26800100501 Available to backorder	Self Tapping Screw	£1.26 £1.05
24	CO21041002020001A Available to backorder	Handle Of Front Cover	£2.52 £2.10
25	CO21041002980006A Available to backorder	Front Cover	£21.48 £17.90
26	CO21041002990001A Available to backorder	Front Cover Plate	£4.84 £4.03
27	CO26800201002 Available to backorder	Screw	£1.20 £1.00
28	CO26800800403 Available to backorder	Spring Washer	£2.40 £2.00
29	CO26800706301 Available to backorder	Flat Washer	£1.20 £1.00
30	CO2101400001A Available to backorder	Bearing Bushing	£4.37 £3.64
31	CO26800402302 Available to backorder	Bearing	£2.70 £2.25
32	CO26800705102 In stock	Flat Washer	£2.40 £2.00
33	CO2269800006A Available to backorder	B Pin	£2.52 £2.10
34	CO2102900001A Available to backorder	Transmission	£63.72 £53.10
35	CO2109900032 In stock	Chain	£5.42 £4.52
36	CO2101300005A In stock	Big Chain Wheel	£7.48 £6.23
37	CO2102300008A In stock	Small Chain Wheel	£5.76 £4.80
38	CO2101100033A Available to backorder	Bushing Tube	£2.52 £2.10
39	CO26800204201 Available to backorder	Screw	£1.26 £1.05
40	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
41	CO2101300004A Available to backorder	Bearing Stopper	£2.52 £2.10
42	CO26800407301 In stock	Bearing	£3.24 £2.70
43	CO26800104601 In stock	Self Tapping Screw	£1.20 £1.00
44	CO21041006370108A Available to backorder	Rear Right Cover	£9.94 £8.28
45	CO2103100014A Available to backorder	Fixing Plug	£2.52 £2.10
46	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
47	CO21011000310001A Available to backorder	Protection Cover Of Rear Right Wheel	£8.90 £7.42
48	CO2101300162A Available to backorder	Roller	£72.60 £60.50
49	CO2101300160A Available to backorder	Rear Wheel Axle	£50.17 £41.81
50	CO21021000040001A Available to backorder	Protection Cover Of Rear Left Wheel	£7.56 £6.30
51	CO21041006360108A Available to backorder	Rear Left Cover	£9.94 £8.28
52	CO2109800154A Available to backorder	Spring	£2.52 £2.10
53	CO2103300043A Available to backorder	Height Adjusting Handle	£3.72 £3.10
54	CO26800500201 Available to backorder	Nut	£2.52 £2.10
55	CO21061000263005A Available to backorder	Right Cover Of 7 Shaped Handle	£2.57 £2.14
56	CO21061000253005A Available to backorder	Left Cover Of 7 Shaped Handle	£2.57 £2.14
57	CO26800200301 Available to backorder	Screw	£2.52 £2.10
58	CO26800106202 Available to backorder	Self Tapping Screw	£2.52 £2.10
59	CO2101200010A Available to backorder	Pressing Plate	£2.52 £2.10
60	CO2101100028A Available to backorder	Pressing Support Of Wheel Axle	£2.40 £2.00
61	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
62	CO2103200009 Available to backorder	Gear Plate	£4.37 £3.64
63	CO21041006384017A Available to backorder	Cover Geat Plate	£2.80 £2.33
64	CO2103100010A Available to backorder	Clip	£2.52 £2.10
66	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
67	CO2103200007 Available to backorder	Location Plate	£2.52 £2.10
68	CO2101300080A Available to backorder	Connection Rod	£8.68 £7.23
69	CO2106800005A Available to backorder	Connection Rod Spring	£5.29 £4.41
70	CO3032306001 Available to backorder	Nut	£1.26 £1.05
71	CO21032002230108A Available to backorder	Right Bracket Of Handle	£14.47 £12.06
72	CO2109800118B Available to backorder	Right Knob	£2.52 £2.10
73	CO2100X05065 Available to backorder	Rear Flap	£14.30 £11.92
74	CO2103300038A Available to backorder	Long Rod	£2.52 £2.10
75	CO2109800117B Available to backorder	Left Knob	£2.52 £2.10
76	CO21032002220108A Available to backorder	Left Bracket Of Handle	£14.47 £12.06
77	CO26800506001 Available to backorder	Nut	£1.26 £1.05
78	CO2106200723A Available to backorder	Long Rod	£2.96 £2.47
79	CO3033302001 Available to backorder	Nut	£1.26 £1.05
80	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
81	CO30913090025000 Available to backorder	Bolt	£2.52 £2.10
82	CO21061000013201A Available to backorder	Cable Clamp	£2.52 £2.10
83	CO21093001530001A Available to backorder	Lower Handle	£25.18 £20.98
84	CO21061005660001A Available to backorder	Bushing Tube	£1.45 £1.21
85	CO26800502301 In stock	Nut	£1.20 £1.00
86	CO21061000020108B In stock	Knob Of Lower Handle	£2.40 £2.00
87	CO21061005670001A Available to backorder	Bushing Of Bushing Tube	£1.26 £1.05
88	COA26800623101 Available to backorder	Bolt	£2.04 £1.70
89	CO21093001520001A Available to backorder	Upper Handle	£26.57 £22.14
90	CO2106800717A Available to backorder	Driving Cable	£10.78 £8.98

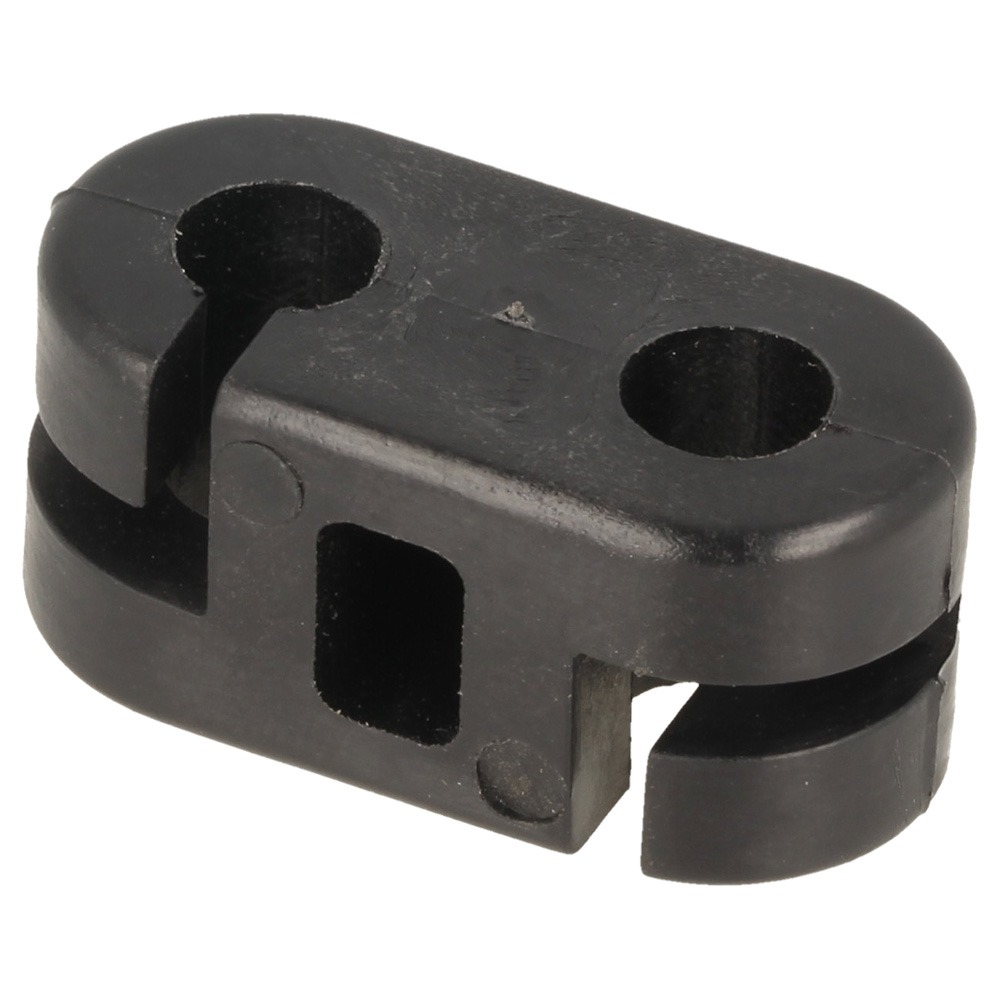

91	CO21061001643201A Available to backorder	Connection Clip Of Cable	£2.40 £2.00
92	CO2106800630A In stock	Connection Cable	£5.54 £4.62
93	CO26800501603 Available to backorder	Nut	£1.20 £1.00
94	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00

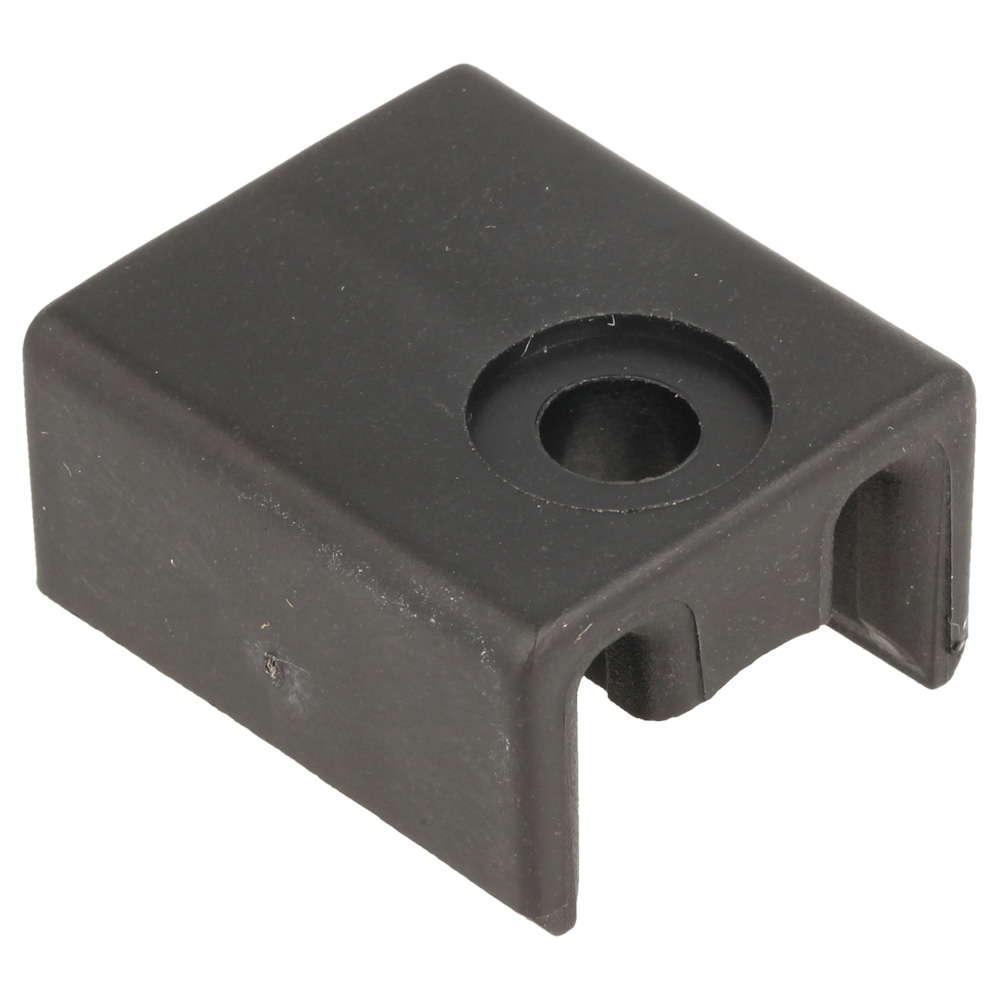

95	CO21061003650001N Available to backorder	Cabel Fixng Plate	£1.20 £1.00
96	CO3091307003 Available to backorder	Bolt	£1.20 £1.00
97	CO21041007010001A Available to backorder	Limitation Plate Of Pull Rod	£4.64 £3.87
98	CO21062010630108A Available to backorder	Starting Rod	£13.99 £11.66
99	CO21063003990001A Available to backorder	Driving Rod	£10.81 £9.01
100	CO2106100320A Available to backorder	Handle Sheath	£6.28 £5.23
101	CO2108900097A Available to backorder	Control Wire Of Handle	£16.72 £13.93
102	CO21061001113201N Available to backorder	Washer	£1.26 £1.05
103	CO26800100302 Available to backorder	Self Tapping Screw	£1.44 £1.20
104	CO2281100002B Available to backorder	Wire Pressing Plate	£1.26 £1.05
105	CO21061006060001A Available to backorder	Lower Cover Of Sw Box	£2.66 £2.22
106	COA26800101701 Available to backorder	Self Tapping Screw	£1.26 £1.05
107	CO2326900001A Available to backorder	Pressing Plate Of Sw	£1.26 £1.05
108	CO2108900226A Available to backorder	Power Indicator	£17.86 £14.88
109	CO2109800012A Available to backorder	Spring	£2.52 £2.10
110	CO2106100607A Available to backorder	Switch Plate	£1.26 £1.05
111	CO2104100031A Available to backorder	Switch Pulling Plate	£2.52 £2.10
112	CO2109800013A Available to backorder	Spring	£2.52 £2.10
113	CO2106201066A Available to backorder	Starting Cable	£2.86 £2.38
114	CO21061006050001A Available to backorder	Upper Cover Of Sw Box	£3.38 £2.82
115	CO21061003770108A Available to backorder	Switch Button	£3.16 £2.63
116	CO2309100017A Available to backorder	Key Wire	£2.52 £2.10
117	CO2109300060A Available to backorder	Bolt	£2.52 £2.10
118	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
119	CO2103300032A Available to backorder	Washer	£2.52 £2.10
120	CO3031309002 Available to backorder	But	£1.26 £1.05
121	CO26800103202 In stock	Self Tapping Screw	£1.20 £1.00
122	CO21031001540001A Available to backorder	Wire Outlet Plate	£1.26 £1.05
123	CO21031001470001A Available to backorder	Lower Cover	£17.78 £14.82
124	CO21031002000001A Available to backorder	Air Hole Flap	£1.26 £1.05
125	CO2108900225A Available to backorder	Controller	£64.56 £53.80
126	COA26800105402 Available to backorder	Self Tapping Screw	£1.26 £1.05
127	CO2108900096A Available to backorder	Inner Connecting Wire	£16.63 £13.86
129	COA26800609001 Available to backorder	Bolt	£1.26 £1.05
130	CO21031001480001A Available to backorder	Motor Support	£10.08 £8.40
131	CO2050100278A Available to backorder	Motor	£100.20 £83.50
132	CO21031001170001A Available to backorder	Upper Cover	£21.08 £17.57
133	CO21031001510006A Available to backorder	Right Cover	£1.26 £1.05
134	CO21031001500006A Available to backorder	Left Cover	£1.26 £1.05
135	CO2109300058A Available to backorder	Self Tapping Screw	£1.26 £1.05
136	COA26800700502 Available to backorder	Flat Washer	£1.26 £1.05
137	CO2011400041A Available to backorder	Key Switch	£5.35 £4.46
138	CO23061000420108A Available to backorder	Key	£2.71 £2.26
139	CO21031000550006B Available to backorder	Front Cover	£14.62 £12.18
140	CO21031001990001A Available to backorder	Battery Rid	£6.05 £5.04
141	CO21031002020001A Available to backorder	Plate Of Battery Rid	£1.37 £1.14
142	CO2103100152A Available to backorder	Pressing Plate Of Battery Rid	£1.26 £1.05
143	CO2104800008A Available to backorder	Spring Of Battery Rid	£1.26 £1.05
144	CO21031001490001B Available to backorder	Twin Battery Box	£11.15 £9.29
145	CO2329800002A Available to backorder	Spriung	£1.26 £1.05
146	CO20741000010001A Available to backorder	Male Plug Of Battery Terminal	£1.68 £1.40
147	CO2108900043B Available to backorder	Connecting Wire Of Male Plug	£7.96 £6.63
148	CO21077001192006A Available to backorder	Grass Bag	£36.00 £30.00
149	CO2107500002A In stock	Bracket Of Grass Bag	£20.04 £16.70
150	CO2109600021A Available to backorder	Plug	£1.26 £1.05
