Cobra RM514SPC - Rear Roller 4 Speed April 2018 Main Diagram

Description

Cobra RM514SPC Rotary Mower Parts Diagram

	Part No.	Details
1	CO26800606201 In stock	Blade Locking Bolt	£2.58 £2.15
2	CO2105300001C Available to backorder	Washer	£2.48 £2.07
3	CO2105200274A In stock	Blade	£34.69 £28.91
4	CO2105300037C Available to backorder	Blade Support	£9.68 £8.07
5	CO2105400025A Available to backorder	Sheath Of Blade Support	£2.48 £2.07
6	CO2105400022A Available to backorder	Sheath Of Blade Support	£2.48 £2.07
7	CO2105300077A Available to backorder	Flat Key	£2.48 £2.07
8	CO2102300124A Available to backorder	Driving Pulley	£31.69 £26.41
9	CO2102600049A Available to backorder	Triangle Belt	£9.91 £8.26
11	CO21041001920001B Available to backorder	Protection Belt	£11.34 £9.45
12	COA26800708101 Available to backorder	Washer	£1.24 £1.03
14	CO2109200058A Available to backorder	Flat Washer	£2.48 £2.07
15	CO21011001480006A Available to backorder	Wheel Cover	£2.92 £2.43
16	COA26800502801 Available to backorder	Nut	£1.24 £1.03
17	CO2101300065A Available to backorder	Bearing	£4.14 £3.45
18	CO21011002593208A Available to backorder	Wheel	£14.80 £12.33
19	CO21011001450001A Available to backorder	Dust-Proof Wheel Cover	£2.48 £2.07
20	CO26800706202 In stock	Wahser	£2.48 £2.07
21	COA26800202701 Available to backorder	Screw	£2.48 £2.07
22	CO21011002030001N Available to backorder	Lower Support Of Wheel Axle	£2.48 £2.07
23	CO2101500079C Available to backorder	Front Wheel Axle Assy	£19.82 £16.52
24	CO21011002020001A Available to backorder	Upper Support Of Wheel Axle	£2.48 £2.07
25	COA26800500501 Available to backorder	Nut	£2.48 £2.07
26	CO2109800053B Available to backorder	Spring Of Front Wheel Axle	£2.48 £2.07
27	CO26800100501 In stock	Self-Tapping Screw	£1.28 £1.07
28	CO21041002020001A Available to backorder	Cover Of Handle	£2.48 £2.07
29	COA26800103701 Available to backorder	Self-Tapping Screw	£1.24 £1.03
30	CO21041002980006A Available to backorder	Head Cover	£22.18 £18.48
31	CO21041002990001A Available to backorder	Flap Cover Of Head	£4.76 £3.97
32	CO26800201002 Available to backorder	Screw	£1.24 £1.03
33	CO26800800402 Available to backorder	Spring Washer	£2.48 £2.07
34	CO26800706301 Available to backorder	Flat Wahser	£1.24 £1.03
35	CO2101400001A Available to backorder	Bearing Sheath	£4.31 £3.59
36	CO26800402302 In stock	Bearing	£2.66 £2.22
37	CO26800705102 In stock	Flat Washer	£2.58 £2.15
38	CO2269800006A Available to backorder	B-Pin	£2.48 £2.07
39	CO2102900006A In stock	Gearbox	£71.04 £59.20
40	CO2109900032 In stock	Chain	£5.81 £4.84
41	CO2101300005A In stock	Big Chain Wheel	£8.03 £6.69
42	CO2102300008A Available to backorder	Small Chain Wheel	£6.18 £5.15
43	CO26800204201 Available to backorder	Screw	£1.24 £1.03
45	CO2101300004A Available to backorder	Bearing Catch	£2.48 £2.07
46	CO26800407301 In stock	Bearing	£3.47 £2.89
47	COA26800606401 Available to backorder	Bolt	£2.48 £2.07
48	CO2103200009 Available to backorder	Height Level Plate	£4.31 £3.59
49	CO21041006384017A Available to backorder	Decorative Sheet Of Height Level	£2.75 £2.29
51	CO2101200010A Available to backorder	Pressing Plate	£2.48 £2.07
52	CO2101100028A Available to backorder	Pressing Support Of Wheel Axle	£2.48 £2.07
53	CO2109800154A Available to backorder	Torsional Spring	£2.48 £2.07
54	CO2103300043A Available to backorder	Height Adjust Handle	£3.66 £3.05
55	CO26800500201 Available to backorder	Nut	£2.48 £2.07
56	CO21061000263005A Available to backorder	Right Cover Of 7-Shape Handle	£2.52 £2.10
57	CO21061000253005A Available to backorder	Left Cover Of 7-Shape Handle	£2.52 £2.10
58	CO26800200301 Available to backorder	Screw	£2.48 £2.07
59	COA26800106202 Available to backorder	Self-Tapping Screw	£2.48 £2.07
60	CO21041006370108A Available to backorder	Decorative Cover Of Right Rear Wheel	£9.79 £8.16
61	CO26800612201 Available to backorder	Bolt	£2.48 £2.07
62	CO21011000310001A Available to backorder	Protection Cover Of Right Rear Wheel	£8.77 £7.31
63	CO21021000040001A Available to backorder	Protection Cover Of Left Rear Wheel	£7.80 £6.50
64	CO21041006360108A Available to backorder	Decorative Cover Of Left Rear Wheel	£9.79 £8.16
65	CO2103100014A Available to backorder	Fixed Brake Shoe	£2.48 £2.07
66	CO2101900001A Available to backorder	Rear Wheel Axle Assy	£49.43 £41.19
68	CO2103100010A Available to backorder	Buckle	£2.48 £2.07
69	CO26800618101 Available to backorder	Fixing Bolt	£2.48 £2.07
70	CO2102200035A Available to backorder	Fixing Plate	£2.48 £2.07
71	CO26800611201 Available to backorder	Bolt	£2.48 £2.07
72	CO2101300080A Available to backorder	Connection Rod	£8.54 £7.12
73	CO3032306001 Available to backorder	Nut	£1.24 £1.03
74	CO21032002230108A Available to backorder	Right Handle Bracket	£14.26 £11.88
75	CO2109800118B Available to backorder	Right Knob Spring	£2.48 £2.07
76	CO2103300038A Available to backorder	Long Rod	£2.48 £2.07
77	CO2109800117B Available to backorder	Left Knob Spring	£2.48 £2.07
78	CO21032002220108A Available to backorder	Left Handle Bracket	£14.26 £11.88
79	CO2101500209A Available to backorder	Roller	£72.00 £60.00
80	CO26800506001 Available to backorder	Nut	£1.24 £1.03
81	CO2106200723A Available to backorder	Long Rod	£2.92 £2.43
82	CO3033302001 Available to backorder	Nut	£1.24 £1.03
83	COA26800800202 Available to backorder	Spring Washer	£2.48 £2.07
84	COA26800700701 Available to backorder	Flat Washer	£2.48 £2.07
85	CO30913090025000 Available to backorder	Bolt	£2.48 £2.07
86	CO21063001270001A Available to backorder	Lower Handle	£20.05 £16.71
87	CO21061000013201A Available to backorder	Cable Clamp	£2.48 £2.07
88	CO21061003883201N Available to backorder	Lower Adjust Wheel Gear	£2.48 £2.07
89	CO2109300058A Available to backorder	Self-Tapping Screw	£1.24 £1.03
90	CO21061000270002A Available to backorder	Locking Handle	£2.48 £2.07
91	CO2109300063A Available to backorder	Round Pin	£1.24 £1.03
92	CO2109200025A Available to backorder	Pressing Plate	£2.48 £2.07
93	CO2109300026A Available to backorder	Locking Handle	£2.48 £2.07
94	CO21062003870001N Available to backorder	Upper Handle	£26.54 £22.12
95	CO21061003843206D Available to backorder	Upper Adjusting Wheel Gear	£2.48 £2.07
96	CO2109200029B Available to backorder	Flat Washer	£2.48 £2.07
97	CO26800500801 Available to backorder	Nut	£1.24 £1.03
98	COA26800501603 Available to backorder	Nut	£1.24 £1.03
99	CO26800611401 Available to backorder	Screw	£2.48 £2.07
100	CO21061004573201N Available to backorder	Fixing Support Of Bail Arm Outside	£2.48 £2.07
101	CO21061004593201N Available to backorder	Fixing Support Of Bail Arm Inside	£2.48 £2.07
102	CO21061001803201B Available to backorder	Plate Of Self Propelled Cable	£4.57 £3.81
103	CO21061001153206N Available to backorder	Cover Of Baril Arm Support	£2.48 £2.07

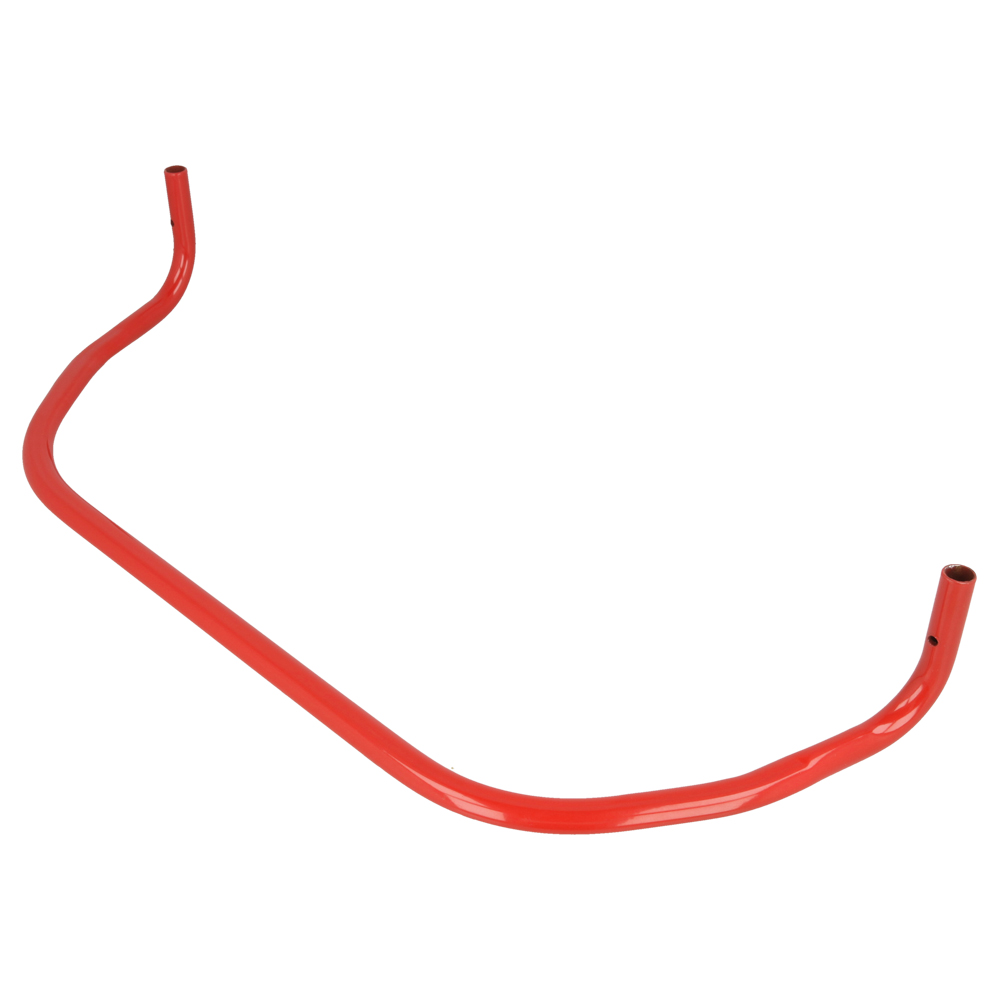

104	CO21062001990108A Available to backorder	Flameout Rod	£8.14 £6.78
105	CO21062002080001A Available to backorder	Driving Rod	£8.03 £6.69
106	CO2106600017N Available to backorder	Handle Sheath	£4.54 £3.78
107	COA26800700801 Available to backorder	Flat Washer	£2.48 £2.07
108	CO21061000043201A In stock	Cable Fixing Plate	£2.58 £2.15
109	CO2106800296A In stock	Driving Cable Assy	£12.84 £10.70
110	CO2106800361A Available to backorder	Flameout Cable Assy	£9.91 £8.26
111	CO2106800281A Available to backorder	Accelerator Cable	£9.91 £8.26
112	CO2106200221B Available to backorder	Accelerator Rod	£2.48 £2.07
113	CO21061001120108N Available to backorder	Adjusting Handle	£2.48 £2.07
114	CO26800602501 Available to backorder	Bolt	£2.48 £2.07
115	CO2103300027A Available to backorder	Special Bolt	£2.48 £2.07
116	CO2103300032A Available to backorder	Washer	£2.48 £2.07
117	CO60400107801 Available to backorder	Engine	£211.68 £176.40
118	CO21077001192006A Available to backorder	Grassbag	£37.20 £31.00
119	CO2107500002A In stock	Grassbag Bracket	£21.46 £17.88
120	CO2100X05065 Available to backorder	Rear Flap Assy	£14.09 £11.74
121	CO26800105602 Available to backorder	Self-Tapping Screw	£2.48 £2.07
122	CO21041002570001N Available to backorder	Rear Cover Of Control Panel	£13.01 £10.84
123	CO21061002010001N Available to backorder	Control Panel	£20.96 £17.47
124	CO3011301004 Available to backorder	Self-Tapping Screw	£1.24 £1.03
125	CO21061001113201N Available to backorder	Washer	£1.24 £1.03
126	CO2106200223A Available to backorder	Throttle Cable Guiding Plate	£2.48 £2.07
127	CO26800604501 Available to backorder	Bolt	£2.48 £2.07
128	CO21061004503201N Available to backorder	Accelerator Level Plate	£2.59 £2.16
129	CO26800700301 Available to backorder	Big Washer	£2.48 £2.07
130	CO26800103602 Available to backorder	Self-Tapping Screw	£2.48 £2.07
131	CO21041001240001A Available to backorder	Pressing Plate	£2.48 £2.07
132	CO21061001780108A Available to backorder	Panel Locking Knob	£2.48 £2.07
133	CO2209800023A Available to backorder	Safety Button Spring	£2.48 £2.07
134	CO21061001770001A Available to backorder	Flap Of Panel	£4.18 £3.48
135	CO2109800056B Available to backorder	Sping Of Flap	£2.48 £2.07
136	CO26800202501 Available to backorder	Screw	£1.24 £1.03
137	CO2109300055A Available to backorder	Special Bolt	£2.48 £2.07
138	COA26800100801 Available to backorder	Self-Tapping Screw	£2.48 £2.07
139	CO26800607701 Available to backorder	Bolt	£2.48 £2.07
140	CO26800800303 Available to backorder	Spring Washer	£2.48 £2.07
141	CO2106300002A Available to backorder	Cable Hook	£2.48 £2.07
142	CO21061001103201N Available to backorder	Adjusting Level Plate	£2.48 £2.07
143	CO2106200586B Available to backorder	Speed Handle	£3.56 £2.97
144	CO2106400014A Available to backorder	Speed Level Plate	£3.95 £3.29
145	CO2102200026A Available to backorder	Strength Plate Of Speed	£2.48 £2.07
146	CO2106800297B In stock	Speed Cable Assy	£12.40 £10.33
147	CO21061001523201N Available to backorder	Cable Fixing Plate	£2.48 £2.07
148	CO2106800005A Available to backorder	Connection Rod Spring	£5.21 £4.34
149	CO2101100033A Available to backorder	Drivepipe	£2.48 £2.07
