Cobra RM514SPC - Lawn Mower Aug 2020 Main Diagram

Name: Cobra RM514SPC - Lawn Mower Aug 2020 Main Diagram
SKU: rm514spc_lawn_mower_aug_2020_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM514SPC - Lawn Mower Aug 2020 Main Diagram

Description

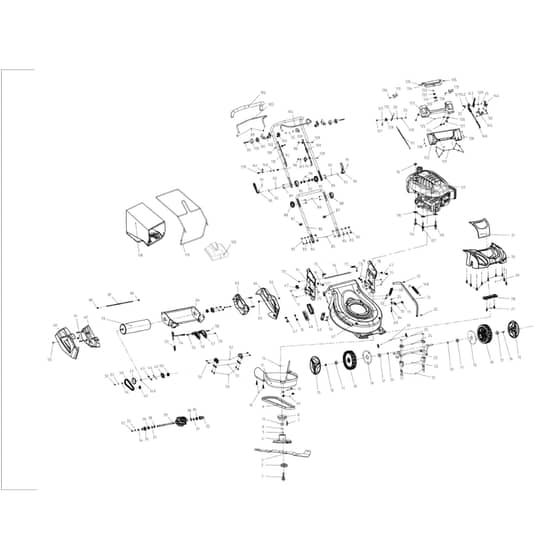

Cobra RM514SPC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO2105300001C Available to backorder	Washer	£2.40 £2.00
3	CO2105200274A Available to backorder	Blade	£32.40 £27.00
3	CO21052002622000A In stock	Blade (New Style)	£20.40 £17.00
4	CO2105300155A Available to backorder	Blade Support	£9.83 £8.19
4	CO2105300037C Available to backorder	Blade Support	£9.36 £7.80
5	CO2105400025A Available to backorder	Sheath Of Blade Support	£2.52 £2.10
5	CO2012300191A Available to backorder	Sheath Of Blade Support	£2.52 £2.10
6	CO2105400022A Available to backorder	Sheath Of Blade Support	£2.52 £2.10

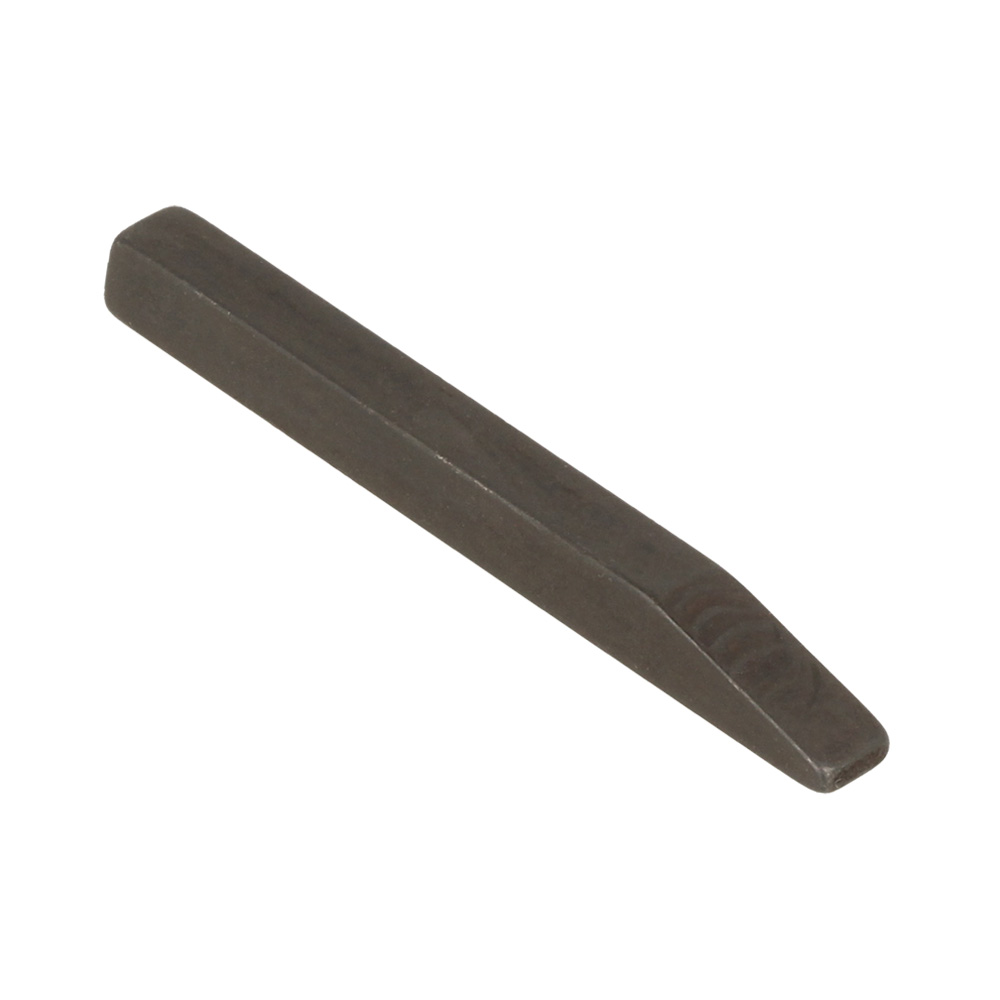

7	CO2105300077A Available to backorder	Flat Key	£2.40 £2.00
7	CO2103900034A Available to backorder	Flat Key	£1.26 £1.05
8	CO2102300124A Available to backorder	Driving Pulley	£26.10 £21.75
9	CO2102600049A Available to backorder	Triangle Belt	£9.58 £7.98
11	CO21041001920001B Available to backorder	Protection Belt	£11.51 £9.59
12	COA26800708101 Available to backorder	Washer	£1.26 £1.05
14	CO2109200058A Available to backorder	Flat Washer	£2.52 £2.10
15	CO21011001480006A Available to backorder	Wheel Cover	£2.96 £2.47
16	COA26800502801 Available to backorder	Nut	£2.52 £2.10
17	CO2101300065A Available to backorder	Bearing	£2.40 £2.00
18	CO21011002593208A Available to backorder	Wheel	£14.30 £11.92

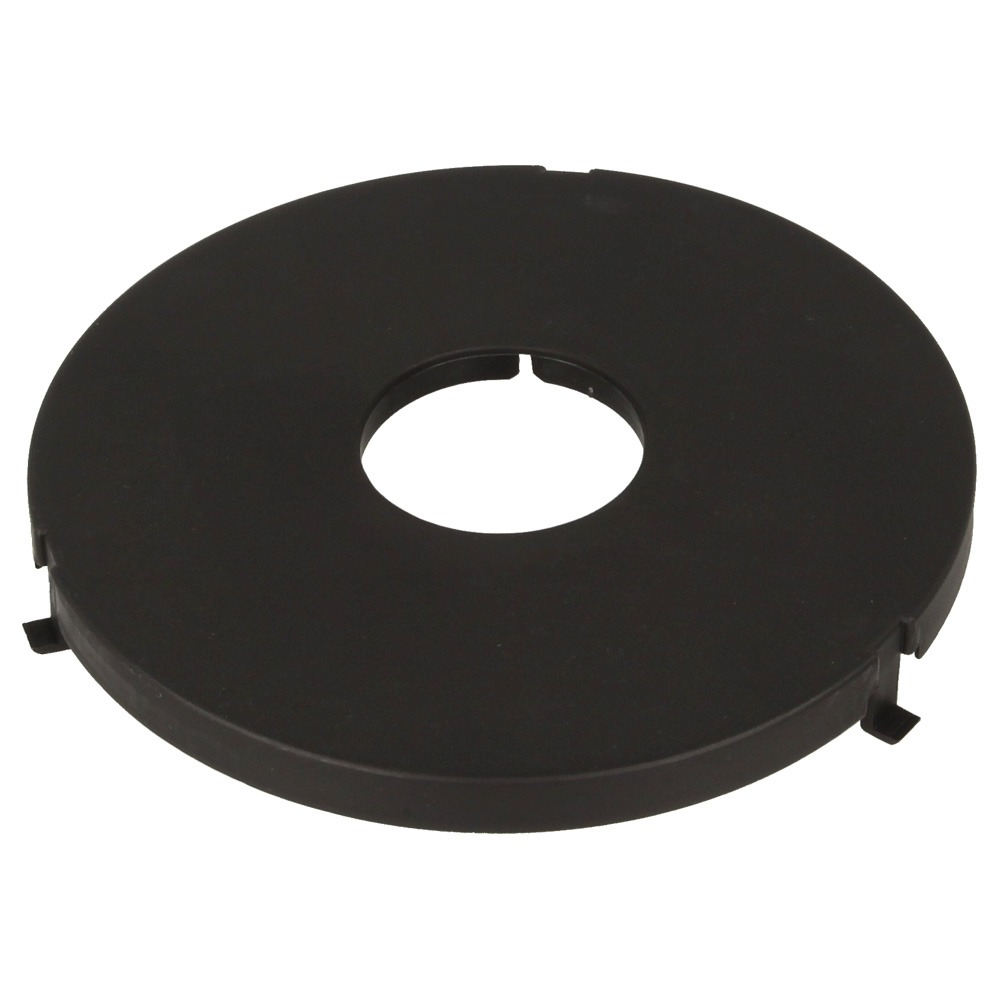

19	CO21011001450001A Available to backorder	Dust-Proof Wheel Cover	£2.40 £2.00
20	COA26800706202 Available to backorder	Wahser	£2.52 £2.10
21	COA26800202701 Available to backorder	Screw	£2.40 £2.00
22	CO21011002030001N Available to backorder	Lower Support Of Wheel Axle	£2.40 £2.00
23	CO2101500079C Available to backorder	Front Wheel Axle Assy	£20.12 £16.77
24	CO21011002020001A Available to backorder	Upper Support Of Wheel Axle	£2.40 £2.00
25	COA26800500501 Available to backorder	Nut	£2.40 £2.00
26	CO2109800053B Available to backorder	Spring Of Front Wheel Axle	£2.40 £2.00
27	COA26800100501 Available to backorder	Self-Tapping Screw	£2.52 £2.10
28	CO21041002020001A Available to backorder	Cover Of Handle	£2.52 £2.10
29	COA26800103701 Available to backorder	Self-Tapping Screw	£2.52 £2.10

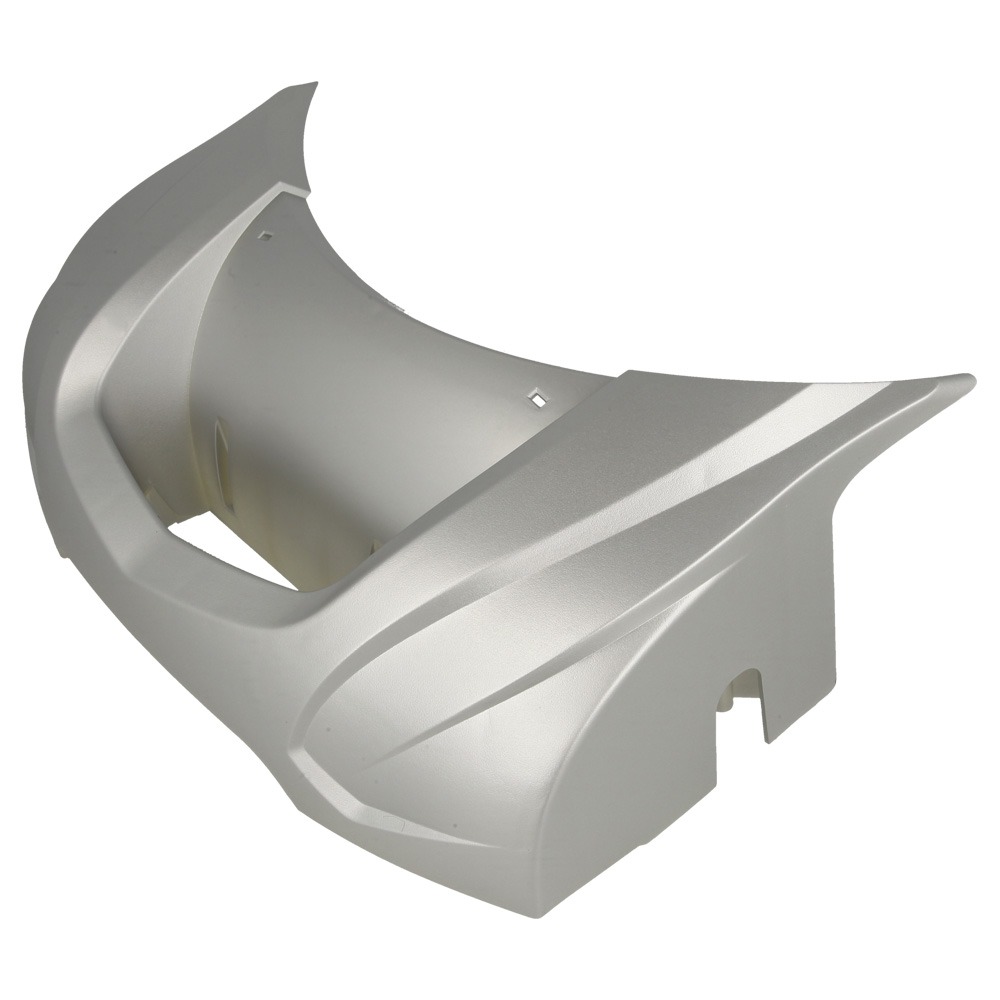

30	CO21041002980006A Available to backorder	Head Cover	£21.48 £17.90
31	CO21041002990001A Available to backorder	Flap Cover Of Head	£4.84 £4.03
32	CO26800201002 Available to backorder	Screw	£1.20 £1.00
33	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
34	CO26800706301 Available to backorder	Flat Wahser	£1.20 £1.00
35	CO2101400001A Available to backorder	Bearing Sheath	£4.37 £3.64
36	CO26800402302 Available to backorder	Bearing	£2.70 £2.25
37	CO26800705102 In stock	Flat Washer	£2.40 £2.00
38	CO2269800006A Available to backorder	B-Pin	£2.52 £2.10

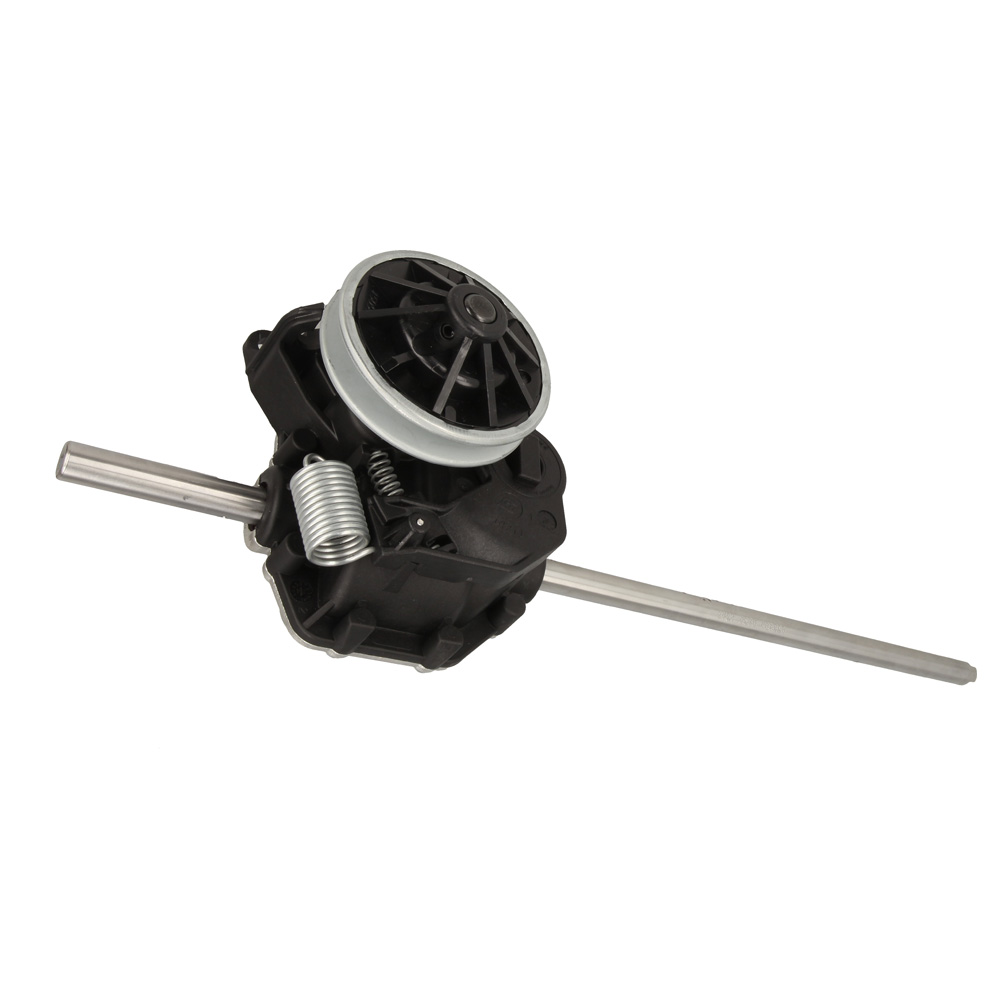

39	COH2102900040A In stock	Gearbox	£71.08 £59.23
40	CO2109900032 In stock	Chain	£5.42 £4.52
41	CO2101300005A In stock	Big Chain Wheel	£7.48 £6.23
42	CO2102300008A Available to backorder	Small Chain Wheel	£5.76 £4.80
43	CO26800204201 Available to backorder	Screw	£1.26 £1.05
45	CO2101300004A Available to backorder	Bearing Catch	£2.52 £2.10
46	CO26800407301 In stock	Bearing	£3.24 £2.70
47	COA26800606401 Available to backorder	Bolt	£2.52 £2.10
48	CO2103200009 Available to backorder	Height Level Plate	£4.37 £3.64
49	CO21041006384017A Available to backorder	Decorative Sheet Of Height Level	£2.80 £2.33
51	CO2101200010A Available to backorder	Pressing Plate	£2.52 £2.10
52	CO2101100028A Available to backorder	Pressing Support Of Wheel Axle	£2.40 £2.00
53	CO2109800154A Available to backorder	Torsional Spring	£2.52 £2.10
54	CO2103300043A Available to backorder	Height Adjust Handle	£3.72 £3.10
55	CO26800500201 Available to backorder	Nut	£2.52 £2.10
56	CO21061000263005A Available to backorder	Right Cover Of 7-Shape Handle	£2.57 £2.14
57	CO21061000253005A Available to backorder	Left Cover Of 7-Shape Handle	£2.57 £2.14
58	CO26800200301 Available to backorder	Screw	£2.52 £2.10
59	COA26800106202 Available to backorder	Self-Tapping Screw	£2.52 £2.10
60	CO21041006370108A Available to backorder	Decorative Cover Of Right Rear Wheel	£9.94 £8.28
61	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
62	CO21011000310001A Available to backorder	Protection Cover Of Right Rear Wheel	£8.90 £7.42

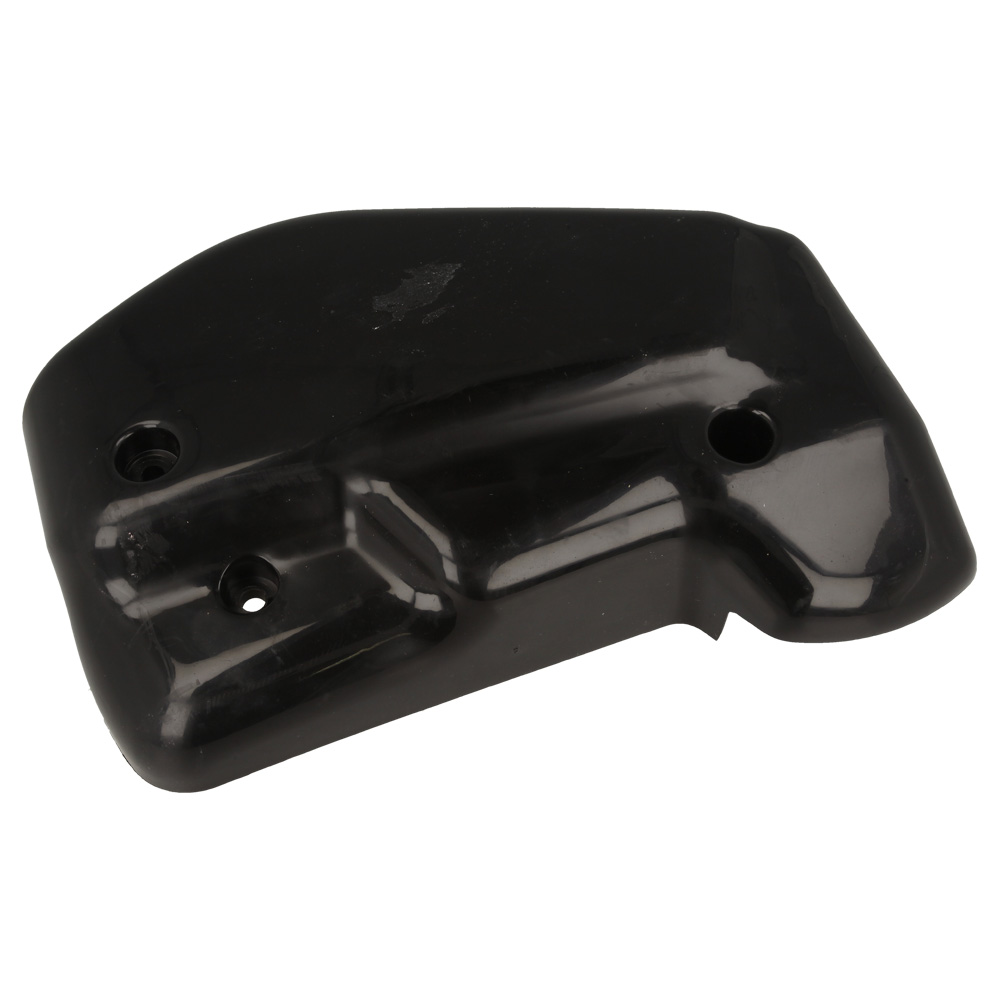

63	CO21021000040001A Available to backorder	Protection Cover Of Left Rear Wheel	£7.56 £6.30
64	CO21041006360108A Available to backorder	Decorative Cover Of Left Rear Wheel	£9.94 £8.28
65	CO2103100014A Available to backorder	Fixed Brake Shoe	£2.52 £2.10
66	CO2101300160A Available to backorder	Rear Wheel Axle Assy	£50.17 £41.81
68	CO2103100010A Available to backorder	Buckle	£2.52 £2.10
69	CO26800618101 Available to backorder	Fixing Bolt	£2.52 £2.10

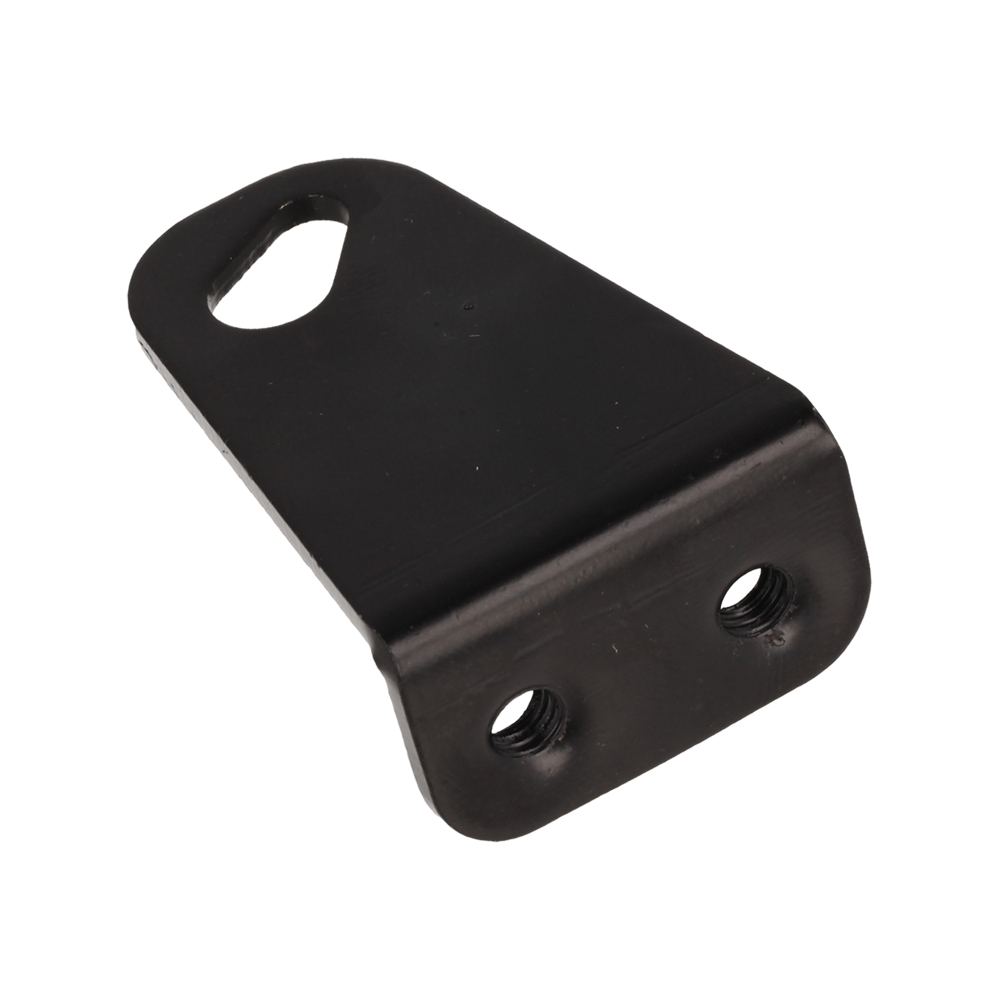

70	CO2109300148A Available to backorder	Fixing Plate	£2.62 £2.18
71	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
72	CO2101300080A Available to backorder	Connection Rod	£8.68 £7.23
73	CO3032306001 Available to backorder	Nut	£1.26 £1.05
74	CO21032002230108A Available to backorder	Right Handle Bracket	£14.47 £12.06
75	CO2109800118B Available to backorder	Right Knob Spring	£2.52 £2.10
76	CO2103300038A Available to backorder	Long Rod	£2.52 £2.10
77	CO2109800117B Available to backorder	Left Knob Spring	£2.52 £2.10
78	CO21032002220108A Available to backorder	Left Handle Bracket	£14.47 £12.06
79	CO2101300162A Available to backorder	Roller	£72.60 £60.50
80	CO26800506001 Available to backorder	Nut	£1.26 £1.05
81	CO2106200723A Available to backorder	Long Rod	£2.96 £2.47
82	CO3033302001 Available to backorder	Nut	£1.26 £1.05
83	COA26800800202 Available to backorder	Spring Washer	£2.52 £2.10

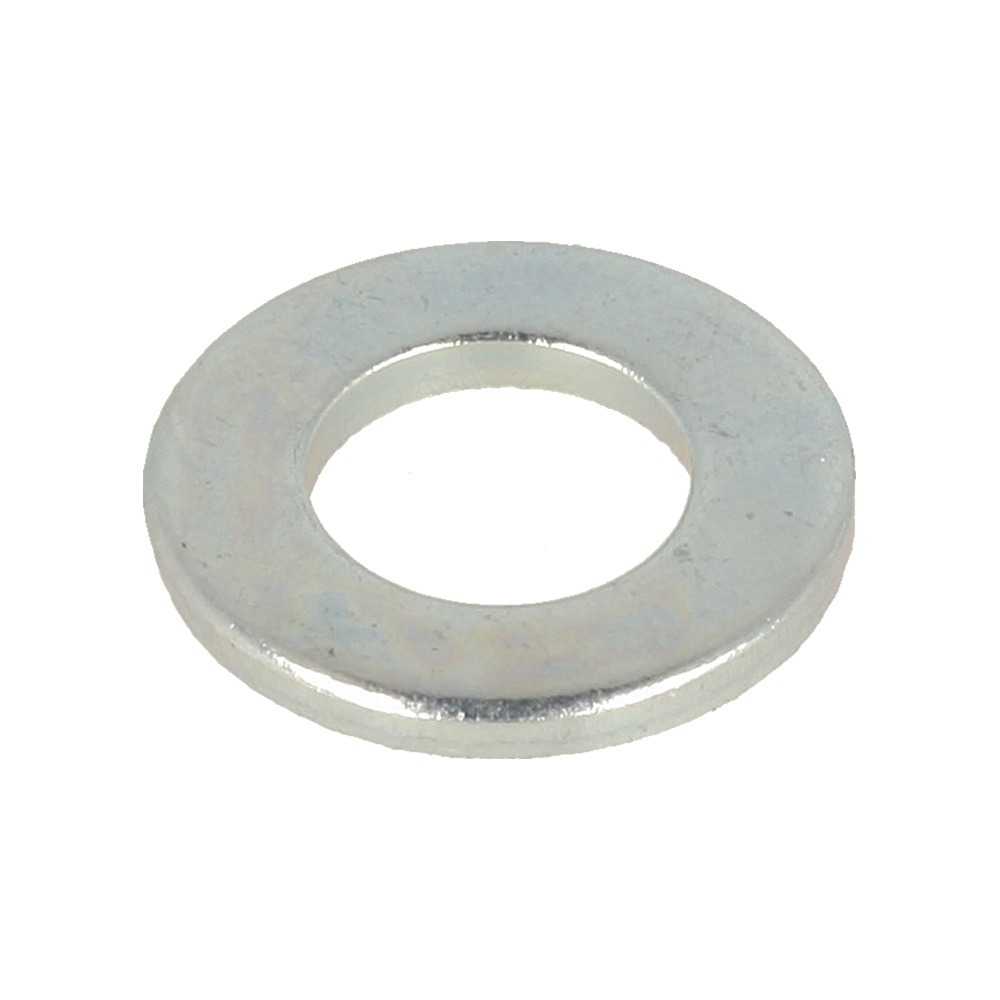

84	COA26800700701 Available to backorder	Flat Washer	£2.40 £2.00
85	CO30913090025000 Available to backorder	Bolt	£2.52 £2.10
86	CO21063001270001A Available to backorder	Lower Handle	£20.35 £16.96
87	CO21061000013201A Available to backorder	Cable Clamp	£2.52 £2.10
88	CO21061003883201N Available to backorder	Lower Adjust Wheel Gear	£2.52 £2.10
89	CO2109300058A Available to backorder	Self-Tapping Screw	£1.26 £1.05
90	CO21061000270002A Available to backorder	Locking Handle	£2.52 £2.10
91	CO2109300063A Available to backorder	Round Pin	£2.52 £2.10
92	CO2109200025A Available to backorder	Pressing Plate	£2.52 £2.10
93	CO2109300026A Available to backorder	Locking Handle	£2.52 £2.10
94	CO21062003870001N Available to backorder	Upper Handle	£26.94 £22.45
95	CO21061003843206D Available to backorder	Upper Adjusting Wheel Gear	£2.52 £2.10
96	CO2109200029B Available to backorder	Flat Washer	£2.52 £2.10
97	CO26800500801 Available to backorder	Nut	£1.26 £1.05
98	COA26800501603 Available to backorder	Nut	£1.20 £1.00
99	CO26800611401 Available to backorder	Screw	£2.52 £2.10
100	CO21061004573201N Available to backorder	Fixing Support Of Bail Arm Outside	£2.52 £2.10
101	CO21061004593201N Available to backorder	Fixing Support Of Bail Arm Inside	£2.52 £2.10
102	CO21061001803201B Available to backorder	Plate Of Self Propelled Cable	£4.42 £3.68
103	CO21061001153206N Available to backorder	Cover Of Baril Arm Support	£2.52 £2.10
104	CO21062001990108A Available to backorder	Flameout Rod	£8.26 £6.88
105	CO21062002080001A Available to backorder	Driving Rod	£8.15 £6.79
106	CO2106600017N Available to backorder	Handle Sheath	£4.60 £3.83
107	COA26800700801 Available to backorder	Flat Washer	£2.62 £2.18
108	CO21061000043201A Available to backorder	Cable Fixing Plate	£2.40 £2.00

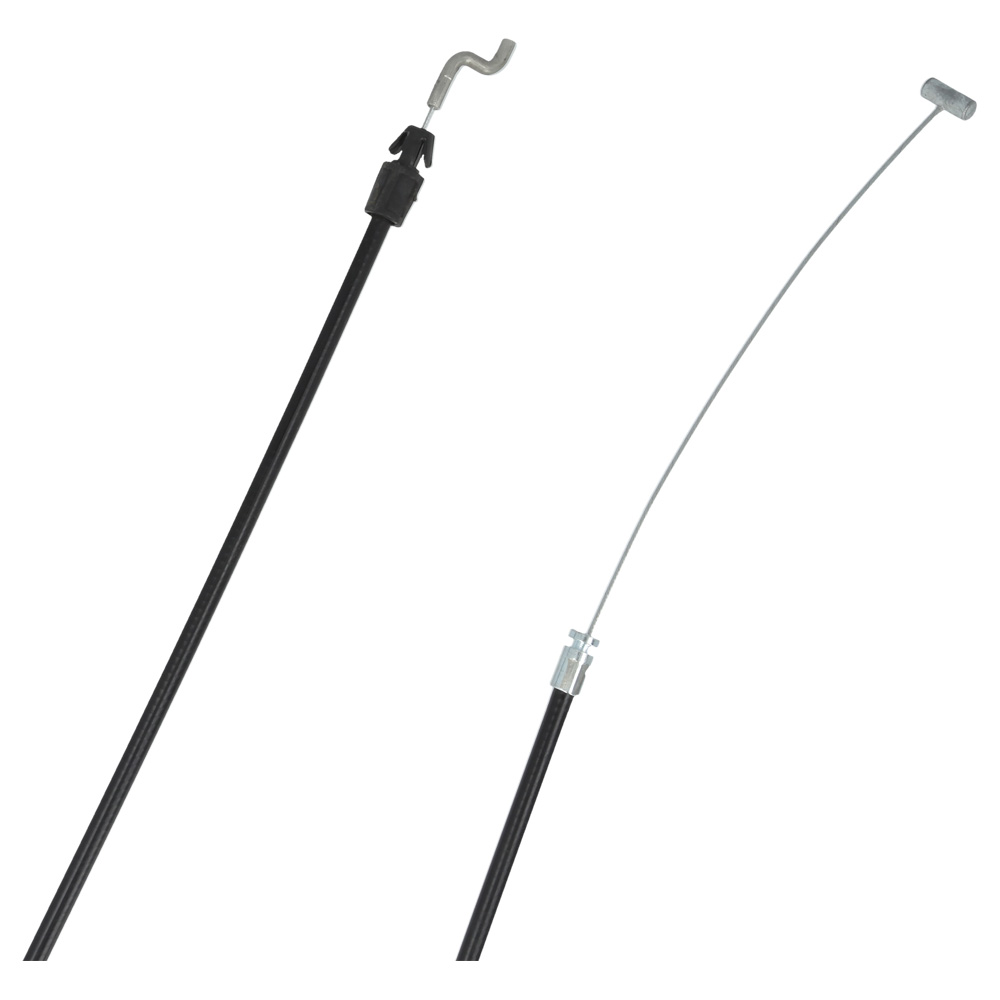

109	CO2109800226A Available to backorder	Driving Cable Assy	£11.98 £9.98
110	CO2106800361A Available to backorder	Flameout Cable Assy	£10.06 £8.38
111	CO2106800281A Available to backorder	Accelerator Cable	£9.58 £7.98
112	CO2106200221B Available to backorder	Accelerator Rod	£2.52 £2.10
113	CO21061001120108N Available to backorder	Adjusting Handle	£2.52 £2.10
114	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
115	CO2103300027A Available to backorder	Special Bolt	£2.52 £2.10
116	CO2103300032A Available to backorder	Washer	£2.52 £2.10
117	CO60400107801 Available to backorder	Engine	£194.40 £162.00

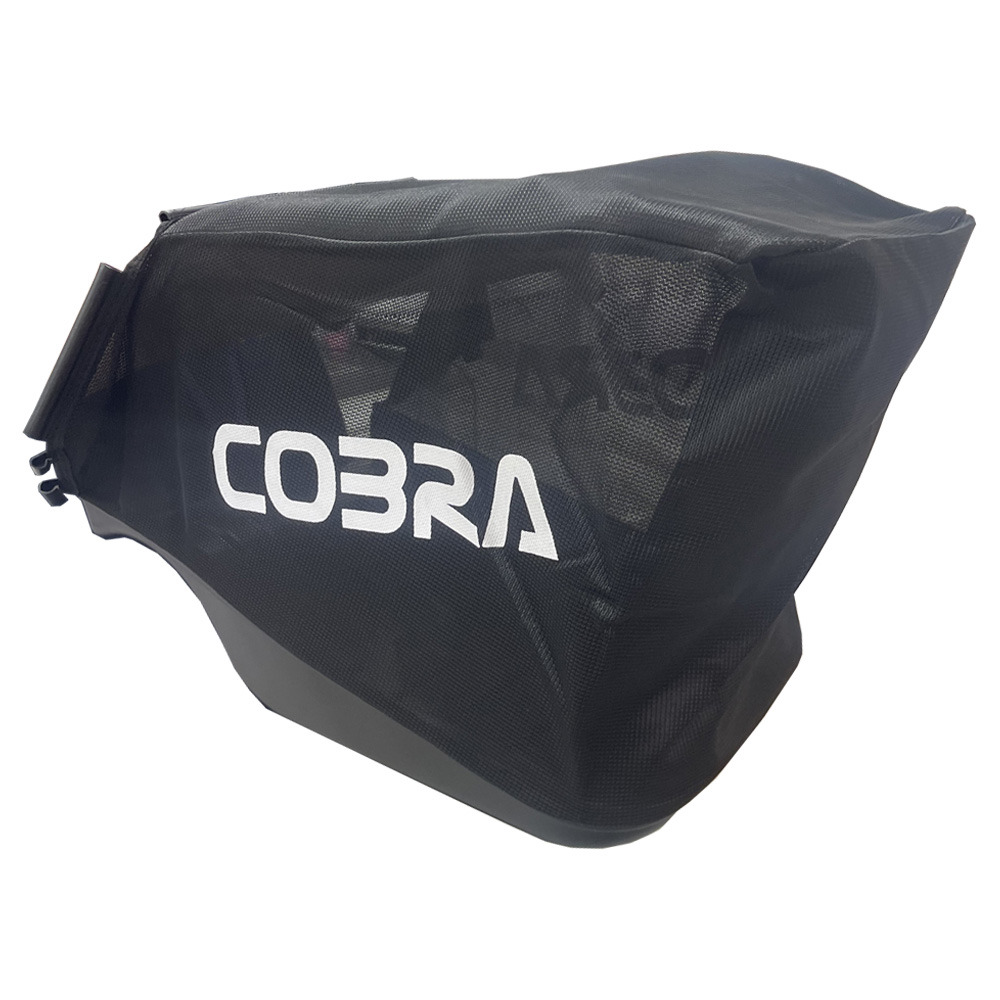

118	CO21077001192006A Available to backorder	Grassbag	£36.00 £30.00

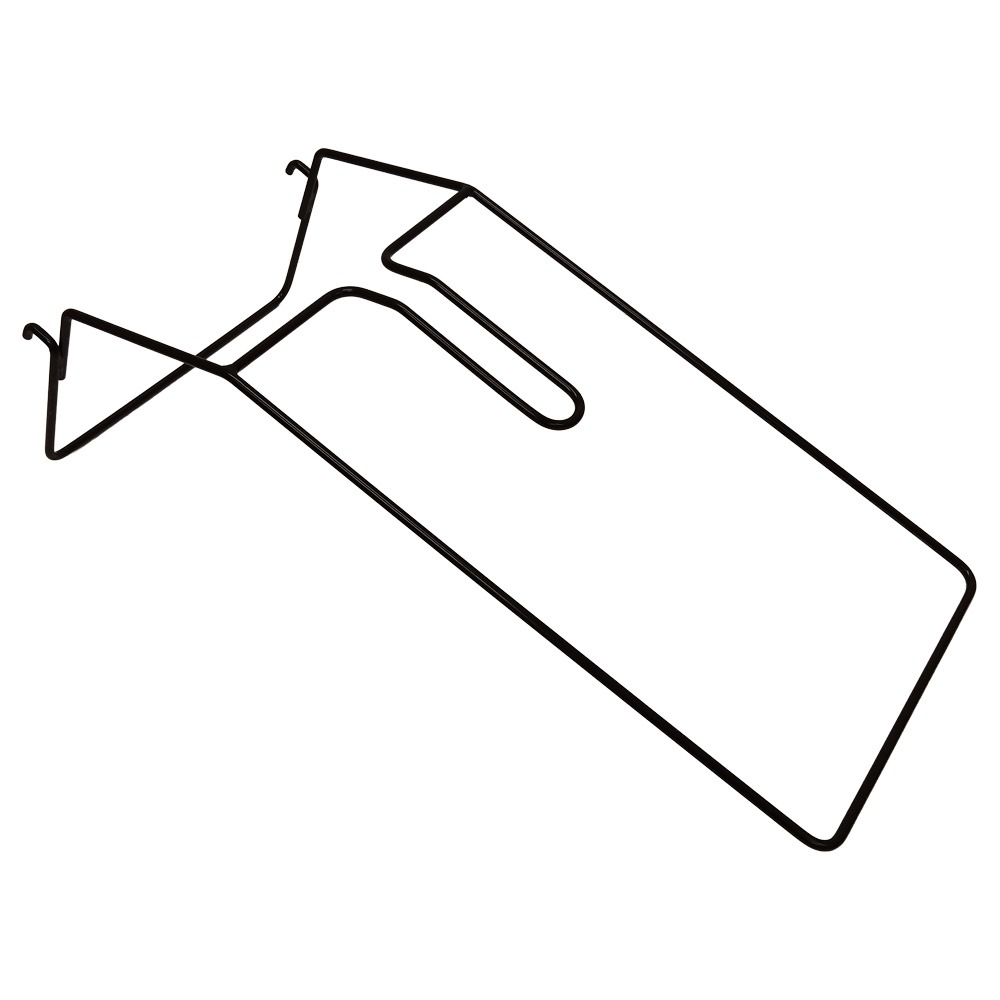

119	CO2107500002A In stock	Grassbag Bracket	£20.04 £16.70
120	CO2100X05065 Available to backorder	Rear Flap Assy	£14.30 £11.92
121	CO26800105602 Available to backorder	Self-Tapping Screw	£2.52 £2.10
122	CO21041002570001N Available to backorder	Rear Cover Of Control Panel	£13.21 £11.01
123	CO21061002010001N Available to backorder	Control Panel	£21.28 £17.73
124	CO3011301004 Available to backorder	Self-Tapping Screw	£1.26 £1.05
125	CO21061001113201N Available to backorder	Washer	£1.26 £1.05
126	CO2106200223A Available to backorder	Throttle Cable Guiding Plate	£2.52 £2.10
127	CO26800604501 Available to backorder	Bolt	£2.52 £2.10
128	CO21061004503201N Available to backorder	Accelerator Level Plate	£2.63 £2.19
129	CO26800700301 Available to backorder	Big Washer	£2.52 £2.10
130	CO26800103602 Available to backorder	Self-Tapping Screw	£2.52 £2.10
131	CO21041001240001A Available to backorder	Pressing Plate	£2.52 £2.10
132	CO21061001780108A Available to backorder	Panel Locking Knob	£2.52 £2.10
133	CO2209800023A Available to backorder	Safety Button Spring	£2.52 £2.10
134	CO21061001770001A Available to backorder	Flap Of Panel	£4.25 £3.54
135	CO2109800056B Available to backorder	Sping Of Flap	£2.52 £2.10
136	CO26800202501 Available to backorder	Screw	£1.26 £1.05
137	CO2109300055A Available to backorder	Special Bolt	£2.52 £2.10
138	COA26800100801 Available to backorder	Self-Tapping Screw	£2.52 £2.10
139	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
140	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
141	CO2106300002A Available to backorder	Cable Hook	£2.52 £2.10
142	CO21061001103201N Available to backorder	Adjusting Level Plate	£2.52 £2.10
143	CO2106200586B Available to backorder	Speed Handle	£3.61 £3.01
144	CO2106400014A Available to backorder	Speed Level Plate	£4.01 £3.34
145	CO2102200026A Available to backorder	Strength Plate Of Speed	£2.52 £2.10

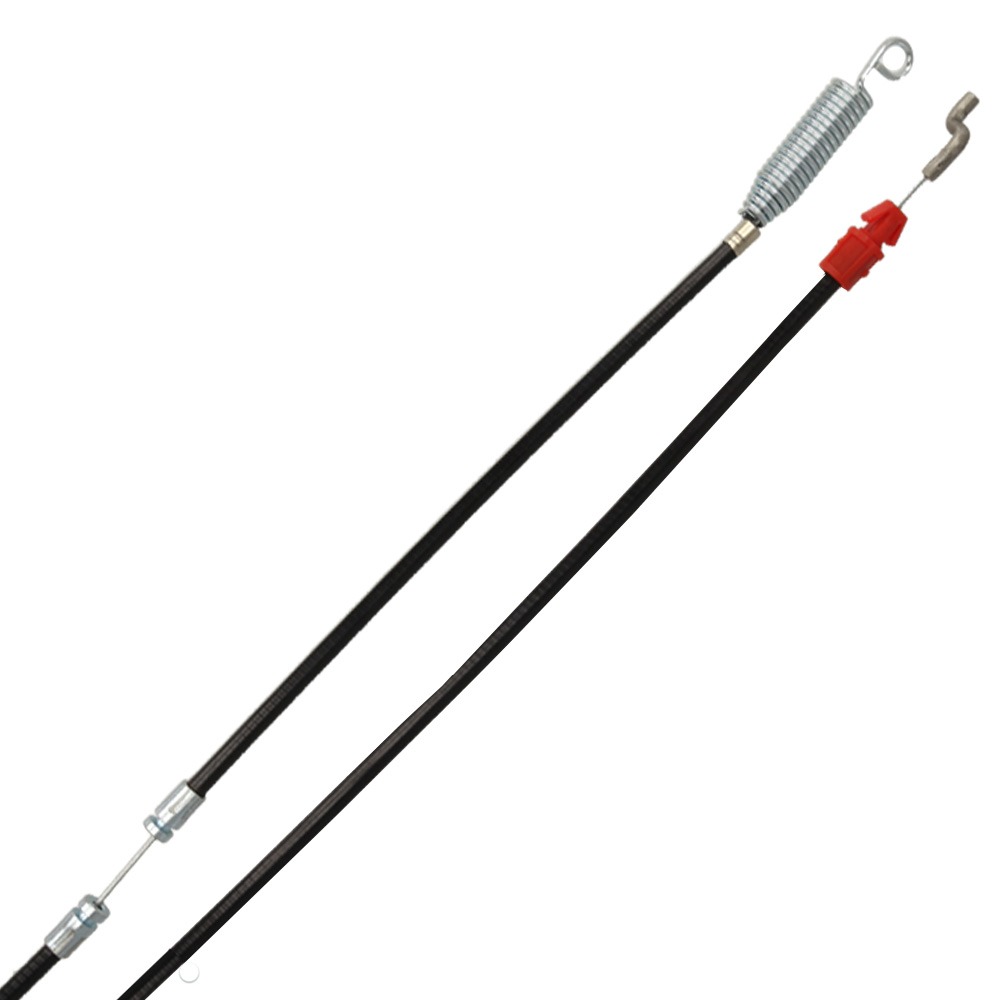

146	CO2109800227A Available to backorder	Speed Cable Assy	£12.00 £10.00
147	CO21061001523201N Available to backorder	Cable Fixing Plate	£2.40 £2.00
148	CO2106800005A Available to backorder	Connection Rod Spring	£5.29 £4.41
149	CO2101100033A Available to backorder	Drivepipe	£2.52 £2.10
