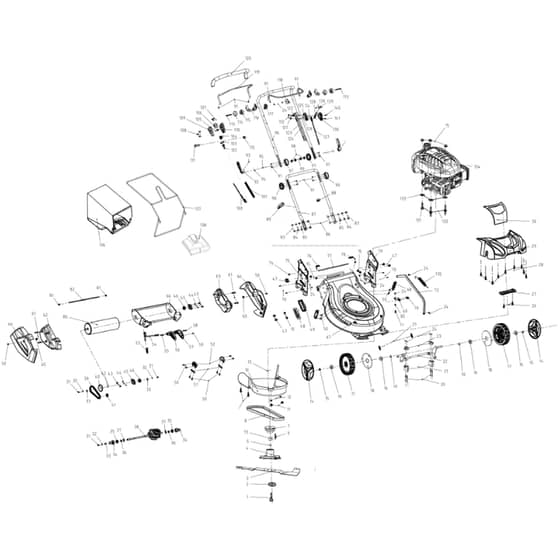

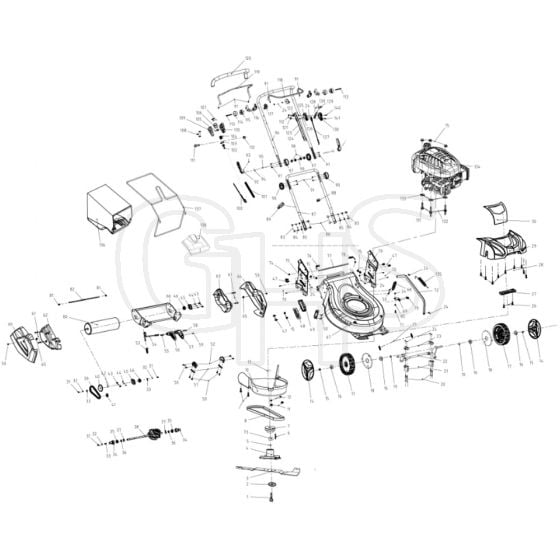

Cobra RM513SPBI Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO2105300001C Available to backorder	Washer	£2.40 £2.00
3	CO2105200274A Available to backorder	Blade	£32.40 £27.00
3	CO21052002622000A In stock	Blade (New Style)	£20.40 £17.00
4	CO2105300037C Available to backorder	Blade Support	£9.36 £7.80
4	CO2105300155A Available to backorder	Blade Support	£9.83 £8.19
5	CO2105400025A Available to backorder	Sheath Of Blade Support	£2.52 £2.10
5	CO2012300191A Available to backorder	Sheath Of Blade Support	£2.52 £2.10
6	CO2103900034A Available to backorder	Flat Key	£1.26 £1.05
6	CO2105300077A Available to backorder	Flat Key	£2.40 £2.00
7	CO2102300124A Available to backorder	Driving Pulley	£26.10 £21.75
8	CO2102600049A Available to backorder	Triangle Belt	£9.58 £7.98
10	CO21041001920001B Available to backorder	Protection Belt	£11.51 £9.59
13	CO2109200058A Available to backorder	Flat Washer	£2.52 £2.10
14	CO21011001480006A Available to backorder	Wheel Cover	£2.96 £2.47
15	COA26800502801 Available to backorder	Nut	£2.52 £2.10
16	CO2101300065A Available to backorder	Bearing	£2.40 £2.00
17	CO21011002593208A Available to backorder	Wheel	£14.30 £11.92
18	CO21011001450001A Available to backorder	Dust-Proof Wheel Cover	£2.40 £2.00
19	COA26800706202 Available to backorder	Wahser	£2.52 £2.10
20	COA26800202701 Available to backorder	Screw	£2.40 £2.00
21	CO21011002030001N Available to backorder	Lower Support Of Wheel Axle	£2.40 £2.00
22	CO2101500079C Available to backorder	Front Wheel Axle Assy	£20.12 £16.77
23	CO21011002020001A Available to backorder	Upper Support Of Wheel Axle	£2.40 £2.00
24	COA26800500501 Available to backorder	Nut	£2.40 £2.00
25	CO2109800053B Available to backorder	Spring Of Front Wheel Axle	£2.40 £2.00
26	COA26800100501 Available to backorder	Self-Tapping Screw	£2.52 £2.10
27	CO21041002020001A Available to backorder	Cover Of Handle	£2.52 £2.10
28	COA26800103701 Available to backorder	Self-Tapping Screw	£2.52 £2.10
29	CO21041002980006A Available to backorder	Head Cover	£21.48 £17.90
30	CO21041002990001A Available to backorder	Flap Cover Of Head	£4.84 £4.03
31	CO26800201002 Available to backorder	Screw	£1.20 £1.00
32	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
33	CO26800706301 Available to backorder	Flat Wahser	£1.20 £1.00
34	CO2101400001A Available to backorder	Bearing Sheath	£4.37 £3.64
35	CO26800402302 Available to backorder	Bearing	£2.70 £2.25
36	CO26800705102 In stock	Flat Washer	£2.40 £2.00
37	CO2269800006A Available to backorder	B-Pin	£2.52 £2.10
38	COH2102900040A In stock	Gearbox	£71.08 £59.23
39	CO2109900032 In stock	Chain	£5.42 £4.52
40	CO2101300005A In stock	Big Chain Wheel	£7.48 £6.23
41	CO2102300008A In stock	Small Chain Wheel	£5.76 £4.80
42	CO2101100033A Available to backorder	Drivepipe	£2.52 £2.10
43	CO26800204201 Available to backorder	Screw	£1.26 £1.05
44	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
45	CO2101300004A Available to backorder	Bearing Catch	£2.52 £2.10
46	CO26800407301 In stock	Bearing	£3.24 £2.70
47	COA26800606401 Available to backorder	Bolt	£2.52 £2.10
48	CO2103200009 Available to backorder	Height Level Plate	£4.37 £3.64
49	CO21041006384017A Available to backorder	Decorative Sheet Of Height Level	£2.80 £2.33
50	CO3011301004 Available to backorder	Self-Tapping Screw	£1.26 £1.05
51	CO2101200010A Available to backorder	Pressing Plate	£2.52 £2.10
52	CO2101100028A Available to backorder	Pressing Support Of Wheel Axle	£2.40 £2.00
53	CO2109800154A Available to backorder	Torsional Spring	£2.52 £2.10
54	CO2103300043A Available to backorder	Height Adjust Handle	£3.72 £3.10
55	CO26800500201 Available to backorder	Nut	£2.52 £2.10
56	CO21061000263005A Available to backorder	Right Cover Of 7-Shape Handle	£2.57 £2.14
57	CO21061000253005A Available to backorder	Left Cover Of 7-Shape Handle	£2.57 £2.14
58	CO26800200301 Available to backorder	Screw	£2.52 £2.10
59	CO26800106202 Available to backorder	Self-Tapping Screw	£2.52 £2.10
60	CO21041006370108A Available to backorder	Decorative Cover Of Right Rear Wheel	£9.94 £8.28
61	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
62	CO21011000310001A Available to backorder	Protection Cover Of Right Rear Wheel	£8.90 £7.42
63	CO21021000040001A Available to backorder	Protection Cover Of Left Rear Wheel	£7.56 £6.30
64	CO21041006360108A Available to backorder	Decorative Cover Of Left Rear Wheel	£9.94 £8.28
65	CO2103100014A Available to backorder	Fixed Brake Shoe	£2.52 £2.10
66	CO2101300160A Available to backorder	Rear Wheel Axle Assy	£50.17 £41.81
68	CO2103100010A Available to backorder	Buckle	£2.52 £2.10
69	CO2109300148A Available to backorder	Fixing Plate	£2.62 £2.18
70	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
71	CO26800618101 Available to backorder	Fixing Bolt	£2.52 £2.10
72	CO2101300080A Available to backorder	Connection Rod	£8.68 £7.23
73	COA26800708101 Available to backorder	Washer	£1.26 £1.05
74	CO3032306001 Available to backorder	Nut	£1.26 £1.05
75	CO21032002230108A Available to backorder	Right Handle Bracket	£14.47 £12.06
76	CO2109800118B Available to backorder	Right Knob Spring	£2.52 £2.10
77	CO2103300038A Available to backorder	Long Rod	£2.52 £2.10
78	CO2109800117B Available to backorder	Left Knob Spring	£2.52 £2.10
79	CO21032002220108A Available to backorder	Left Handle Bracket	£14.47 £12.06
80	CO2101300162A Available to backorder	Roller	£72.60 £60.50
81	CO26800506001 Available to backorder	Nut	£1.26 £1.05
82	CO2106200723A Available to backorder	Long Rod	£2.96 £2.47
83	CO3033302001 Available to backorder	Nut	£1.26 £1.05
84	COA26800800202 Available to backorder	Spring Washer	£2.52 £2.10
85	COA26800700701 Available to backorder	Flat Wahser	£2.40 £2.00
86	CO30913090025000 Available to backorder	Bolt	£2.52 £2.10
87	CO21063001270001A Available to backorder	Lower Handle	£20.35 £16.96
88	CO21061000013201A Available to backorder	Cable Clamp	£2.52 £2.10
89	CO21061002540001A Available to backorder	Cable Clamp	£2.52 £2.10
90	CO21061003883201N Available to backorder	Lower Adjust Wheel Gear	£2.52 £2.10
91	CO2109300058A Available to backorder	Self-Tapping Screw	£1.26 £1.05
92	CO21061006500108A Available to backorder	Locking Handle	£2.52 £2.10
93	CO2109300063A Available to backorder	Round Pin	£2.52 £2.10
94	CO2109200025A Available to backorder	Pressing Plate	£2.52 £2.10
95	CO2109300026A Available to backorder	Locking Handle	£2.52 £2.10
96	CO21062008060001B Available to backorder	Upper Handle	£25.60 £21.33
97	CO21061003843206D Available to backorder	Upper Adjusting Wheel Gear	£2.52 £2.10
98	CO2109200029B Available to backorder	Flat Washer	£2.52 £2.10
99	CO26800500801 Available to backorder	Nut Also No. 11	£1.26 £1.05

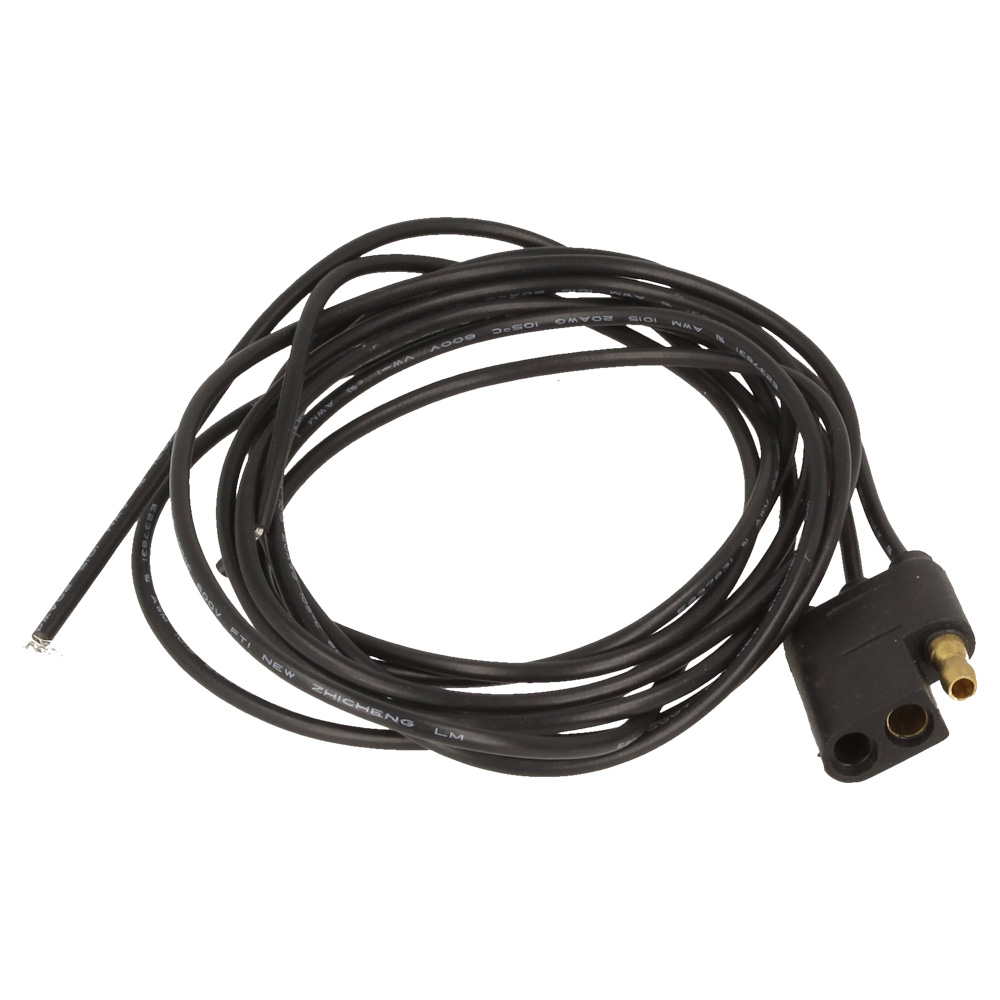

100	CO2011100238A Available to backorder	Plug Connection Wire	£3.78 £3.15
101	CO2109100027N Available to backorder	Bellows	£2.74 £2.28
102	CO27600105301 In stock	Button Switch	£2.40 £2.00
103	CO25365100101 Available to backorder	Switch Pressing Plate	£2.40 £2.00
104	CO26801133001 Available to backorder	Spring	£2.40 £2.00
105	CO25365000101 Available to backorder	Spring Cover	£2.40 £2.00
106	CO25364900101 Available to backorder	Button Cover	£2.40 £2.00
107	CO25364800501 In stock	Switch Button	£4.00 £3.33
109	CO25364700101 Available to backorder	Right Cover Of Switch Box	£2.40 £2.00
110	CO25364600101 Available to backorder	Left Cover Of Switch Box	£2.40 £2.00
111	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
112	CO26800501603 Available to backorder	Nut	£1.20 £1.00
113	CO26800611401 Available to backorder	Screw	£2.52 £2.10
114	CO21061004573201N Available to backorder	Fixing Support Of Bail Arm Outside	£2.52 £2.10
115	CO21061004593201N Available to backorder	Fixing Support Of Bail Arm Inside	£2.52 £2.10
116	CO21061001803201B Available to backorder	Plate Of Self Propelled Cable	£4.42 £3.68
117	CO21061001153206N Available to backorder	Cover Of Baril Arm Support	£2.52 £2.10
118	CO21062001990002A Available to backorder	Flameout Rod	£5.68 £4.73
119	CO21062002080001A Available to backorder	Driving Rod	£8.15 £6.79
120	CO2106600017N Available to backorder	Handle Sheath	£4.60 £3.83
121	COA26800700801 Available to backorder	Flat Washer	£2.62 £2.18
122	CO21061000043201A Available to backorder	Cable Fixing Plate	£2.40 £2.00
123	CO2109800226A Available to backorder	Driving Cable Assy	£11.98 £9.98
124	CO2106800298A Available to backorder	Flameout Cable Assy	£10.06 £8.38
125	CO21041002470001A Available to backorder	Upper Cover Of Gearbox	£2.52 £2.10
126	COA26800100302 Available to backorder	Self-Tapping Screw	£2.52 £2.10
127	CO2109800225A Available to backorder	Gearbox Cable Assy	£12.58 £10.48
128	CO2106200565A Available to backorder	Speed Handle	£2.66 £2.22
129	CO21061001120108N Available to backorder	Adjusting Handle	£2.52 £2.10
130	CO21041002480001A Available to backorder	Lower Cover Of Gearbox	£2.63 £2.19
131	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
132	CO2109300060A Available to backorder	Special Bolt	£2.52 £2.10
133	CO2103300032A Available to backorder	Washer	£2.52 £2.10
135	CO2106800005A Available to backorder	Spring Of Connection Rod	£5.29 £4.41
136	CO21077001192006A Available to backorder	Grassbag	£36.00 £30.00
137	CO2107500002A In stock	Grassbag Bracket	£20.04 £16.70
138	CO2100X05065 Available to backorder	Rear Flap Assy	£14.30 £11.92
139	CO26800202501 Available to backorder	Screw	£1.26 £1.05
140	CO3091307013 Available to backorder	Bolt	£2.52 £2.10
141	COA26800608201 Available to backorder	Bolt	£2.52 £2.10
