Cobra RM48SPK - TN1951SXRK Wheels & Rear Roller Diagram

Description

Cobra RM48SPK Rotary Mower Parts Diagram

	Part No.	Details
1	DA36099-138 Available to backorder	Roller	£135.24 £112.70
2	DA36099-139 Available to backorder	Roller	£129.24 £107.70
3	DA61024-118 In stock	Spacer	£1.37 £1.14
4	DA664V0016 In stock	Wave Spring Washer	£0.50 £0.42
5	DA91020-131 Available to backorder	Key	£1.67 £1.39
6	DA68013-265 Available to backorder	Spring	£10.39 £8.66
7	CO36065-404 Available to backorder	Cover	£21.80 £18.17
8	CO36065-405 Available to backorder	Cover	£21.80 £18.17
9	DA475L0516 Available to backorder	Tapping Screw	£0.48 £0.40
19	DA31057-282 Available to backorder	Hexagon Bolt	£1.32 £1.10
21	DA11113-294 Available to backorder	Stay	£20.89 £17.41
22	DA11113-295 Available to backorder	Stay	£21.06 £17.55
23	DA342L0612 Available to backorder	Flange Tapping Bolt	£1.43 £1.19
24	DA31057-200 Available to backorder	Hexagon Bolt	£6.37 £5.31
26	CO11142-110 Available to backorder	Adjuster	£50.06 £41.72
30	DA11142-121 Available to backorder	Adjuster	£61.56 £51.30
38	DA71041-103 Available to backorder	Wheel Assy	£42.49 £35.41

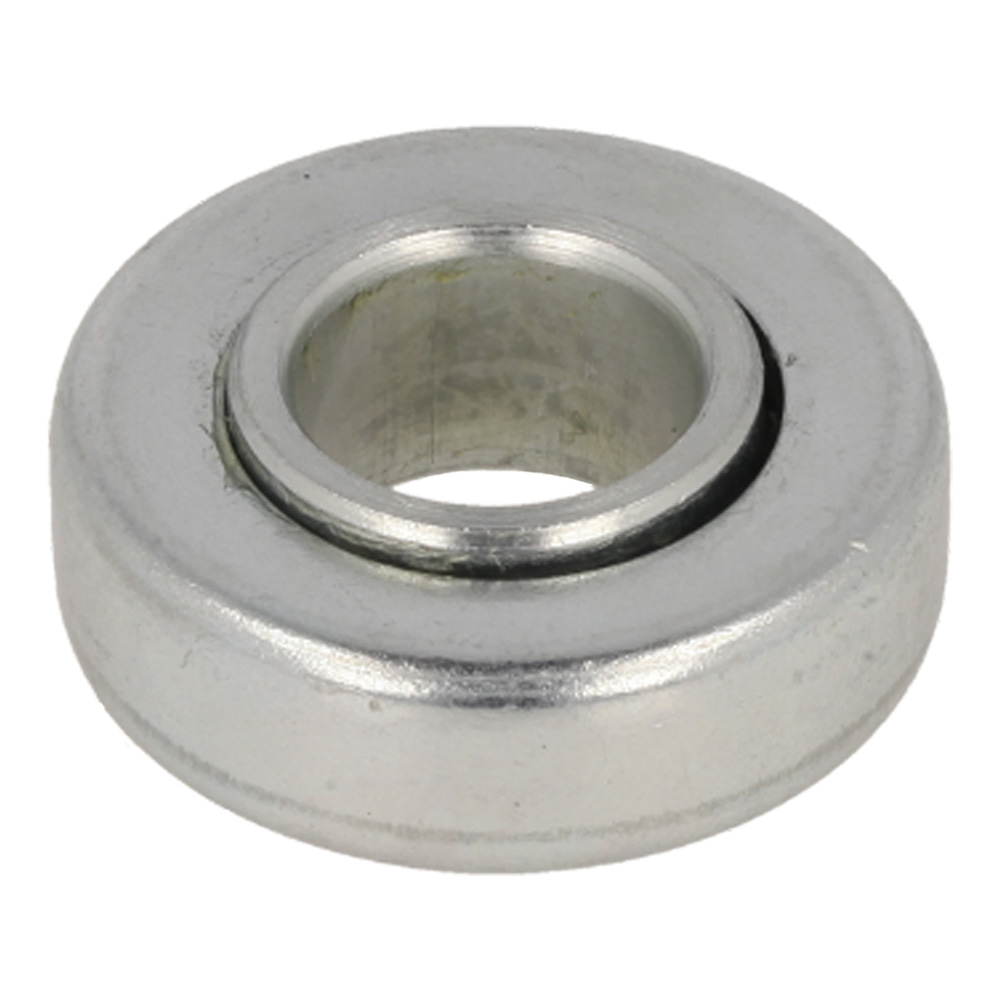

41	DA932L0696 Available to backorder	Bearing	£3.56 £2.97
42	CO36070-110 Available to backorder	Cap	£3.52 £2.93
43	DA664V0626 Available to backorder	Wave Spring Washer	£0.56 £0.47
44	DA31057-181 In stock	Hexagon Bolt	£1.32 £1.10
45	DA68036-101 Available to backorder	Washer	£1.31 £1.09
51	CO11142-123 Available to backorder	Adjuster	£27.34 £22.78
52	CO11142-124 Available to backorder	Adjuster	£27.34 £22.78
53	DA11150-101-09 Available to backorder	Adjust Lever	£10.57 £8.81
54	DA36061-121 Available to backorder	Knob	£3.56 £2.97
55	DA31057-260 Available to backorder	Hexagon Bolt	£4.16 £3.47
56	DA569L0800 Available to backorder	Flange Nylon Nut	£1.14 £0.95
