Cobra RM48SPK - TN1951SXRK Handles Diagram

Name: Cobra RM48SPK - TN1951SXRK Handles Diagram
SKU: rm48spk_tn1951sxrk_handles-group
Price: 0.4 GBP
Availability: InStock

Part No. rm48spk_tn1951sxrk_handles-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM48SPK - TN1951SXRK Handles Diagram

Description

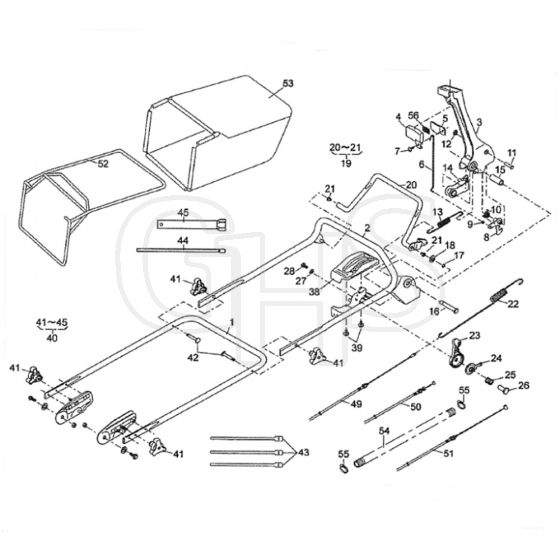

Cobra RM48SPK Rotary Mower Parts Diagram

	Part No.	Details
1	CO51027-271-103 Available to backorder	Handle	£50.83 £42.36
2	CO51027-267-103 Available to backorder	Handle	£143.88 £119.90
3	DA11095-172 Available to backorder	Lever	£35.59 £29.66
4	DA36110-102 Available to backorder	Button	£4.44 £3.70
5	DA11049-109 In stock	Slide Plate	£4.76 £3.97
6	DA64014-336 Available to backorder	Shaft	£5.14 £4.28
7	DA376L0612 Available to backorder	Truss Screw	£0.58 £0.48
8	DA71203-135 Available to backorder	Arm Cp	£9.46 £7.88
9	DA76007-183 In stock	Bush	£1.75 £1.46
10	DA68013-371 In stock	Spring	£2.59 £2.16
11	DA31056-127 Available to backorder	Gib-Headed Pin	£0.79 £0.66
12	DA576V0600 Available to backorder	Push Nut	£0.79 £0.66
13	CO68013-392 Available to backorder	Spring	£6.89 £5.74
14	DA11109-111 Available to backorder	Link	£18.91 £15.76
15	DA61023-190 Available to backorder	Sleeve	£3.66 £3.05
16	DA64014-337 Available to backorder	Shaft	£2.26 £1.88
17	DA812V0800 Available to backorder	C-Snap Ring	£0.52 £0.43
19	DA71161-114-09 In stock	Lever Assy (Inc Item 20 & 21)	£36.56 £30.47
21	DA76007-131 Available to backorder	Bush	£0.91 £0.76
22	CO68013-382 In stock	Spring	£25.43 £21.19
23	DA91010-194 Available to backorder	Throttle Lever	£9.17 £7.64
24	DA61003-113 Available to backorder	Thrust Plate	£2.40 £2.00
25	CO68013-356 Available to backorder	Spring	£2.28 £1.90
26	DA31058-168 Available to backorder	Hexagon Nut	£3.97 £3.31
27	DA68036-125 Available to backorder	Washer	£0.71 £0.59
38	DA71900-797 Available to backorder	Cover Assy	£25.18 £20.98
41	CO36061-118 Available to backorder	Knob	£7.12 £5.93
42	DA31057-134 Available to backorder	Hexagon Bolt	£2.89 £2.41
43	DA68028-118 Available to backorder	Wire Band	£3.48 £2.90
49	DA91003-165 In stock	Control Cable	£35.00 £29.17
50	DA91001-337 Available to backorder	Throttle Wire	£39.02 £32.52
51	DA91003-177 Available to backorder	Control Cable	£21.11 £17.59
52	DA11062-195-09 Available to backorder	Frame Cp	£87.24 £72.70
53	DA36098-171 Available to backorder	Grass Bag Cp	£129.96 £108.30
54	DA41003-201 Available to backorder	Tube	£9.20 £7.67
55	DA68028-119 Available to backorder	Wire Band	£0.48 £0.40
56	DA36080-156 Available to backorder	Rubber Sheet	£1.32 £1.10
