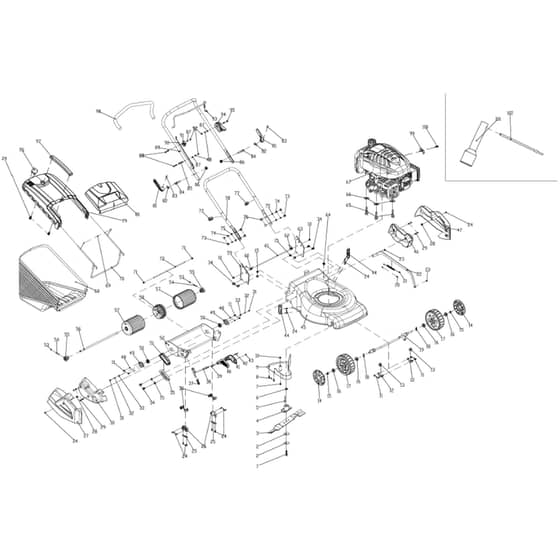

Cobra RM46C - 18" Roller Push Revised June 2020 Main Diagram

Ref. Img. Part No. Details
  1 Blade Locking Bolt CO26800606201
Blade Locking Bolt
Out of stock
£2.40 £2.00

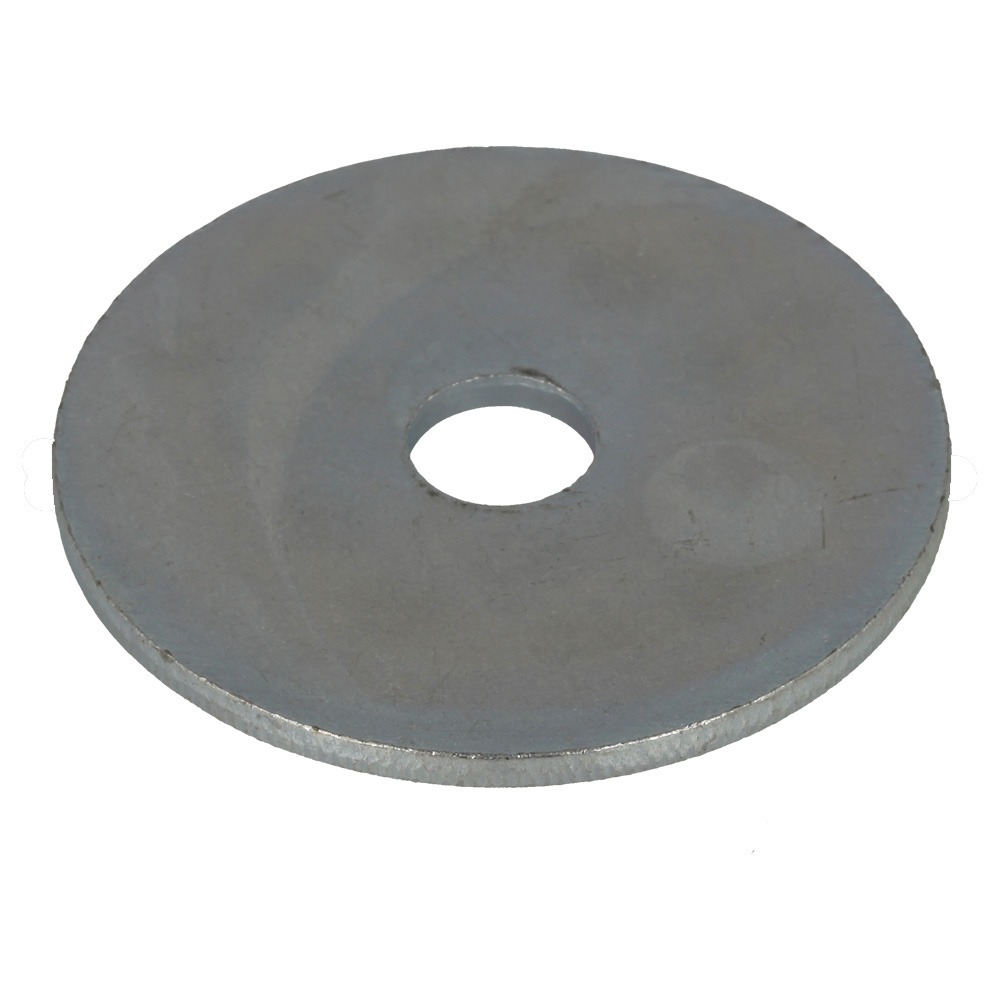

  2 Pressing Plate Of Blade CO2105200245A
Pressing Plate Of Blade
Out of stock
£2.52 £2.10

  2 Dishing Washer CO26300107302
Dishing Washer
Out of stock
£2.52 £2.10

  3 Blade CO21052003402000A
Blade
Out of stock
£18.88 £15.73

  3 Blade CO26300239301
Blade
In stock
£18.88 £15.73

  4 Blade Support CO26300152502
Blade Support
Out of stock
£7.54 £6.28

  4 Blade Support CO2105200251A
Blade Support
Out of stock
£7.54 £6.28

  5 Flat Pin CO26809000201
Flat Pin
Out of stock
£2.52 £2.10

  6 Blade Support Bush CO26900209301
Blade Support Bush
Out of stock
£2.52 £2.10

  6 Bushing Of Blade Support CO2105400024A
Bushing Of Blade Support
Out of stock
£2.52 £2.10

  7 Tooth Screw CO26800202001
Tooth Screw
Out of stock
£1.26 £1.05

  8 Self-Driving Screw CO26800103701
Self-Driving Screw
In stock
£1.26 £1.05

  9 Belt Protecting Cover CO25205200101
Belt Protecting Cover
Out of stock
£6.83 £5.69

  10 Locking Nut CO26800502401
Locking Nut
Out of stock
£1.26 £1.05

  11 Tooth Screw CO26800201901
Tooth Screw
Out of stock
£1.26 £1.05

  12 Pressing Plate For Axle Fixed CO26300134202
Pressing Plate For Axle Fixed
Out of stock
£2.52 £2.10

  13 Front Wheel Axis Fixing Ring CO25202600101
Front Wheel Axis Fixing Ring
Out of stock
£2.52 £2.10

  14 Wheel Cover-1 CO23600105002
Wheel Cover-1
Out of stock
£2.52 £2.10

  15 Hexagon Flange Locking Bolt CO26800502801
Hexagon Flange Locking Bolt
Out of stock
£1.26 £1.05

  16 Bearing CO26800401601
Bearing
In stock
£4.20 £3.50

  17 Wheel Assy CO25400200105
Wheel Assy
In stock
£11.95 £9.96

  18 Wave Washer CO26800706202
Wave Washer
Out of stock
£2.52 £2.10

  19 Front Wheel Axis Assy CO23600402601
Front Wheel Axis Assy
In stock
£16.99 £14.16

  20 Heat Shrink Tubing CO29000300101
Heat Shrink Tubing
Out of stock
£2.52 £2.10

  21 Connecting Rod Tension Spring CO26801124501
Connecting Rod Tension Spring
Out of stock
£3.89 £3.24

  22 Connecting Rod CO23600402901
Connecting Rod
Out of stock
£5.76 £4.80

  23 Locking Nut CO26800500501
Locking Nut
Out of stock
£2.52 £2.10

  24 Self-Driving Screw CO26800104601
Self-Driving Screw
Out of stock
£1.26 £1.05

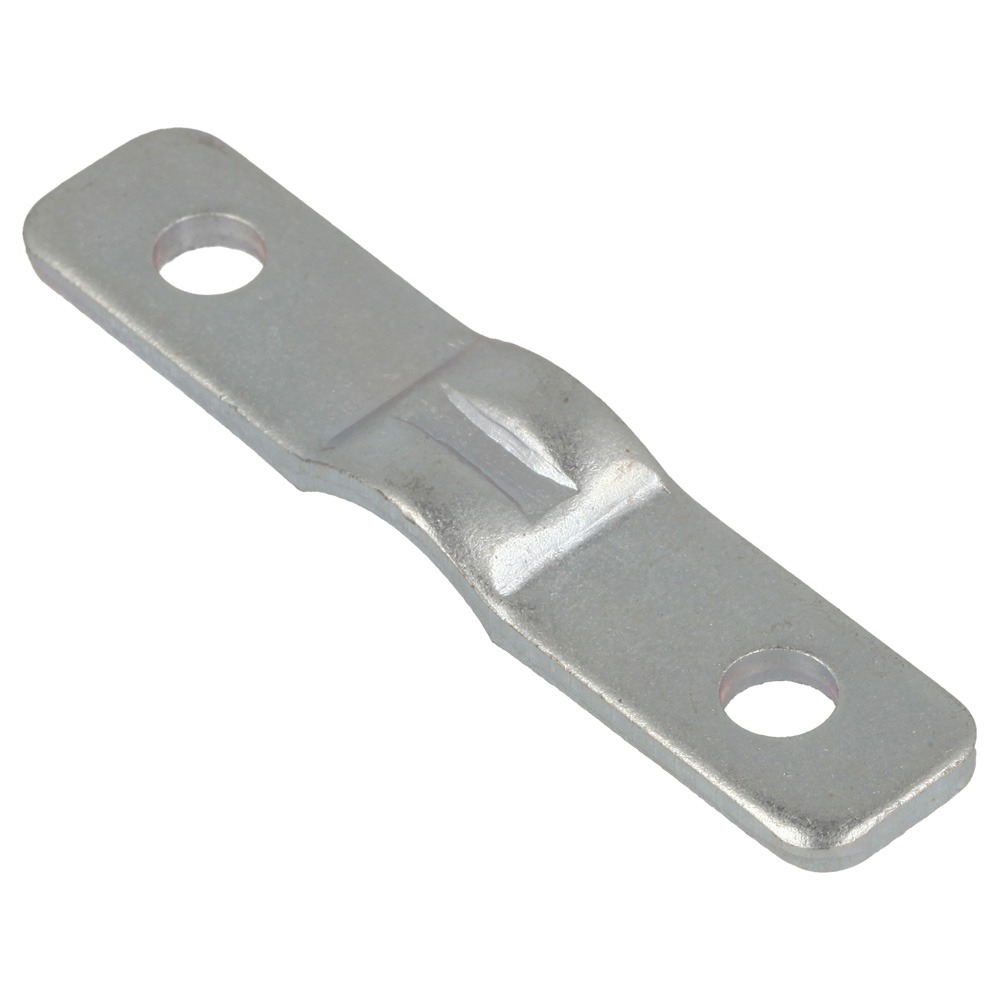

  25 Pressing Board CO26300282801
Pressing Board
Out of stock
£2.52 £2.10

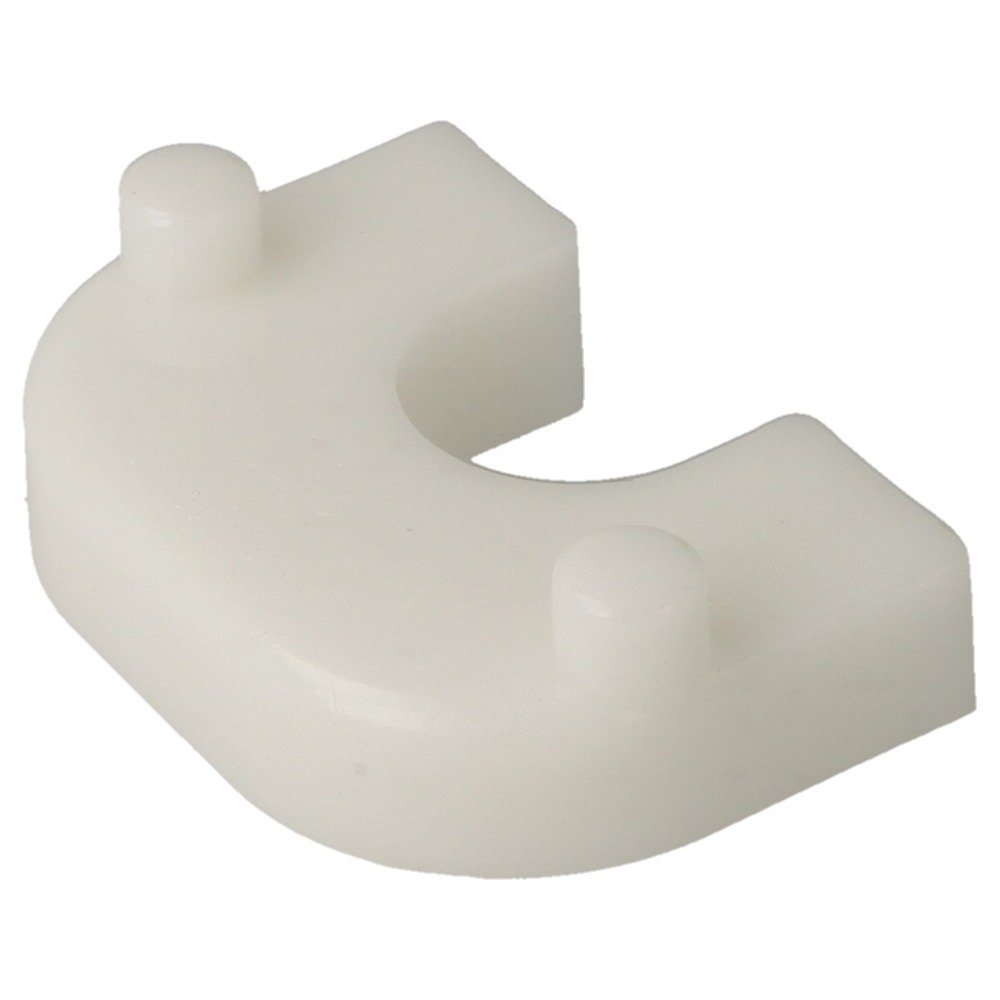

  26 Axle Pressure CO25320300101
Axle Pressure
Out of stock
£2.52 £2.10

  27 Left Rear Wheel Decorative Panel CO25319600201
Left Rear Wheel Decorative Panel
Out of stock
£6.64 £5.53

  28 Fixed Block CO25320500101
Fixed Block
Out of stock
£2.52 £2.10

  29 Bolt CO26800612201
Bolt
Out of stock
£2.52 £2.10

  30 Right Rear Wheel Protecting Cover CO25319800101
Right Rear Wheel Protecting Cover
Out of stock
£5.44 £4.53

  31 Tooth Screw CO26800201002
Tooth Screw
Out of stock
£1.26 £1.05

  32 Spring Washer CO26800800402
Spring Washer
Out of stock
£2.52 £2.10

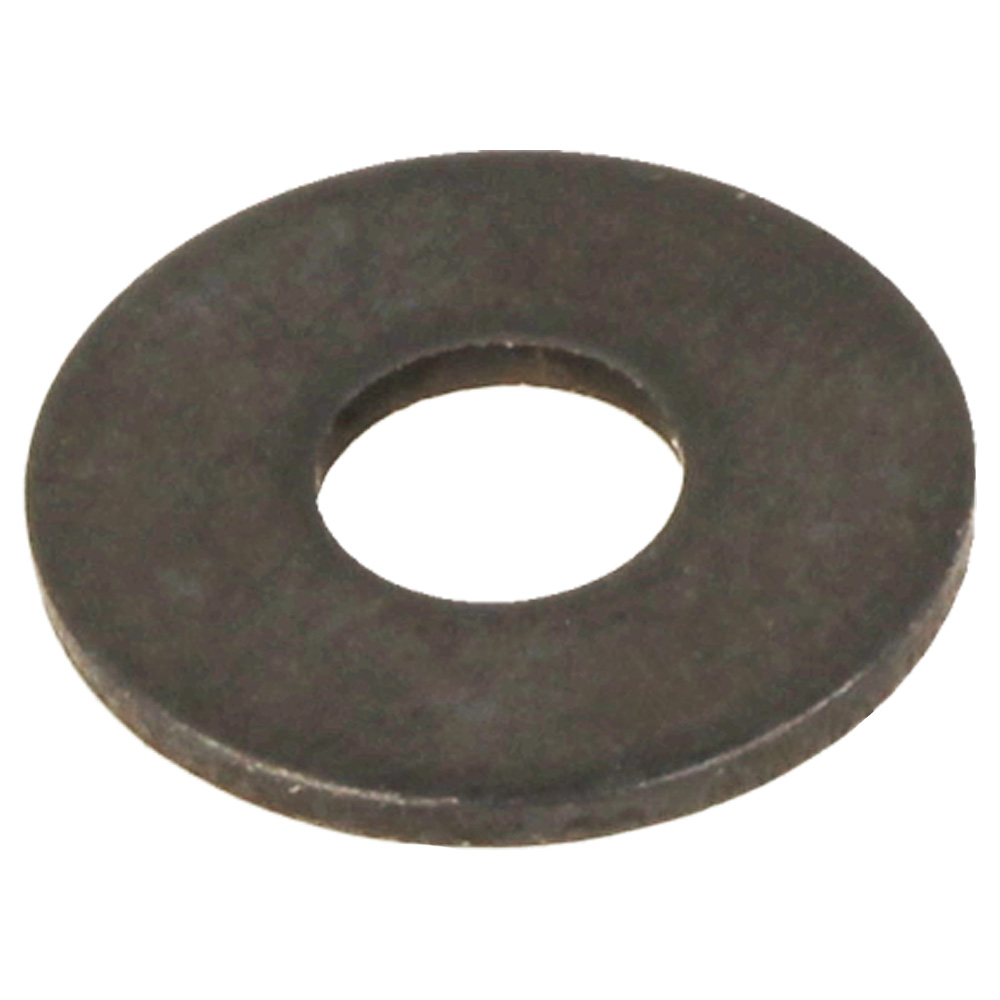

  33 Flat Washer CO26800706301
Flat Washer
Out of stock
£1.26 £1.05

  34 Bolt CO26800606401
Bolt
Out of stock
£2.52 £2.10

  35 Gearing Board CO23600403101
Gearing Board
Out of stock
£3.11 £2.59

  36 Hand-Push Rear Wheel Shaft Sleeve CO25320700101
Hand-Push Rear Wheel Shaft Sleeve
Out of stock
£2.52 £2.10

  37 Torsional Spring CO26801124401
Torsional Spring
Out of stock
£2.52 £2.10

  38 Height Adjustment Handle CO23600403001
Height Adjustment Handle
Out of stock
£5.26 £4.38

  39 Nut CO26800500201
Nut
Out of stock
£2.52 £2.10

  40 7 Shape Handle_Left Shell CO25400107503
7 Shape Handle_Left Shell
Out of stock
£2.52 £2.10

  41 7 Shape Handle_Right Shell CO25400107603
7 Shape Handle_Right Shell
Out of stock
£2.52 £2.10

  42 Tooth Screw CO26800200301
Tooth Screw
Out of stock
£2.52 £2.10

  43 Self-Driving Screw CO26800106202
Self-Driving Screw
Out of stock
£2.52 £2.10

  44 Clip CO25320600101
Clip
Out of stock
£2.52 £2.10

  46 Left Rear Wheel Protecting Cover CO25319700101
Left Rear Wheel Protecting Cover
Out of stock
£4.81 £4.01

  47 Left Rear Wheel Decorative Panel CO25319500201
Left Rear Wheel Decorative Panel
Out of stock
£6.64 £5.53

  48 Spring Washer CO26800800303
Spring Washer
Out of stock
£2.52 £2.10

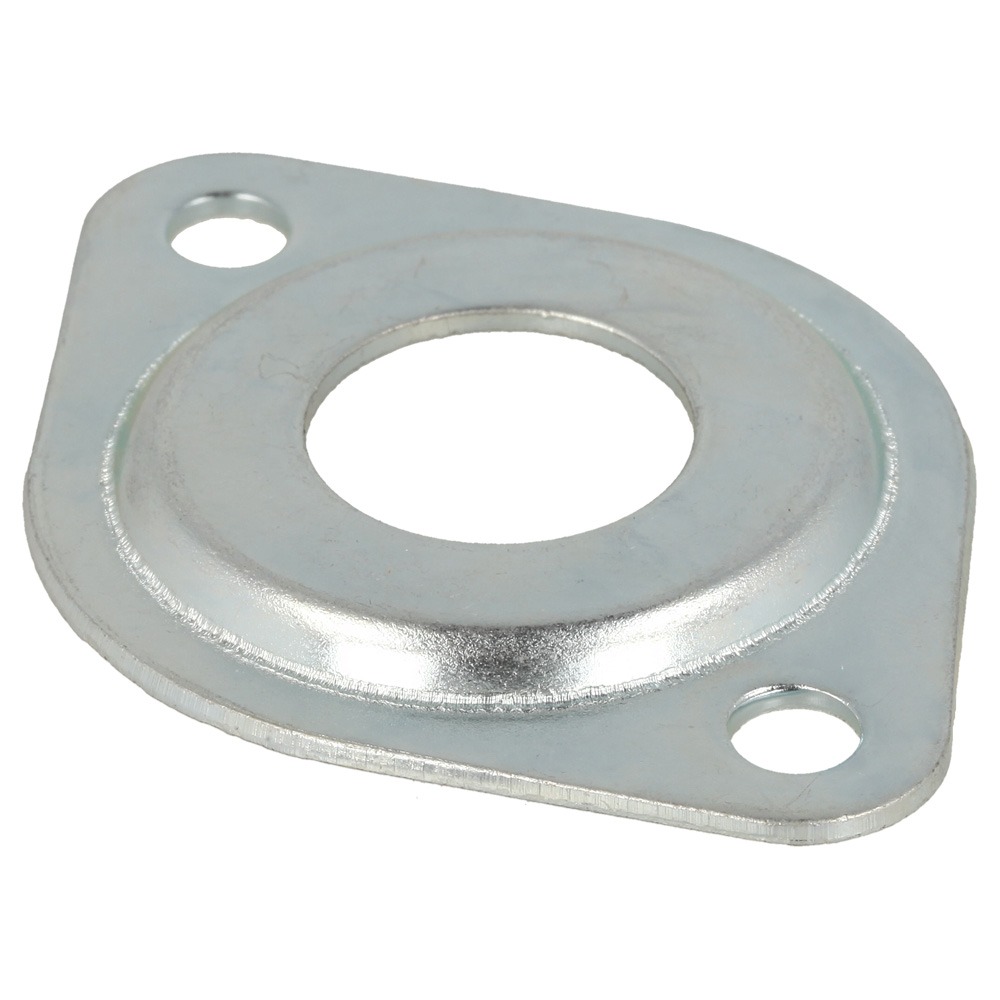

  49 Bearing Catch CO26300283801
Bearing Catch
Out of stock
£2.52 £2.10

  50 Bearing CO26800407301
Bearing
Out of stock
£3.41 £2.84

  51 Gear Decorative Board CO23100109101
Gear Decorative Board
Out of stock
£2.52 £2.10

  52 Rear Wheel Axis Assy CO23600402801
Rear Wheel Axis Assy
Out of stock
£39.62 £33.02

  53 Locking Nut CO26800501101
Locking Nut
Out of stock
£1.26 £1.05

  54 Screw CO26800303601
Screw
Out of stock
£1.26 £1.05

  55 Connecting Knob CO25320200101
Connecting Knob
Out of stock
£2.52 £2.10

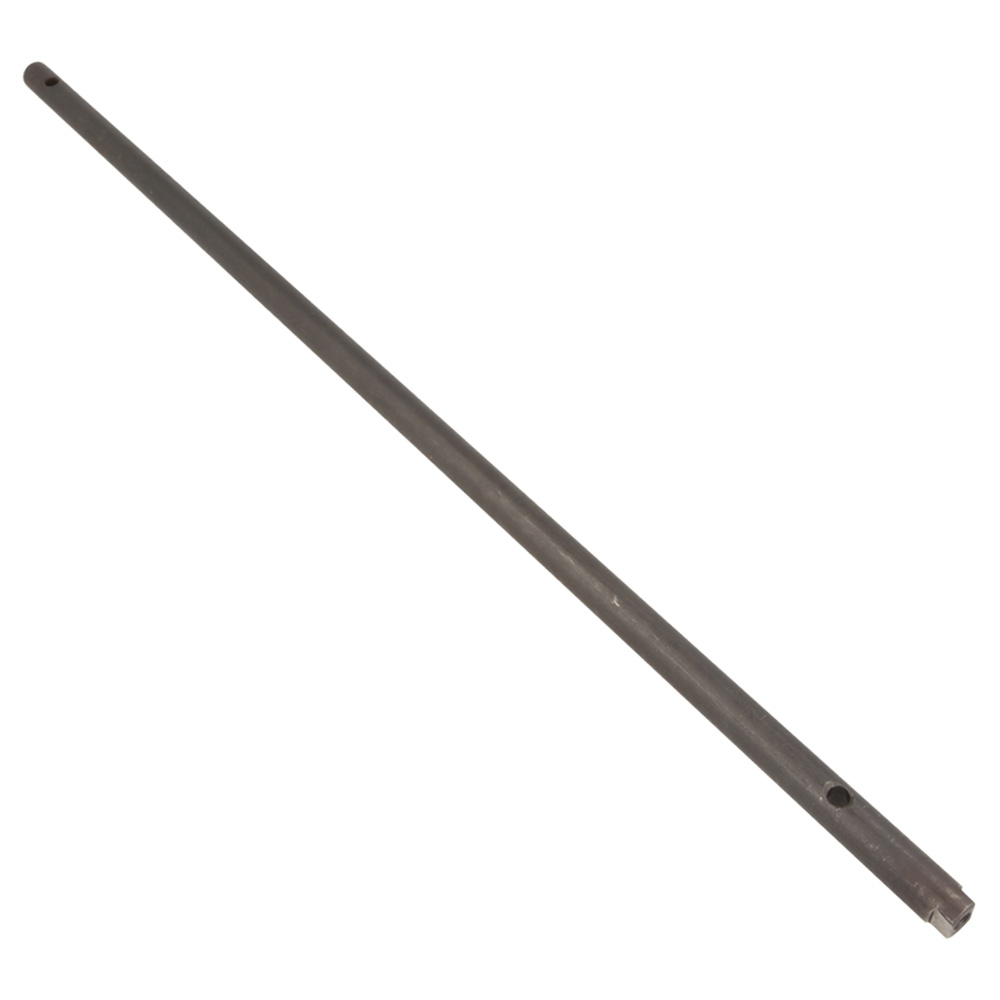

  56 Connecting Rod CO26300282901
Connecting Rod
Out of stock
£10.30 £8.58

  57 Idler Wheel CO25320000101
Idler Wheel
Out of stock
£12.56 £10.47

  58 Connecting Wheel CO25320100101
Connecting Wheel
Out of stock
£3.89 £3.24

  59 Right Handle Bracket CO23601016701
Right Handle Bracket
Out of stock
£5.10 £4.25

  60 Spring Of Right Knob CO26801112701
Spring Of Right Knob
Out of stock
£2.52 £2.10

  61 Long Rod CO26300165601
Long Rod
Out of stock
£2.52 £2.10

  62 Spring Of Left Knob CO26801112601
Spring Of Left Knob
Out of stock
£2.52 £2.10

  63 Left Handle Blacket CO23601016801
Left Handle Blacket
Out of stock
£5.10 £4.25

  64 Cord Protceting Sheath CO25217800104
Cord Protceting Sheath
Out of stock
£2.52 £2.10

  65 Hexagon Locking Bolt CO26800601701
Hexagon Locking Bolt
Out of stock
£2.52 £2.10

  66 Square Washer CO26300210602
Square Washer
Out of stock
£2.52 £2.10

  67 Engine Assy CO60400101304
Engine Assy
Out of stock
£182.88 £152.40

  68 Grass Catcher CO25100165502
Grass Catcher
In stock
£31.92 £26.60

  69 Self-Driving Screw CO26800103202
Self-Driving Screw
Out of stock
£1.26 £1.05

  70 Grass Catcher Bracket CO26300283002
Grass Catcher Bracket
Out of stock
£17.40 £14.50

  71 Nut CO26800506001
Nut
Out of stock
£1.26 £1.05

  72 Long Rod CO26300289601
Long Rod
Out of stock
£2.52 £2.10

  73 Lid Nut CO26800501502
Lid Nut
Out of stock
£1.26 £1.05

  74 Spring Washer CO26800800202
Spring Washer
Out of stock
£2.52 £2.10

  75 Flate Washer CO26800700701
Flate Washer
Out of stock
£2.52 £2.10

  76 Bolt CO26800601903
Bolt
Out of stock
£2.52 £2.10

  77 Wire Clamp CO25261100101
Wire Clamp
Out of stock
£2.52 £2.10

  78 Lower Handle Pole CO23600173601
Lower Handle Pole
Out of stock
£13.98 £11.65

  79 Grass Bracket Cover CO25275300101
Grass Bracket Cover
Out of stock
£19.32 £16.10

  80 Rear Cover Assy CO23000487501
Rear Cover Assy
Out of stock
£9.91 £8.26

  81 Locking Handle CO25236401501
Locking Handle
Out of stock
£2.52 £2.10

  82 Pressing Plate CO26300142002
Pressing Plate
Out of stock
£2.52 £2.10

  83 Column Pin CO26809004801
Column Pin
Out of stock
£2.52 £2.10

  84 Locking Handle Bolt CO26300124501
Locking Handle Bolt
Out of stock
£2.52 £2.10

  85 Rope Guide CO26300168401
Rope Guide
Out of stock
£2.52 £2.10

  86 Locking Nut CO26800500801
Locking Nut
Out of stock
£1.26 £1.05

  87 Flate Washer CO26800700801
Flate Washer
Out of stock
£2.52 £2.10

  88 Bolt CO26800607701
Bolt
Out of stock
£2.52 £2.10

  89 Upper Handle Pole CO23600163201
Upper Handle Pole
Out of stock
£24.30 £20.25

  90 Flameout Cord Assy CO29100117401
Flameout Cord Assy
Out of stock
£10.06 £8.38

  91 Cord Fixing Board CO25233600101
Cord Fixing Board
Out of stock
£2.52 £2.10

  92 Lid Nut CO26800501602
Lid Nut
Out of stock
£2.52 £2.10

  93 Flameout Pulling Pole CO23601016901
Flameout Pulling Pole
Out of stock
£5.52 £4.60

  94 Choke Handle Assy CO29100119602
Choke Handle Assy
Out of stock
£11.32 £9.43

  95 Bolt CO26800608201
Bolt
Out of stock
£2.52 £2.10

  96 Wind Window Board CO25275600501
Wind Window Board
Out of stock
£2.52 £2.10

  97 Grass Bracket Handle CO25275500201
Grass Bracket Handle
Out of stock
£2.52 £2.10

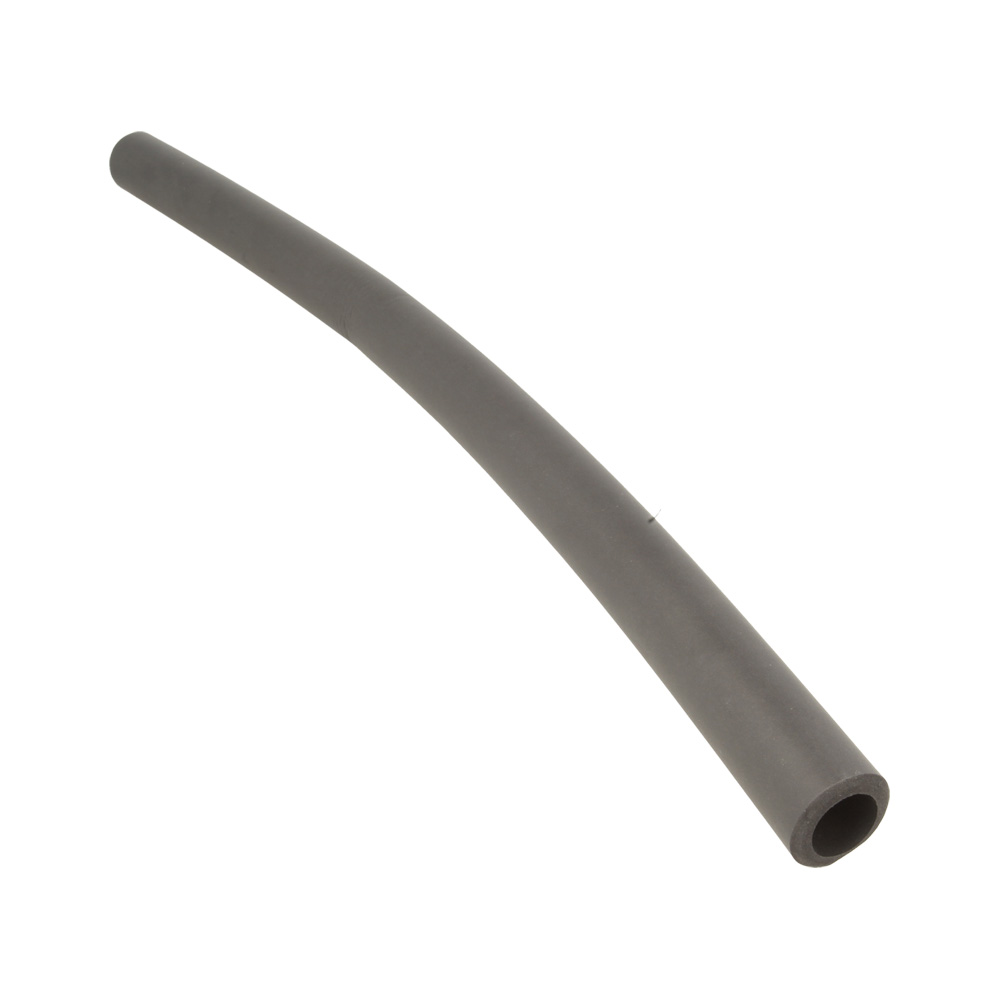

  98 Handle Sheath CO25600101702
Handle Sheath
Out of stock
£4.60 £3.83

  99 Pressing Board Of Cord CO26300108301
Pressing Board Of Cord
Out of stock
£2.52 £2.10

  100 Bolt CO26800301201
Bolt
Out of stock
£2.52 £2.10

  101 Wrench CO26300107801
Wrench
Out of stock
£2.52 £2.10

  102 Wrench Rod CO26300107901
Wrench Rod
Out of stock
£2.52 £2.10


Description

Cobra RM46C Rotary Mower Parts Diagram
