Cobra RM46B - 18" Roller Push Revised June 2020 Main Diagram

Name: Cobra RM46B - 18" Roller Push Revised June 2020 Main Diagram
SKU: rm46b_18_roller_push_revised_june_2020_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM46B - 18" Roller Push Revised June 2020 Main Diagram

Description

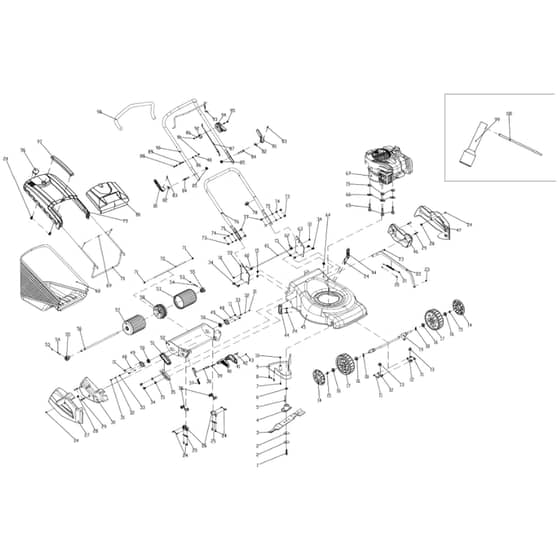

Cobra RM46B Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300239301 In stock	Blade	£18.00 £15.00
4	CO26300152502 Available to backorder	Blade Support	£7.20 £6.00
5	CO26809000201 In stock	Flat Pin	£2.40 £2.00
6	CO26900209301 Available to backorder	Blade Support Bush	£2.52 £2.10
7	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
8	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
9	CO25205200101 In stock	Belt Protecting Cover	£6.50 £5.42
10	CO26800502401 Available to backorder	Locking Nut	£1.26 £1.05
11	CO26800201901 Available to backorder	Tooth Screw	£1.20 £1.00
12	CO26300134202 Available to backorder	Pressing Plate For Axle Fixed	£2.62 £2.18
13	CO25202600101 In stock	Front Wheel Axis Fixing Ring	£2.40 £2.00
14	CO23600105002 Available to backorder	Wheel Cover-1	£2.52 £2.10
15	CO26800502801 Available to backorder	Hexagon Flange Locking Bolt	£1.44 £1.20
16	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
17	CO25400200105 In stock	Wheel Assy	£11.95 £9.96
18	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
19	CO23600402601 In stock	Front Wheel Axis Assy	£16.20 £13.50
20	CO29000300101 Available to backorder	Heat Shrink Tubing	£2.62 £2.18
21	CO26801124501 Available to backorder	Connecting Rod Tension Spring	£5.04 £4.20
22	CO23600402901 Available to backorder	Connecting Rod	£5.64 £4.70
23	CO26800500501 Available to backorder	Locking Nut	£2.40 £2.00
24	CO26800104601 In stock	Self-Driving Screw	£1.20 £1.00
25	CO26300282801 Available to backorder	Pressing Board	£2.40 £2.00
26	CO2101100028A Available to backorder	Axle Pressure	£2.40 £2.00
27	CO25319600201 Available to backorder	Left Rear Wheel Decorative Panel	£6.64 £5.53
28	CO25320500101 Available to backorder	Fixed Block	£2.52 £2.10
29	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
30	CO25319800101 In stock	Right Rear Wheel Protecting Cover	£5.18 £4.32
31	CO26800201002 Available to backorder	Tooth Screw	£1.20 £1.00
32	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
33	CO26800706301 Available to backorder	Flat Washer	£1.20 £1.00
34	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
35	CO23600403101 Available to backorder	Gearing Board	£3.11 £2.59
36	CO25320700101 Available to backorder	Hand-Push Rear Wheel Shaft Sleeve	£2.52 £2.10
37	CO26801124401 Available to backorder	Torsional Spring	£2.62 £2.18
38	CO23600403001 Available to backorder	Height Adjustment Handle	£5.26 £4.38
39	CO26800500201 Available to backorder	Nut	£2.52 £2.10
40	CO25400107503 Available to backorder	7 Shape Handle_Left Shell	£2.52 £2.10
41	CO25400107603 Available to backorder	7 Shape Handle_Right Shell	£2.52 £2.10
42	CO26800200301 Available to backorder	Tooth Screw	£2.52 £2.10
43	CO26800106202 Available to backorder	Self-Driving Screw	£2.52 £2.10
44	CO25320600101 Available to backorder	Clip	£2.52 £2.10
46	CO25319700101 Available to backorder	Left Rear Wheel Protecting Cover	£4.81 £4.01
47	CO25319500201 Available to backorder	Left Rear Wheel Decorative Panel	£6.64 £5.53
48	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
49	CO26300283801 Available to backorder	Bearing Catch	£2.40 £2.00
50	CO26800407301 In stock	Bearing	£3.24 £2.70
51	CO23100109101 Available to backorder	Gear Decorative Board	£2.52 £2.10
52	CO23600402801 Available to backorder	Rear Wheel Axis Assy	£39.62 £33.02
53	CO26800501101 Available to backorder	Locking Nut	£1.20 £1.00
54	CO26800303601 Available to backorder	Screw	£1.20 £1.00
55	CO25320200101 In stock	Connecting Knob	£2.40 £2.00
56	CO26300284901 Available to backorder	Connecting Rod	£10.04 £8.37
57	CO25320000101 In stock	Idler Wheel	£11.96 £9.97
58	CO25320100101 In stock	Connecting Wheel	£3.72 £3.10
59	CO23601016701 Available to backorder	Right Handle Bracket	£5.10 £4.25
60	CO26801112701 Available to backorder	Spring Of Right Knob	£2.52 £2.10
61	CO26300165601 Available to backorder	Long Rod	£2.52 £2.10
62	CO26801112601 Available to backorder	Spring Of Left Knob	£2.52 £2.10
63	CO23601016801 Available to backorder	Left Handle Blacket	£5.10 £4.25
64	CO25217700104 Available to backorder	Cord Protceting Sheath	£2.52 £2.10
65	CO26800602501 Available to backorder	Hexagon Locking Bolt	£2.52 £2.10
66	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
68	CO25100165502 In stock	Grass Catcher	£30.40 £25.33
69	CO26800103202 In stock	Self-Driving Screw	£1.20 £1.00
70	CO26300283002 Available to backorder	Grass Catcher Bracket	£17.38 £14.48
71	CO26800506001 Available to backorder	Nut	£1.26 £1.05
72	CO26300289601 Available to backorder	Long Rod	£2.40 £2.00
73	CO26800501502 Available to backorder	Lid Nut	£1.20 £1.00
74	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
75	CO26800700701 Available to backorder	Flate Washer	£2.40 £2.00
76	CO23600173601 Available to backorder	Lower Handle Pole	£13.50 £11.25
77	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
78	CO25261100101 Available to backorder	Wire Clamp	£2.52 £2.10
79	CO25275300101 Available to backorder	Grass Bracket Cover	£18.40 £15.33
80	CO23000487501 Available to backorder	Rear Cover Assy	£9.91 £8.26
81	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
82	CO26300142002 Available to backorder	Pressing Plate	£2.62 £2.18
83	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
84	CO26300124501 Available to backorder	Locking Handle Bolt	£2.62 £2.18
85	CO26800500801 Available to backorder	Locking Nut	£1.26 £1.05
86	CO26800700801 Available to backorder	Flate Washer	£1.20 £1.00
87	CO29100124801 In stock	Flameout Cord Assy	£9.60 £8.00
88	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
89	CO26300168401 Available to backorder	Rope Guide	£2.52 £2.10
90	CO23600163201 Available to backorder	Upper Handle Pole	£24.30 £20.25
91	COA26800501603 Available to backorder	Lid Nut	£1.20 £1.00
92	CO25233600101 Available to backorder	Cord Fixing Board	£2.40 £2.00
93	CO23601016901 Available to backorder	Flameout Pulling Pole	£5.52 £4.60
94	CO29100100402 Available to backorder	Choke Handle Assy	£10.80 £9.00
95	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
96	CO21071000080108A In stock	Wind Window Board	£2.40 £2.00
97	CO25275500201 In stock	Grass Catcher Handle	£2.40 £2.00
98	CO25600101702 Available to backorder	Handle Sheath	£4.38 £3.65
99	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
100	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
