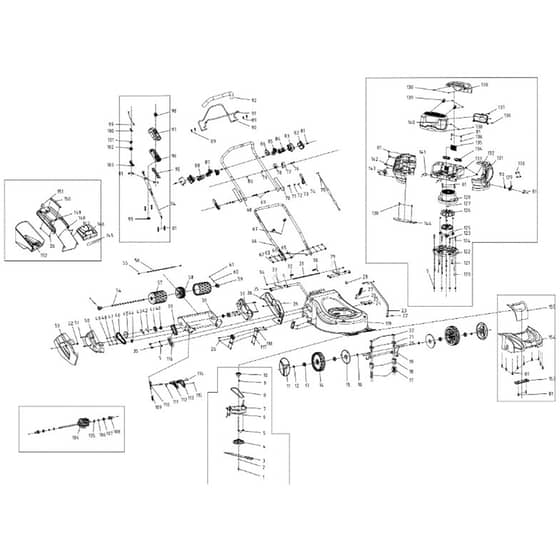

Cobra RM43SP40VX Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO30913070235026 Available to backorder	Hexagonal Head Flange Bolt M8*40	£1.33 £1.11
2	CO2139300010A Available to backorder	Disc-Shaped Washer	£1.25 £1.04
3	CO21052003572000A In stock	Blade	£20.28 £16.90
4	CO2105100048A Available to backorder	Fan Blade (Dym192404-02)	£6.28 £5.23
6	CO3011301006 Available to backorder	Self-Tapping Screw	£1.25 £1.04
7	CO21051000080001A Available to backorder	Belt Protective Cover (Dym152011-03)	£9.66 £8.05
8	CO2102600056A Available to backorder	V-Belt	£12.38 £10.32
9	CO2263300003A Available to backorder	Flat Key	£1.26 £1.05
10	CO2102100008A Available to backorder	Belt Pulley (Dym192402-18)	£6.91 £5.76
11	CO21011001480006A Available to backorder	Wheel Cover	£2.96 £2.47
12	CO3032306003 Available to backorder	Hexagonal Flange Lock Nut M8	£1.26 £1.05
13	CO2101300065A Available to backorder	Angular Bearings	£2.40 £2.00
14	CO21011002593208B Available to backorder	Wheel Assembly (Dym1578-29)	£16.44 £13.70
15	CO21011001450001B Available to backorder	Dustproof Wheel Cover (Dym1578-32)	£7.50 £6.25
16	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
17	COA26800202701 Available to backorder	Cross Recessed Pan Head Screws	£2.40 £2.00
18	CO21011005550001A Available to backorder	Axle Lower Seat (Dym1576K-14)	£1.25 £1.04
19	CO2101500194A Available to backorder	Front Wheel Axle Assembly	£17.28 £14.40
20	CO2101800009A Available to backorder	Shock-Absorbing Spring	£1.25 £1.04
21	CO21011005540001A Available to backorder	Axle Upper Seat (Dym1576K-14)	£1.25 £1.04
22	CO3031309003 Available to backorder	Hexagonal Lock Nut M6	£1.26 £1.05
23	CO2101300081A Available to backorder	Connecting Rod	£8.63 £7.19
24	CO30913050015000 Available to backorder	Hexagonal Head Flange Bolt	£1.25 £1.04
25	CO2102200050A Available to backorder	Positioning Plate	£2.38 £1.98
26	CO3011301004 Available to backorder	Self-Tapping Screw	£1.26 £1.05
27	CO2103100010A Available to backorder	Buckle (Dym1566Qnr-02)	£2.52 £2.10
28	CO21031005960001A Available to backorder	Plug	£1.25 £1.04
29	CO21062004430108A Available to backorder	Right Armrest Bracket	£6.64 £5.53
30	CO2109800117C Available to backorder	Left Torsion Spring	£1.25 £1.04
32	CO2109800118C Available to backorder	Right-Handed Torsion Spring	£1.25 £1.04
33	CO21062004420108A Available to backorder	Left Armrest Bracket	£6.64 £5.53
34	CO3032306001 Available to backorder	All-Metal Hexagonal Flange Lock Nut M6	£1.26 £1.05
35	CO26800606401 Available to backorder	Hexagonal Head Flange Bolt	£2.62 £2.18
36	CO21041006390108A Available to backorder	Left Rear Wheel Decorative Cover (Dym152011-01)	£9.94 £8.28
37	CO21021000040001A Available to backorder	Left Rear Wheel Protective Cover (Dym1566Qnr-03)	£7.56 £6.30
38	CO2101500164A Available to backorder	Rear Axle Assembly	£48.66 £40.55
39	CO21041006414017A Available to backorder	Gear Shift Trim Panel	£2.80 £2.33
40	CO26800407301 In stock	Bearing	£3.24 £2.70
41	CO2101300004A Available to backorder	Bearing Stopper	£2.52 £2.10
42	CO3052301003 Available to backorder	Spring Washer	£1.25 £1.04
43	CO26800204201 Available to backorder	Hexagon Socket Flat Round Head Screw	£1.26 £1.05
44	CO2102300008A In stock	Small Chain Wheel	£5.76 £4.80
45	CO2101300005A In stock	Large Chain Wheel	£7.48 £6.23
46	CO2109900032 In stock	Chain	£5.42 £4.52
47	CO26800706301 Available to backorder	Flat Washer	£1.20 £1.00
48	CO3052301004 Available to backorder	Spring Washer	£1.25 £1.04
49	CO3021302001 Available to backorder	Machine Tooth Screw	£1.25 £1.04
50	CO21011000310001A Available to backorder	Right Rear Wheel Protective Cover (Dym1566Qnr-03)	£8.90 £7.42
51	CO3091308002 Available to backorder	Hexagonal Head Flange Bolt	£1.25 £1.04
52	CO2103100014A Available to backorder	Fixed Plug Block (Dym1566Qnr-11)	£2.52 £2.10
53	CO21041006400108A Available to backorder	Right Rear Wheel Decorative Cover (Dym152011-01)	£9.94 £8.28
54	CO2101300042A Available to backorder	Connecting Rod	£9.12 £7.60
55	CO26800506001 Available to backorder	All-Metal Hexagonal Flange Lock Nut	£1.26 £1.05
56	CO2106200748A Available to backorder	Long Pole	£2.74 £2.28
57	CO21011001890001A In stock	Roller (Dym1564Qnr-01)	£13.08 £10.90
58	CO21011000320001A Available to backorder	Connecting Wheel (Dym1566Qnr-07)	£4.45 £3.71
59	CO21011000340001A Available to backorder	Connecting Knob (Dym1566Qnr-08)	£2.52 £2.10
60	CO26800315101 Available to backorder	Hexagon Socket Head Cap Screw	£1.26 £1.05
61	CO3031309005 Available to backorder	Hexagonal Lock Nut M5 (Same As A26800501101)	£1.26 £1.05
62	CO3033302001 Available to backorder	Cap Nut M8	£1.26 £1.05
63	CO3052301002 Available to backorder	Spring Washer	£1.25 £1.04
64	CO3051303001 Available to backorder	Flat Washer	£1.26 £1.05
65	CO30913090025000 Available to backorder	Half Round Head Square Neck Bolt M8*20	£2.52 £2.10
66	CO21062011660001A Available to backorder	Lower Handrail	£23.83 £19.86
67	CO21061000013201A Available to backorder	Wire Clamp (Dym1568-08-2)	£2.52 £2.10
68	CO21063004540001A Available to backorder	Upper Handrail	£23.42 £19.52
69	CO2129900095B Available to backorder	Flat Head Bolt	£1.50 £1.25
70	CO21061005660001A Available to backorder	Pipe Sleeve (Dym112201-01)	£1.45 £1.21
71	CO21061005670001A Available to backorder	Pipe Sleeve Bushing (Dym112201-02)	£1.26 £1.05
72	CO30512050025000 Available to backorder	Large Washer 8	£1.25 £1.04
73	CO2109300018C In stock	Quick-Action Wrench Shaft	£3.04 £2.53
74	CO21061007230108A Available to backorder	Locking Handle (Dym1564K-07)	£2.12 £1.77
75	CO2106801011A Available to backorder	Drive Cable Assembly	£14.57 £12.14
76	CO3091307004 Available to backorder	Hexagon Flange Bolt M6*40	£2.52 £2.10
77	CO21061007350001A Available to backorder	Lasso Spacer Block	£1.25 £1.04
78	CO21061003650001N Available to backorder	Lasso Fixing Block	£1.20 £1.00
79	CO3051303003 Available to backorder	Flat Washer 6	£1.20 £1.00
80	COA26800501603 Available to backorder	Cap Nut	£1.20 £1.00
81	CO3011301010 Available to backorder	Self-Tapping Screw	£1.26 £1.05
82	CO21041011030001A Available to backorder	Fixed Seat Cover Plate (Dym192619-08)	£1.25 £1.04
83	CO21041011010001A Available to backorder	Tension Rod Bracket Mount (Dym192619-06)	£1.25 £1.04
84	CO21041011040001A Available to backorder	Drive Rod Bracket Left (Dym192619-09)	£1.25 £1.04
85	CO21041011000001A Available to backorder	Start The Left Pull Rod Bracket (Dym192619-05)	£1.25 £1.04
86	CO21041011020001A Available to backorder	Tension Rod Bracket Cover Plate (Dym192619-07)	£1.25 £1.04
87	CO21299000680001A Available to backorder	Start The Right Pull Rod Bracket (Dym192619-05)	£1.25 £1.04
88	CO21299000690001A Available to backorder	Drive Rod Bracket Right (Dym192619-09)	£1.25 £1.04
89	COA26800200101 Available to backorder	Machine Tooth Screw	£1.25 £1.04
90	CO21063004560001A Available to backorder	Drive Rod	£10.32 £8.60
91	CO21063004550108A Available to backorder	Activate The Lever	£8.08 £6.73
92	CO2106100320A Available to backorder	Armrest Cover	£6.28 £5.23
93	CO2208100010A Available to backorder	Pressure Plate (Dym2164-27)(Dym2164-27-2)	£1.26 £1.05
94	CO2108900536A Available to backorder	Handrail Control Line	£17.94 £14.95
95	CO21031004650001A Available to backorder	Switch Box Pressure Plate (Dym100909-24)	£1.25 £1.04
96	CO21031004640001A Available to backorder	Lower Cover Of Switch Box (Dym100909-23)	£1.92 £1.60
97	CO21031004630001A Available to backorder	Upper Cover Of Switch Box (Dym100909-23)	£1.93 £1.61
98	CO21031004670108A Available to backorder	Button (Dym100909-25)	£1.25 £1.04
99	CO2106800820A Available to backorder	Activate Lasso	£2.75 £2.29
100	CO2109800012 Available to backorder	Spring	£1.25 £1.04
101	CO2103800046 Available to backorder	Spring	£1.25 £1.04
102	CO2103100468B Available to backorder	Trigger Button (Dym100909-26)	£1.25 £1.04
103	CO2103100469A Available to backorder	Push Block (Dym100909-27)	£1.25 £1.04
104	CO2102300081A Available to backorder	Gearbox	£64.68 £53.90
105	CO2269800006A Available to backorder	B Sales	£2.52 £2.10
106	COA26800705102 Available to backorder	Flat Washer	£1.25 £1.04
107	CO26800402302 Available to backorder	Bearing	£2.70 £2.25
108	CO2101400001A Available to backorder	Bearing Sleeve	£4.37 £3.64
109	CO2109800154A Available to backorder	Torsion Spring	£2.52 £2.10
110	CO2106300011A Available to backorder	Raise The Handle	£3.02 £2.52
111	CO26800500201 Available to backorder	Hexagonal Lock Nut	£2.52 £2.10
112	CO21061000263005A Available to backorder	7-Shaped Handle Right Shell (Dym1576-38)	£2.57 £2.14
113	CO21061000253005A Available to backorder	7-Shaped Handle Left Shell (Dym1576-38)	£2.57 £2.14
114	CO26800200301 Available to backorder	Machine Tooth Screw	£2.52 £2.10
115	CO3011301035 Available to backorder	Self-Tapping Screw	£1.25 £1.04
116	CO21062008230001N Available to backorder	Gear Plate	£7.86 £6.55
117	CO2101200010A Available to backorder	Pressure Plate	£2.52 £2.10
118	CO2101100028A Available to backorder	Axle Pressure Seat (Dym1566Qnr-09)	£2.40 £2.00
120	COA26800105502 Available to backorder	Self-Tapping Screw	£2.52 £2.10
121	CO3091307008 Available to backorder	Hexagon Flange Bolt M6*30	£1.26 £1.05
122	CO21041009580001A Available to backorder	Motor Base (Mna192801-10)	£9.05 £7.54
123	CO30913040115000 Available to backorder	Hexagonal Bolt M8*25	£1.25 £1.04
124	CO30913040085000 Available to backorder	Hexagonal Head Bolt M8*35	£1.25 £1.04
125	CO2050000024A Available to backorder	Brushless Motor	£100.93 £84.11
126	CO2109100083A Available to backorder	Motor Fan Blade (Lc 353Vxi-06)	£2.24 £1.87
127	CO3042301004 Available to backorder	Elastic Retaining Ring For Shaft 10	£1.25 £1.04
128	CO21091002440001A Available to backorder	Motor Cover (Dym192220-09)	£3.62 £3.02
130	CO3011301009 Available to backorder	Self-Tapping Screw St4*12	£1.26 £1.05
131	CO21091002360001A Available to backorder	Right Housing Of Power Head (Dym192220-01)	£9.30 £7.75
132	CO2109400004A Available to backorder	Cylindrical Magnet	£2.69 £2.24
133	CO21091003060001A Available to backorder	Battery Compartment (Dym192621-01)	£8.71 £7.26
134	CO2108900494A Available to backorder	Conversion Board Assembly	£63.05 £52.54
135	CO2109900303A Available to backorder	Controller Dym192621	£59.30 £49.42
136	CO2109200005A Available to backorder	Limit Pressure Plate	£2.52 £2.10
137	CO2109100303A Available to backorder	Power Head Transparent Cover (Dym192220-04)	£2.18 £1.82
138	CO21041011250006A Available to backorder	Power Head Cover (Dym192220-02)	£11.53 £9.61
139	CO21091002400001A Available to backorder	Power Head Hinge (Dym192220-05)	£1.25 £1.04
140	CO21041011260001A Available to backorder	Power Head Flip Cover (Dym192220-03)	£5.80 £4.83
141	CO2102800020A Available to backorder	Battery Compartment Spring	£1.25 £1.04
142	CO21091002350001A Available to backorder	Power Head Left Casing (Dym192220-01)	£9.30 £7.75
143	CO21091002410001A Available to backorder	Power Head Left Cover (Dym192220-08)	£1.25 £1.04
144	CO21091003110001A Available to backorder	Battery Compartment Pressure Plate (Mna192707-01)	£1.33 £1.11
145	CO2109100028A Available to backorder	Leak Proof Strip	£1.57 £1.31
146	CO21041003680001A Available to backorder	Rear Cover Plate (Dym1564Qnr-05)	£10.48 £8.73
147	CO2107500045A Available to backorder	Grass Collecting Bag Bracket	£10.33 £8.61
148	CO3011301005 Available to backorder	Self-Tapping Screw	£1.25 £1.04
149	CO21071000800001N Available to backorder	Grass Collecting Basket Cover (Dym1564Qnr-06)	£21.42 £17.85
150	CO21071000050001N Available to backorder	Grass Collecting Basket Handle (Dym1526Eg-04) (Dym1526Eg-04-2)	£2.52 £2.10
151	CO21071000080108A In stock	Windshield Panel (Dym1526Eg-05) (Dym1526Eg-05-02)	£2.40 £2.00
152	CO21077000872006A Available to backorder	Grass Collection Bag	£34.42 £28.68
153	CO21041002970001A Available to backorder	Face Mask Handle (Dym1576-46)	£2.52 £2.10
154	CO21041004150006N Available to backorder	Head Mask	£19.20 £16.00
155	CO21041004160001A Available to backorder	Face Shield Cover (Dym161901-04)	£2.92 £2.43
