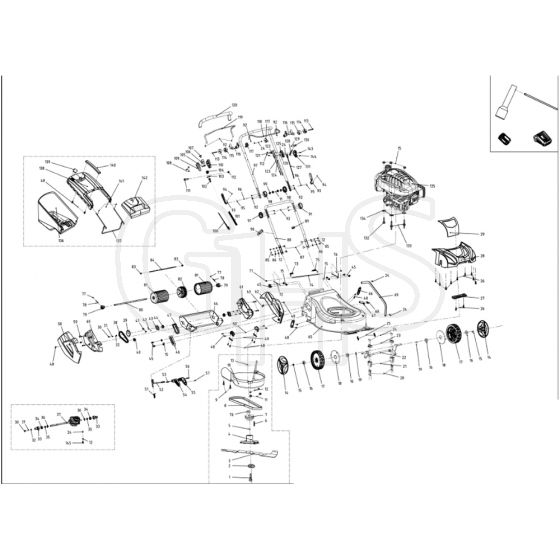

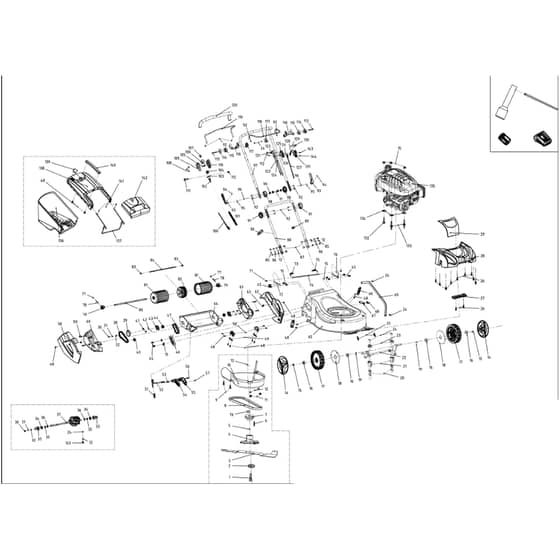

Cobra RM433SPBI - Rear Roller Briggs Instart April 2018 Main Diagram

Ref. Img. Part No. Details
  1 Blade Locking Bolt CO26800606201
Blade Locking Bolt
Out of stock
£2.40 £2.00

  2 Washer CO2105300001C
Washer
Out of stock
£2.52 £2.10

  3 Blade CO2105200273A
Blade
Out of stock
£27.70 £23.08

  4 Blade Support CO2105300037C
Blade Support
Out of stock
£9.83 £8.19

  4 Blade Support CO2105300155A
Blade Support
Out of stock
£9.83 £8.19

  5 Sheath Of Blade Support CO2105400025A
Sheath Of Blade Support
Out of stock
£2.52 £2.10

  5 Sheath Of Blade Support CO2012300191A
Sheath Of Blade Support
Out of stock
£2.52 £2.10

  6 Flat Key CO2105300077A
Flat Key
Out of stock
£2.52 £2.10

  6 Flat Key CO2103900034A
Flat Key
Out of stock
£1.26 £1.05

  7 Driving Pulley CO2102300124A
Driving Pulley
Out of stock
£26.10 £21.75

  8 Triangle Belt CO2102600005A
Triangle Belt
Out of stock
£8.80 £7.33

  9 Self-Tapping Screw CO26800103701
Self-Tapping Screw
In stock
£1.26 £1.05

  10 Protection Belt CO21051000080001A
Protection Belt
Out of stock
£9.66 £8.05

  11 Nut CO26800500801
Nut
Out of stock
£1.26 £1.05

  12 Flat Ring COA26800700701
Flat Ring
Out of stock
£2.52 £2.10

  13 Flat Washer CO2109200058A
Flat Washer
Out of stock
£2.52 £2.10

  14 Wheel Cover CO21011001480006A
Wheel Cover
Out of stock
£2.96 £2.47

  15 Nut COA26800502801
Nut
Out of stock
£2.52 £2.10

  16 Bearing CO2101300065A
Bearing
Out of stock
£2.52 £2.10

  17 Wheel CO21011002593208A
Wheel
Out of stock
£15.01 £12.51

  18 Dust-Proof Wheel Cover CO21011001450001A
Dust-Proof Wheel Cover
Out of stock
£2.52 £2.10

  19 Washer CO26800706202
Washer
Out of stock
£2.52 £2.10

  20 Screw COA26800202701
Screw
Out of stock
£2.52 £2.10

  21 Lower Support Of Wheel Axle CO21011002030001N
Lower Support Of Wheel Axle
Out of stock
£2.52 £2.10

  22 Front Wheel Axle Assy CO2101500194A
Front Wheel Axle Assy
Out of stock
£17.28 £14.40

  23 Upper Support Of Wheel Axle CO21011002020001A
Upper Support Of Wheel Axle
Out of stock
£2.52 £2.10

  24 Nut COA26800500501
Nut
Out of stock
£2.52 £2.10

  25 Spring Of Front Wheel Axle CO2109800134A
Spring Of Front Wheel Axle
Out of stock
£2.52 £2.10

  26 Self-Tapping Screw COA26800100501
Self-Tapping Screw
Out of stock
£2.52 £2.10

  27 Front Handle CO21041002970001A
Front Handle
Out of stock
£2.52 £2.10

  28 Head Cover CO21041004150006N
Head Cover
Out of stock
£19.20 £16.00

  29 Flap Cover Of Head CO21041004160001A
Flap Cover Of Head
Out of stock
£2.92 £2.43

  30 Screw CO26800201002
Screw
Out of stock
£1.26 £1.05

  31 Spring Washer CO26800800402
Spring Washer
Out of stock
£2.52 £2.10

  32 Flat Wahser CO26800706301
Flat Wahser
Out of stock
£1.26 £1.05

  33 Bearing Sheath CO2101400001A
Bearing Sheath
Out of stock
£4.37 £3.64

  34 Bearing CO26800402302
Bearing
Out of stock
£2.60 £2.17

  35 Flat Washer CO26800705102
Flat Washer
Out of stock
£2.62 £2.18

  36 B-Pin CO2269800006A
B-Pin
Out of stock
£2.52 £2.10

  37 Gearbox CO2102900007A
Gearbox
Out of stock
£71.64 £59.70

  38 Chain CO2109900032
Chain
In stock
£5.69 £4.74

  39 Big Chain Wheel CO2101300005A
Big Chain Wheel
Out of stock
£7.68 £6.40

  40 Small Chain Wheel CO2102300008A
Small Chain Wheel
Out of stock
£6.05 £5.04

  41 Screw CO26800204201
Screw
Out of stock
£1.26 £1.05

  42 Spring Washer COA26800800303
Spring Washer
Out of stock
£2.52 £2.10

  43 Bearing Catch CO2101300004A
Bearing Catch
Out of stock
£2.52 £2.10

  44 Bearing CO26800407301
Bearing
Out of stock
£3.41 £2.84

  45 Bolt CO26800606401
Bolt
Out of stock
£2.52 £2.10

  46 Height Level Plate CO21062008230001N
Height Level Plate
Out of stock
£7.86 £6.55

  47 Decorative Sheet Of Height Level CO21041006414017A
Decorative Sheet Of Height Level
Out of stock
£2.80 £2.33

  48 Self-Tapping Screw CO3011301004
Self-Tapping Screw
Out of stock
£1.26 £1.05

  49 Pressing Plate CO2101200010A
Pressing Plate
Out of stock
£2.52 £2.10

  50 Pressing Support Of Wheel Axle CO2101100028A
Pressing Support Of Wheel Axle
Out of stock
£2.52 £2.10

  51 Torsional Spring CO2109800154A
Torsional Spring
Out of stock
£2.52 £2.10

  52 Height Adjust Handle CO2106300011A
Height Adjust Handle
Out of stock
£3.02 £2.52

  53 Nut CO26800500201
Nut
Out of stock
£2.52 £2.10

  54 Right Cover Of 7-Shape Handle CO21061000263005A
Right Cover Of 7-Shape Handle
Out of stock
£2.57 £2.14

  55 Left Cover Of 7-Shape Handle CO21061000253005A
Left Cover Of 7-Shape Handle
Out of stock
£2.57 £2.14

  56 Screw CO26800200301
Screw
Out of stock
£2.52 £2.10

  57 Self-Tapping Screw COA26800106202
Self-Tapping Screw
Out of stock
£2.52 £2.10

  58 Decorative Cover Of Right Rear Wheel CO21041006400108A
Decorative Cover Of Right Rear Wheel
Out of stock
£9.94 £8.28

  59 Bolt CO26800612201
Bolt
Out of stock
£2.52 £2.10

  60 Protection Cover Of Right Rear Wheel CO21011000310001A
Protection Cover Of Right Rear Wheel
Out of stock
£8.90 £7.42

  61 Protection Cover Of Left Rear Wheel CO21021000040001A
Protection Cover Of Left Rear Wheel
Out of stock
£7.92 £6.60

  62 Decorative Cover Of Left Rear Wheel CO21041006390108A
Decorative Cover Of Left Rear Wheel
Out of stock
£9.94 £8.28

  63 Fixed Brake Shoe CO2103100014A
Fixed Brake Shoe
Out of stock
£2.52 £2.10

  64 Rear Wheel Axle Assy CO2101500164A
Rear Wheel Axle Assy
Out of stock
£48.66 £40.55

  66 Buckle CO2103100010A
Buckle
Out of stock
£2.52 £2.10

  67 Fixing Plate CO2102200035A
Fixing Plate
Out of stock
£2.52 £2.10

  68 Bolt COA26800611201
Bolt
Out of stock
£2.52 £2.10

  69 Connection Rod CO2101300081A
Connection Rod
Out of stock
£8.63 £7.19

  70 Washer COA26800708101
Washer
Out of stock
£1.26 £1.05

  71 Nut CO3032306001
Nut
Out of stock
£1.26 £1.05

  72 Right Handle Bracket CO21062004430108A
Right Handle Bracket
Out of stock
£6.64 £5.53

  73 Right Knob Spring CO2109800118B
Right Knob Spring
Out of stock
£2.52 £2.10

  74 Long Rod CO2103300049A
Long Rod
Out of stock
£2.66 £2.22

  75 Left Knob Spring CO2109800117B
Left Knob Spring
Out of stock
£2.52 £2.10

  76 Left Handle Bracket CO21062004420108A
Left Handle Bracket
Out of stock
£6.64 £5.53

  77 Nut CO26800501101
Nut
Out of stock
£1.26 £1.05

  78 Screw CO26800315101
Screw
Out of stock
£1.26 £1.05

  79 Connection Knob CO21011000340001A
Connection Knob
Out of stock
£2.52 £2.10

  80 Connection Rod CO2101300042A
Connection Rod
Out of stock
£9.55 £7.96

  81 Roller CO21011001890001A
Roller
Out of stock
£13.72 £11.43

  82 Connection Wheel CO21011000320001A
Connection Wheel
Out of stock
£4.45 £3.71

  83 Nut CO26800506001
Nut
Out of stock
£1.26 £1.05

  84 Long Rod CO2106200748A
Long Rod
Out of stock
£2.74 £2.28

  85 Nut CO3033302001
Nut
Out of stock
£1.26 £1.05

  86 Spring Washer CO26800800202
Spring Washer
Out of stock
£2.52 £2.10

  88 Lower Handle CO21063001490001A
Lower Handle
Out of stock
£18.90 £15.75

  89 Cable Clamp CO21061000013201A
Cable Clamp
Out of stock
£2.52 £2.10

  90 Cable Clamp CO21061002540001A
Cable Clamp
Out of stock
£2.52 £2.10

  91 Lower Adjust Wheel Gear CO21061003883201N
Lower Adjust Wheel Gear
Out of stock
£2.52 £2.10

  92 Self-Tapping Screw CO2109300058A
Self-Tapping Screw
Out of stock
£1.26 £1.05

  93 Locking Handle CO21061006500108A
Locking Handle
Out of stock
£2.52 £2.10

  94 Round Pin CO2109300063A
Round Pin
Out of stock
£2.52 £2.10

  95 Pressing Plate CO2109200025A
Pressing Plate
Out of stock
£2.52 £2.10

  96 Locking Handle CO2109300026A
Locking Handle
Out of stock
£2.52 £2.10

  97 Upper Handle CO21062008060001B
Upper Handle
Out of stock
£25.60 £21.33

  98 Upper Adjusting Wheel Gear CO21061003843206D
Upper Adjusting Wheel Gear
Out of stock
£2.52 £2.10

  99 Flat Washer CO2109200029B
Flat Washer
Out of stock
£2.52 £2.10

  100 Plug Connection Wire CO2011100238A
Plug Connection Wire
Out of stock
£3.78 £3.15

  101 Bellows CO2109100027N
Bellows
Out of stock
£2.74 £2.28

  102 Button Switch CO27600105301
Button Switch
Out of stock
£2.62 £2.18

  103 Switch Pressing Plate CO25365100101
Switch Pressing Plate
Out of stock
£2.52 £2.10

  104 Spring CO26801133001
Spring
Out of stock
£2.62 £2.18

  105 Spring Cover CO25365000101
Spring Cover
Out of stock
£2.62 £2.18

  106 Button Cover CO25364900101
Button Cover
Out of stock
£2.62 £2.18

  107 Switch Button CO25364800501
Switch Button
Out of stock
£4.08 £3.40

  109 Right Cover Of Switch Box CO25364700101
Right Cover Of Switch Box
Out of stock
£2.62 £2.18

  110 Left Cover Of Switch Box CO25364600101
Left Cover Of Switch Box
Out of stock
£2.62 £2.18

  111 Bolt CO26800607701
Bolt
Out of stock
£2.62 £2.18

  112 Nut CO26800501603
Nut
Out of stock
£1.44 £1.20

  113 Screw CO26800611401
Screw
Out of stock
£2.52 £2.10

  114 Fixing Support Of Bail Arm Outside CO21061004573201N
Fixing Support Of Bail Arm Outside
Out of stock
£2.52 £2.10

  115 Fixing Support Of Bail Arm Inside CO21061004593201N
Fixing Support Of Bail Arm Inside
Out of stock
£2.52 £2.10

  116 Plate Of Self Propelled Cable CO21061001803201B
Plate Of Self Propelled Cable
Out of stock
£4.64 £3.87

  117 Cover Of Baril Arm Support CO21061001153206N
Cover Of Baril Arm Support
Out of stock
£2.52 £2.10

  118 Flameout Rod CO21062001990108A
Flameout Rod
Out of stock
£8.26 £6.88

  119 Driving Rod CO21062002080001A
Driving Rod
Out of stock
£8.15 £6.79

  120 Handle Sheath CO2106600017N
Handle Sheath
Out of stock
£4.60 £3.83

  121 Flat Washer COA26800700801
Flat Washer
Out of stock
£2.52 £2.10

  122 Cable Fixing Plate CO21061000043201A
Cable Fixing Plate
Out of stock
£2.52 £2.10

  123 Driving Cable Assy CO2106800296A
Driving Cable Assy
In stock
£12.58 £10.48

  124 Flameout Cable Assy CO2106800298A
Flameout Cable Assy
Out of stock
£10.06 £8.38

  125 Upper Cover Of Gearbox CO21041002470001A
Upper Cover Of Gearbox
Out of stock
£2.52 £2.10

  126 Self-Tapping Screw COA26800100302
Self-Tapping Screw
Out of stock
£2.52 £2.10

  127 Gearbox Cable Assy CO2106800416A
Gearbox Cable Assy
Out of stock
£12.58 £10.48

  128 Speed Handle CO2106200565A
Speed Handle
Out of stock
£2.66 £2.22

  129 Screw CO26800202501
Screw
Out of stock
£1.26 £1.05

  130 Adjusting Handle CO21061001120108N
Adjusting Handle
Out of stock
£2.52 £2.10

  131 Lower Cover Of Gearbox CO21041002480001A
Lower Cover Of Gearbox
Out of stock
£2.63 £2.19

  132 Bolt CO26800602501
Bolt
Out of stock
£2.52 £2.10

  133 Special Bolt CO2109300060A
Special Bolt
Out of stock
£2.52 £2.10

  134 Washer CO2103300032A
Washer
Out of stock
£2.52 £2.10

  136 Grassbag CO21077000872006A
Grassbag
Out of stock
£36.14 £30.12

  137 Grassbag Bracket CO2107200067A
Grassbag Bracket
Out of stock
£24.84 £20.70

  138 Cover Of Grass Bag CO21071000800001N
Cover Of Grass Bag
Out of stock
£22.57 £18.81

  139 Grass Level Indicator CO21071000080108A
Grass Level Indicator
Out of stock
£2.52 £2.10

  140 Grass Catcher Handle CO21071000050001N
Grass Catcher Handle
Out of stock
£2.52 £2.10

  141 Self-Tapping Screw CO26800103202
Self-Tapping Screw
Out of stock
£1.26 £1.05

  142 Rear Flap Assy CO2100X05083
Rear Flap Assy
Out of stock
£12.12 £10.10

  143 Bolt CO3091307013
Bolt
Out of stock
£2.52 £2.10

  144 Bolt COA26800608201
Bolt
Out of stock
£2.52 £2.10

  145 Fixing Bolt CO26800618101
Fixing Bolt
Out of stock
£2.52 £2.10


Description

Cobra RM433SPBI Rotary Mower Parts Diagram

Recommended for you

Recently viewed products

mgctlbxN$MZP mgctlbxV$5.3.7 mgctlbxL$C mgctlbxP$magento 2
